G319 Upgraded version detector Instruction
G319 adopt the advanced technology of germany, is used for kinds of Bug,car tracker, Wireless pinhole camera, Mobile phone undercover software, instrument for Casino scam and so on.
Panel&function

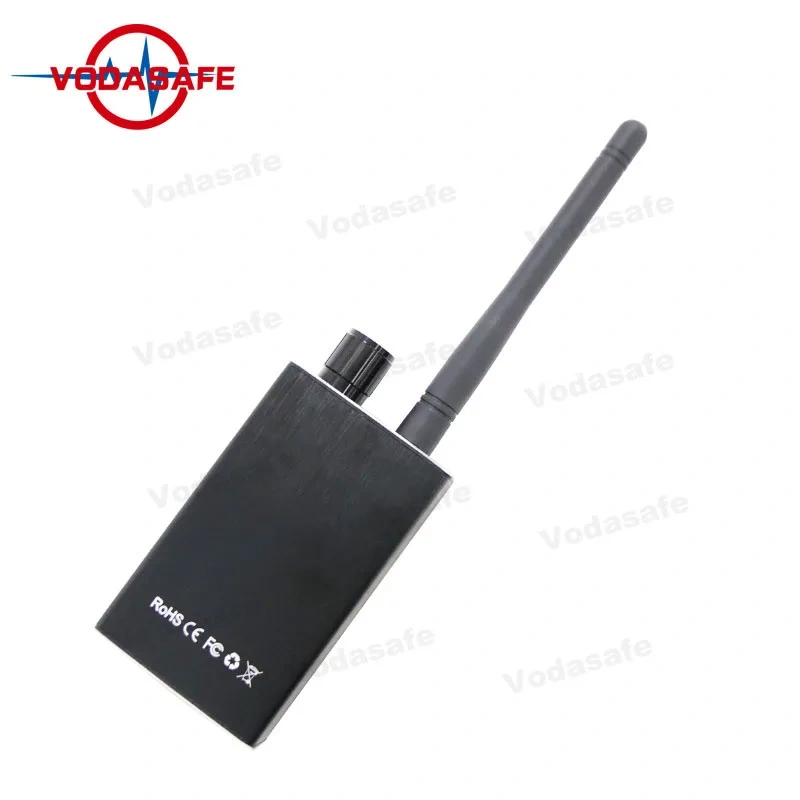

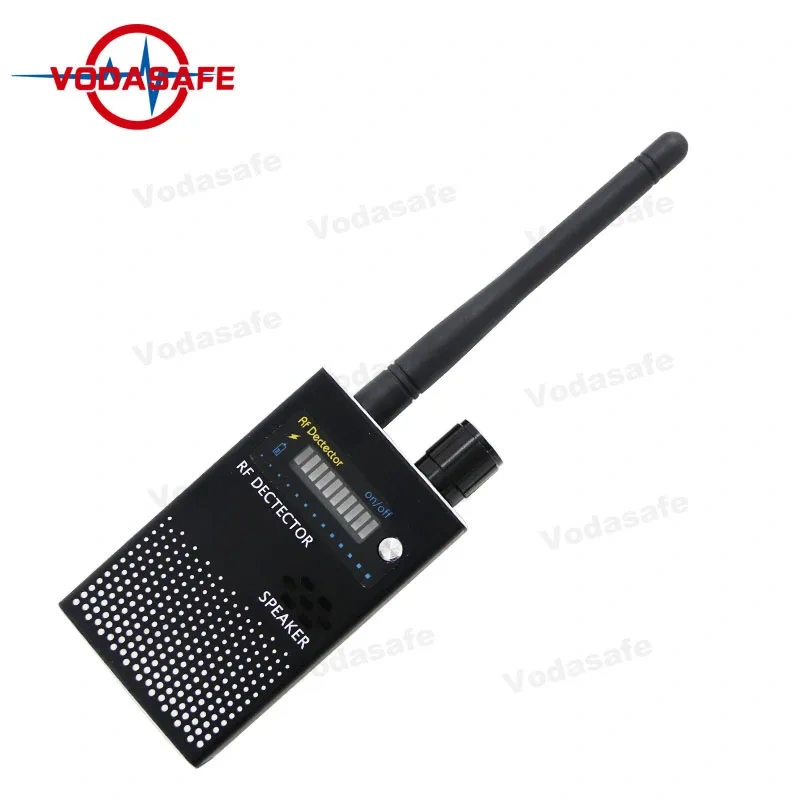

Equipment is for handheld, Top left is for the antenna, the middle is charging DC port,right is the sensitivity adjustment knob. Clockwise to strengthen,Counterclockwise to reduce sensitivity.The middle is 10 level led, From the left the first on is charge indicator,will liht when charging,the light will out when full of charge.The second is for power swith indicator,will extinguish when power is not enough.The third to tenth is for Detection instructions,a signal from weak to strong,if all lights flash, will produce "beep"sound,the sound is mor urgent,the signal is more strong. On the right the round button is power switch.
Instructions
Turn switch on(button up),second led light,means power to work normally. Turn the knob clockwise to the largest, enter standby signal,then adjust the rotary knob back,the light flash not more than the fifth light.
Signal is full,soundbeep. The signal is more strong,the sound will be more rapid.
when light bars are full and bright,the sound is more rapid,means it is near to the target.If we adjust the rotary knob back when the signal is strong,so it is easy to find the target object.
Due to high sensitivity,so we can receive the signal from Mobile phone base stations , television broadcasting station on the road. If you want to find car GPS,pls drive it to the place with weak signal,also pls set the equipment of communication as airplane mode,then the detector can work. If there is no target in the room,but the detector will alarm at times,the possible will be:
1) Your own communication equipment will match code with base stationin timing and automatic.
2) the target is near to theroom,maybe in another room,or somebody
called in another room.
3) Too close with thewireless router.
Main feature
1. Professional radio detection device, high sensitivity, adjustablethreshold, large range of frequency detection
2. Easy to use(only switch+sensitivity knob),Sound and light alarm indicator,accurate and reliable
3. can detect Mobile, unicom, telecom, 2G.3G.4G Card for bugs and locator
4. can detect Hith-speed upload GPS locator packet locator
5. can detect 1.2G/2.4G wireless camera
6. can detect hidden 5.8GHZ wireless camera andl Wireless eavesdropping.
Technique Data:
Frequency Range |
1MHz-8000MHz |
detecting the dynamic range |
>73dB |
detection sensitivity |
<0.03mw (main frequency) |
Detect range |
2.4GHz wireless camera: 10m (standard 10mW camera) |
1.2GHz wireless camera: 15m (standard 10mW camera) |
|
Mobile: 2G,3G,4G:10square meters |
|
Indicating |
9 level LED Luminous instructions/modulation sound instructions |
Power |
built-in 3.7V lithium polymer battery |
Working current |
60mA working time: 10-15 hours |
Material |
aluminum alloy weight: 160g |
volume |
102x52.5x21.5mm |
Application
1,Whether car or office is be installed wireless bugs or location tracking.
2,Whether your cellphone is eavesdropping or abnormal (transmit.when cellphone in stand-by mode without any reason)
3,Whether there is the base station radiation around your working.environment and residential buildings.
4,SMS send and receive signals, mobile Internet, mobile phonesi switch and on phone
5, Detect the wireless network signals, mobile phone base stationsi and wireless monitoring system
6,Whether do the harm to human body once Household appliances. such as microwave ovens for leaks.
7, Whether there is a suspicious wireless signals in the environment
8, Used for the hotel, the bathroom, hotel, entertainment, locker room.or political authority, etc
9, Used for business negotiation, the school administers, factories
10,Mahjong table coincidence with the action of radio waves
