Vodasafe VS-820 Professional Nonlinear Junction Detector Wall Penetrating Hidden Camera Finder

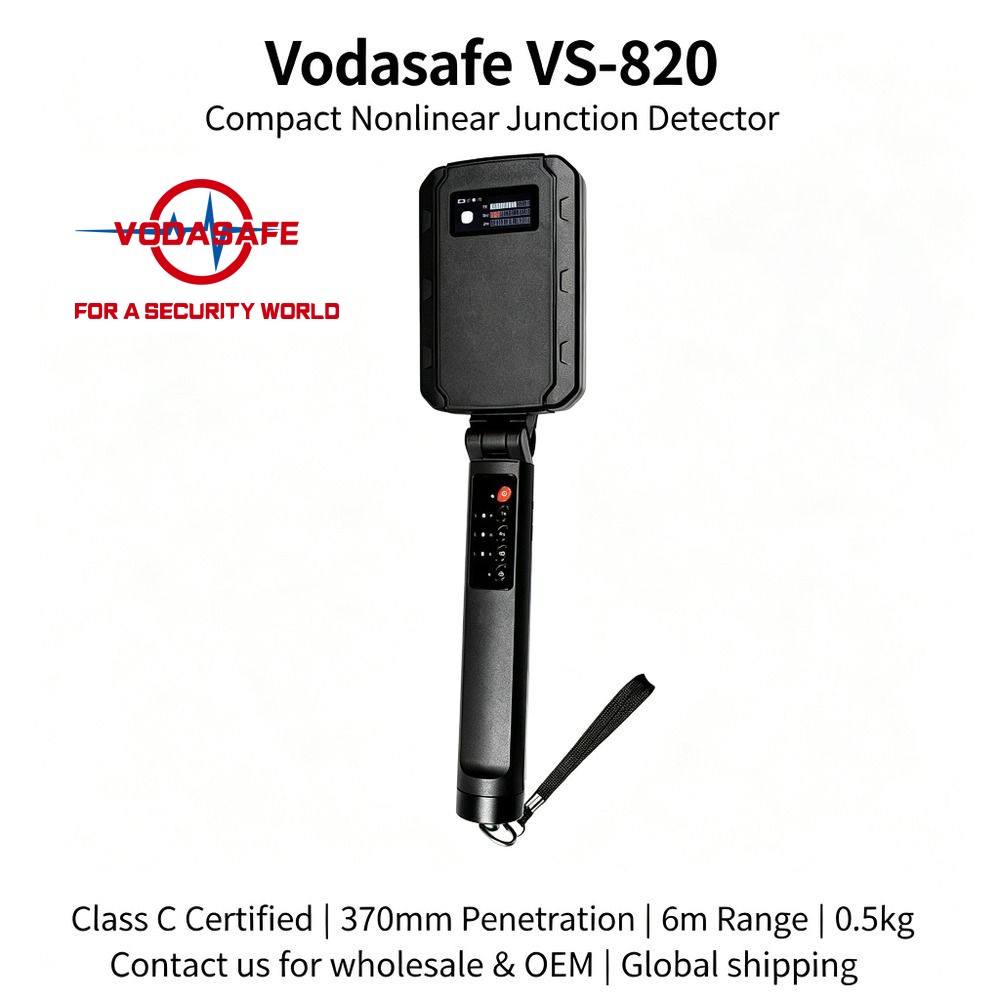

VS-820 Compact Nonlinear Junction Detector

SZ Vodasafe---Professional TSCM Hidden Electronic Detector

The SZ Vodasafe VS-820 is a miniaturized, handheld portable Nonlinear Junction Detector (NLJD) engineered for professional Technical Surveillance Countermeasures (TSCM) inspections. It adopts independent harmonic detection technology to identify all semiconductor-based electronic devices concealed inside brick walls, floors, ceilings, lamps, wooden furniture, suitcases, containers and other shielding structures.

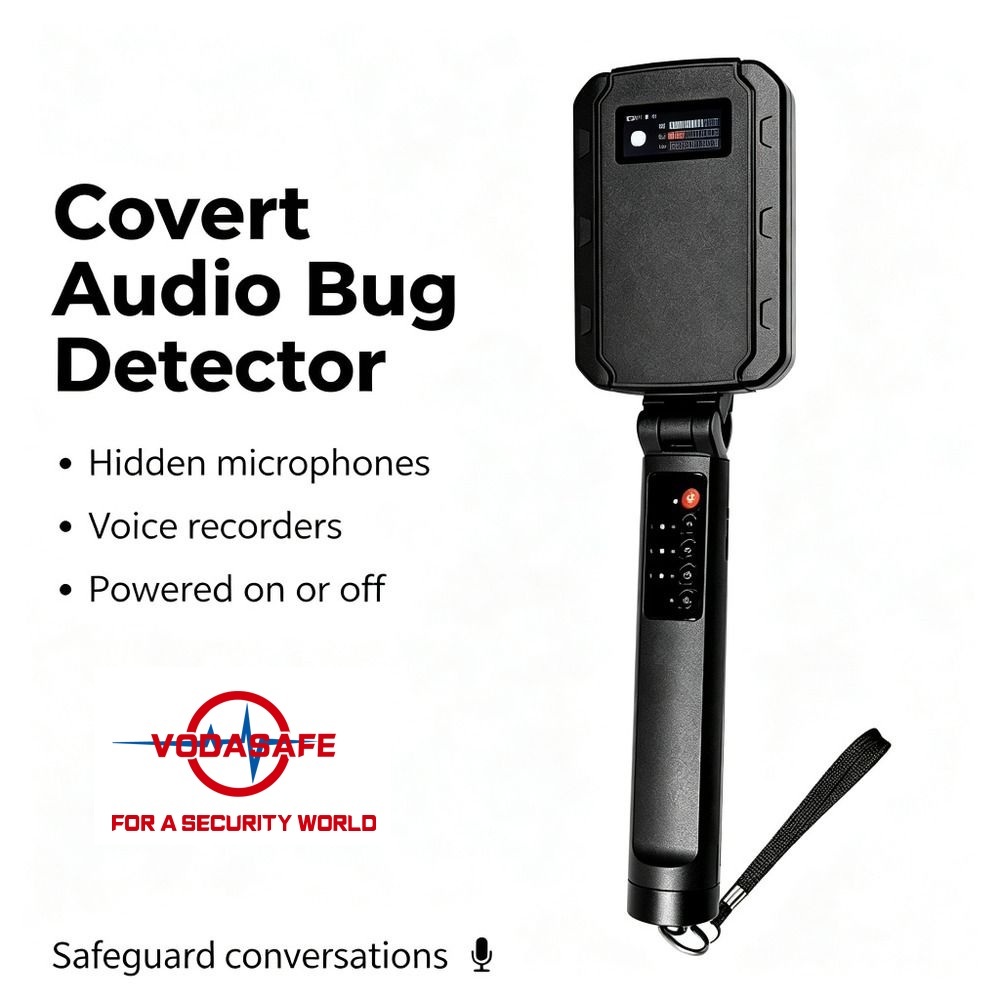

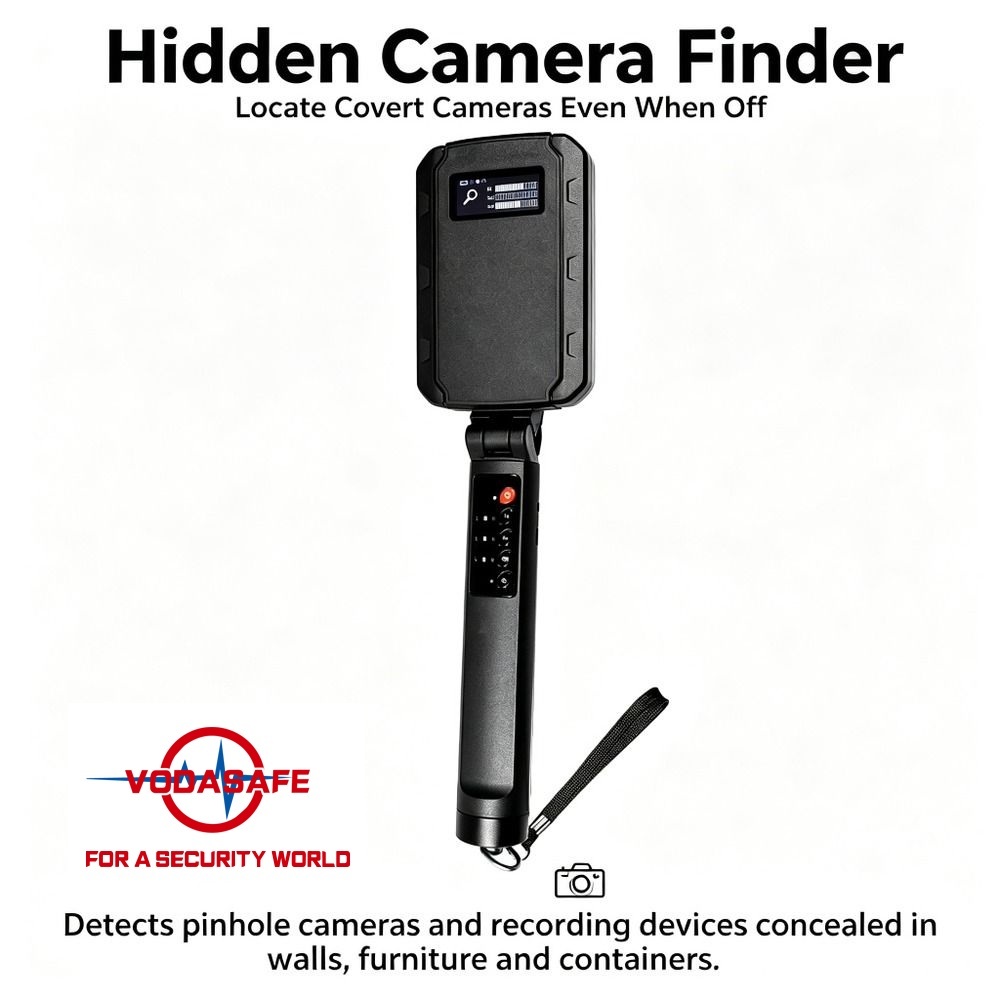

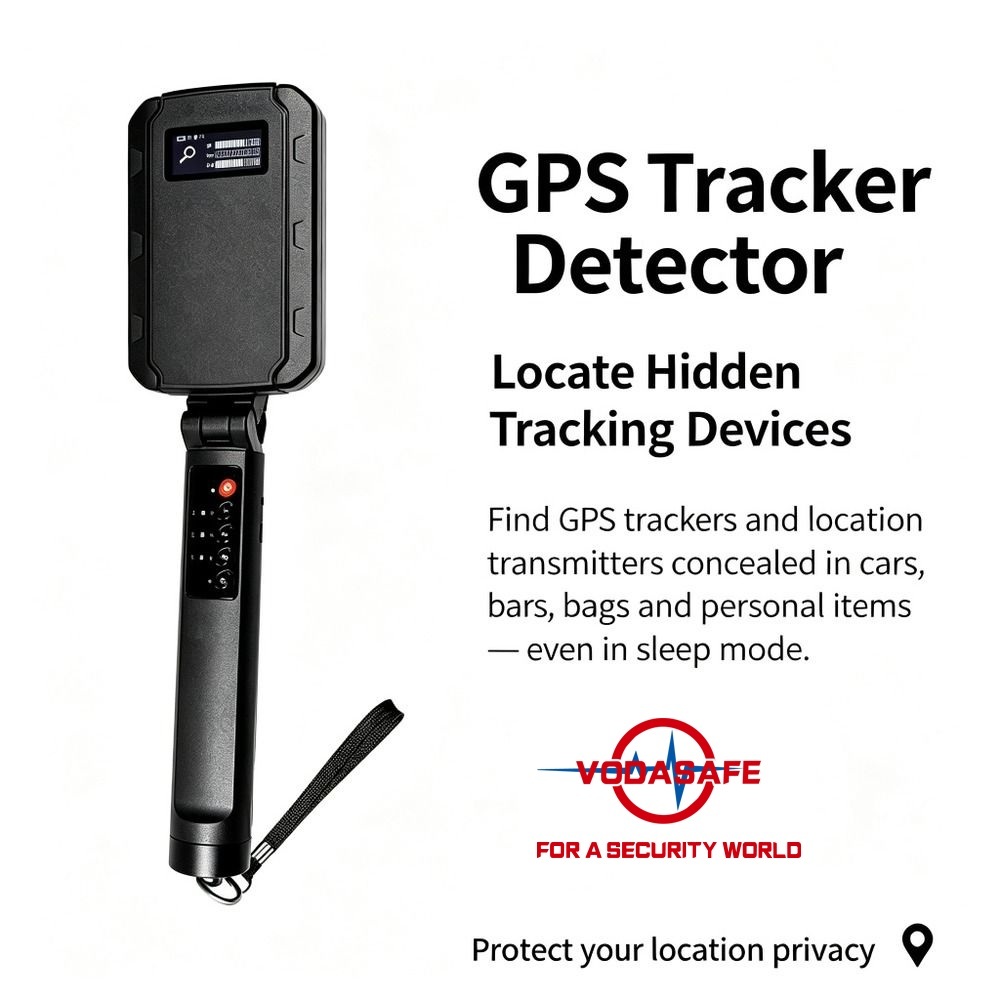

A core advantage of the VS-820 lies in its ability to detect hidden electronics regardless of power status or RF transmission: it can spot powered-off spy cameras, covert audio bugs, GPS trackers, hidden mobile phones, recording devices and electronic trigger circuits even when they emit no radio signals. The unit delivers multi-modal real-time alerts via LCD screen signal readout, audio tone prompts and built-in vibration, allowing sweep technicians to rapidly pinpoint suspicious hardware and fully safeguard classified space confidentiality, corporate trade secrets and personal privacy.

Core Competitive Advantages

Full Official Authoritative Certification

The VS-820 has passed rigorous testing and certification by China’s official security inspection authorities, fully complying with the national industrial standard GA1236-2015 for nonlinear junction detectors. It reaches the top-tier Class C performance rating — the highest standard classification for civilian and law enforcement NLJD equipment in China.

Ultra-Compact, Lightweight & User-Friendly Operation

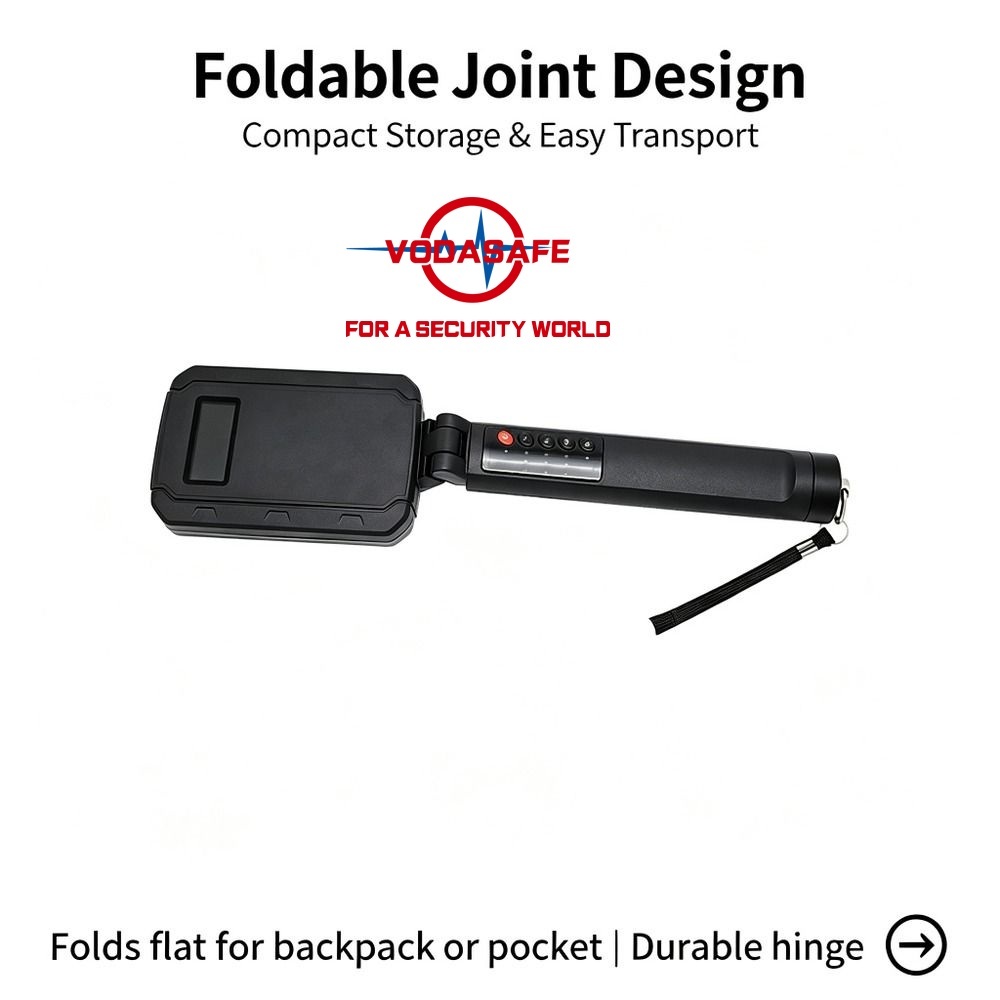

Mini foldable integrated body design for easy one-hand holding and storage in backpacks, equipment cases or uniform pockets;

Total weight only 0.5kg ± 0.05kg, eliminating fatigue during long-duration site sweeps;

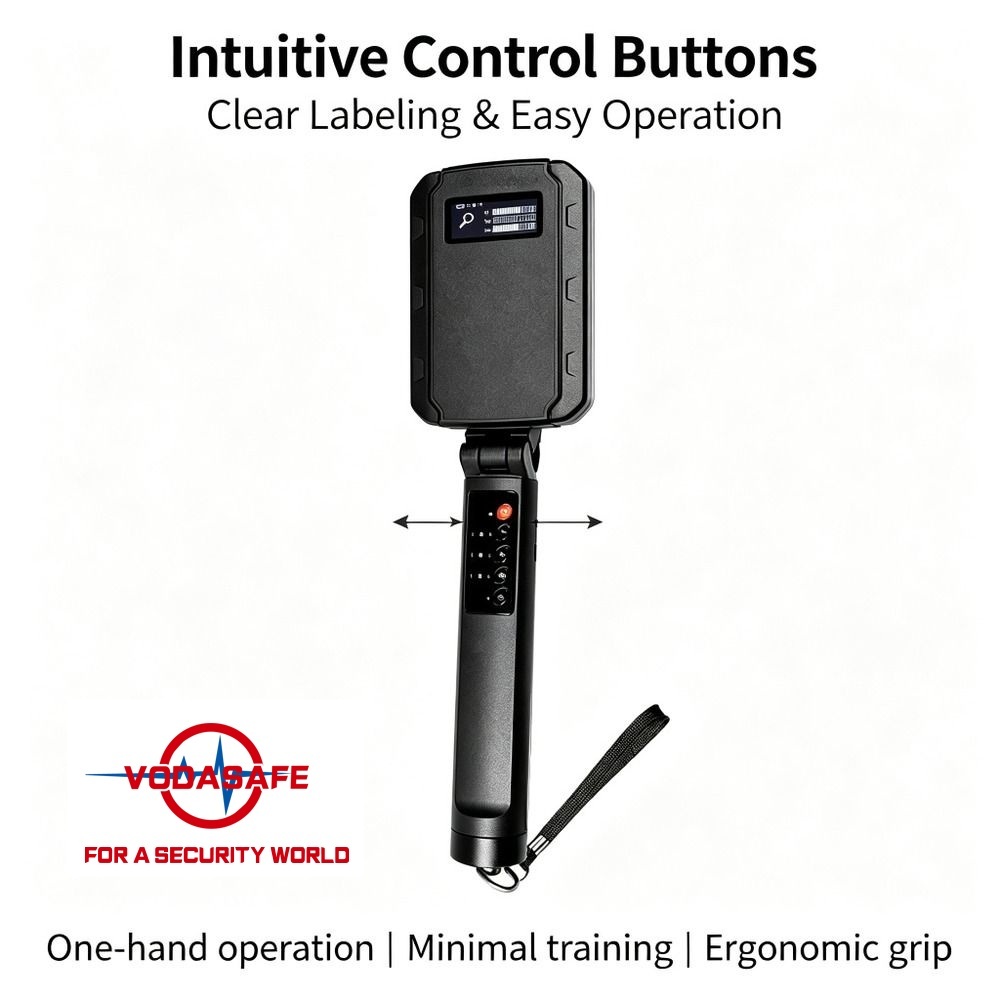

Clearly labeled physical function buttons with intuitive logic, requiring minimal training for new operators;

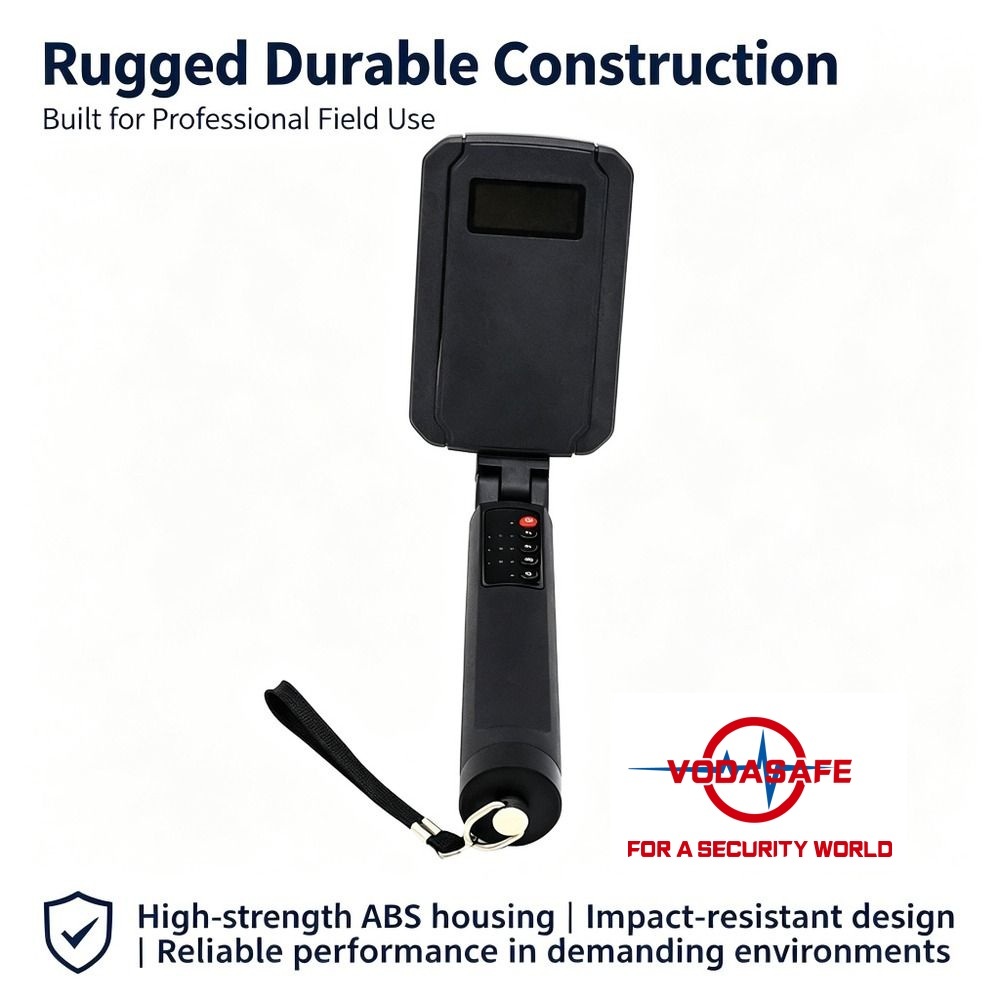

Ergonomic contour grip ensures stable handling during wall, ceiling and furniture scanning.

Industry-Leading Penetration & Long-Range Detection (Class C Top Standard)

1. Superb wall penetration: Capable of stable detection through 370mm thick solid brick walls, eliminating blind spots for electronics embedded deep inside building structures;
2. Extra-long detection distance: Maximum effective detection range ≥6 meters, far exceeding ordinary entry-level NLJD devices;
3. Distinguishes semiconductor junctions from plain metal corrosion to lower false alarm rates via built-in 2nd & 3rd harmonic analysis algorithm.

Multi-Modal Visual & Audible Alert System

High-definition LCD screen displays real-time harmonic signal strength and visualizes 2nd/3rd harmonic feedback for target judgment;

Dual audio output: Built-in speaker + 3.5mm headphone jack for quiet confidential inspection in sensitive venues;

Stepless vibration alert mode for silent sweeps where audio prompts are prohibited.

Extended Continuous Working Battery Life

Equipped with a built-in high-capacity lithium battery. Under maximum pulse transmit power mode, continuous working runtime exceeds 3 hours, fully meeting the demands of full-site single-sweep tasks for conference halls, office buildings and confidential facilities without mid-task charging.

Ultra-High Receiving Sensitivity

Receiving sensitivity ≤ -125dBm, enabling capture of weak harmonic signals from tiny microchips, miniature recording modules and ultra-small hidden tracking devices that low-sensitivity detectors cannot identify.

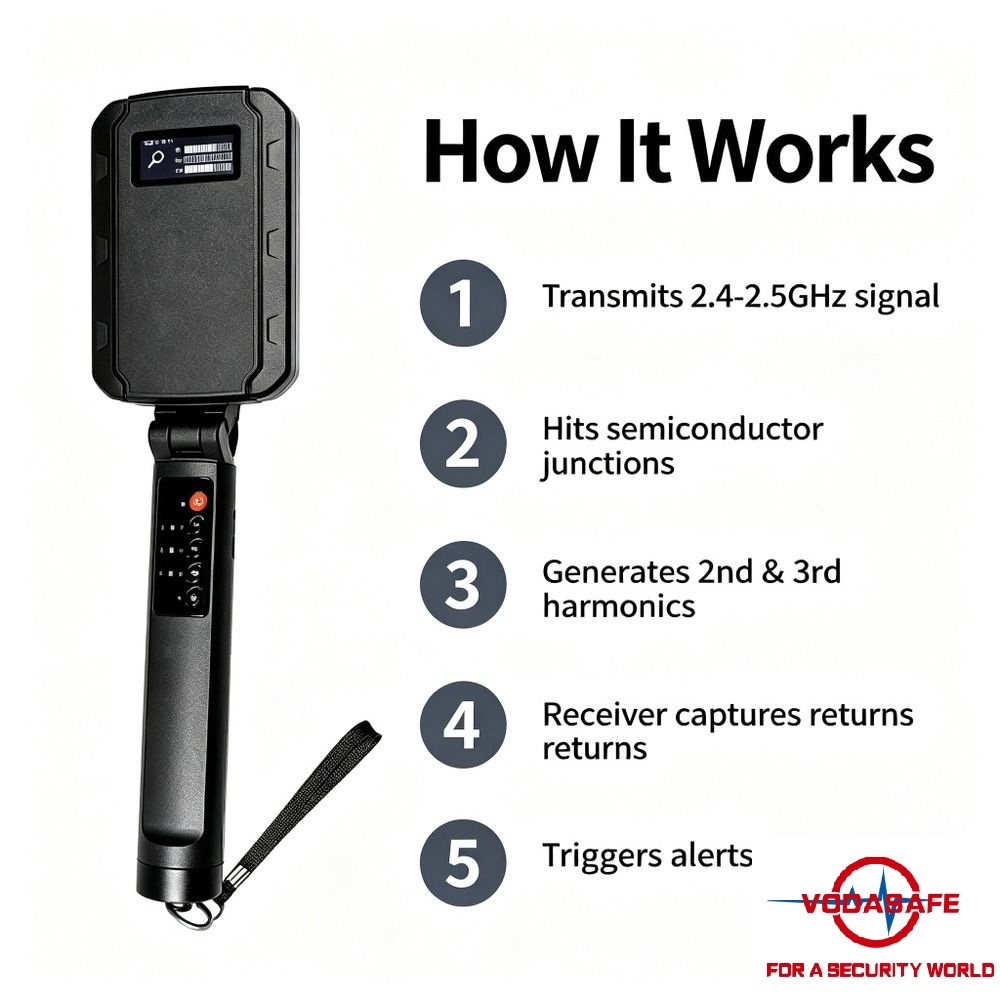

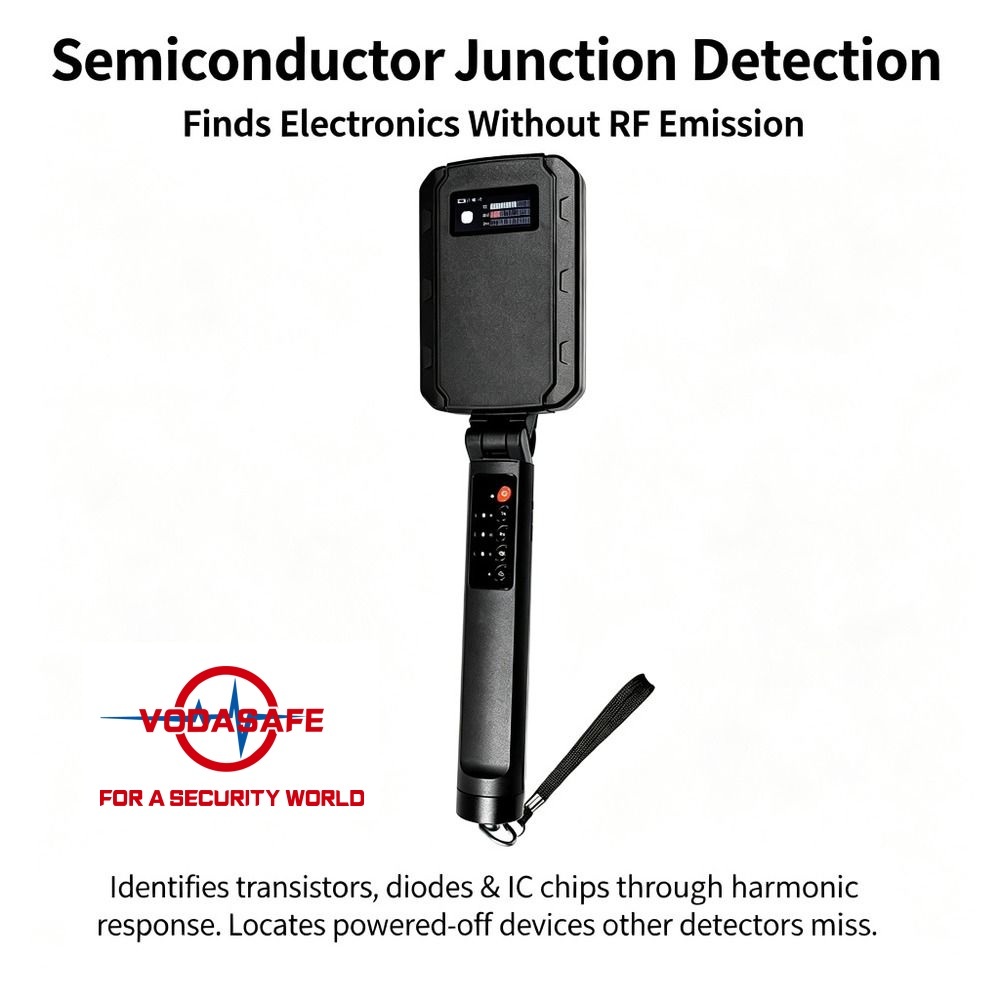

Working Principle

The VS-820 transmits a stable 2.4–2.5GHz fundamental microwave signal into the inspection area. When the signal hits semiconductor components (transistors, diodes, integrated circuits, chips) inside hidden electronics, nonlinear junction effects generate secondary (2nd) and tertiary (3rd) harmonic return signals at 4.8–5.0GHz and 7.2–7.5GHz.

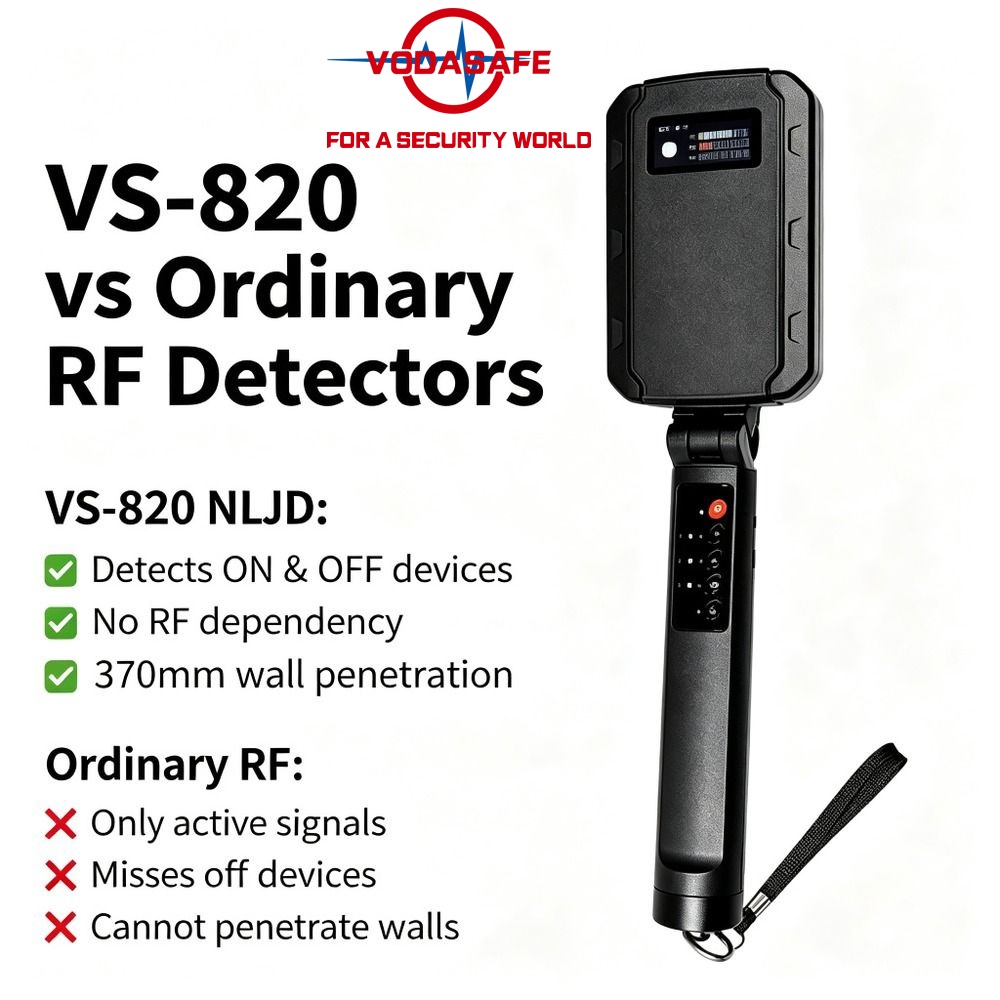

The receiver captures these unique harmonic frequencies, processes signal strength data, and triggers visual, audio or vibration alerts to notify inspectors of concealed electronic targets. Unlike RF signal detectors, it does not rely on device wireless transmission, making it the only reliable tool for locating dormant, powered-off spy equipment.

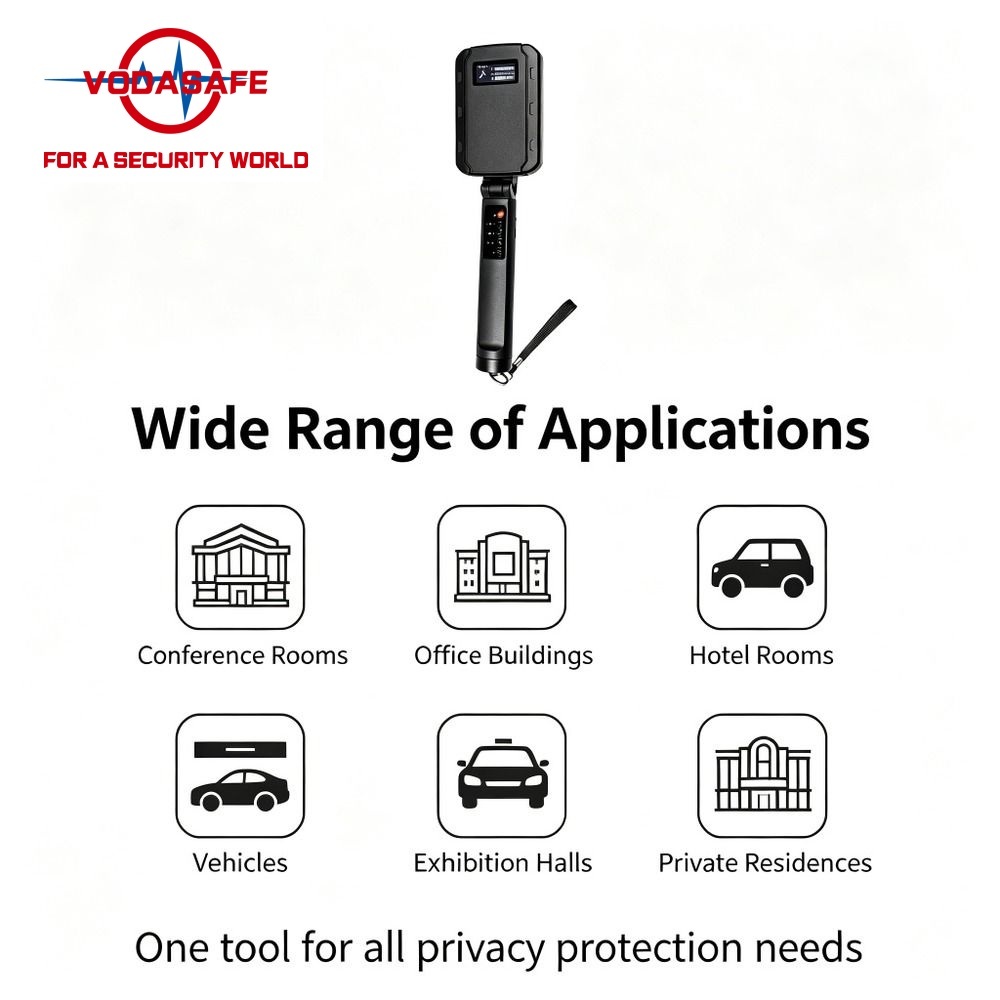

Wide Application Scenarios

Government confidential meeting rooms, command centers and military secure premises

Enterprise boardrooms, R&D labs and trade secret protection zones

Law enforcement, anti-espionage and TSCM professional sweep teams

Prisons, detention centers (contraband hidden mobile phone screening)

Hotel VIP suites, high-end negotiation venues and privacy protection services

Anti-terrorism inspection for electronic detonators and timing trigger circuits

Exhibition halls, bidding venues and high-security public event screening

Technical Specifications

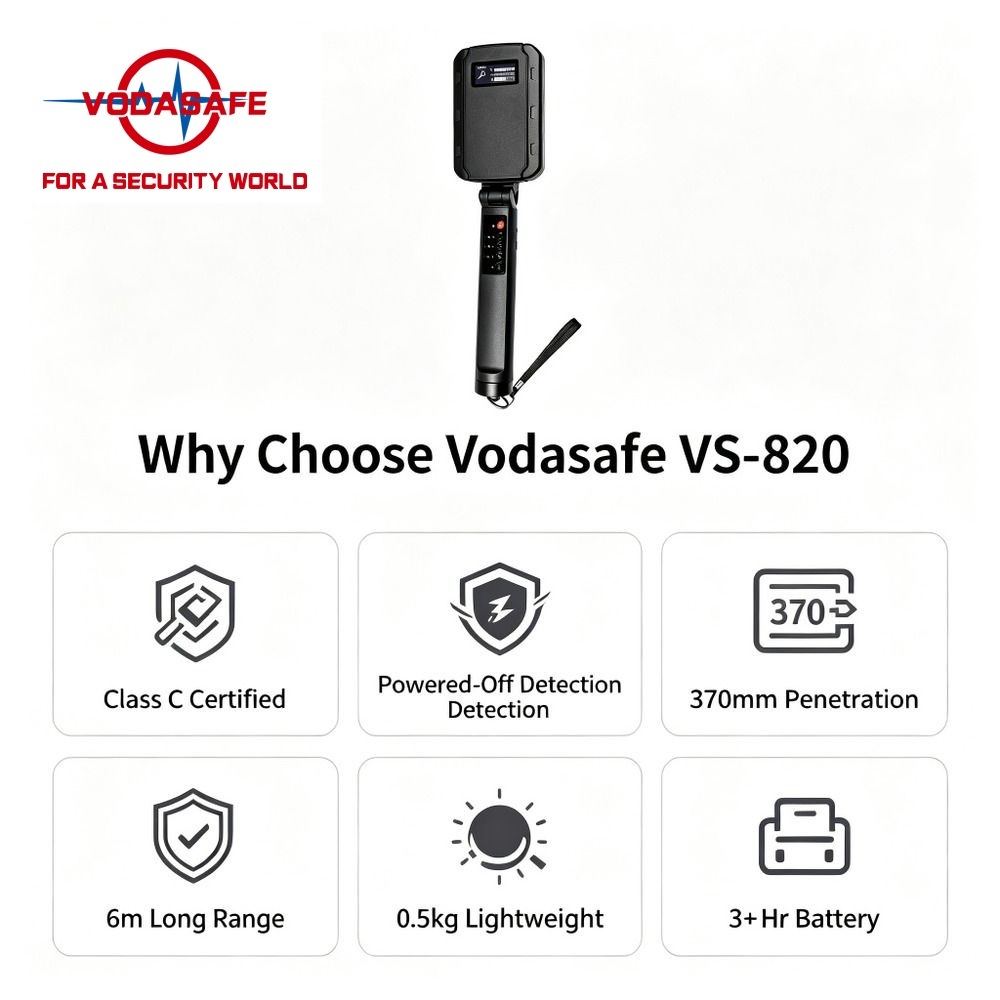

Product Advantages

1. Top Class C performance per national GA1236-2015 NLJD standard, authoritative certified;
2. Detect all hidden electronics ON/OFF, no RF signal dependency;
3. 370mm brick wall penetration + 6m long detection range;
4. Lightweight 0.5kg foldable handheld design, easy transport & operation;
5. Triple alert modes (screen + sound + vibration) adaptable to all inspection environments;
6. Ultra-high receiving sensitivity for miniature covert surveillance devices;
7. 3+ hours long battery life for full-day single-site inspection missions;
8. Stable wide-temperature operation, suitable for indoor and field outdoor sweeps.

SZ Vodasafe specializes in the R&D, production and sales of professional TSCM anti-surveillance inspection equipment. All NLJD series products adopt self-developed harmonic detection algorithms and strict quality control standards, providing reliable, cost-effective security counter-surveillance solutions for global government, enterprise and law enforcement customers. The VS-820 compact nonlinear junction detector represents our flagship portable NLJD model, balancing top-tier detection performance with ultra-portable design for professional sweep teams worldwide.
