Technical Features:
1）High system gains.
2）Full duplex and double-end design, external power supply, and convenient installation.
3）ALC technology with auto-steady function adopted.
4）Provide power indication and uplink and downlink indications.
5）With the amplified linear power, the intermodulation and spuriousness are suppressed effectively.
6）The reliability conforms to GB6993-86 standards.
7）The electromagnetic compatibility conforms to ETS300 609-4 standards.

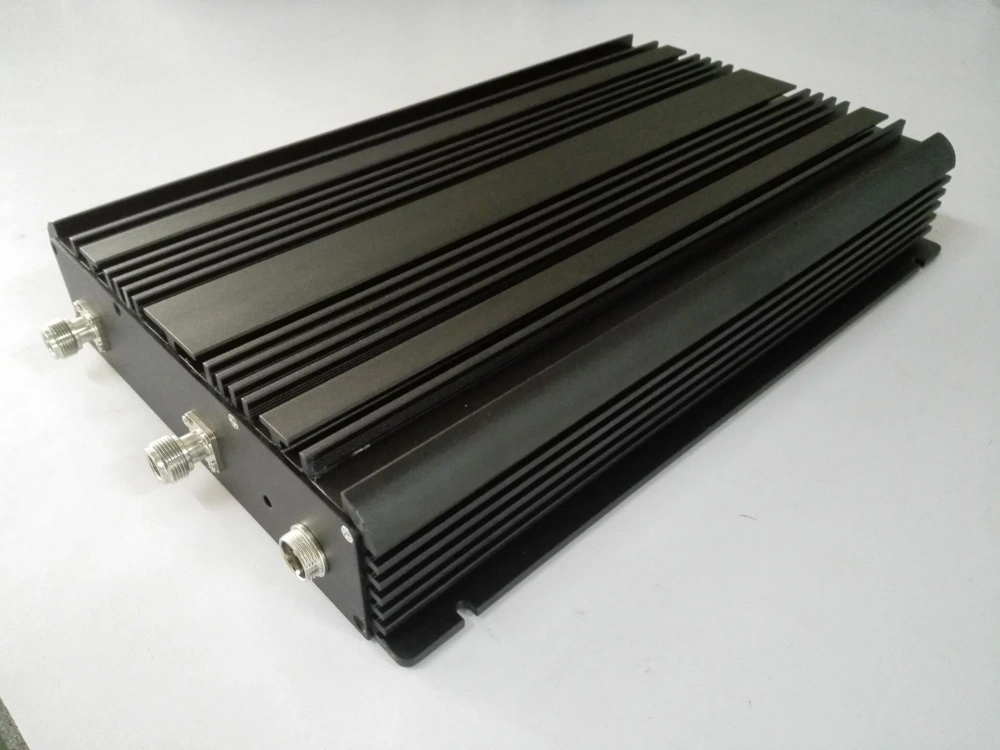

4GLTE 700 Full Band Pico-RepeaterSpecification
| TE-735B | |
Frequency range | Uplink703-748MHz | |
Downlink 758-803MHz | ||
Gain (dB) | Uplink | Gp≥80 |
Downlink | Gp≥85 | |
Gain adjustable | MGC≥30dB | |
Output power | ≥35dBm | |
Pass band ripple | ≤4dB | |
Guard band rejection | （BW-60dB）≤120MHz , （BW-70dB）≤127MHz | |
I/O impedance | 50Ω/N Connector | |
I/O return loss | ≤-10dB | |
Noise figure | ≤-8dB | |
Intermodulation attenuation (Po=13dBm) | ≤-40dBc | |
Transmission | ≤0.5μs | |
Ambient | -10℃～50℃ | |
Power supply | AC110～220V±10% 45～55Hz | |
Size | 350mm×230mm×60mm | |
Weight | 4.5kg | |
Reliability | To the GB6993-86 standard | |
Electromagnetic | To the ETS300 694-4 standard | |
Function | a) Power supply LED denote b) Export power LED denote | |
