SZ Vodasafe VS-8LW Professional RF Signal Detector
Description:The SZ Vodasafe VS-8LW is a cutting-edge professional RF signal detector designed to identify and locate various wireless signals across a wide frequency range of 50 MHz to 6.0 GHz. Equipped with unique two-stage sensitivity adjustment, this device excels in detecting both weak and strong signals, making it ideal for use in both quiet and noisy environments. Whether you need to uncover hidden cameras, bugs, or unauthorized transmitting devices, the VS-8LW provides reliable performance and precise signal localization.
Features
Advanced Signal Detection
Wide Frequency Range: 50 MHz to 6.0 GHz, covering common wireless signals including:
Analog and spread spectrum signals from cameras, bugs, and cellphones (CAM/Bug/LTE)
Digital signals from WiFi, IP cameras, and wireless digital cameras (WiFi)
3G 2100 cell network signals, with specialized detection module
Two-Stage Sensitivity Adjustment:
Stage 1: Super high sensitivity (9 levels from 9 to 1) detects weak signals like 10mW 2.4GHz wireless signals up to 7 meters (21 feet)
Stage 2: High tolerance to eliminate interference, allowing approach to 2W transmitters within 0.6 meters (2 feet)
Expert 3G 2100 Detection: Dedicated module for superior detection of 3G 2100 cell networks, critical for identifying signal shifts in low 4G areas
Intelligent Signal Indication System

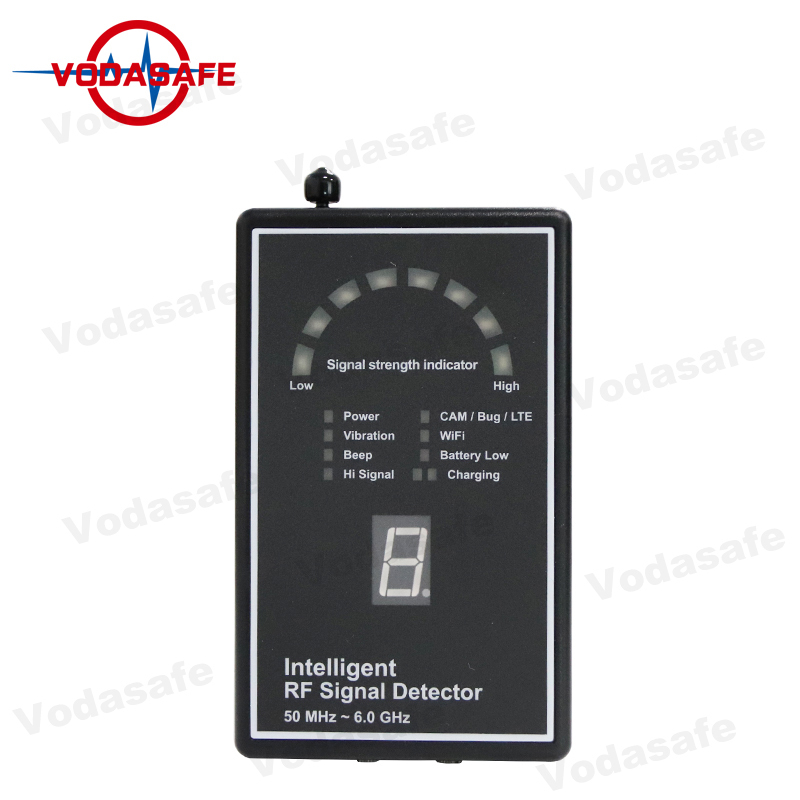

8-LED Signal Strength Bar:
Lights up sequentially from green to yellow to red as signal strength increases
Provides visual feedback from low to high signal intensity
Multi-Status LED Indicators:
Versatile Warning Modes
Beep (Default): Audible alarm for immediate signal detection
Vibration: Silent warning mode suitable for discrete operations
Hi Signal: Red LED alert for intense signal sources, prompting sensitivity adjustment

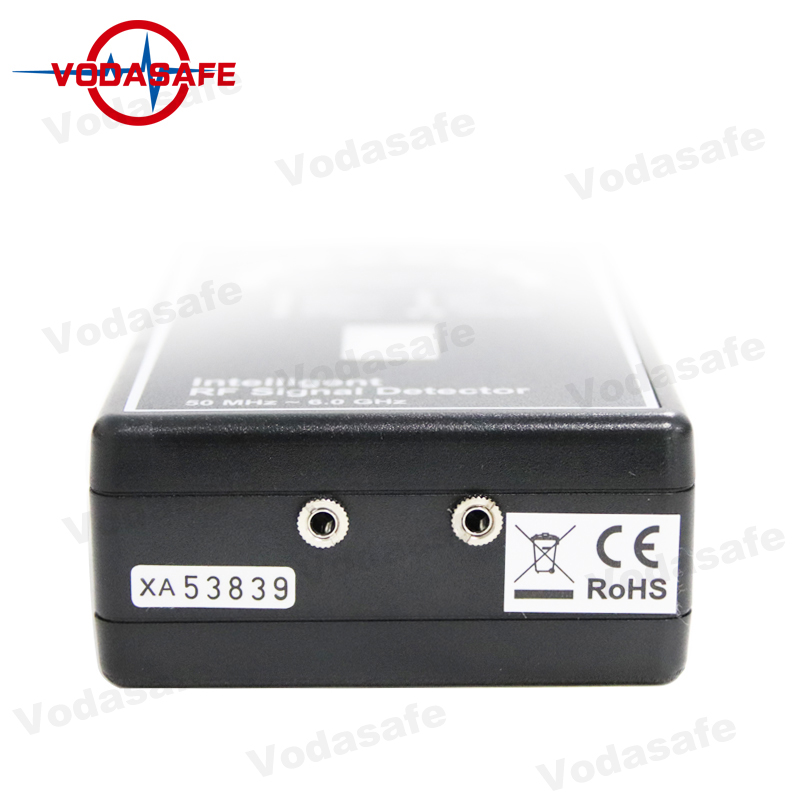

Earphone Support: Enables silent detection via earphone jack
Specialized Detection Functions
WiFi Hidden Camera Identification: Pinpoints WiFi-enabled cameras activated via smartphone apps
GSM/3G/4G Bug & Spy Camera Detection: Locates active transmitting microphones and remote-controlled spy cameras
Standby Phone Registration Detection: Detects idle phones reconnecting with cell towers during signal registration
Lens Finder for Wired Cameras: 8 ultra-bright lights scan for camera lens reflections, even on powered-off devices
Environmental Adaptability

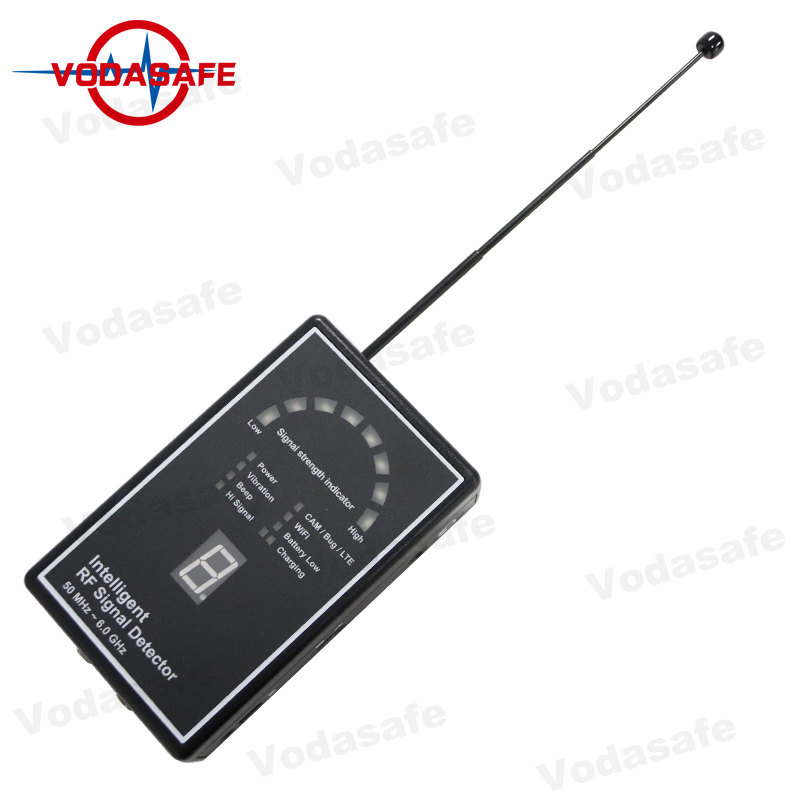

Semi-Directional Antenna: Adjusts scan angle from 120° to 45° as sensitivity decreases, enhancing signal source localization
WiFi Interference Resistance: Isolates WiFi signals to avoid false alarms in permanent WiFi environments
Global Default Sensitivity Benchmark: Factory-set "Level 8" sensitivity optimized for diverse international environments
Operation Guide
Power-On Self-Test
Upon switching on, the device initiates a self-test:
All LEDs light up simultaneously
8 signal strength LEDs extinguish sequentially from 8 to 0
7-segment display mirrors the sequence (8→7→…→0)
After self-test, sensitivity defaults to Level 8 (display shows "8")
Sensitivity Adjustment

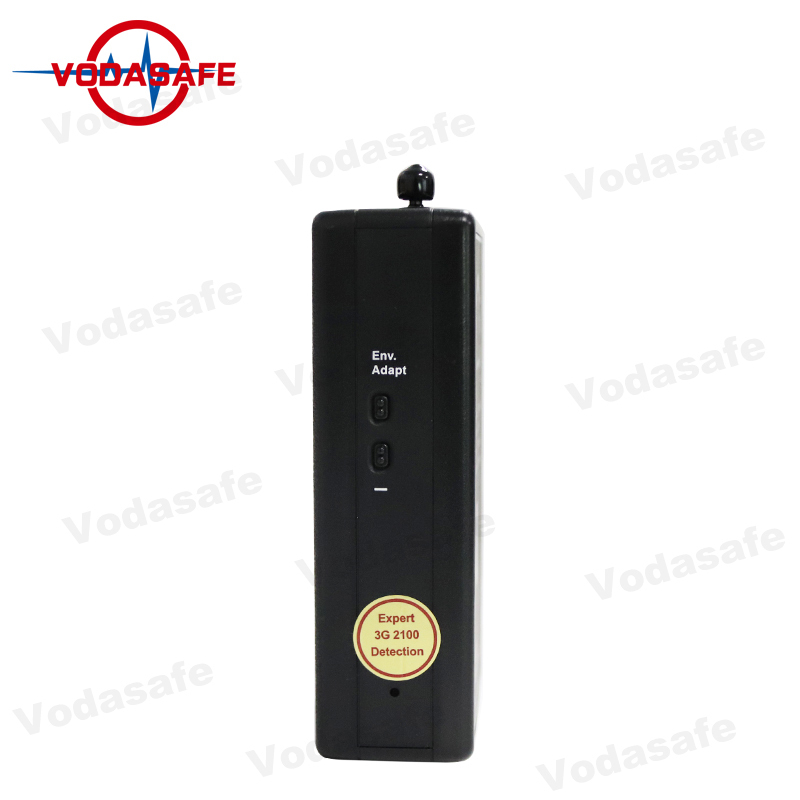

Minus Button (-): Located on left front side, press to lower sensitivity by 1 level (reduces detection distance for precise source localization)
Two-Stage System:
Stage 1: Levels 9-1 for general environment detection
Stage 2: Activate via sensitivity reduction to handle strong signals
Signal Source Localization
Start with default sensitivity (Level 8) to scan for signals
If "Hi Signal" LED activates (red), lower sensitivity gradually
Observe the 8-LED bar and adjust direction to track signal intensity changes
Narrow down the source by reducing sensitivity and following the strongest signal indication
Battery & Power Options
Power Sources:
-

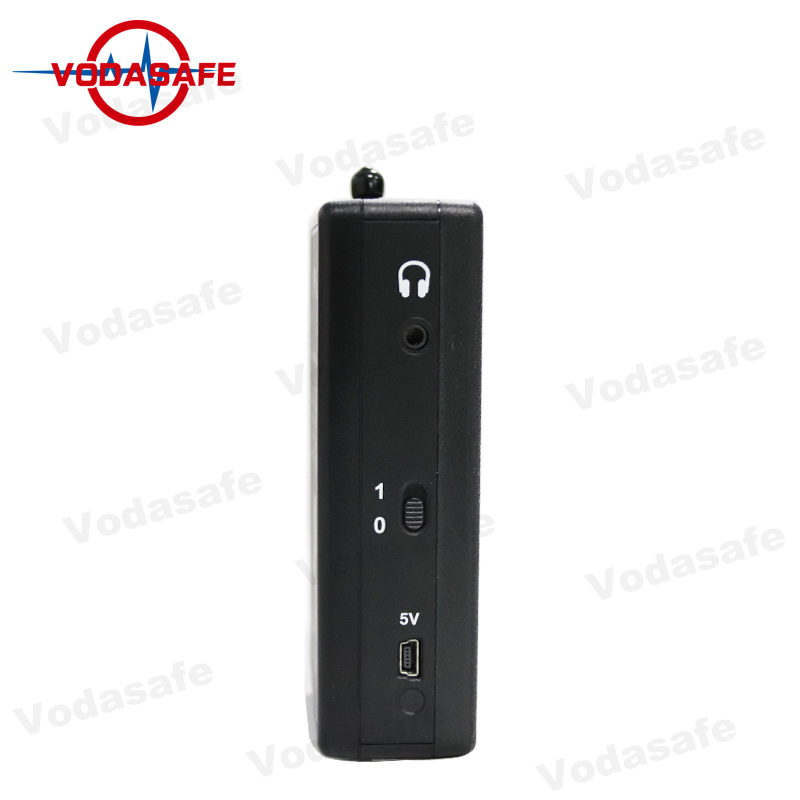

- 5V DC switching power adaptor (via Mini USB port)

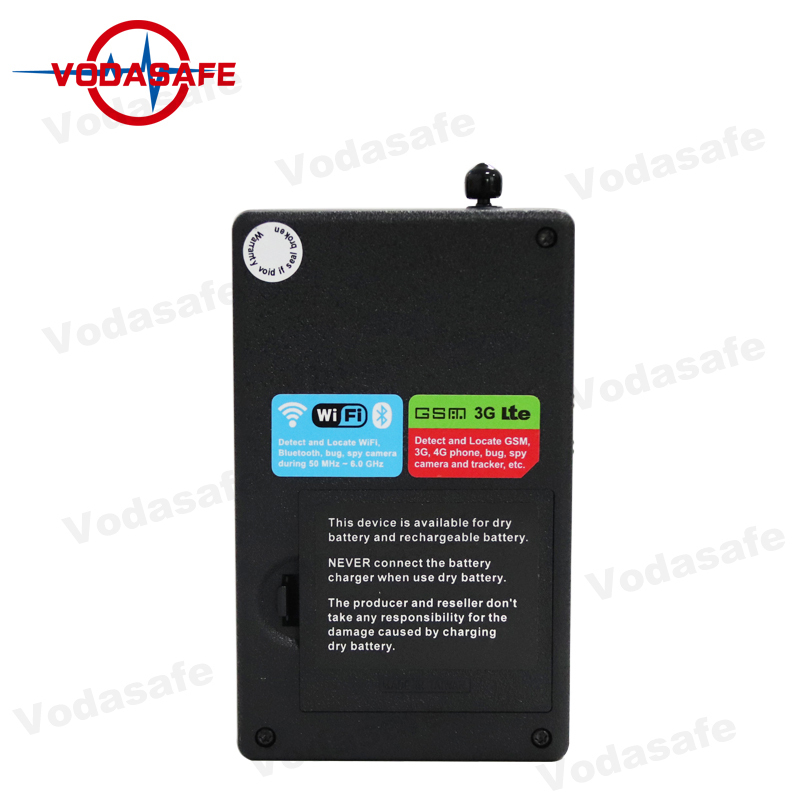

- 4 x AAA / UM-4 rechargeable or dry batteries
Charging Status:
Red LED: Quick charging (0-70% battery)
Green LED: Slow charging (70-100% battery)
Battery Low Warning: Flashing "Battery Low" LED when power is critically low
Power Bank Support: Connect via Mini USB for extended use during surveillance
Specifications
Note: Detection distances vary based on signal strength and environmental factors.
Applications
Privacy Protection: Locate hidden cameras and audio bugs in hotels, offices, or private spaces
Security Surveillance: Detect unauthorized transmitting devices in restricted areas
Technical Troubleshooting: Identify interfering signals in wireless networks
Cellular Network Analysis: Monitor 3G/4G signal activity and registration patterns
Event Security: Screen venues for hidden recording devices during sensitive events

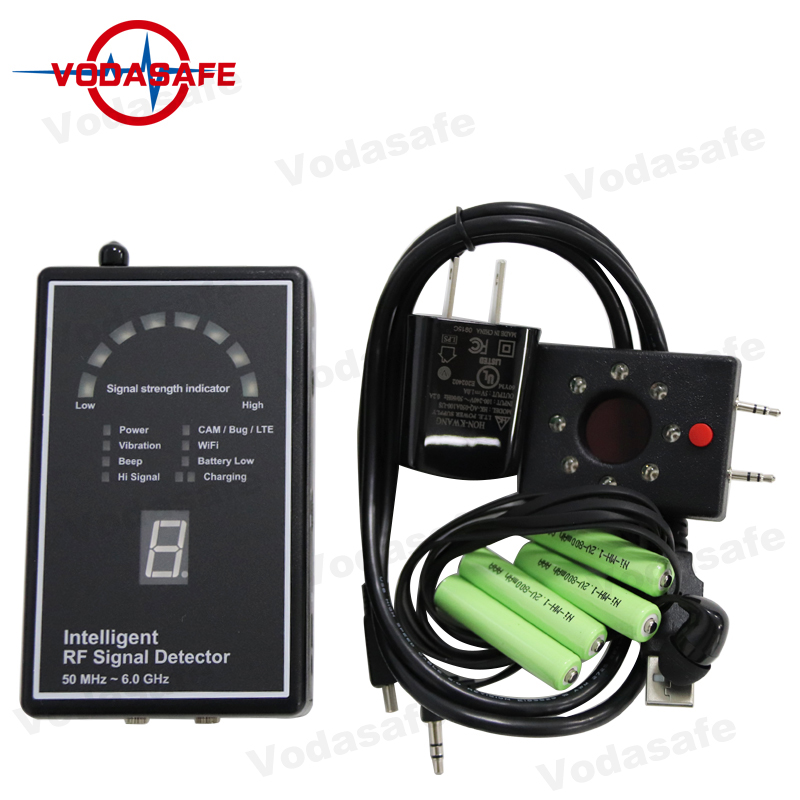

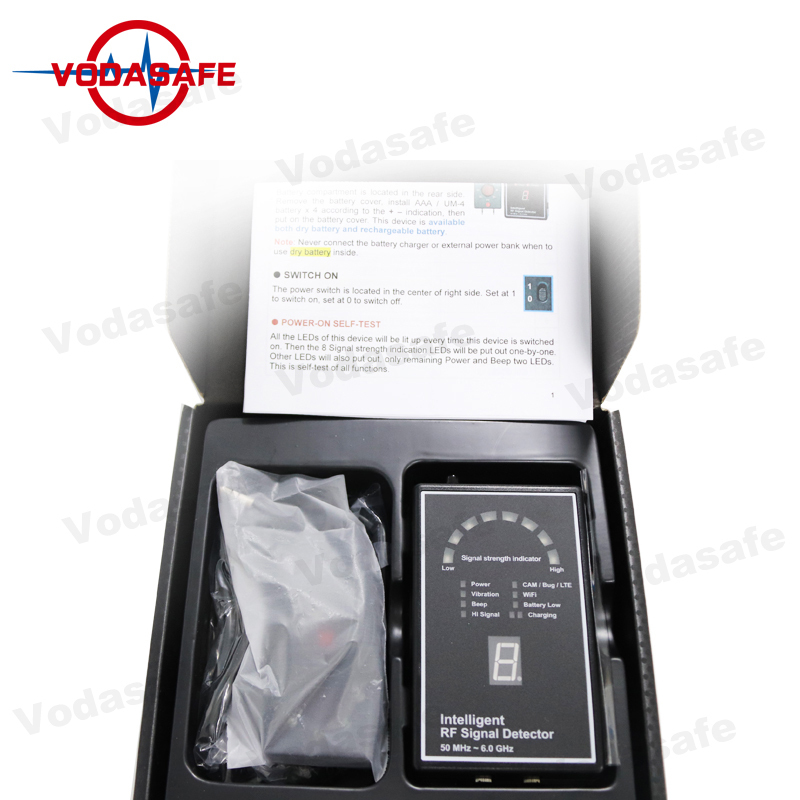

Package:
1 x VS-8LW RF Signal Detector
1 x Lens Finder attachment
1 x User manual (English)
1 x Mini USB charging cable
1 x Carrying pouch (optional, depending on package)
Caution & Warranty
Operation Warnings:
Do not use in environments with extremely strong RF signals (e.g., near cell towers) without adjusting sensitivity
Keep away from water and high-temperature areas
Do not disassemble the device for maintenance
Warranty: SZ Vodasafe provides a 12-month warranty against manufacturing defects. For support, contact our customer service team with your product serial number.For detailed usage tutorials and software updates, visit our official website.
