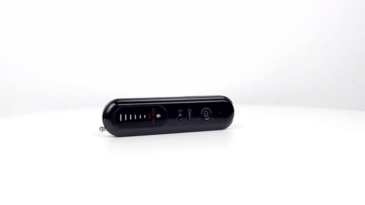

Shenzhen Vodasafe T01 Multifunctional Detector
Description:
The Shenzhen Vodasafe T01 Multifunctional Detector is an advanced security device integrating active infrared scanning and passive wireless signal detection. Designed to safeguard privacy and prevent unauthorized surveillance, it effectively detects hidden cameras, GPS trackers, eavesdropping devices, and wireless transmitters. With support for 2.4G and full-band frequency detection (100MHz-2.7GHz), the T01 offers versatile protection for personal, commercial, and professional use. Its compact design and intuitive controls make it ideal for scanning hotel rooms, offices, vehicles, and other sensitive areas.

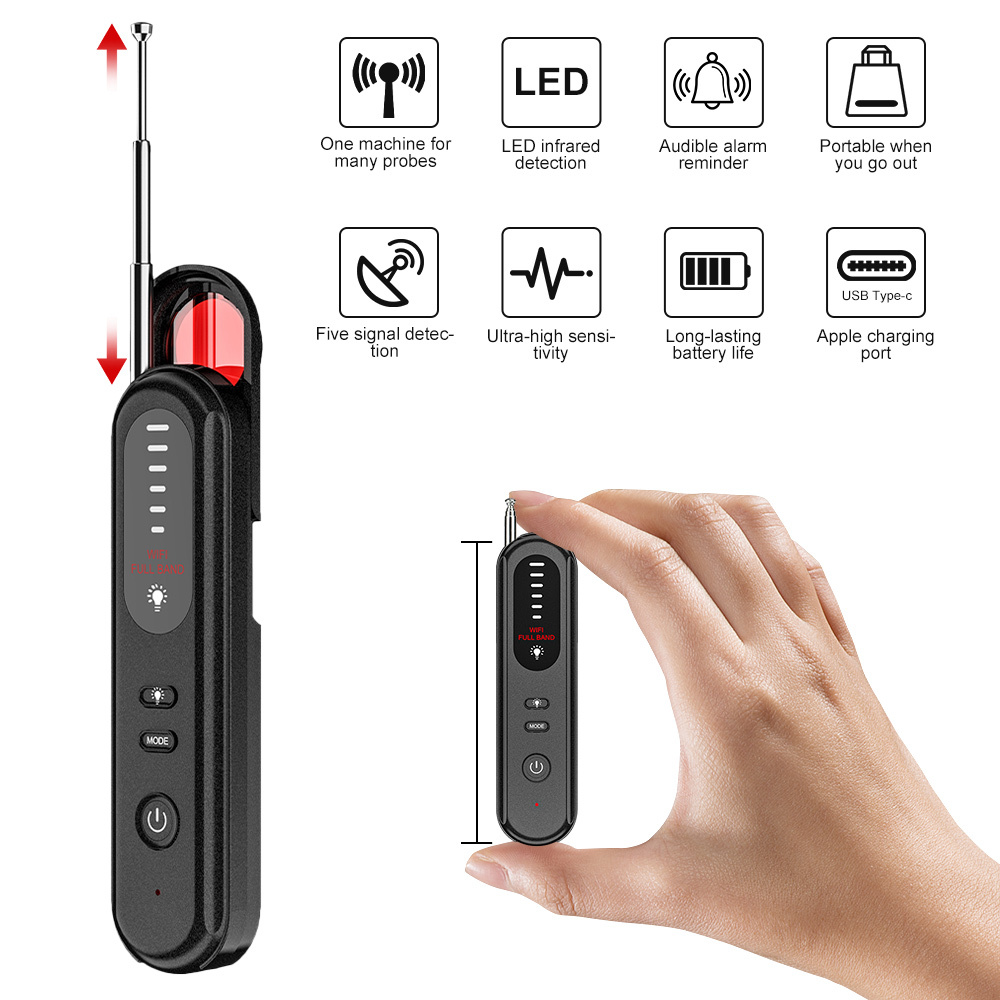

Features:
Dual Detection Modes:
Wireless Signal Detection: Scans 2.4GHz and full-band signals (100MHz-2.7GHz) for Wi-Fi, GPS, and other wireless transmitters.
Infrared Camera Detection: Uses 4 LED infrared lights to identify hidden camera lenses via a specialized filter.
Adjustable Sensitivity: 6-step sensitivity control allows precise targeting of signal sources, from broad scans to pinpoint localization.
Audible & Visual Alerts: Strong signal indicators (red lights) and "DIDIDI" sound alerts vary with signal strength.
CDMA & WiFi Compatibility: Detects low-power signals like CDMA (commonly used in trackers) and 2.4G WiFi networks.
Portable Design: Weighing only 34g, the device fits easily in pockets or bags for on-the-go use.
Specifications:
| Frequency Range |
2.4GHz and full-band (100MHz-2.7GHz) |
| Infrared Lights |
4 x LED IR lights for camera detection |
| Interface |
TYPE-C charging port |
| Battery |
500mAh lithium battery, DC5V±5% |
| Charging Time |
2-3 hours |
| Continuous Use |
Up to 8 hours |
| Working Temperature |
-10°C-50°C |
| Storage Temperature |
-10°C-70°C |
| Humidity |
5%-90% (non-condensing) |
Operation:
Power On/Off
Power On: Long-press the On/Off button for 3 seconds until the signal lights flash sequentially.
Power Off: Long-press the On/Off button for 3 seconds until a "DI" sound confirms shutdown.
Detection Modes
2.4G Signal Detection:
Press the MODE key (signal detection key) to activate red light.

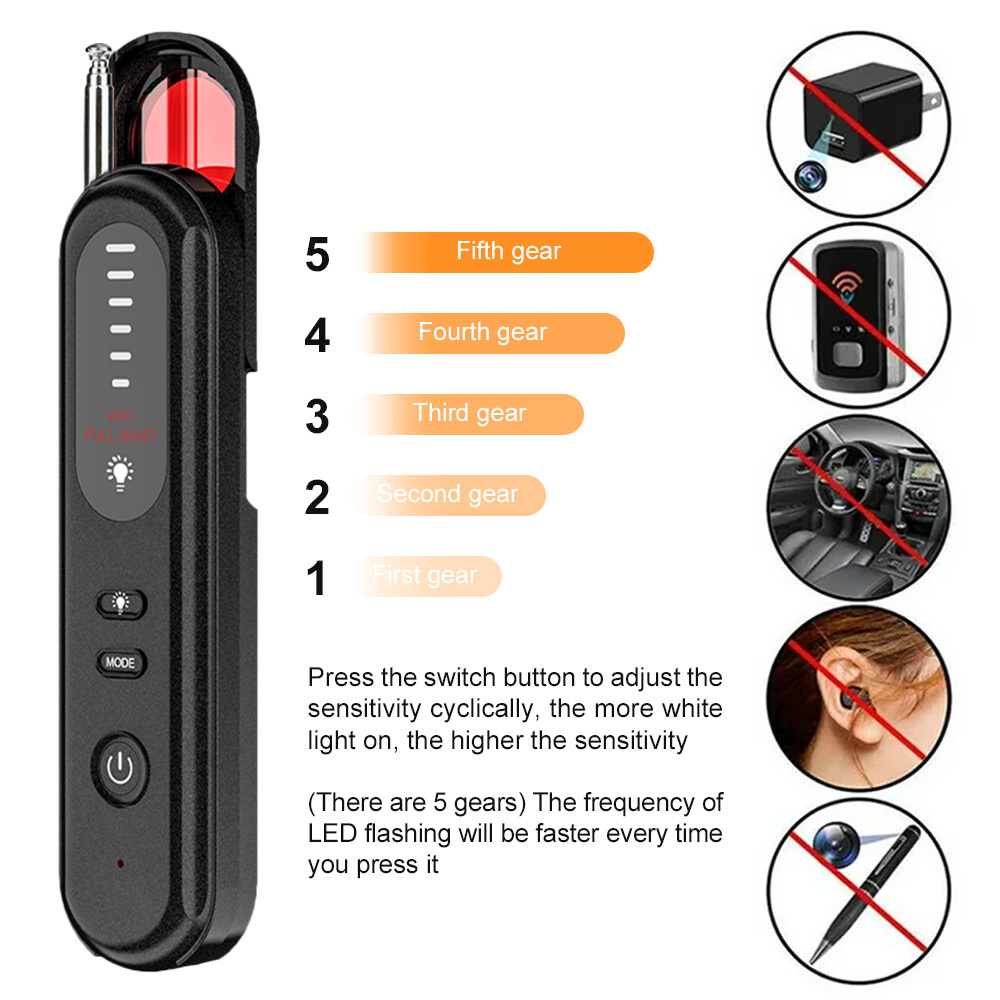

Adjust sensitivity via the On/Off button: More white lights = higher sensitivity (wider range), fewer white lights = lower sensitivity (precision targeting).
The top red light indicates the strongest signal, with beeps increasing in frequency as signal strength rises.
Full-Band Detection (100MHz-2.7GHz):
Press the MODE key until the blue light turns on.
Sensitivity adjustment follows the same logic as 2.4G mode.

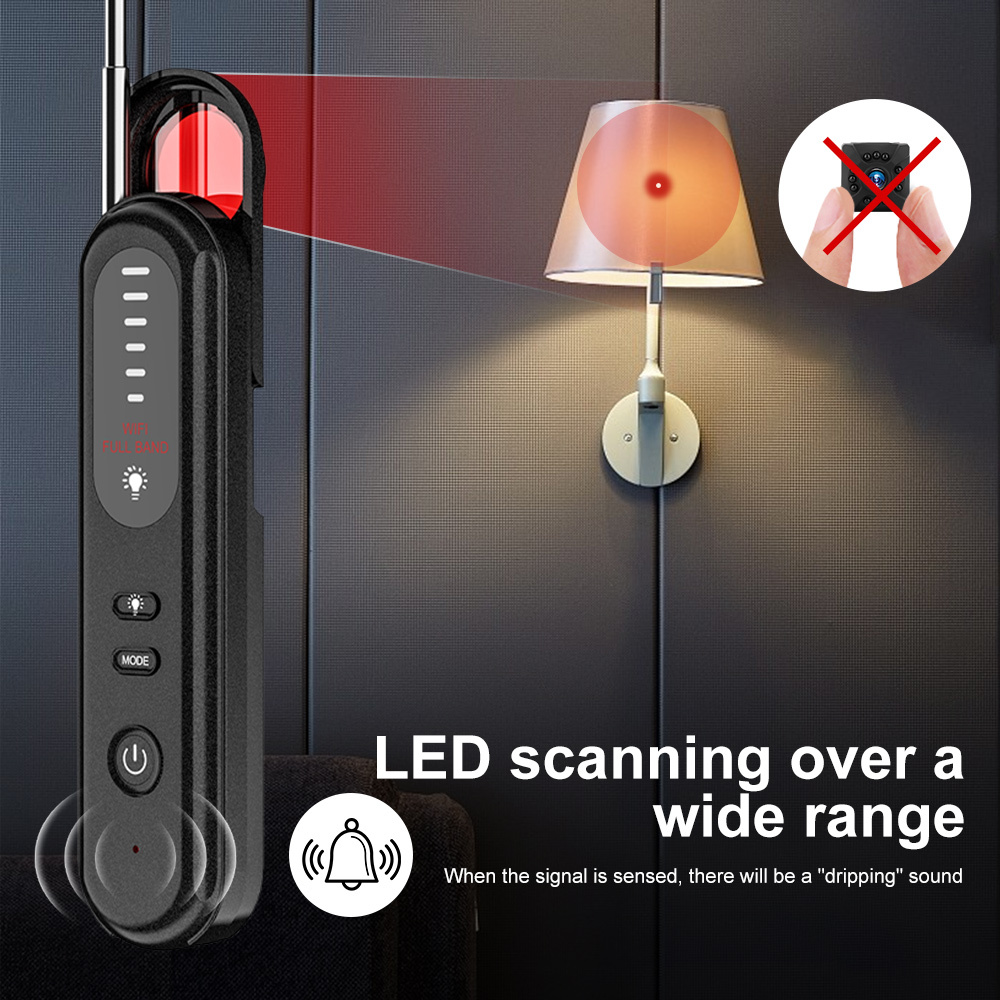

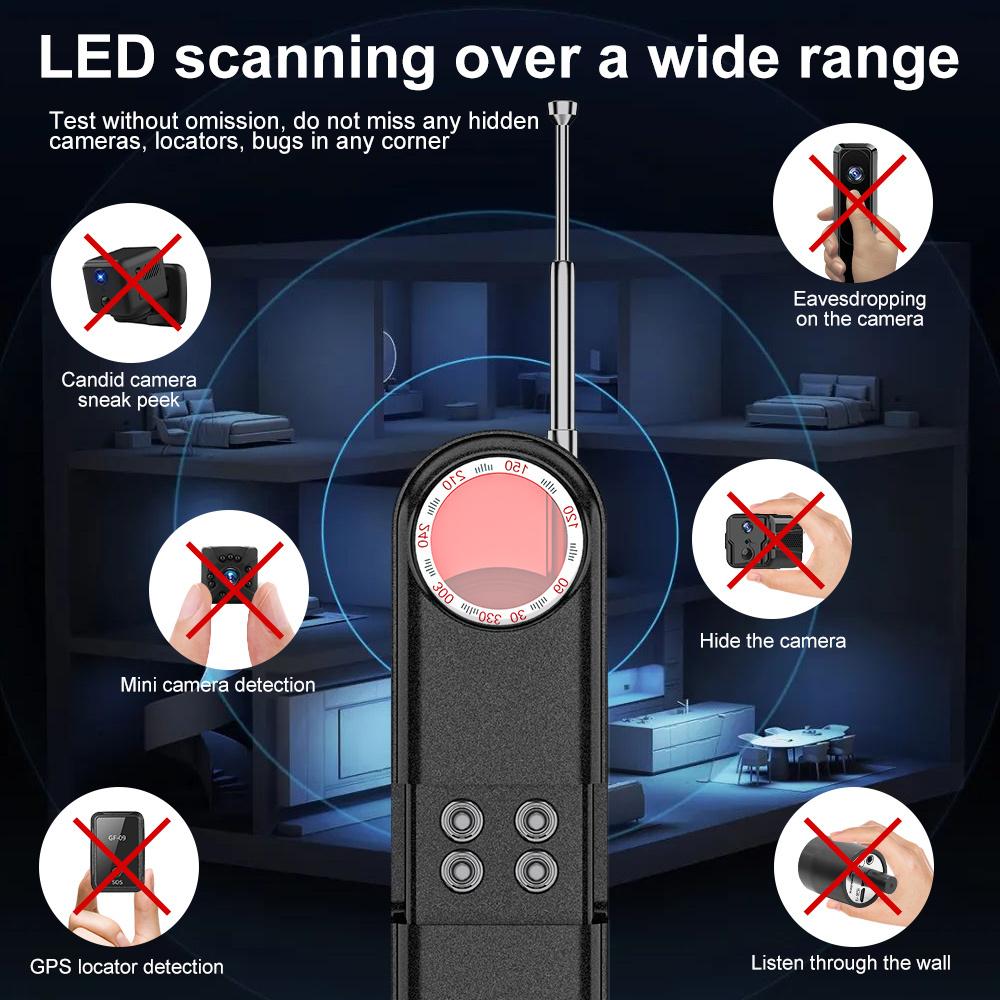

Camera Detection:
Press the infrared detection key (in a dimmed room).
Four infrared lights will stay on. Look through the observation window and scan the area-hidden camera lenses will appear as bright flashing spots.
Adjust infrared light flashing frequency (6 modes) by tapping the On/Off button for optimal visibility.
Alarm Control
Turn off the alarm sound: Long-press the MODE key for 5 seconds until a "DI" sound is heard.
Turn on the alarm sound: Repeat the same action.

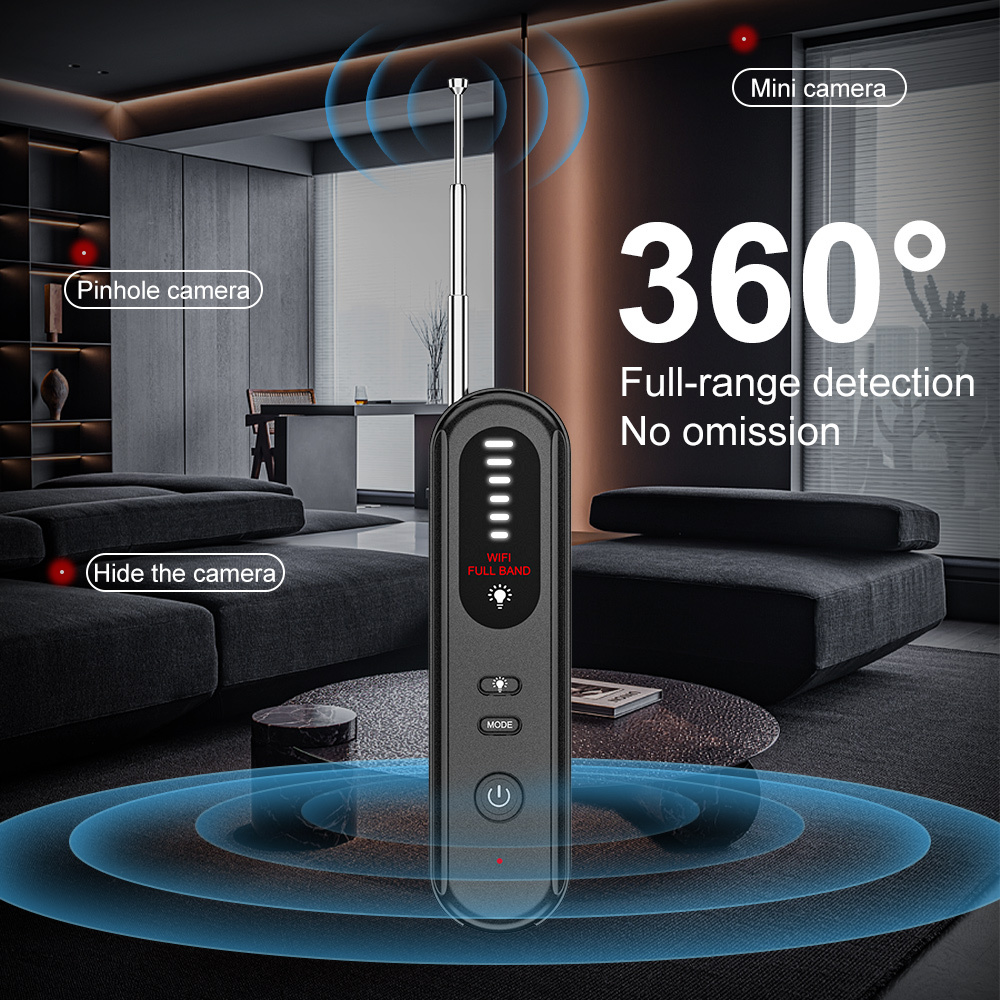

Application Scenarios
Hotel rooms, guesthouses, and restrooms
Public entertainment venues and fitting rooms

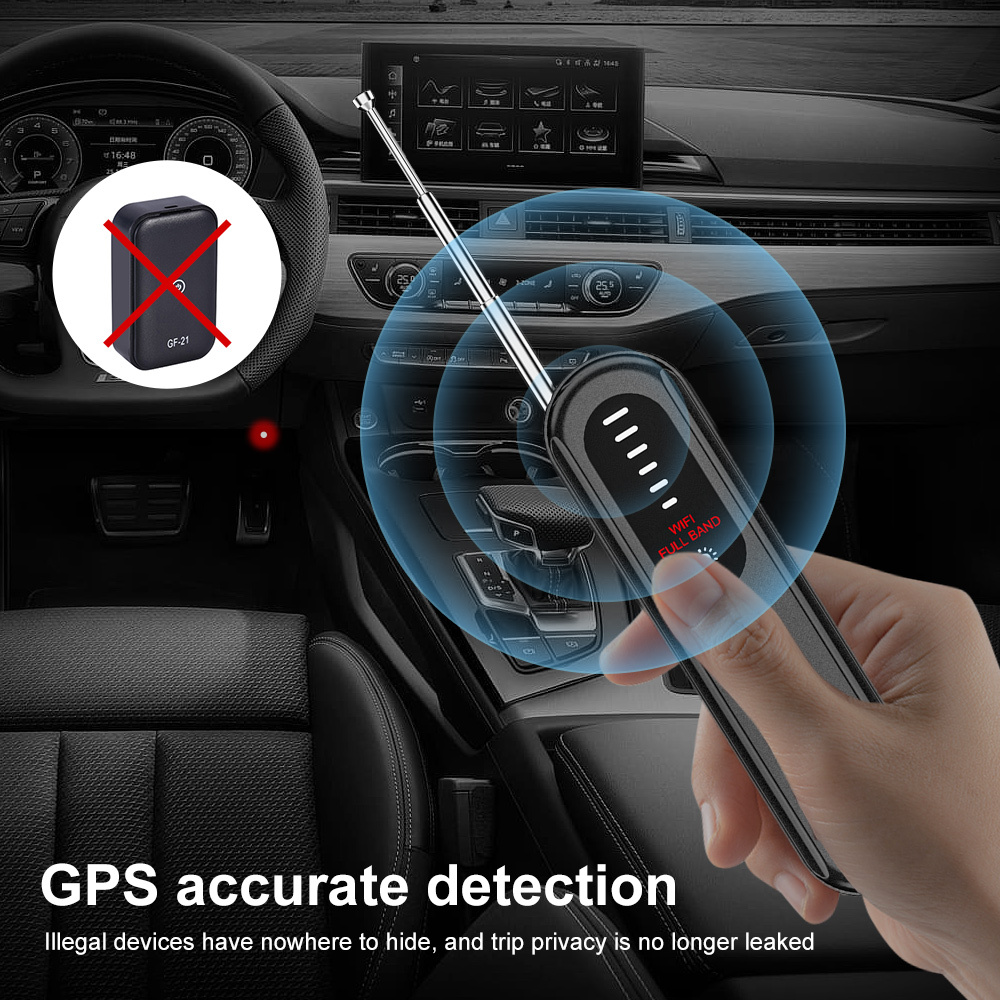

Vehicles and private spaces
Business meetings and confidential offices
Anti-eavesdropping and anti-surveillance professional use
Security checks for trade secrets and technical facilities
Package List
1 x T01 Multifunctional Detector
1 x User Manual
1 x TYPE-C Data Cable
1 x Gift Box Packaging
Product Size: 28.5×16×112mm
Net Weight: 34g
Gift Box Size: 8×2.5×13cm
Full Set Weight: 111g
Carton Size: 37×31×27cm (100 units per carton, 12kg total)
Important Notes
Comply with local laws and regulations; do not use for illegal purposes.

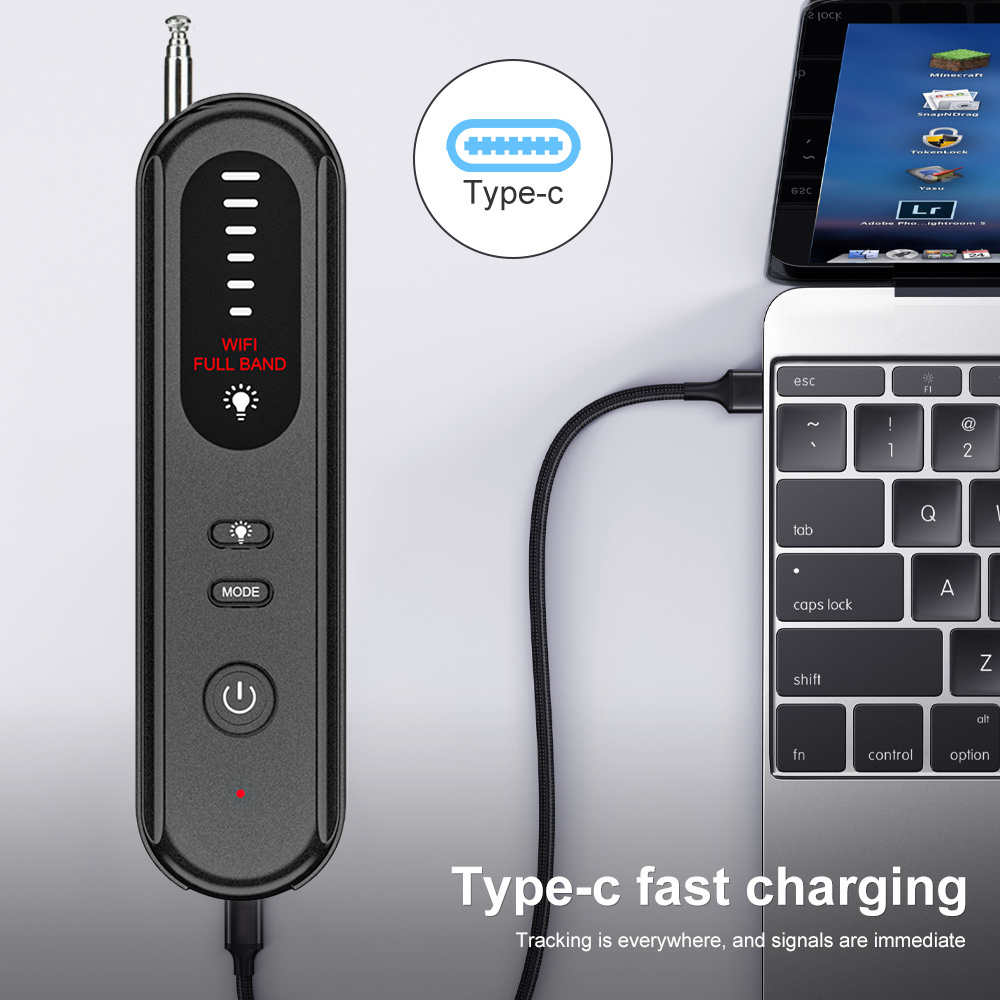

Charge the device with the provided TYPE-C cable before first use.
For optimal camera detection, perform scans in low-light environments.
Store the detector in a dry place within the specified temperature range.
The Shenzhen Vodasafe T01 Multifunctional Detector combines cutting-edge technology with user-friendly design, offering reliable protection against unauthorized surveillance in any environment.
