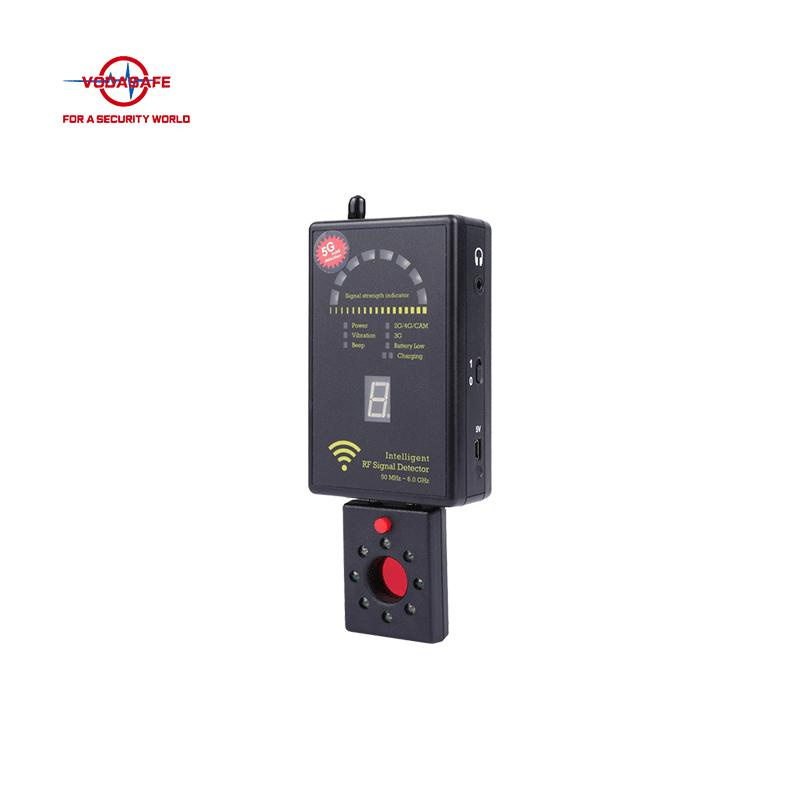

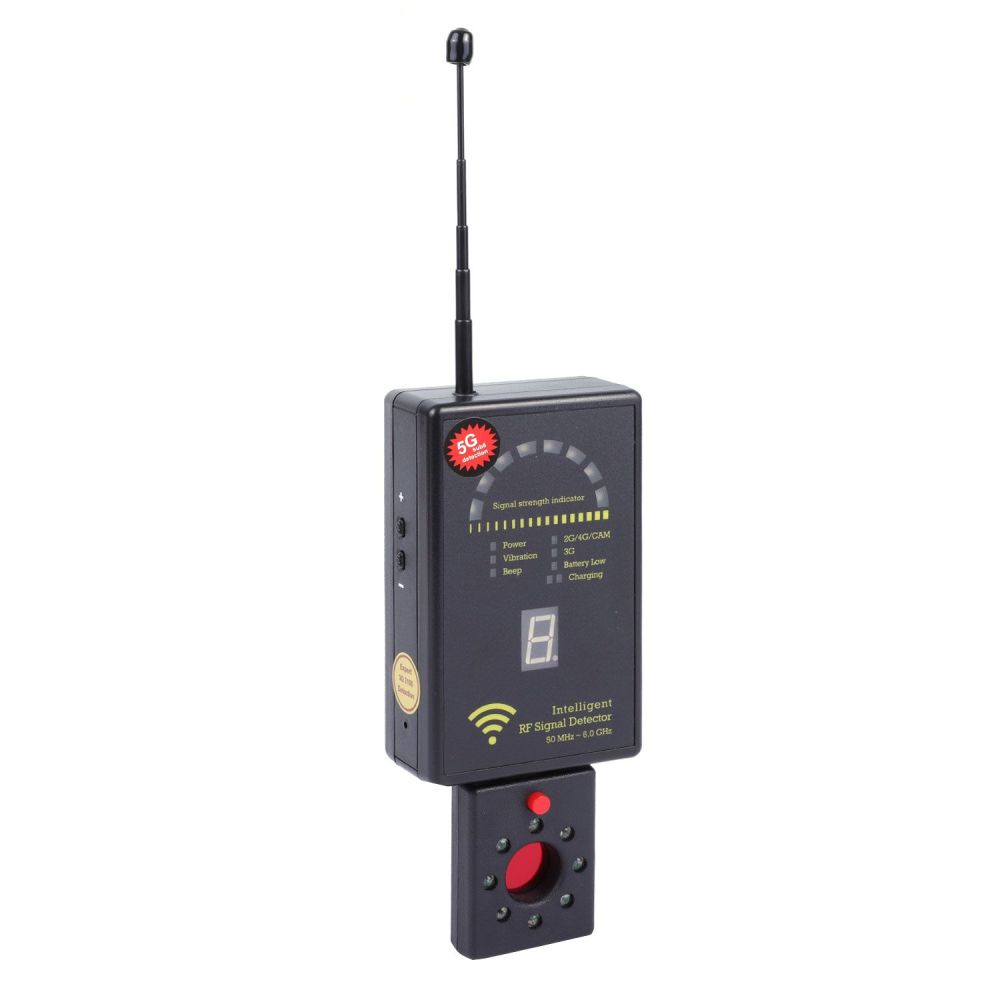

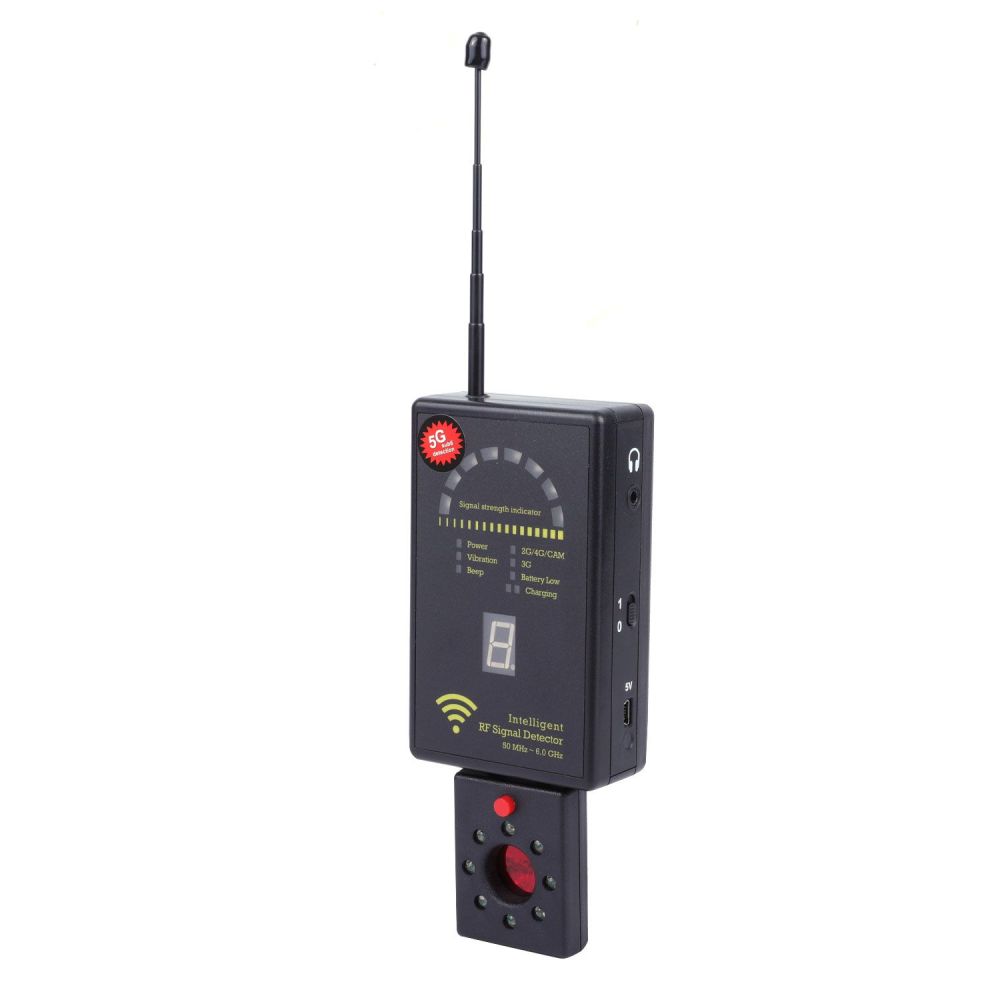

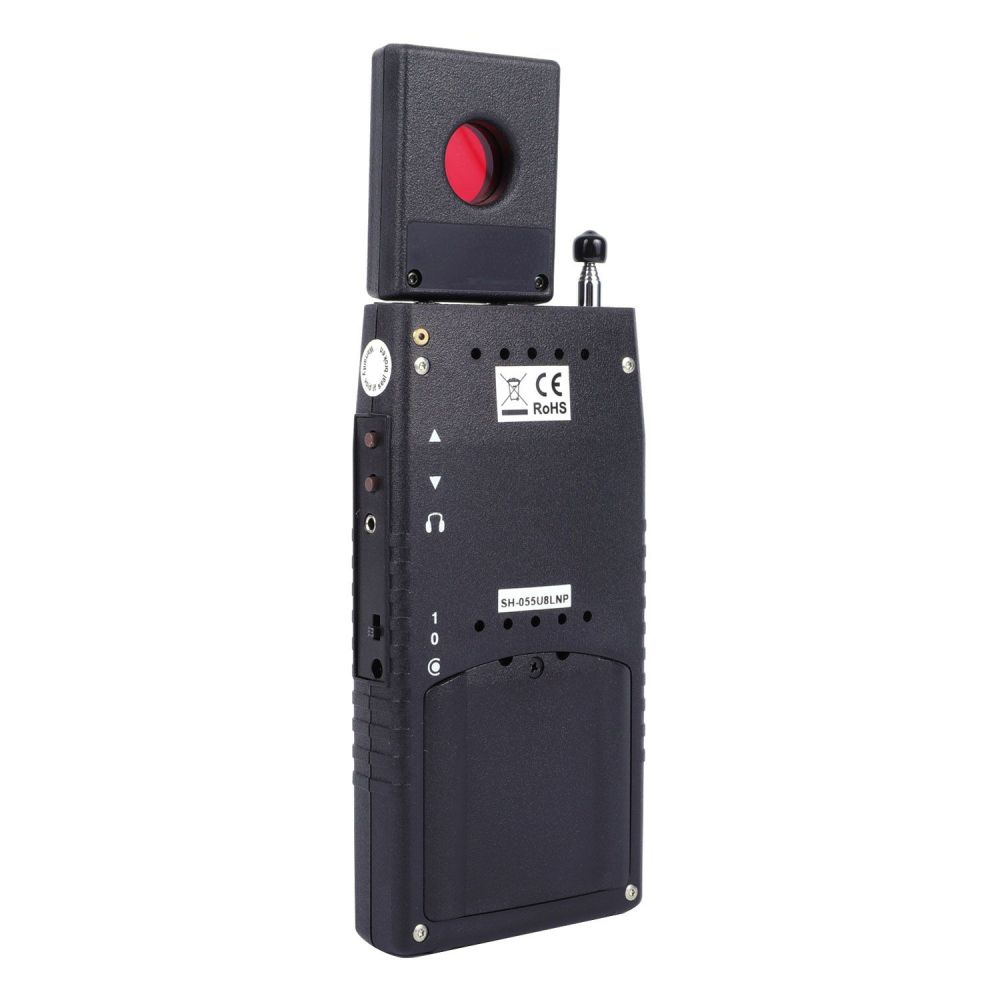

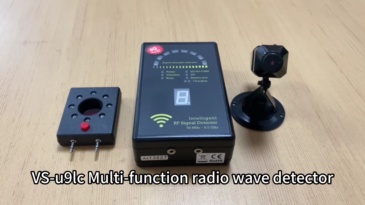

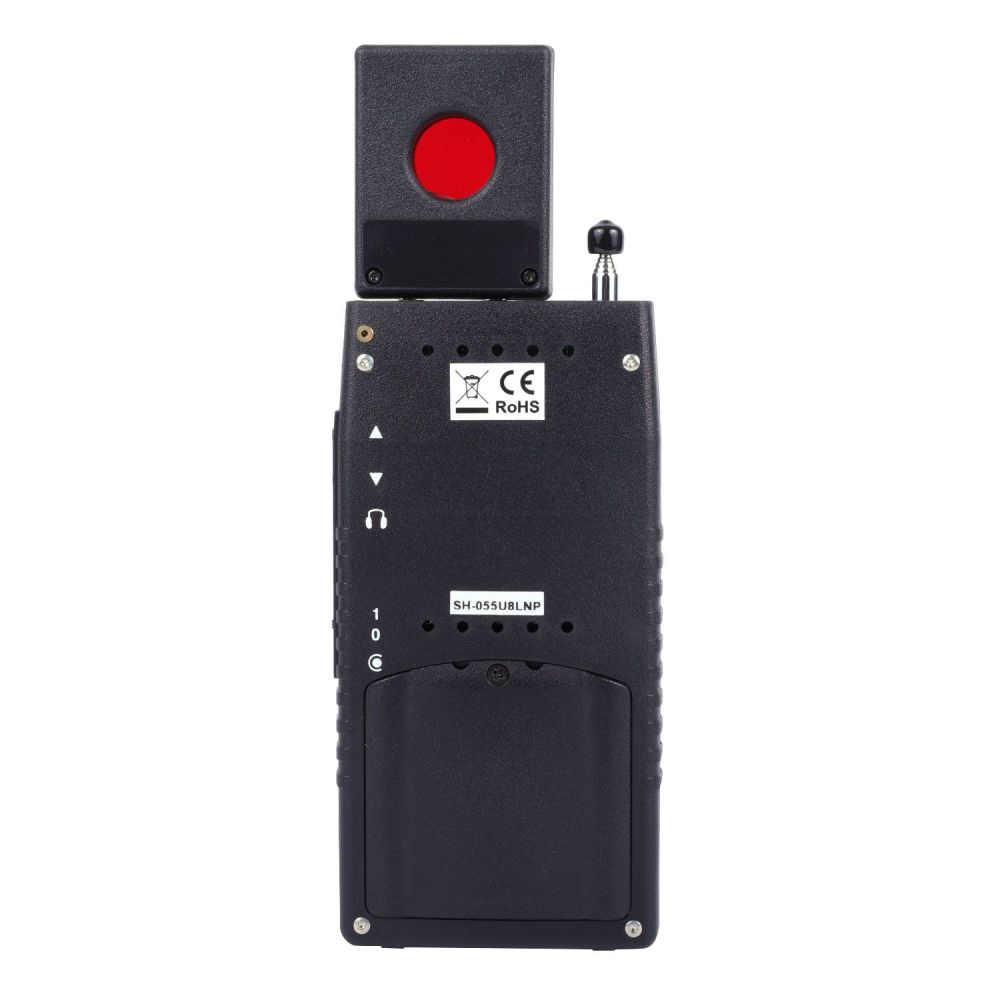

SZ Vodasafe VS-9LC Professional RF Signal Detector
Description:The SZ Vodasafe VS-9LC is a cutting-edge professional RF signal detector designed to identify and locate hidden wireless devices, including bugs, spy cameras, and unauthorized transmitters. Engineered with advanced technology, this device offers unparalleled sensitivity and versatility for personal security, corporate surveillance prevention, and privacy protection. Whether you need to sweep a room for hidden cameras or detect unauthorized signal transmissions, the VS-9LC provides reliable performance across a wide frequency range.
Features:Wide Frequency Detection RangeCovers 50 MHz to 6.0 GHz, ensuring detection of various wireless signals, including:2G/3G/4G/5G cellular signals (3300-3700MHz for 5G)2.4GHz and 5.8GHz WiFi networksWireless bug transmittersGSM and smart phones3G 2100 cell networksWireless cameras (2.4GHz and 5.8GHz)
Multi-Mode Warning SystemLED Indication: 8-level signal strength bar (green to yellow to red)Beep Alarm: Audible alert with adjustable intensityVibration Mode: Silent warning for discrete detectionEarphone Detection: Connect the included earphone for covert operations
Two-Stage Sensitivity AdjustmentStage 1: 9 sensitivity levels (1-9, default at 8) for precise environmental tuningStage 2: 6 additional levels (0-5) for high-interference environments, indicated by a red dot on the displaySemi-directional antenna feature narrows scan angle from 120° to 45° as sensitivity decreases, aiding in precise signal localization
Advanced Detection ModesFilter Mode: Reduces base station interference for clearer detection of targeted signals (e.g., 3G/4G bugs). Activated by holding the (+) button until 3 beeps sound.3G 2100 Expert Detection: Dedicated module for superior 3G 2100MHz signal identification, unmatched by competitors.Standby Phone Registration Detection: Identifies idle smartphones during cell site registration, even in low-signal environments.
Lens Finder for Hidden CamerasAttach the included Lens Finder to:Activate 8 ultra-bright blinking lights for scanning reflective surfacesVisually identify camera lenses through the viewfinder, even when cameras are powered offUncover both wired and wireless hidden cameras
Technical Specifications
| Detection Range |
50 MHz to 6.0 GHz |
| Dimensions |
11.6 x 7 x 3.3 cm (excluding antenna) |
| Weight |
Approximately 160g (excluding batteries) |
| Power Source |
- 5V DC switching power adaptor
- 4 x AAA/UM-4 rechargeable or dry batteries |
| Detection Distances* |
- Wireless bug (2mW): ~4 meters
- 2.4GHz WiFi: ~6 meters
- 10mW 2.4GHz camera: ~4.8 meters
- 10mW 5.8GHz camera: ~3 meters
- GSM/smart phones (4G/5G): ~4 meters
- 3G 2100 network: ~9 meters |
| Battery Charging |
~6 hours for full charge via included USB cable |
| Operating Modes |
Normal mode (default) and Filter mode |
Distances vary based on signal strength and environmental factors.

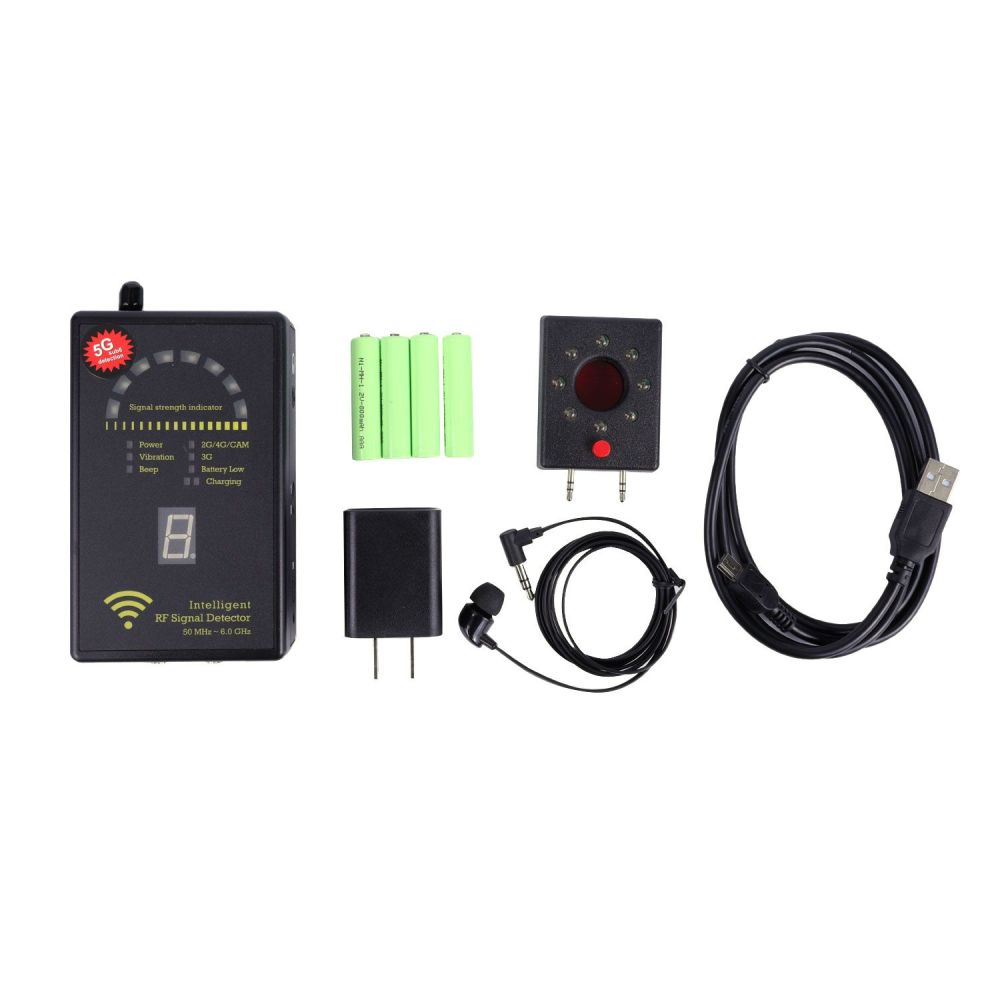

Package Contents1 x VS-9LC Professional RF Signal Detector1 x Switching power adaptor (5V DC)1 x Earphone for silent detection4 x Rechargeable AAA batteries (optional, may vary by package)1 x USB-Mini USB cable for charging1 x Lens Finder for hidden camera detection
Operation GuideInitial SetupBattery Installation: Insert 4 x AAA batteries into the rear compartment, following +- polarity marks.Power On: Slide the center switch on the right side to "1". The device will perform a self-test, lighting all LEDs before defaulting to Power and Beep modes.
Sensitivity AdjustmentStage 1: Press the (-) button to decrease sensitivity from level 8 to 1.Stage 2: When level 1 is reached, press (-) again to enter Stage 2 (5 to 0). A red dot on the display indicates Stage 2.Filter Mode: Hold (+) until 3 beeps sound to reduce base station interference.
Signal Detection & LocalizationExtend the antenna and scan the area slowly.Observe the 8-LED bar: more LEDs indicate stronger signals.When signals are detected, move toward the strongest direction.Reduce sensitivity gradually to narrow the scan angle and pinpoint the source.Use the Lens Finder to visually confirm hidden cameras by scanning for lens reflections.
Warning ModesPress both left-side buttons simultaneously to switch between Beep (default) and Vibration modes.Connect the earphone for completely silent detection.
Safety & Maintenance NotesBattery Care:Replace dry batteries immediately when the Battery Low LED lights red.Charge rechargeable batteries within 6 hours; avoid overcharging or over-discharging.Remove batteries if storing the device long-term to prevent leakage.Power Bank Use: Connect via the mini USB port (right bottom) but never use a computer USB port, as it provides insufficient power.Environmental Precautions:Keep away from water, extreme heat, and physical impacts.Do not touch metal surfaces or signal antennas with the device's antenna.Warranty: Unauthorized disassembly or repair voids the warranty. Damage from static electricity or misuse is not covered.
ApplicationsPersonal privacy protection in hotels, offices, or homesCorporate security for preventing eavesdropping or unauthorized surveillanceEvent security and confidential meeting roomsTravelers concerned about hidden cameras in rental accommodationsLaw enforcement and professional security sweepsThe SZ Vodasafe VS-9LC combines cutting-edge technology with user-friendly design, making it an essential tool for anyone prioritizing privacy and security. Trust in its precision engineering to detect hidden threats and maintain control over your environment.
