Features:
1.Output power total 450w, Use High gain 5dbi omni antennas , shielding 50-200m,Still depends on the strength signal in given area.
2.Each unit can jam up to 9 frequency bands simultaneously,
3.Big aluminum alloy shell and cooling fans, not-stop to work
4.IP54 Design for outdoor installation, Secure design to avoid sabotage
Applications
1) Protection of prohibited areas, such as: prison, mili management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc;
2) To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;
3) To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.
Technical Specifications

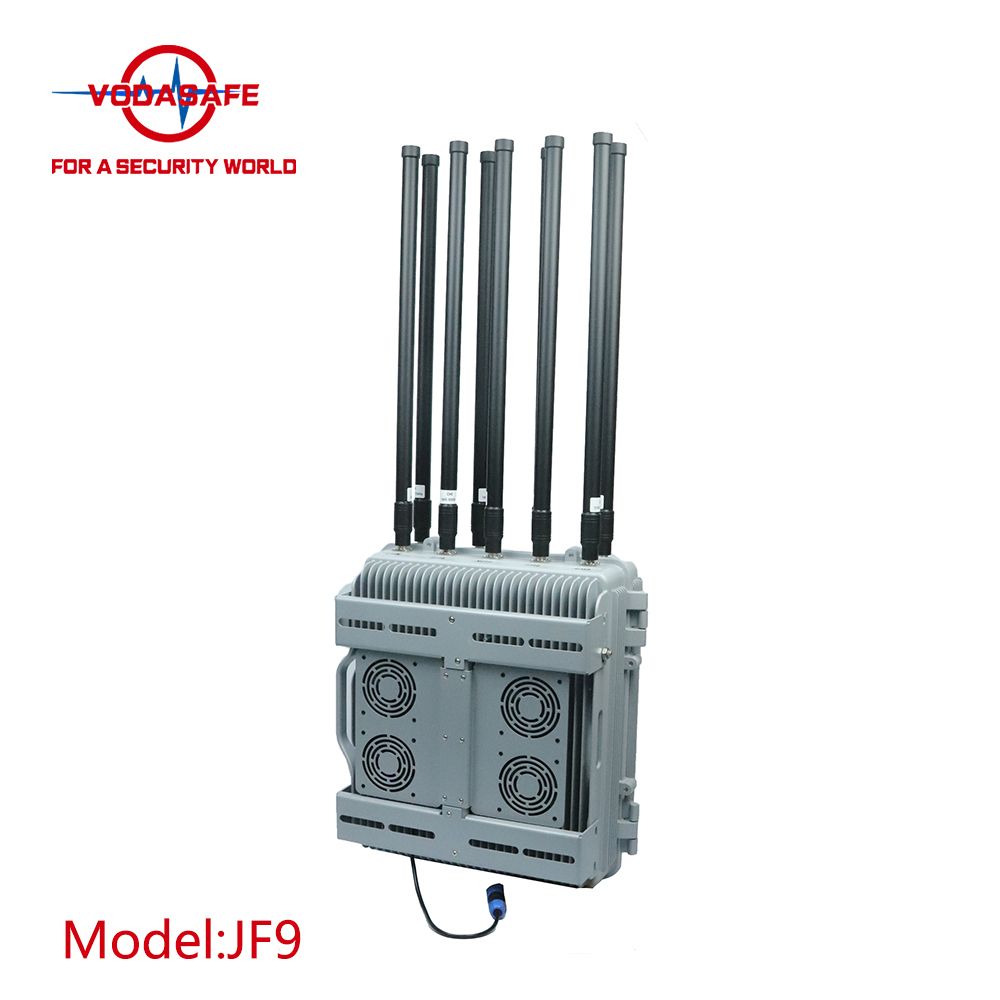

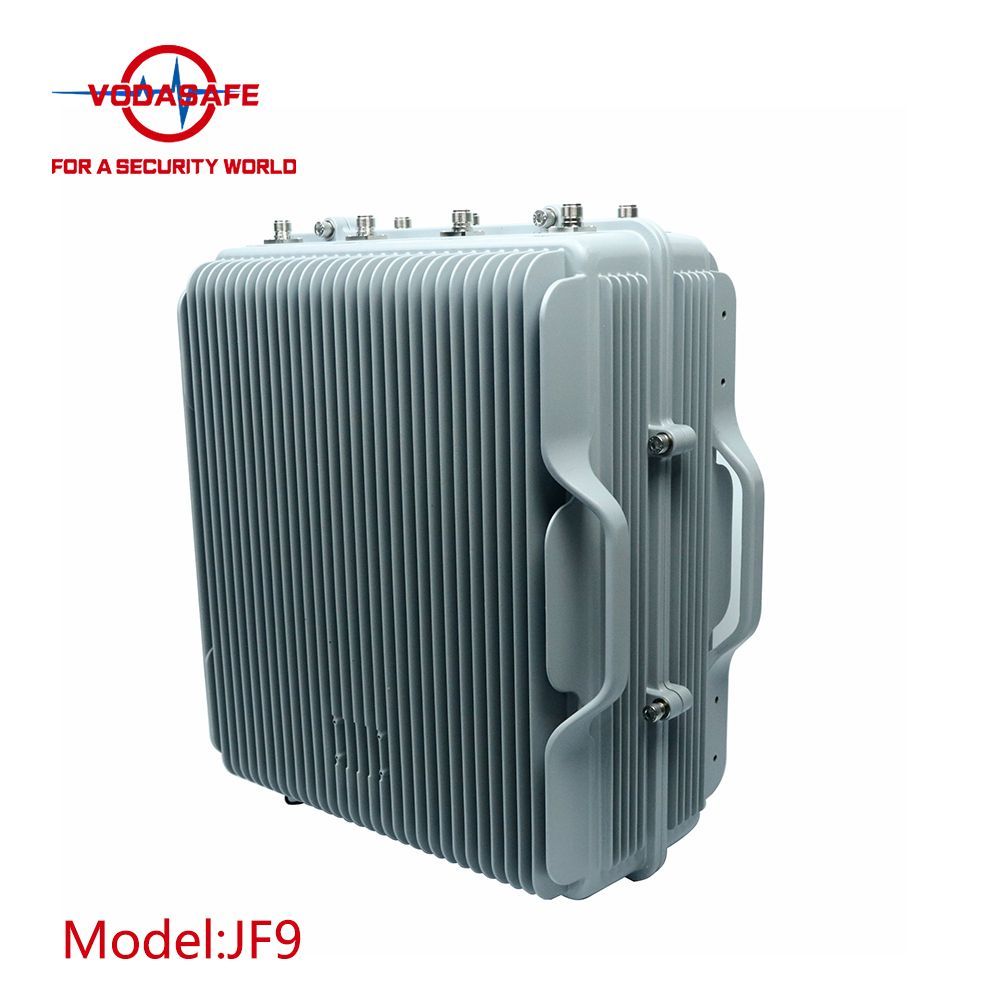

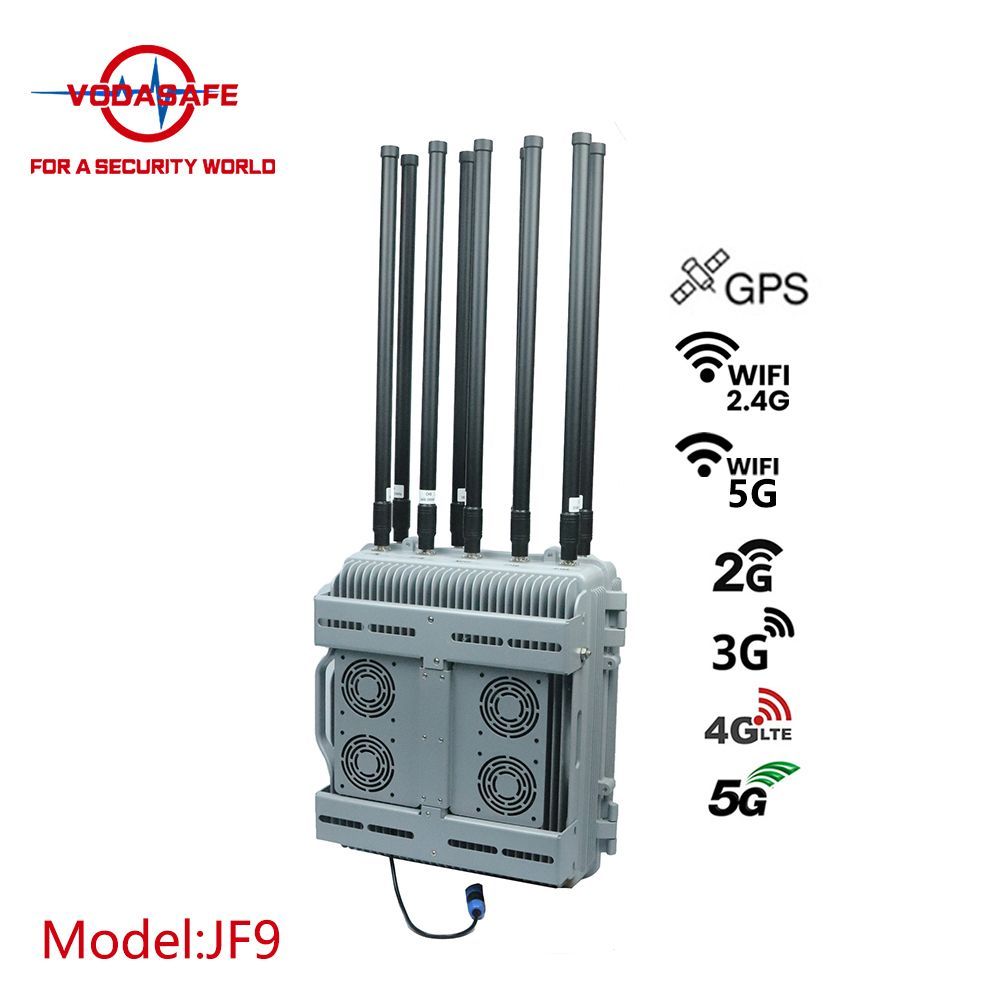

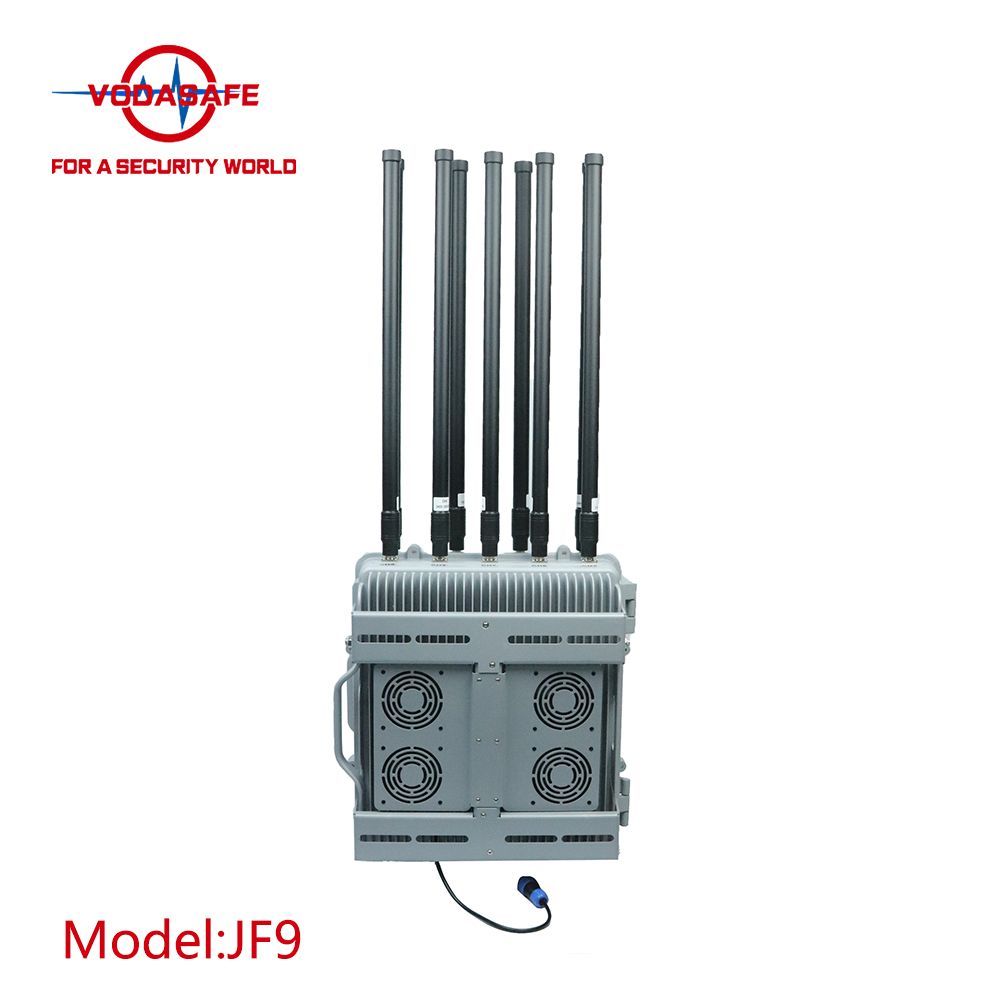

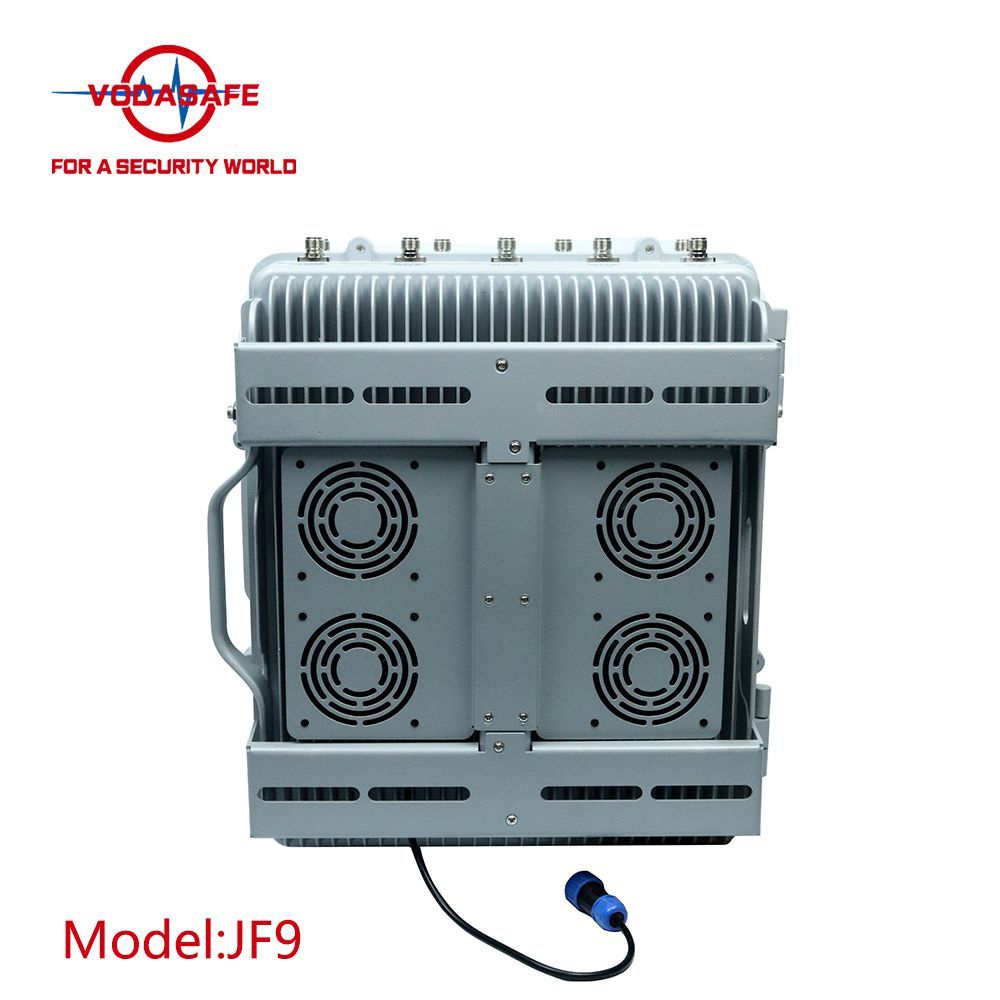

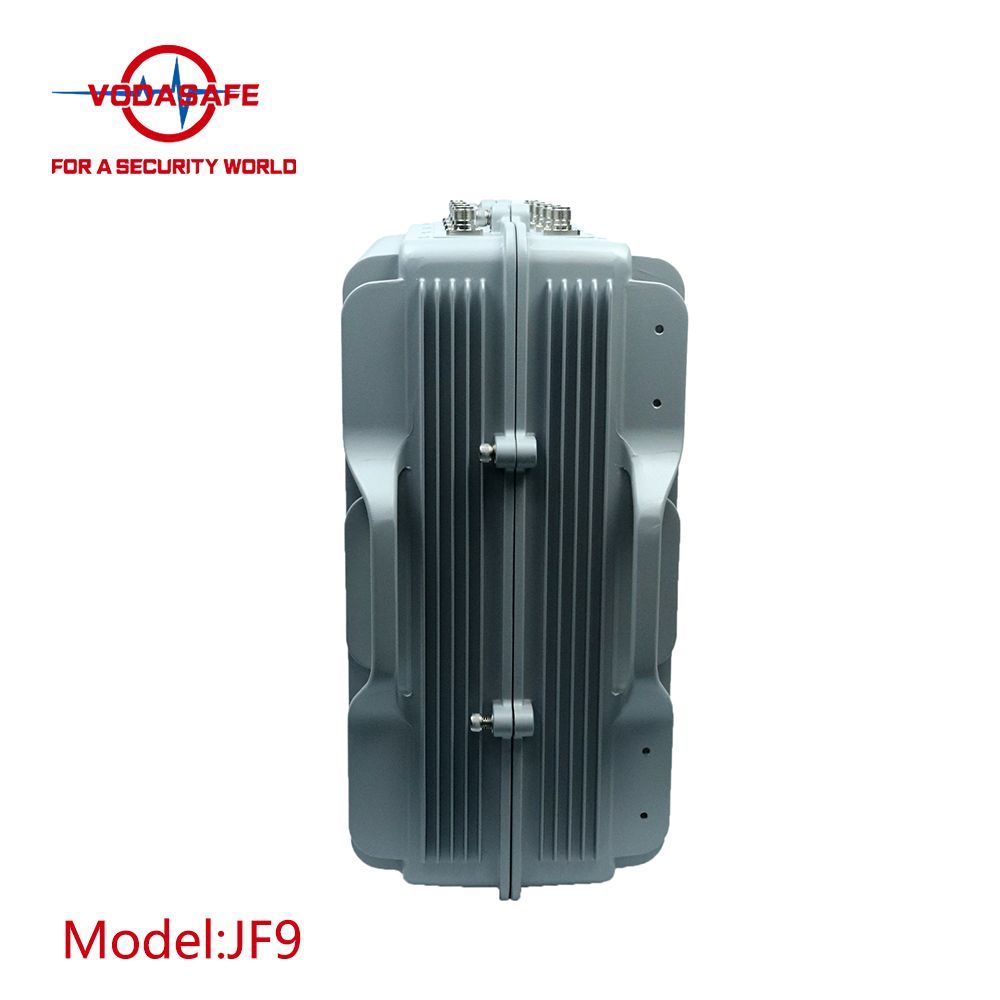

Key specifications:JF9
Channel Output Port Frequency range Average out-putting power
1700 5G, 4G LTE Low 738-830MHz 47dbm /50W
2 GSM 900 920--965MHz 47dbm /50W
3Dcs1800 1800-1920MHz 47dbm /50W
4 3G UMTS2100 2100-2170MHz 47dbm /50W
5 Wi-Fi 5.2 5100-5500MHz 47dbm /50W
6 2600 4G High LTE 2570-2690MHz 47dbm /50W
7 5G1500 1400-1500MHz 47dbm /50W
8 5G3.5/3.6 3400-3800Mhz 47dbm /50W
9 Wi-Fi 5.8 5500-5800 Mhz 47dbm /50W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V)
Dimension: (width, height, length) 490 x400x185mmmm
Package Size: 65*55*35cm N.W: 40kg G.W:45kg (Not include antennas)
Total Power:450W Shielding Radius: (50-200) meters@ Still depends on the distance of drone and remote control
Warranty: One year from delivery date.
Omni Directional Antenna: Dimension: (length, width, height,): 60x 3.8 cm
N.W:1Kg Gains:5dbi VSW1.5 H:360º
After Sales Service
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
