Published: September 2026 | Category: Security Equipment & Privacy Protection | Reading Time: 8 min
In an age where tiny recording devices can be concealed inside a wall socket, a lamp fixture, or even a piece of furniture, protecting your privacy has become more challenging — and more important — than ever. Ordinary RF detectors can only catch devices that are actively transmitting a signal. But what if the hidden camera is turned off? What if the GPS tracker is in sleep mode? That is where a Nonlinear Junction Detector (NLJD) like the Vodasafe VS-820 changes the game entirely.
This comprehensive guide explores how the VS-820 works, what makes it different from conventional detectors, and whether it is the right privacy protection tool for your home, office, or professional security business.
A Nonlinear Junction Detector (NLJD) is a professional electronic inspection device that locates hidden semiconductor-based electronics — such as transistors, diodes, and integrated circuits — by transmitting a microwave signal and analyzing the harmonic responses that bounce back. Unlike an RF (radio frequency) detector, which only listens for active transmissions, an NLJD detects the physical presence of electronic components regardless of whether the device is powered on, off, or in sleep mode.
This makes the NLJD the gold standard for professional technical security inspections, particularly when the target may be deliberately powered down to avoid detection.
Key Insight: An NLJD can find a hidden camera that is turned off, an audio bug with no battery, or a GPS tracker in deep sleep mode — situations where every ordinary RF detector would return a clean reading.
The Vodasafe VS-820 is a compact, foldable handheld NLJD designed for both professional inspectors and privacy-conscious users. Here are the standout features that set it apart:
The VS-820 independently analyzes both the 2nd harmonic (4.8–5.0GHz) and 3rd harmonic (7.2–7.5GHz) return signals. By comparing the ratio between these two harmonics, operators can distinguish genuine semiconductor junctions from false positives caused by metal corrosion or oxidized contacts — significantly reducing false alarm rates during inspections.
A 3.5mm headphone jack allows private audio monitoring in sensitive environments, while the stepless vibration mode enables completely silent sweeps where neither sound nor screen light is appropriate.

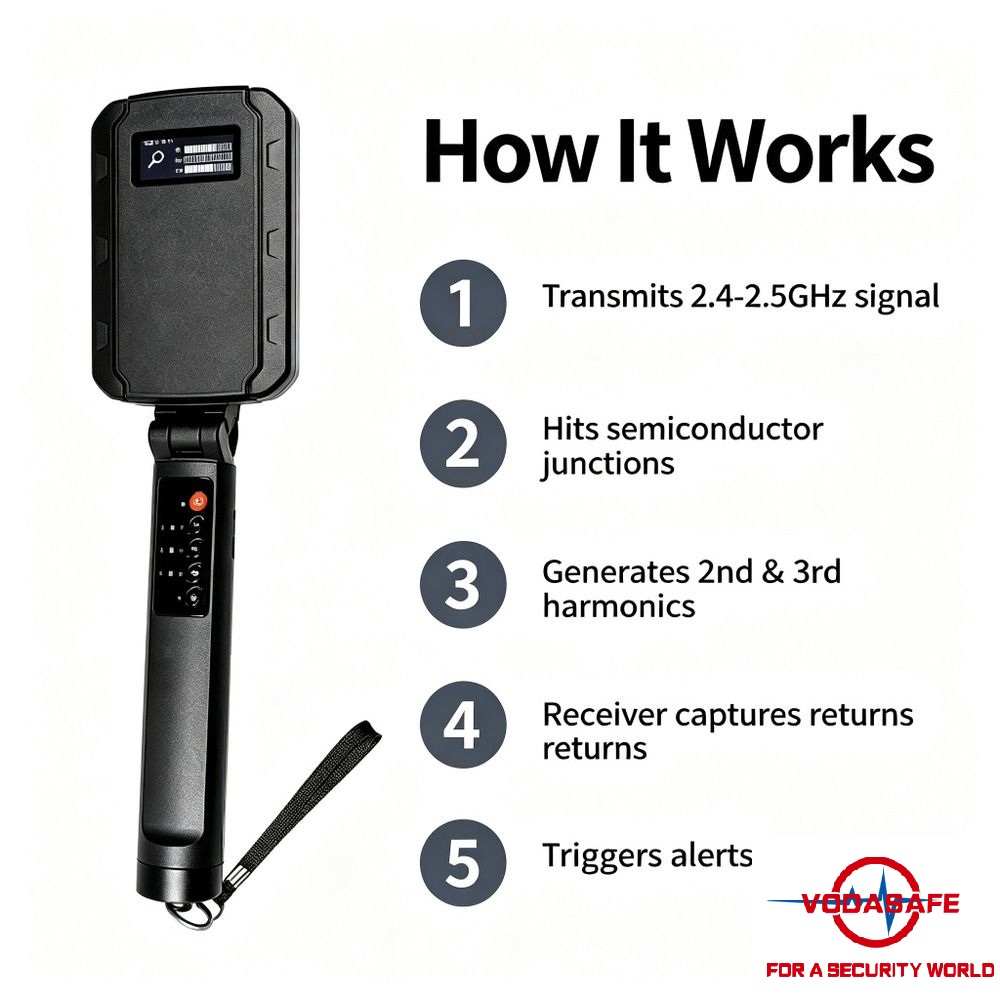

The principle behind nonlinear junction detection is rooted in semiconductor physics. Here is a step-by-step breakdown:
Why This Matters: Because harmonic detection relies on the physical properties of semiconductor materials rather than on the device emitting a signal, the VS-820 can locate electronics that are completely dormant, disconnected, or even battery-free.
The Vodasafe VS-820 is versatile enough for both professional and personal use. Common applications include:
This is one of the most common questions we receive. The table below summarizes the key differences:
| Feature | NLJD (Vodasafe VS-820) | Ordinary RF Detector |
|---|---|---|
| Detection Principle | Harmonic response from semiconductor junctions | Active RF transmission capture |
| Detects Powered-Off Devices | Yes | No |
| Detects Sleep-Mode Devices | Yes | Usually no |
| Wall Penetration | Up to 370mm brick | Limited / none |
| False Alarm Rate | Low (2nd/3rd harmonic ratio analysis) | Higher (interference from Wi-Fi, Bluetooth) |
| Best For | Professional sweeps, dormant devices, wall-embedded electronics | Quick checks of actively transmitting devices |
| Price Range | Professional grade (higher investment) | Consumer grade (affordable) |
Bottom line: If you only need to check for actively transmitting devices in your immediate vicinity, an RF detector may suffice. But if you need reliable detection of hidden electronics — including devices that are deliberately turned off or concealed inside walls — an NLJD like the VS-820 is the only dependable choice.
| Specification | Value |
|---|---|
| Product Model | Vodasafe VS-820 |
| Product Type | Compact Nonlinear Junction Detector (NLJD) |
| Transmit Frequency | 2.4GHz ~ 2.5GHz |
| Receive Harmonics | 4.8–5.0GHz (2nd) / 7.2–7.5GHz (3rd) |
| Transmit Power | 0~4W EIRP (max pulse mode) |
| Maximum Detection Distance | ≥6 meters |
| Wall Penetration | 370mm solid brick wall |
| Receiving Sensitivity | ≤-125dBm |
| Alert Modes | LCD display + audio + vibration |
| Audio Output | Built-in speaker + 3.5mm headphone jack |
| Battery | Built-in rechargeable lithium battery |
| Continuous Working Time | Over 3 hours (max pulse mode) |
| Dimensions | 370mm × 96mm × 38.5mm |
| Net Weight | 0.5kg ± 0.05kg |
| Operating Temperature | -10°C ~ +55°C |
| Operating Humidity | ≤93%RH (non-condensing) |
| Certification | GA1236-2015 Class C compliant |
| Housing Material | Rugged ABS |
7. Frequently Asked QuestionsQ: Can the VS-820 detect a hidden camera that is turned off? A: Yes. This is the primary advantage of an NLJD. The VS-820 detects semiconductor components through harmonic response, not through RF emissions. It can locate powered-off spy cameras, dormant audio bugs, and sleep-mode GPS trackers that ordinary RF detectors completely miss.
Q: How far can the VS-820 detect hidden devices? A: The maximum effective detection distance is 6 meters, certified to the GA1236-2015 Class C standard. Actual range depends on the size of the target device and the materials between the detector and the target. For wall-embedded devices, the VS-820 penetrates up to 370mm of solid brick.
Q: Do I need special training to operate this device? A: No extensive training is required. The VS-820 features clearly labeled function buttons, an intuitive LCD display, and an ergonomic one-hand grip. New operators can begin basic inspections with minimal guidance. For advanced professional use, familiarizing with the 2nd/3rd harmonic ratio interpretation in the user manual is recommended.
Q: How long does the battery last, and how is it charged? A: The built-in high-capacity lithium battery provides over 3 hours of continuous operation under maximum pulse transmit power — enough for a full-site single sweep. It charges via the included USB cable and power adapter.
Q: Can the VS-820 distinguish between real electronics and metal objects? A: Yes. By independently analyzing and comparing the 2nd harmonic and 3rd harmonic signal ratios, the VS-820 can distinguish genuine semiconductor junctions from false positives caused by metal corrosion, oxidized contacts, or plain metal objects — significantly reducing false alarm rates.
Q: Is the VS-820 suitable for professional security businesses? A: Absolutely. With Class C certification (the highest civilian NLJD performance rating), professional-grade harmonic analysis, 370mm wall penetration, and a durable foldable design, the VS-820 is well-suited for private investigation firms, security consulting companies, and in-house corporate security teams. OEM and ODM customization is also available for bulk orders.
The Vodasafe VS-820 Compact Nonlinear Junction Detector fills a critical gap that ordinary RF detectors simply cannot address: finding hidden electronics that are turned off, sleeping, or concealed inside walls. With its Class C certified performance, 6-meter detection range, 370mm wall penetration, and ultra-high -125dBm sensitivity, it delivers professional-grade results in a lightweight, foldable, easy-to-use form factor.
Whether you are a corporate security manager protecting trade secrets, a private investigator offering sweep services, a frequent traveler concerned about hotel room privacy, or a homeowner wanting to ensure your personal space is truly private — the VS-820 provides the reliable detection capability that consumer-grade detectors cannot match.
The triple-alert system (LCD + audio + vibration), headphone-compatible discreet mode, and 3+ hour battery life make it practical for real-world inspections in any environment. Backed by GA1236-2015 Class C certification and Vodasafe's strict quality control, the VS-820 is a dependable investment in privacy and security.
Ready to Protect Your Privacy? Contact Vodasafe today for pricing, bulk order discounts, and OEM/ODM customization options. The VS-820 — professional nonlinear junction detection for a more secure world.
