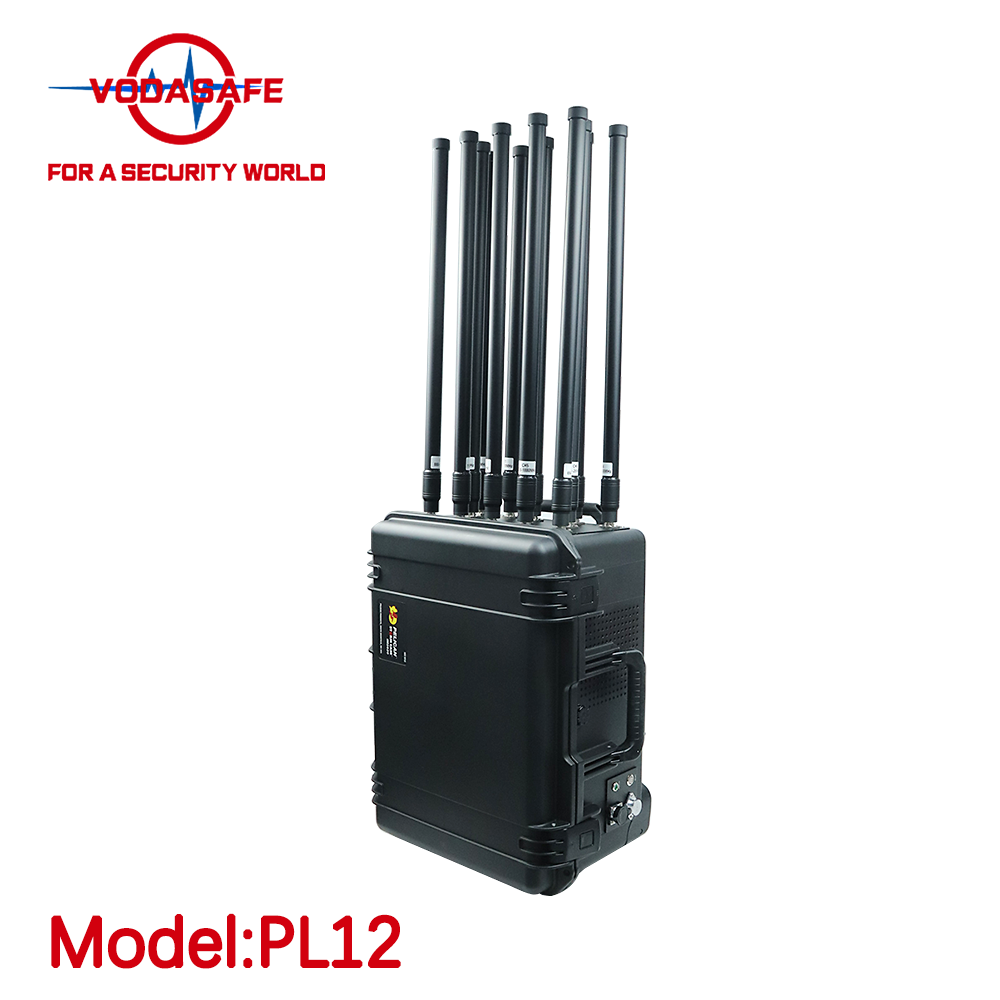

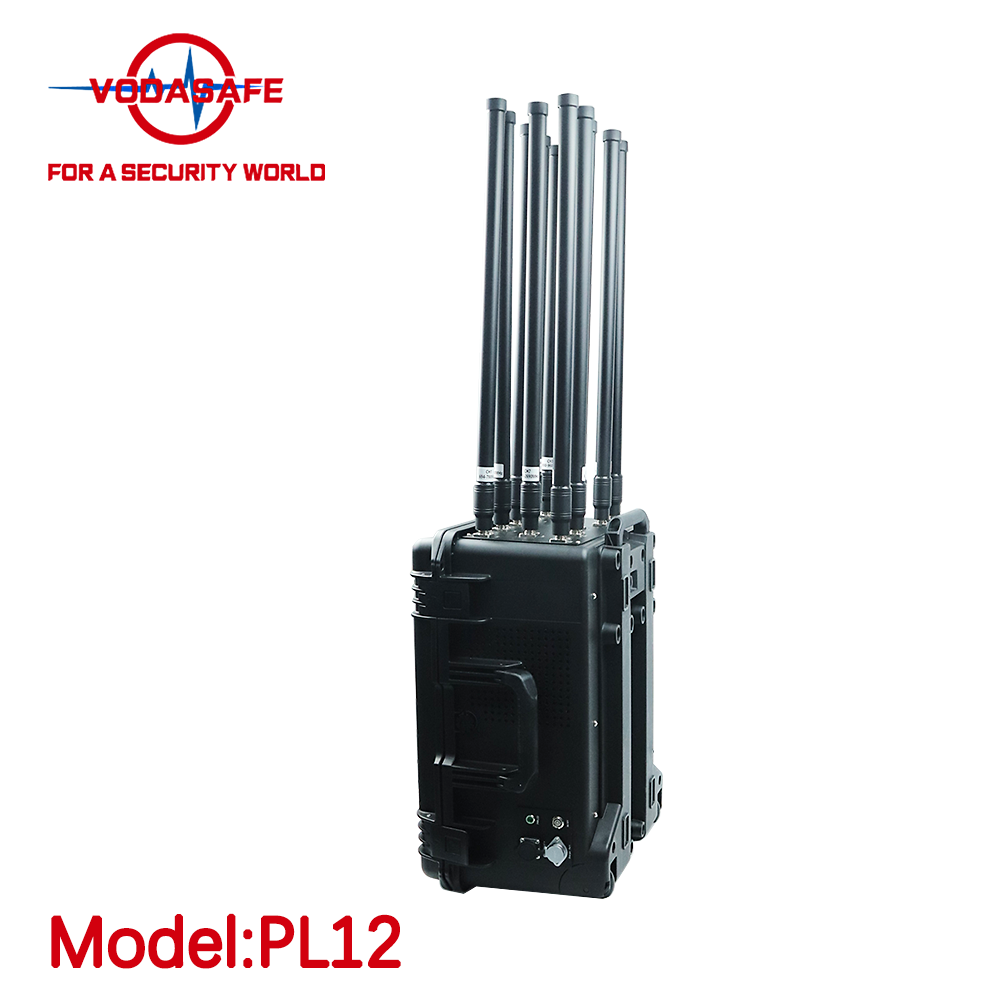

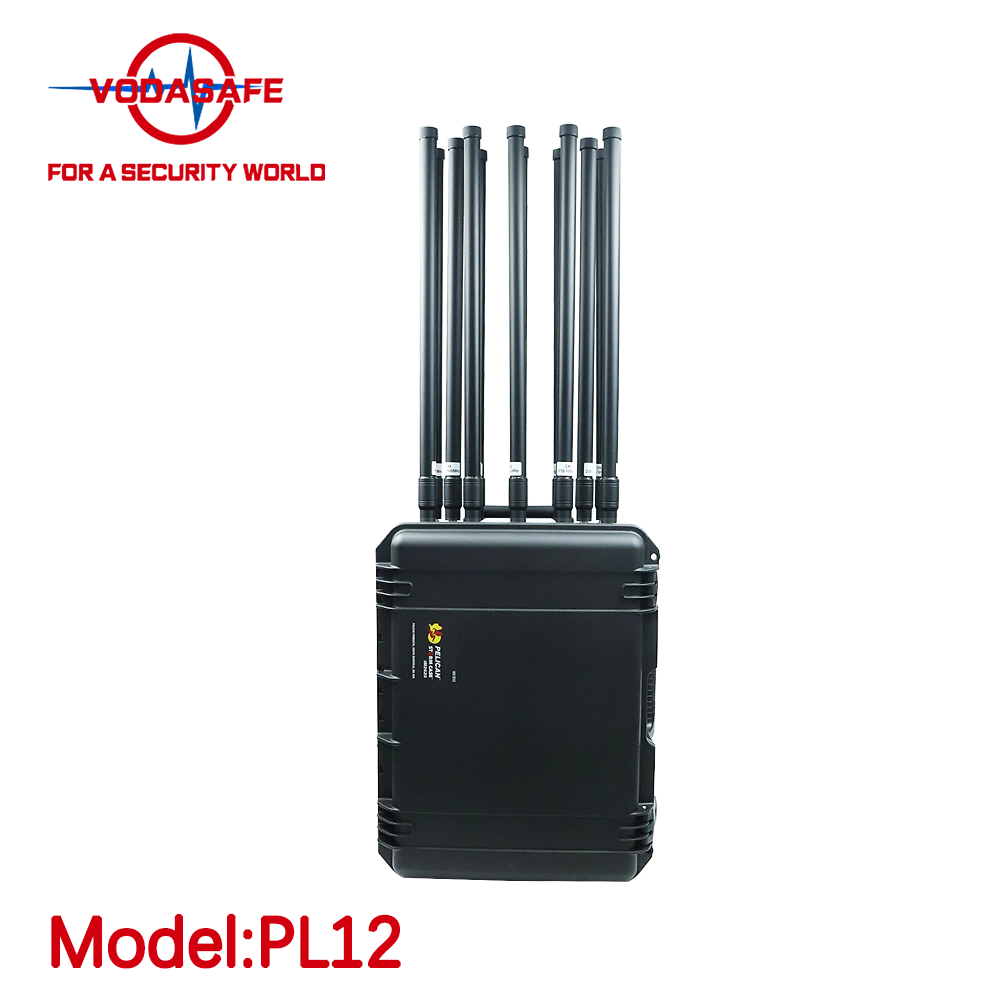

SZ Vodasafe VS-PL12 Professional Trolley Case High-Power Full-Band Signal Jammer
The VS-PL12 high power portable signal jammer is a heavy-duty signal control device independently developed by SZ Vodasafe, built based on core radio communication suppression and wideband scanning technology. It can completely cut off the wireless communication link between mobile terminals and base stations, forcing all nearby smartphones, tablets and wireless devices to show “no service”, “searching network” or disconnected Wi-Fi status. This unit supports 24-hour non-stop mains power operation and short-duration mobile battery operation, with flexible single-point deployment or distributed networking layout to fit signal isolation requirements of small, medium and large-area sites. Equipped with an integrated retractable pull rod and dual universal casters, the rugged security hard case enables free on-site transfer without opening the chassis for activation, perfectly matching temporary security, confidential meeting, emergency anti-interference and mobile law enforcement scenarios.
Core Functional Advantages
1) Full 12-Channel Comprehensive Signal Shielding
This machine adopts a 12 independent channel design to cover all mainstream global cellular and Wi-Fi frequency bands, including complete 2G/3G/4G/5G mobile signals as well as Wi-Fi 2.4G, 5.2G and 5.8G wireless network signals. Each channel operates independently without mutual interference, allowing targeted shielding of single or multiple signal types as required.
2)Ultra-High Total Output Power & Wide Coverage

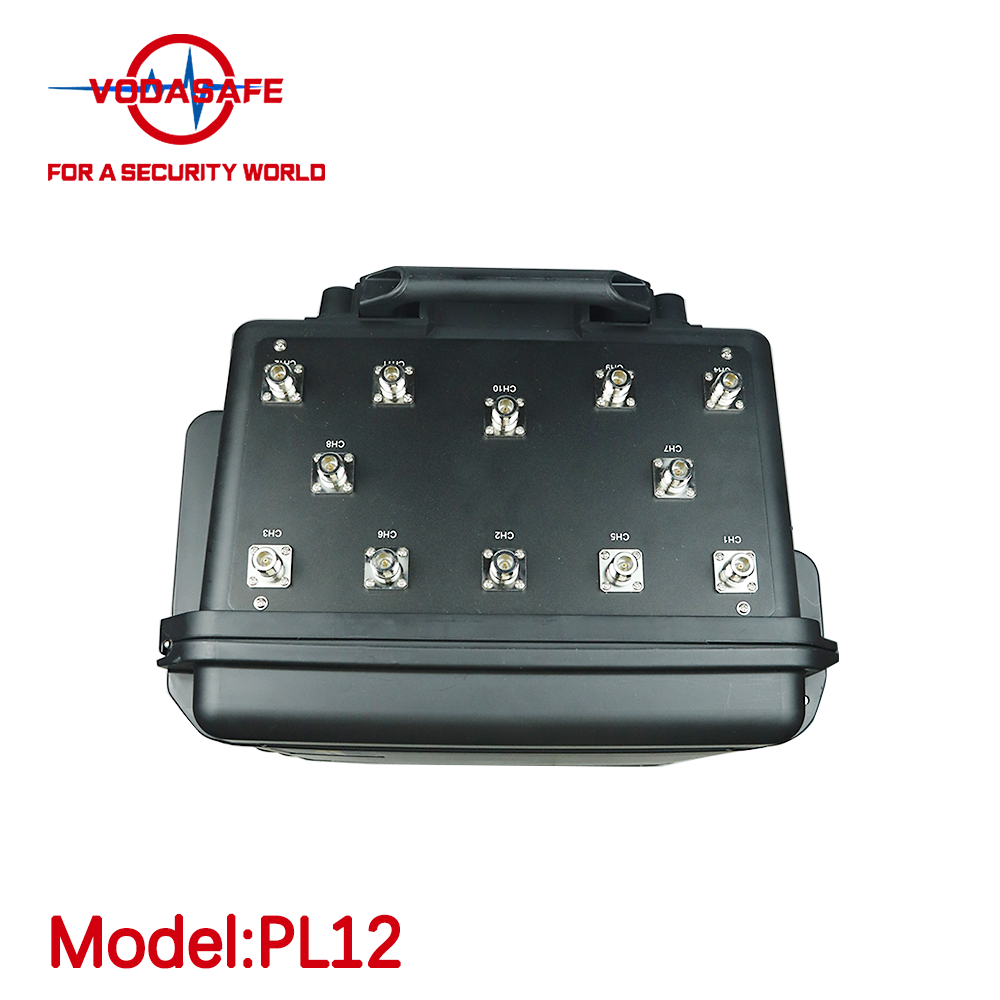

The total module output power of VS-PL12 reaches 600W (antenna gain excluded). It adopts industrial-grade N-type connectors matched with omnidirectional fiberglass antennas, delivering a shielding radius ranging from 10 meters to 300 meters. The actual coverage distance fluctuates according to local base station signal strength, building obstructions and electromagnetic environment; open spaces with weak surrounding signals achieve the maximum isolation range.
3)Humanized Portable Trolley Integrated Design

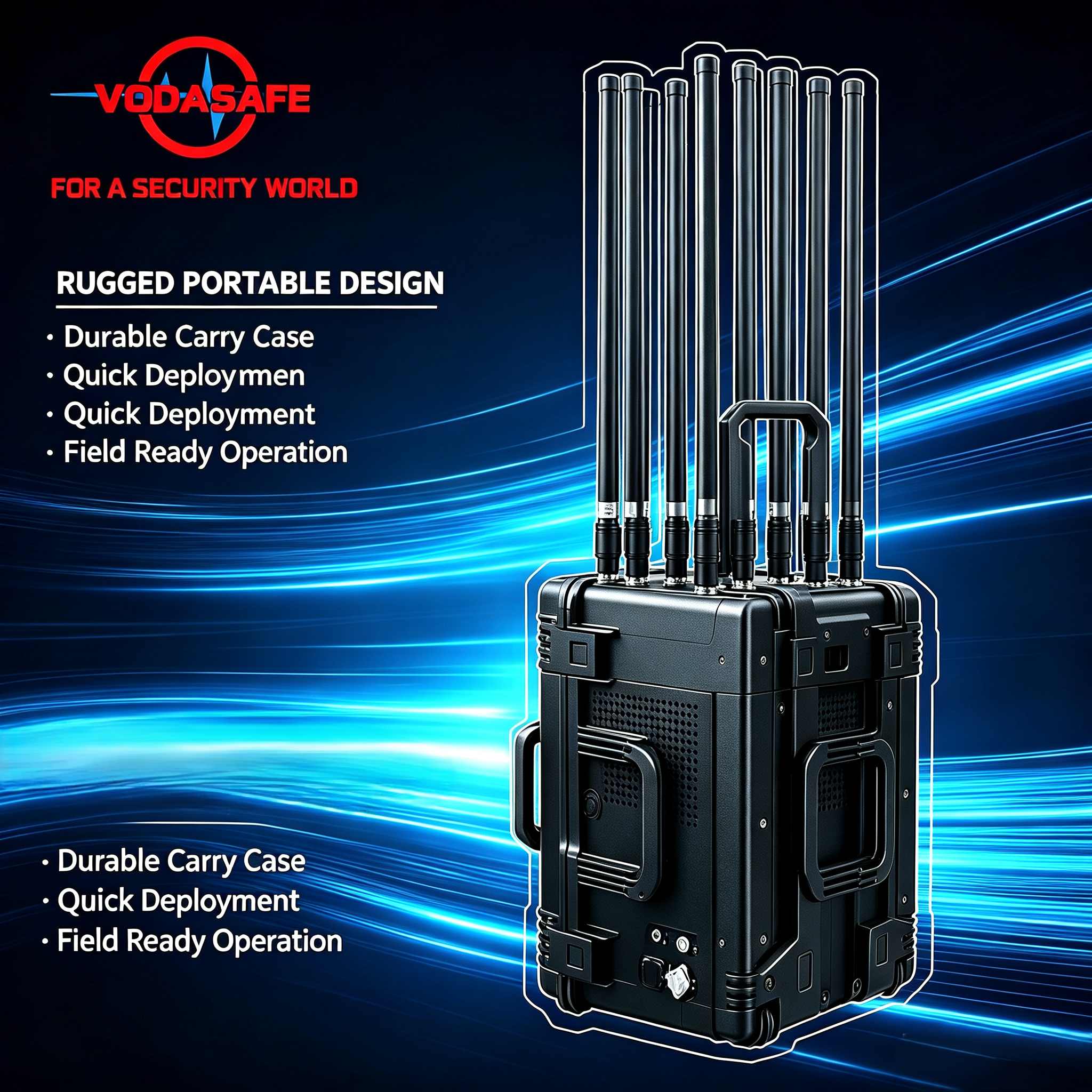

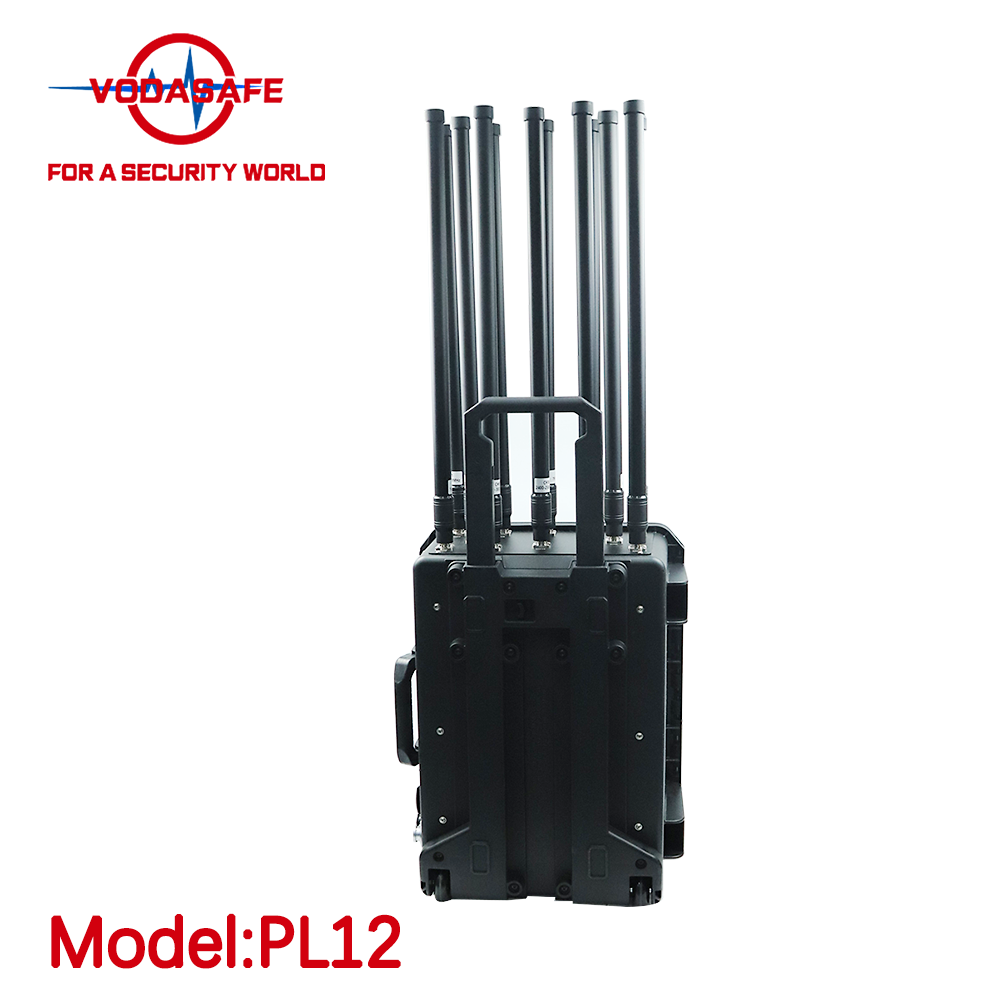

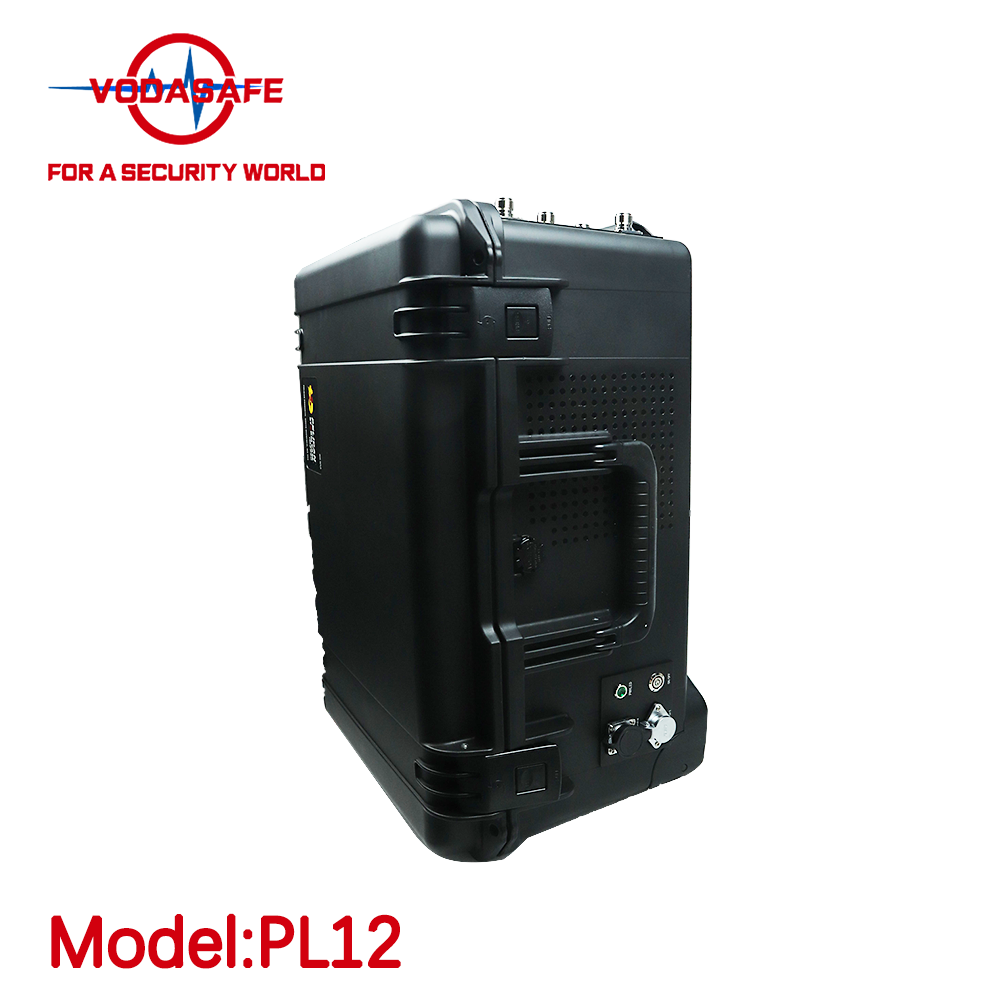

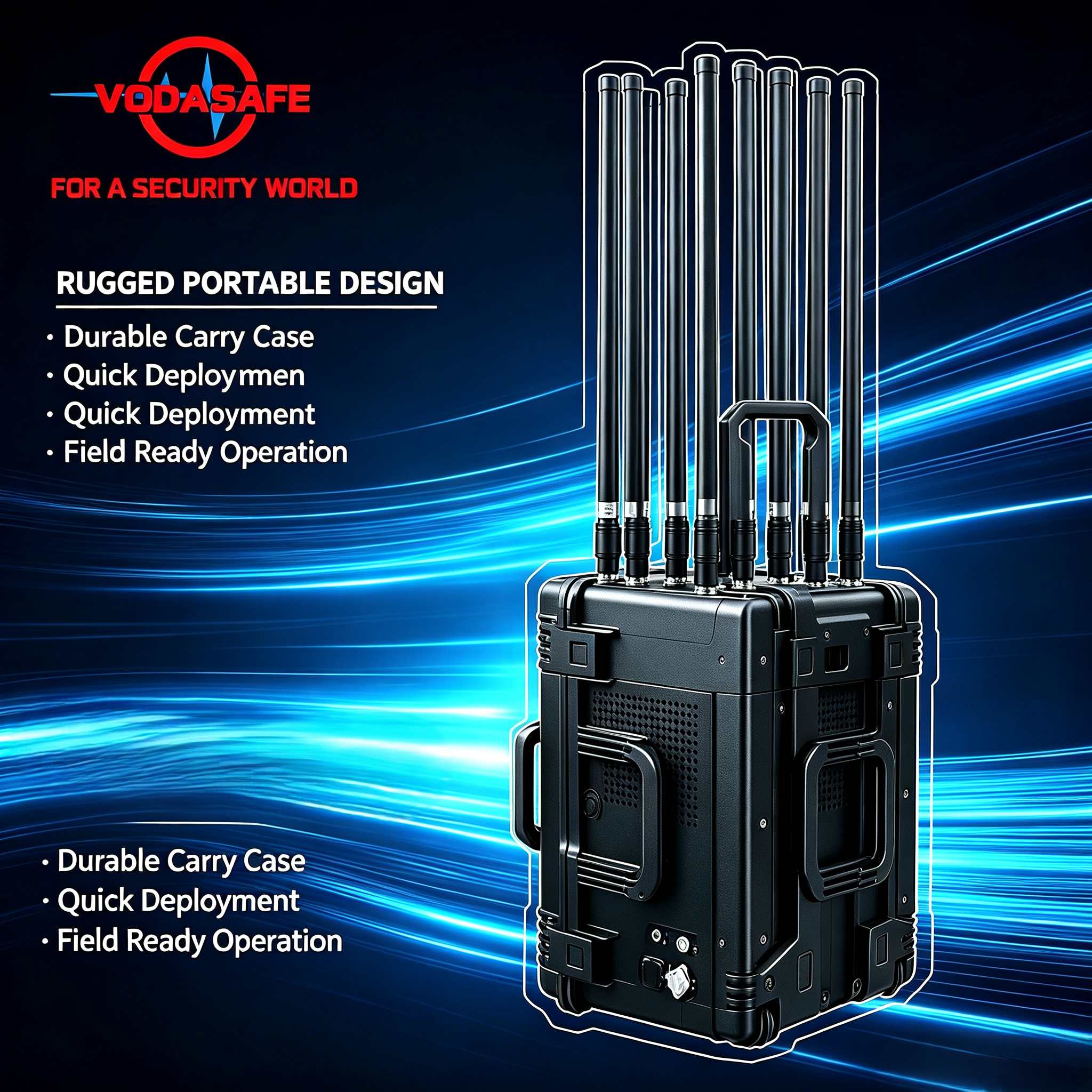

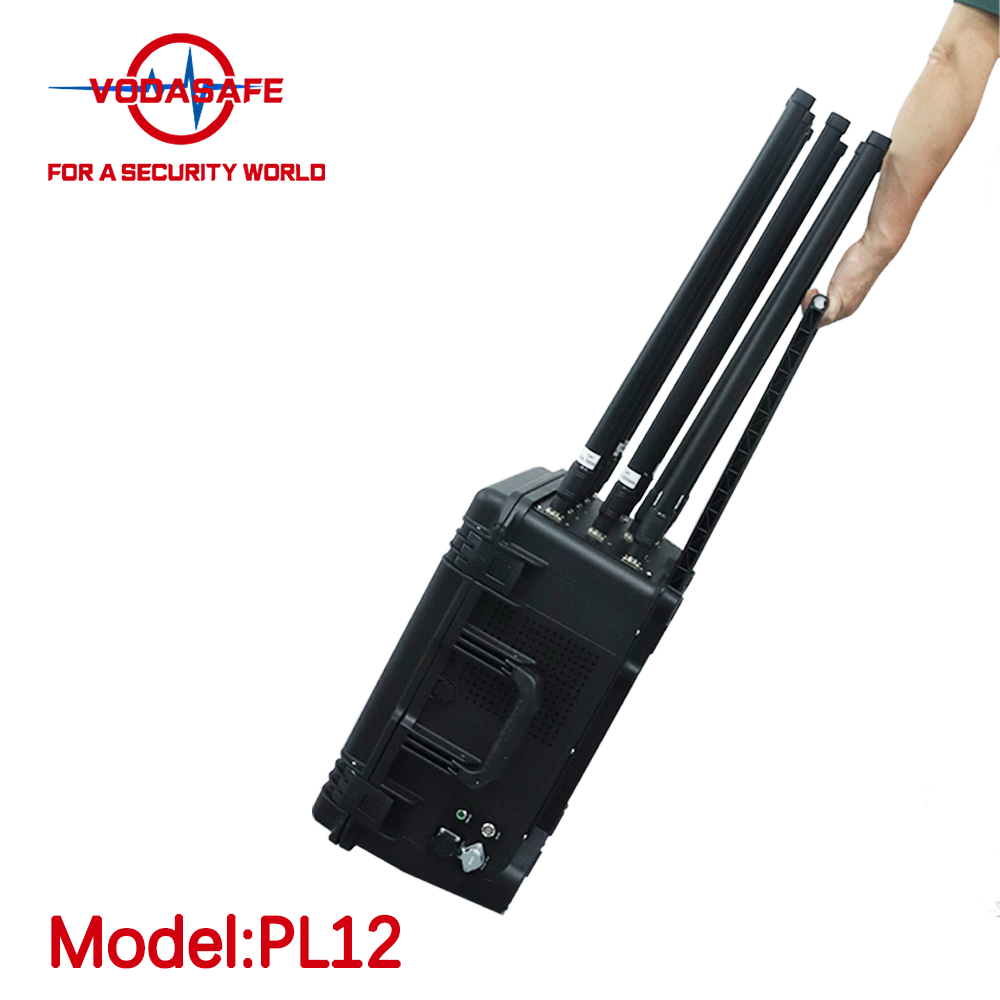

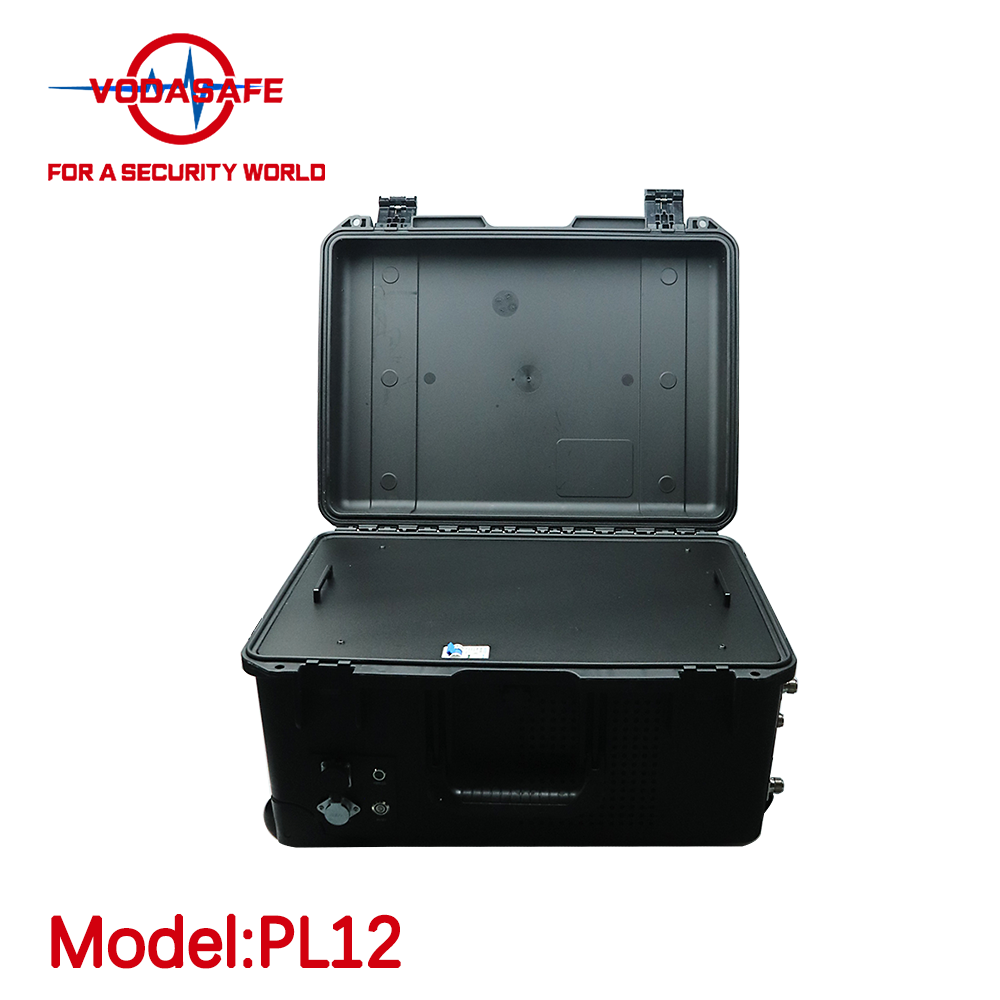

The whole machine is wrapped in shock-resistant industrial security chassis with built-in telescopic pull handle and two silent universal wheels, supporting flexible dragging and transshipment for field tasks. Operators can launch shielding function directly without disassembling the case cover, greatly saving on-site setup time. All supporting antennas are stored in a dedicated carrying bag for neat transport and anti-loss management.
4)Dual Power Supply Modes for Flexible Scenarios

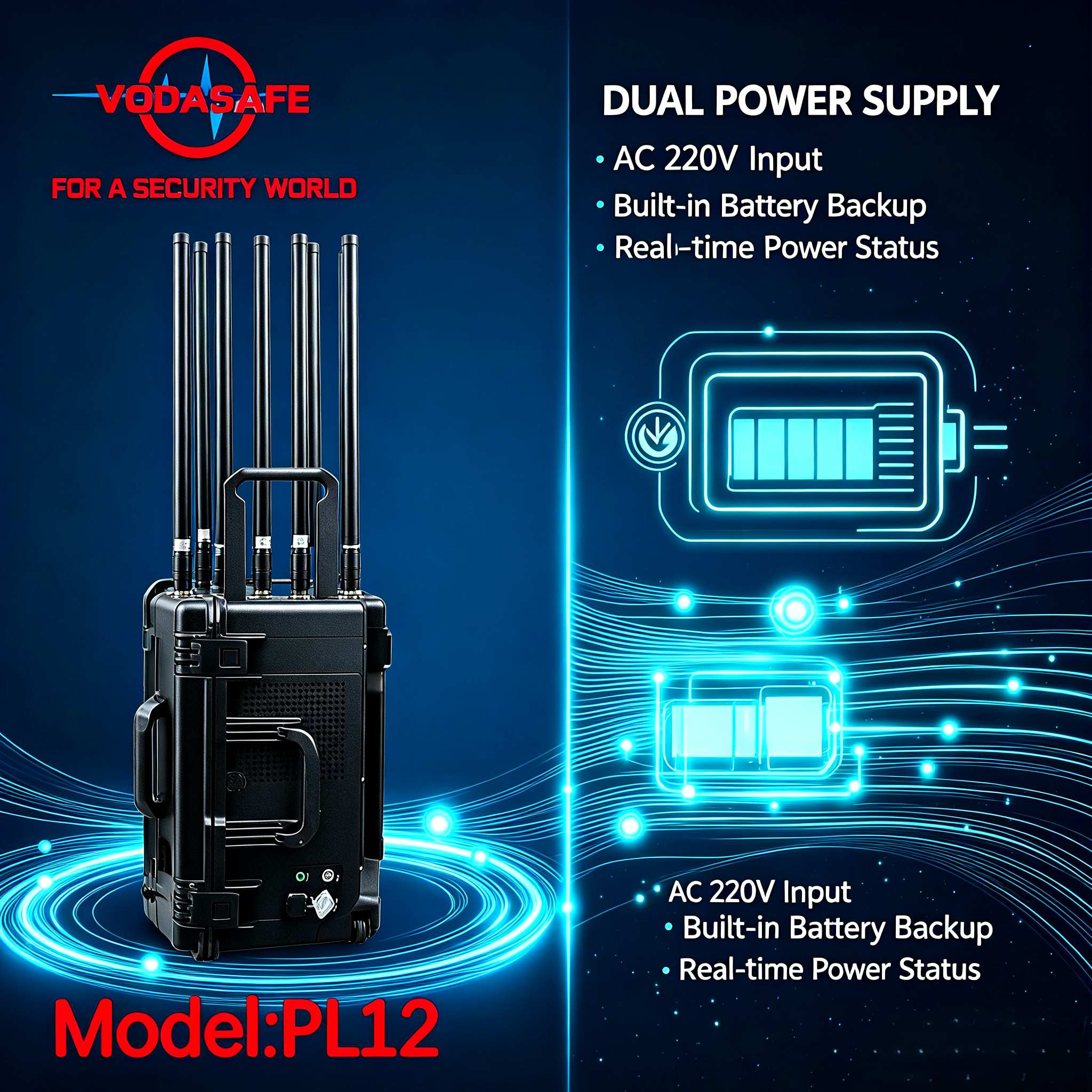

Two power supply schemes are available to adapt to fixed and mobile use cases:
Mains power mode: Supports AC220V 50/60Hz city power input, converts to DC24-28V working voltage for 24/7 uninterrupted long-term continuous operation, ideal for fixed confidential rooms, courtrooms and detention areas.
Built-in lithium battery mode: Equipped with DC24-28V 56Ah large-capacity industrial lithium battery, which can sustain stable shielding work for about 50 minutes without external power, suitable for temporary field deployment, mobile patrol and emergency response missions. The battery module features an LCD real-time display to show remaining charging and discharging capacity for convenient power status monitoring.
5)Modular Plug-and-Play Structure with Independent Channel Control

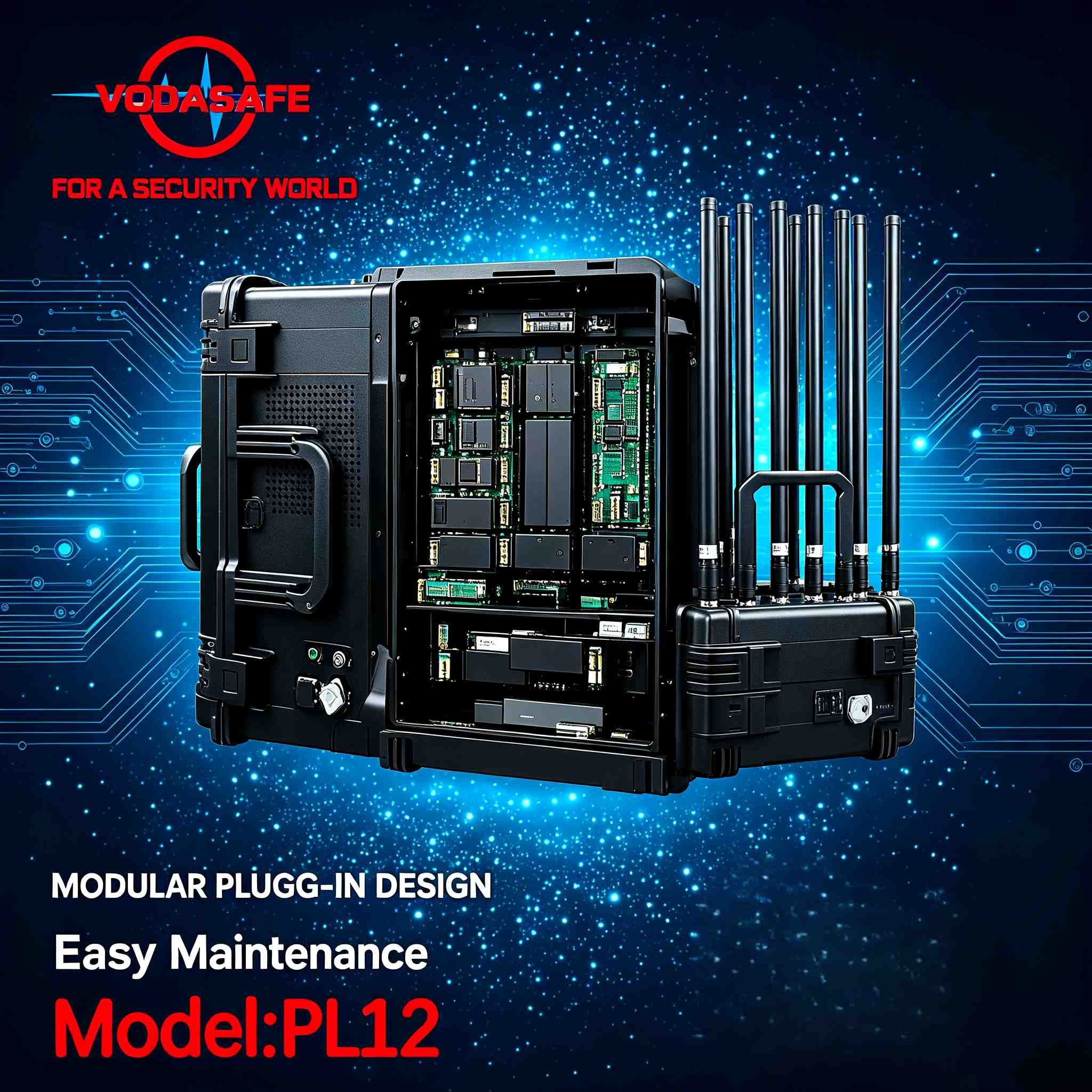

Inside the unit are 5 dual-channel independent power modules, each fitted with a dedicated built-in cooling fan. The pluggable module design simplifies post-sales maintenance and part replacement without professional disassembly tools. Every single channel is equipped with an independent adjustable power knob, enabling users to lower or shut down the output power of any single frequency band as needed. Corresponding LED indicator lights visually display each channel’s working state, while built-in isolators and VSWR standing wave protection circuits prevent module damage caused by antenna mismatching or short circuits to extend service life.
6)Heavy-Duty Efficient Heat Dissipation System
To handle long-hour high-power operation, VS-PL12 integrates high-efficiency aluminum alloy profile heat sinks plus 17 built-in high-speed cooling fans distributed inside the chassis. The layered heat dissipation structure rapidly exhausts internal heat, maintaining stable equipment performance within a wide working temperature range of -20°C to 50°C, and avoids power attenuation or automatic shutdown due to overheating during continuous operation.
7)Strict Factory Quality Assurance
Every VS-PL12 unit undergoes rigorous testing procedures before delivery, including multi-round spectrum analyzer calibration and extended load aging testing to verify stable power output and consistent shielding performance. The whole machine is covered by a 1-year official manufacturer warranty from SZ Vodasafe to eliminate after-sales concerns for bulk purchasers and security institutions.
Detailed Frequency & Power Performance Description
All 12 independent channels feature calibrated average output power with ±1dBm tolerance, paired with matched-gain omnidirectional fiberglass antennas to maximize uniform 360-degree horizontal signal suppression:
Channel 1 (CDMA, 870-880MHz): 50W average output power, matched with 3dBi gain antenna, dedicated to CDMA cellular band shielding.
Channel 2 (GSM, 930-960MHz): 50W average output power, 3dBi antenna, blocks global GSM 2G communication signals.
Channel 3 (DCS&PHS, 1805-1920MHz): 50W power, 5dBi antenna, covers DCS 2G and PHS wireless communication bands.
Channel 4 (3G, 2010-2170MHz): 50W power, 5dBi antenna, fully suppresses UMTS 3G mobile signals.
Channel 5 (Wi-Fi 2.4G & 4G 2300, 2300-2485MHz): 50W power, 5dBi antenna, blocks 2.4GHz Wi-Fi and 2300MHz 4G frequency segments simultaneously.
Channel 6 (Wi-Fi 5.2G, 5125-5350MHz): 30W average power, 7dBi high-gain antenna, targets 5.2GHz short-range wireless network signals.
Channel 7 (4G/5G 2600, 2515-2675MHz): 50W power, 5dBi antenna, covers mid-band 4G and partial 5G 2600MHz frequency.
Channel 8 (Wi-Fi 5.8G, 5725-5850MHz): 30W power, 7dBi antenna, shields 5.8GHz high-frequency Wi-Fi signals.
Channel 9 (China Telecom & Unicom 5G, 3400-3600MHz): 40W power, 7dBi antenna, dedicated to mainstream domestic operator Sub-6GHz 5G mid-band signals.
Channel 10 (China Mobile 5G, 4800-4900MHz): 20W power, 7dBi antenna, isolates Mobile’s high-frequency 5G n79 band signals.
Channel 11 (Low-band 4G LTE, 729-790MHz / 738-821MHz): 20W power, 7dBi antenna, covers low-frequency 4G uplink and downlink bands.
Channel 12 (4G LTE 2600, 2500-2700MHz): 20W power, 7dBi antenna, reinforces shielding for 2600MHz 4G LTE bands.

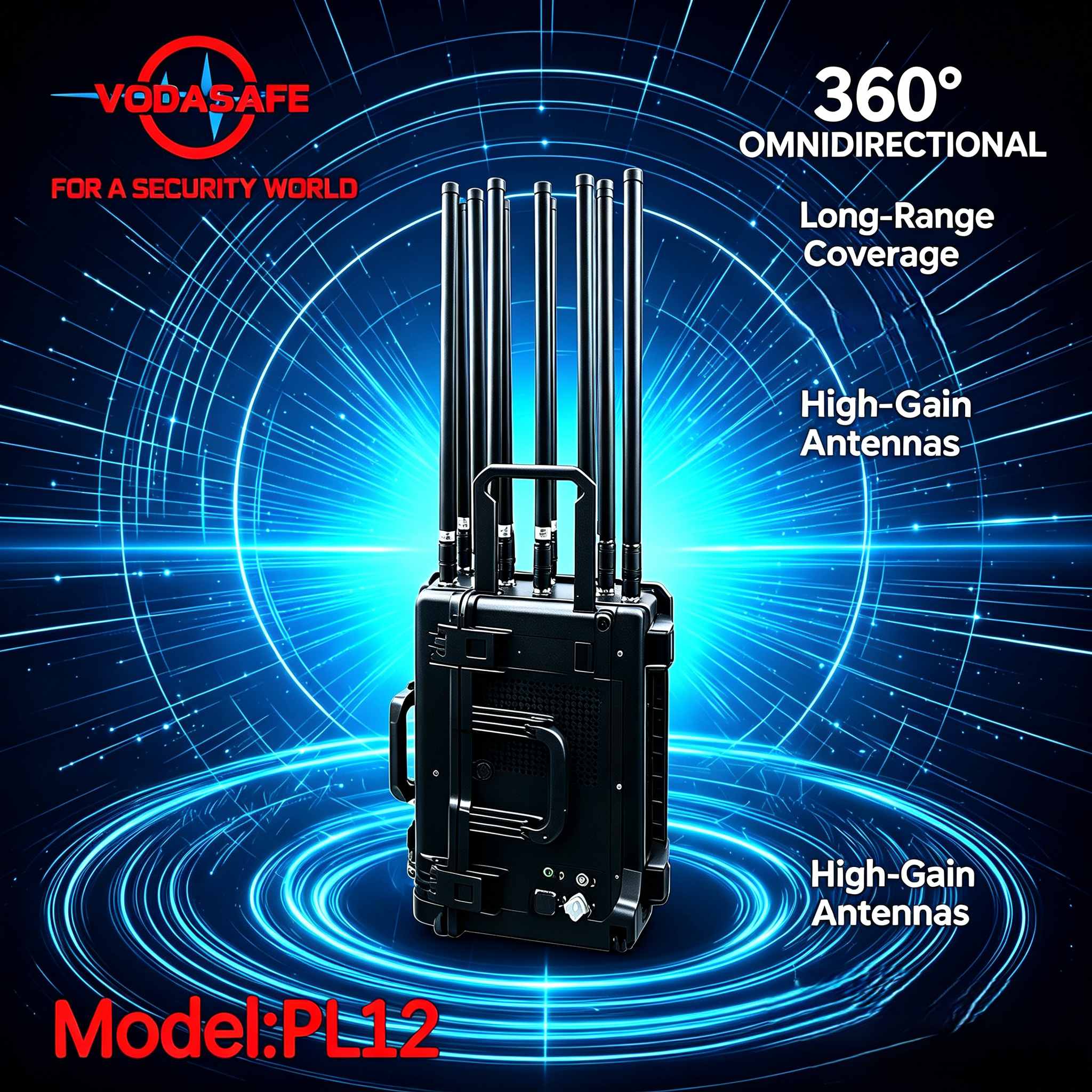

The matched omnidirectional fiberglass antennas for the whole set measure 555mm in length with a diameter of 30–35mm, each single antenna weighing approximately 0.5kg. Their horizontal coverage angle reaches full 360 degrees with a 20-degree vertical radiation angle, eliminating blind spots in the horizontal shielding area. The antenna VSWR value is controlled below 2.0 to guarantee stable signal transmission efficiency between modules and antennas.
Physical Dimension & Packing Configuration
Main Unit Size & Weight
The main machine body dimension (excluding antenna length) is 630mm (length) × 500mm (width) × 350mm (height). The net weight of the host alone is about 50kg, while the total shipping weight with all accessories reaches roughly 60kg. The outer carton packaging dimension is 800cm × 700cm × 600cm for safe long-distance transportation.
Standard Complete Package Accessories

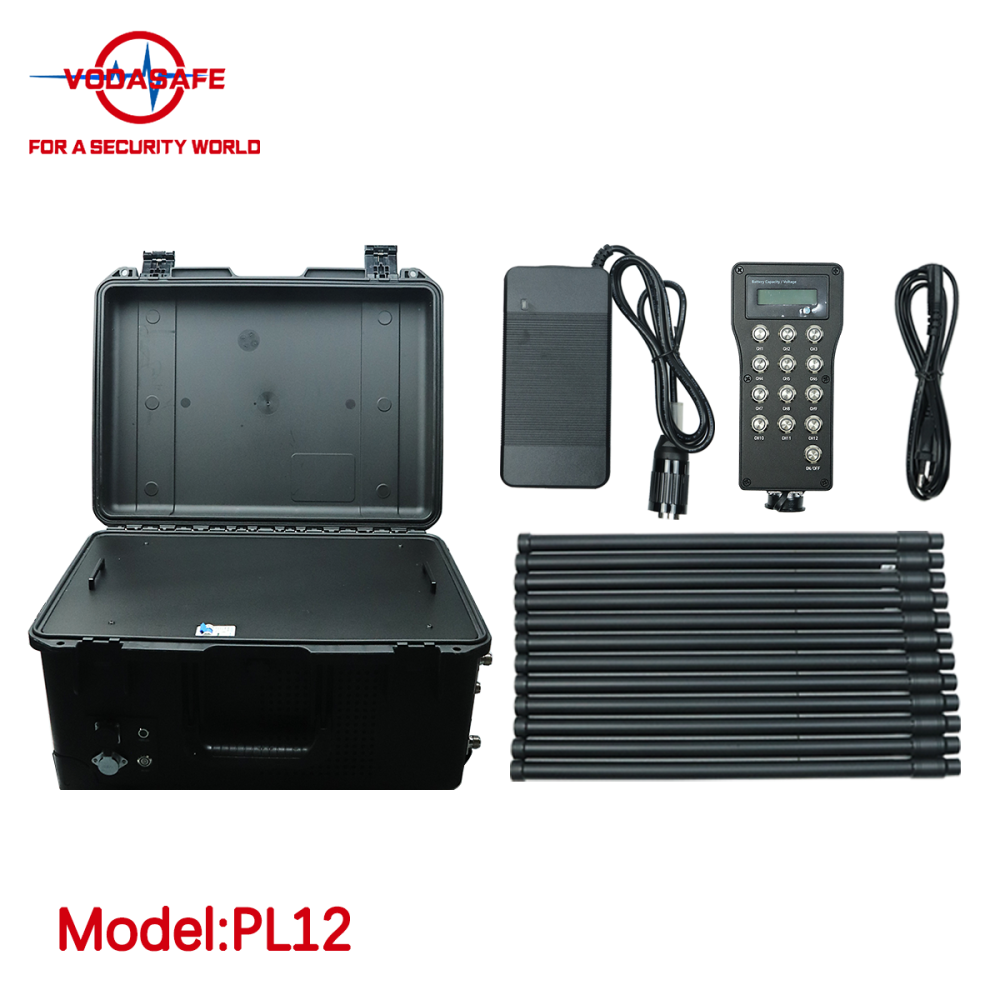

Each VS-PL12 delivery package contains the following full set of supporting parts without missing components:
VS-PL12 signal jammer main unit ×1
Omnidirectional fiberglass transmitting antennas ×10
Special lithium battery charger (220V input, DC24-28V/10A output) ×1
Mains power input cable ×1
Antenna storage carrying bag ×1
Main Application Scenarios
SZ Vodasafe VS-PL12 high-power trolley jammer is widely deployed in professional security and confidential control fields, including temporary anti-terrorism patrols, explosive disposal operations, police checkpoint inspection, confidential conference centers, court trial rooms, prison detention areas, military confidential sites, bidding and exam venues, VIP mobile security convoys, and large-scale temporary event signal isolation zones. Its dual power supply and mobile trolley design make it the preferred full-band heavy-duty shielding device for both fixed-site long-term operation and emergency field mobile deployment.
Warranty
SZ Vodasafe provides a one-year full machine warranty service for all VS-PL12 units. Within the warranty period, users can enjoy free technical support, module replacement and after-sales troubleshooting for non-human-damaged equipment faults, backed by professional electronic engineering after-sales team.
