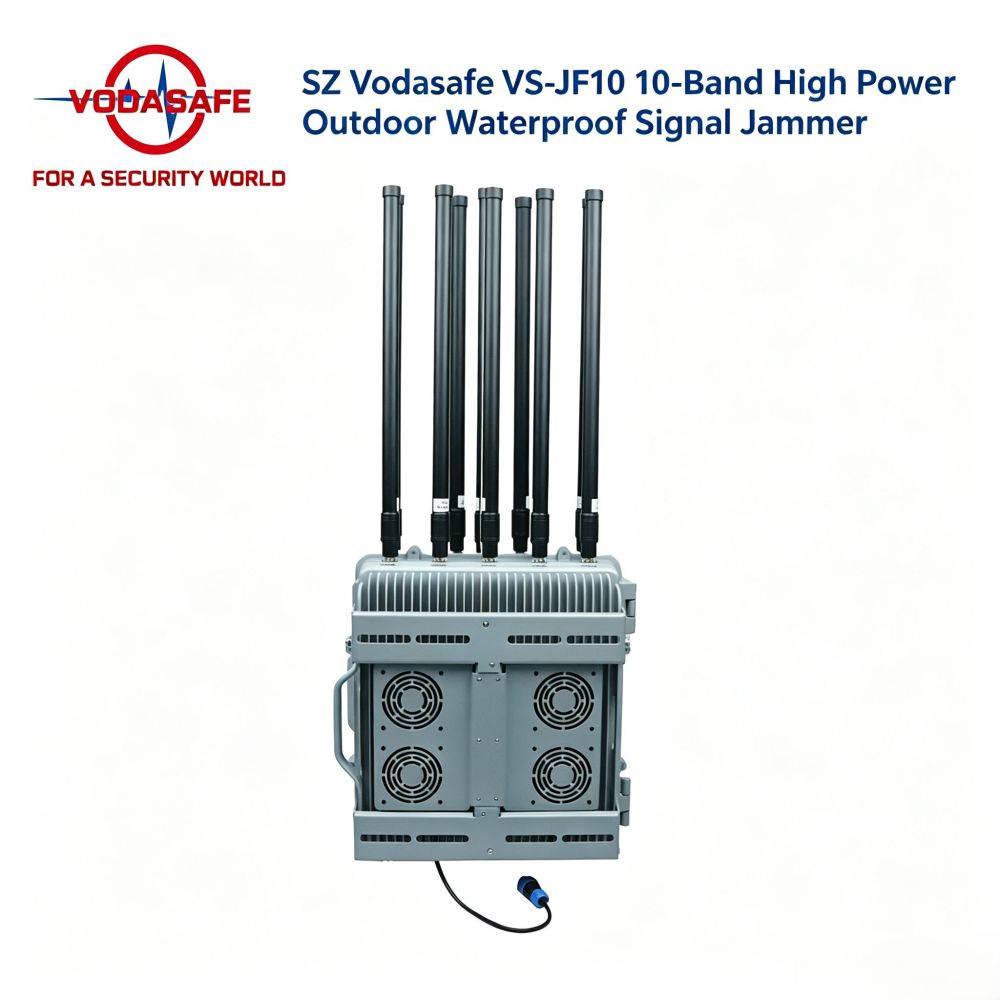

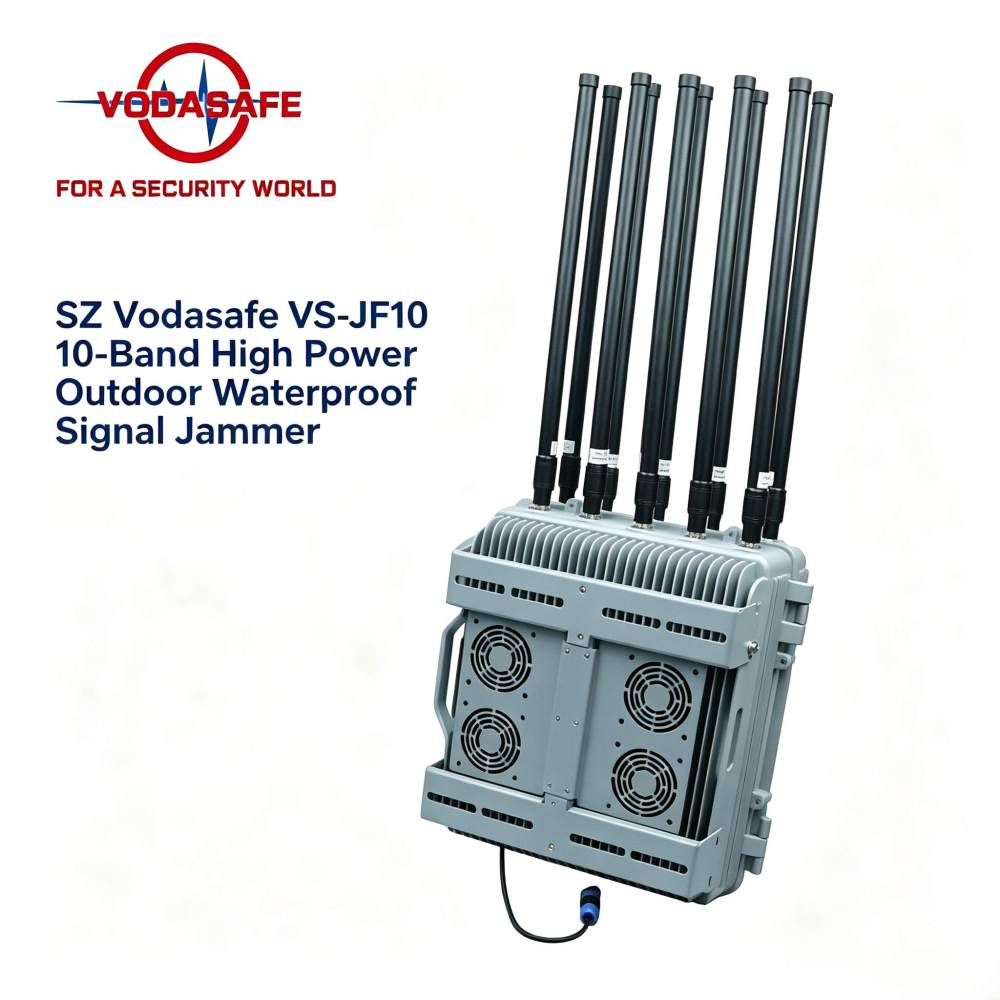

SZ Vodasafe VS-JF10 10-Band High Power Outdoor Waterproof Signal Jammer

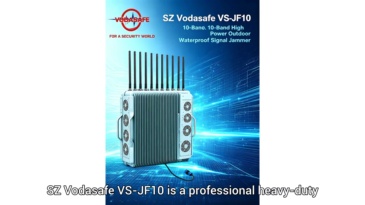

SZ Vodasafe VS-JF10 is a professional heavy-duty outdoor signal suppression device redesigned based on the classic JF10 engineering model, independently developed by SZ Vodasafe for large-scale fixed-site security shielding projects. Adopting an industrial-grade integrated aluminum alloy waterproof enclosure in matte grey finish, this jammer features an IP54 dustproof and waterproof protection rating, fully adapting to long-term outdoor installation in all kinds of harsh weather environments. It delivers ultra-high total RF output power up to 500W, with 50W stable transmitting power for each of its 10 independent frequency bands, capable of building a continuous wireless signal isolation zone covering 50 to 200 meters. The actual shielding radius will fluctuate according to the local ambient signal strength, base station density and terrain conditions.

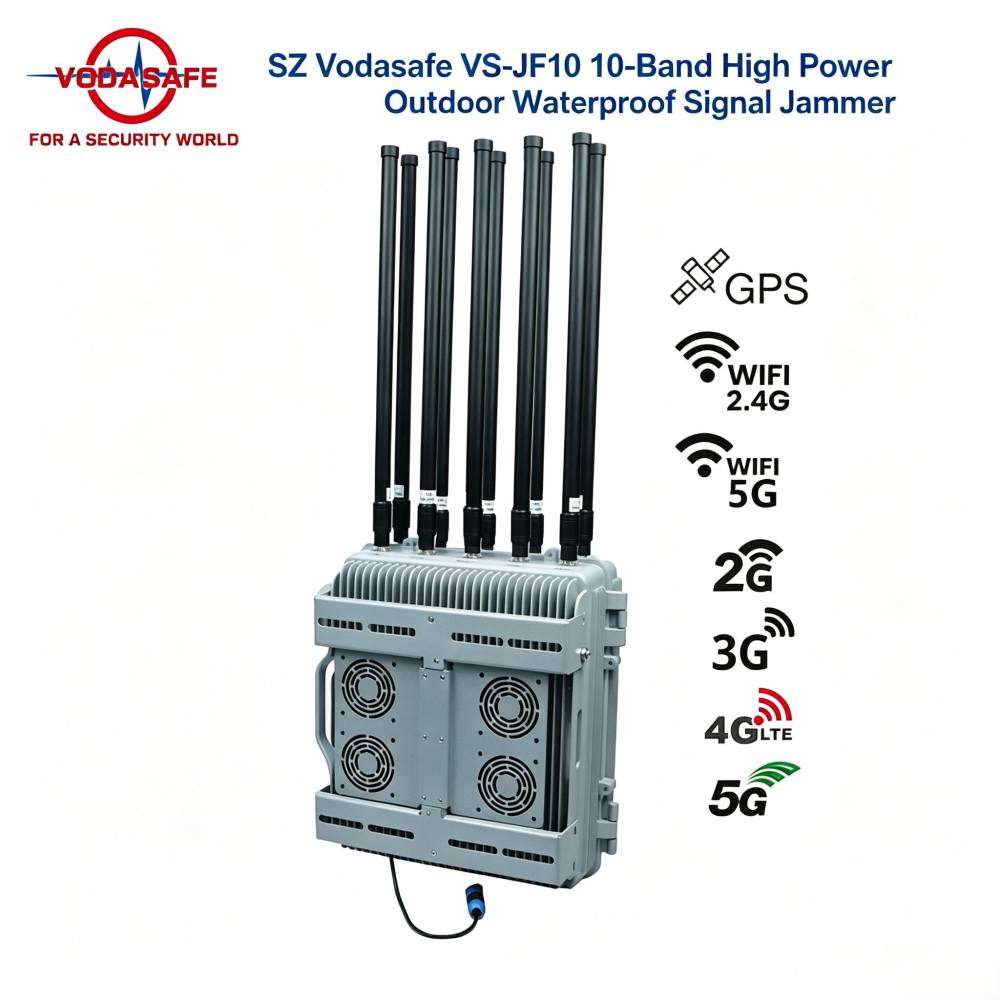

This all-in-one jamming system comprehensively suppresses mainstream 2G, 3G, 4G, 5G cellular communication signals as well as dual-band Wi-Fi signals including 2.4GHz and 5GHz Wi-Fi. Besides the standard frequency configuration, SZ Vodasafe supports full OEM customized frequency expansion, which can add anti-drone UAV/FPV control bands, GPS, Galileo, GLONASS, LOJACK and other dedicated navigation & remote control frequency modules on demand, making it a multi-scenario universal security shielding solution for government, military, judicial and anti-illegal drone defense projects.
Core Technical & Structural Advantages
1) Ultra-High Power Independent Channel Design

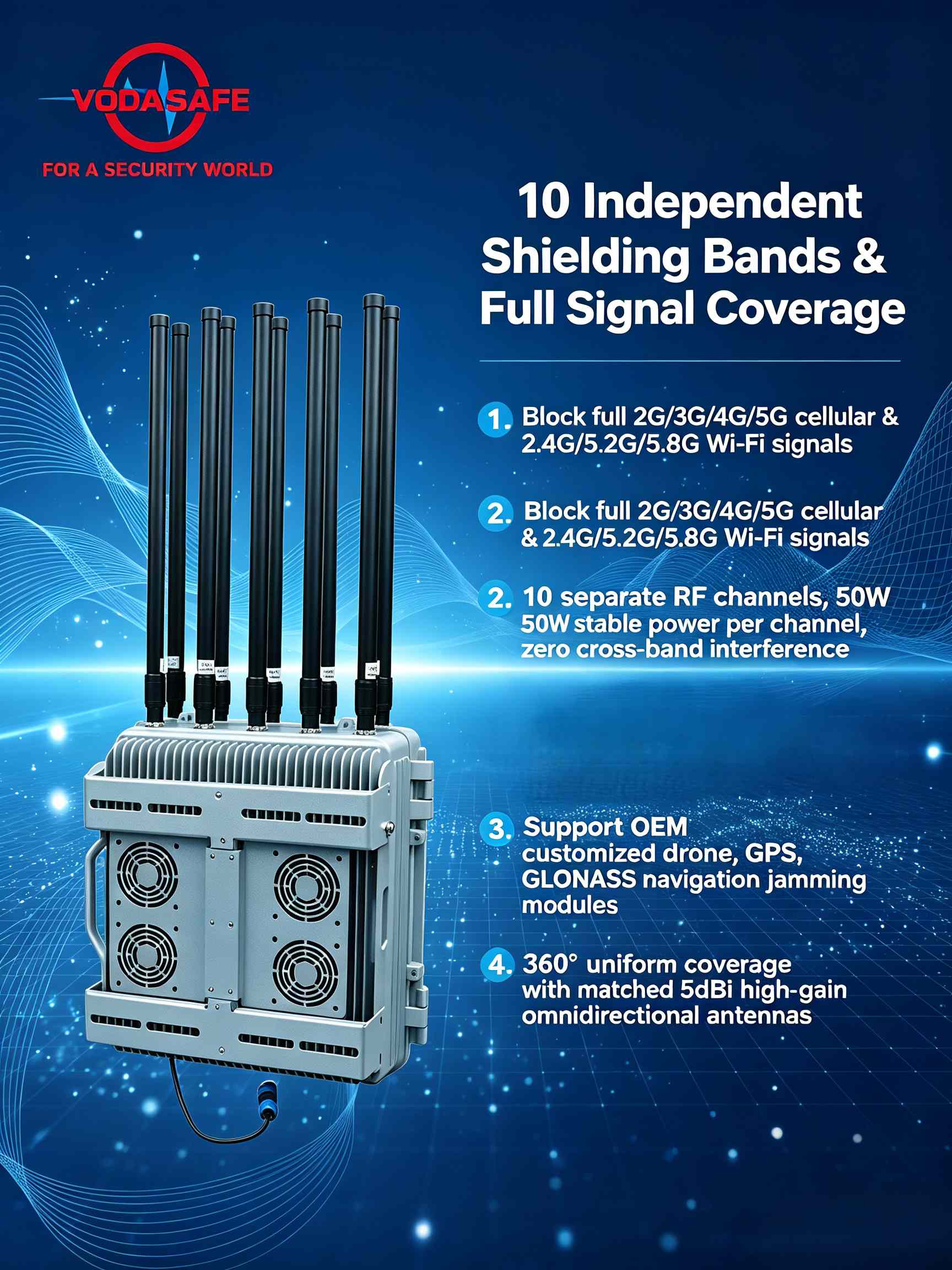

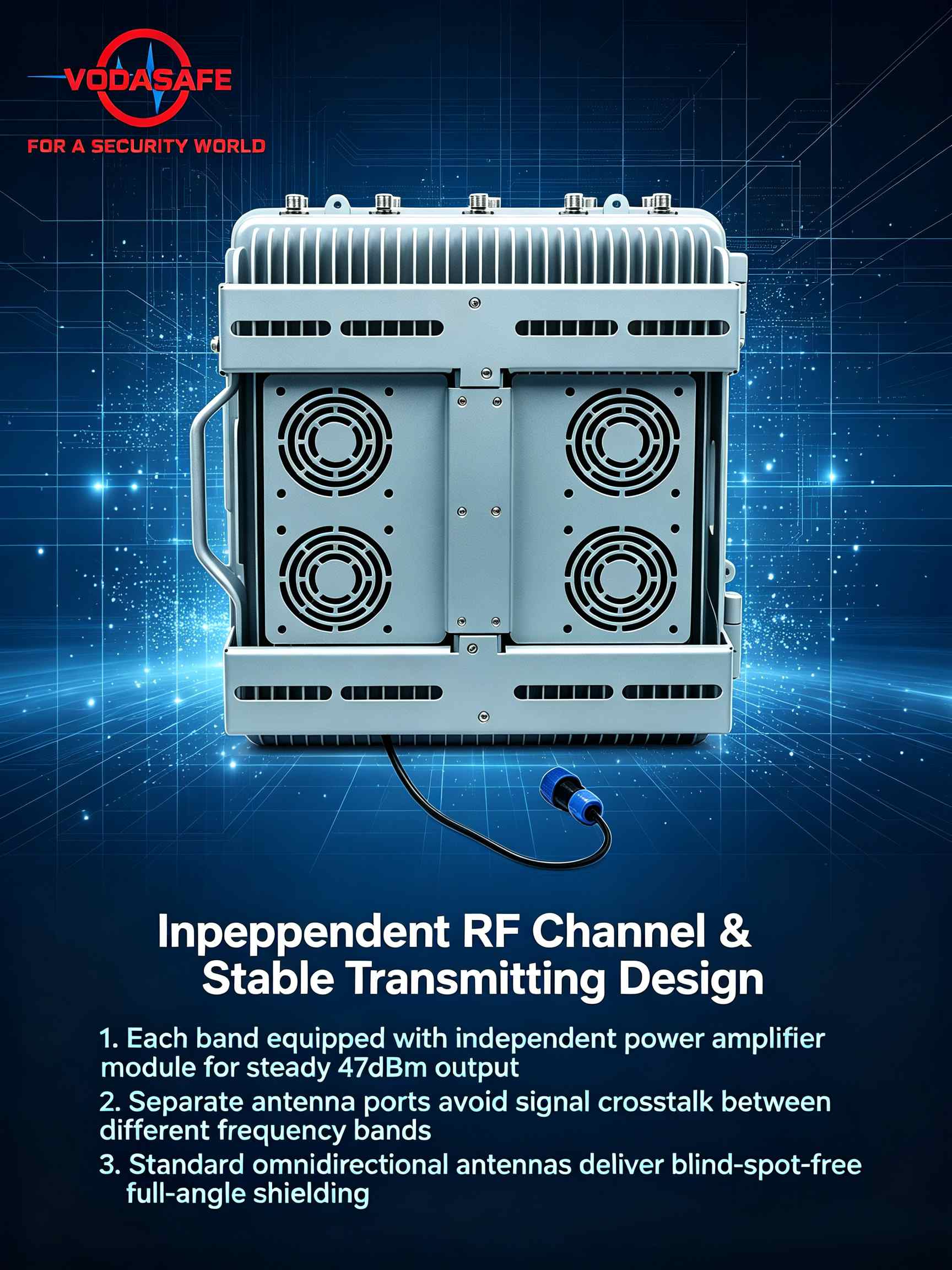

VS-JF10 equips 10 completely separated RF transmitting channels, each channel is configured with an independent power amplifier module that outputs stable 47dBm (50W) average power, with no mutual signal interference between bands. The full set of matched 5dBi high-gain omnidirectional antennas ensures uniform 360° signal coverage without blind spots. The total peak power reaches 500W, far exceeding conventional medium-power outdoor jammers, which can effectively offset strong outdoor base station signals and realize long-distance stable shielding.
The complete frequency coverage of each built-in channel is listed as follows:
Channel 1: 738–830MHz, covering 700 5G & 4G LTE Low frequency band
Channel 2: 920–965MHz, GSM 900 cellular communication band
Channel 3: 1800–1920MHz, DCS1800 mobile communication band
Channel 4: 2100–2170MHz, 3G UMTS2100 frequency band
Channel 5: 5100–5500MHz, Wi-Fi 5.2GHz band
Channel 6: 2570–2690MHz, 2600 high-frequency 4G LTE band
Channel 7: 1400–1500MHz, 5G 1500 dedicated frequency band
Channel 8: 3400–3800MHz, mainstream 5G NR 3.5/3.6GHz band
Channel 9: 5500–5800MHz, Wi-Fi 5.8GHz frequency band
Channel 10: 2400–2500MHz, universal Wi-Fi 2.4GHz band
2)24/7 Non-Stop Operation Efficient Cooling System

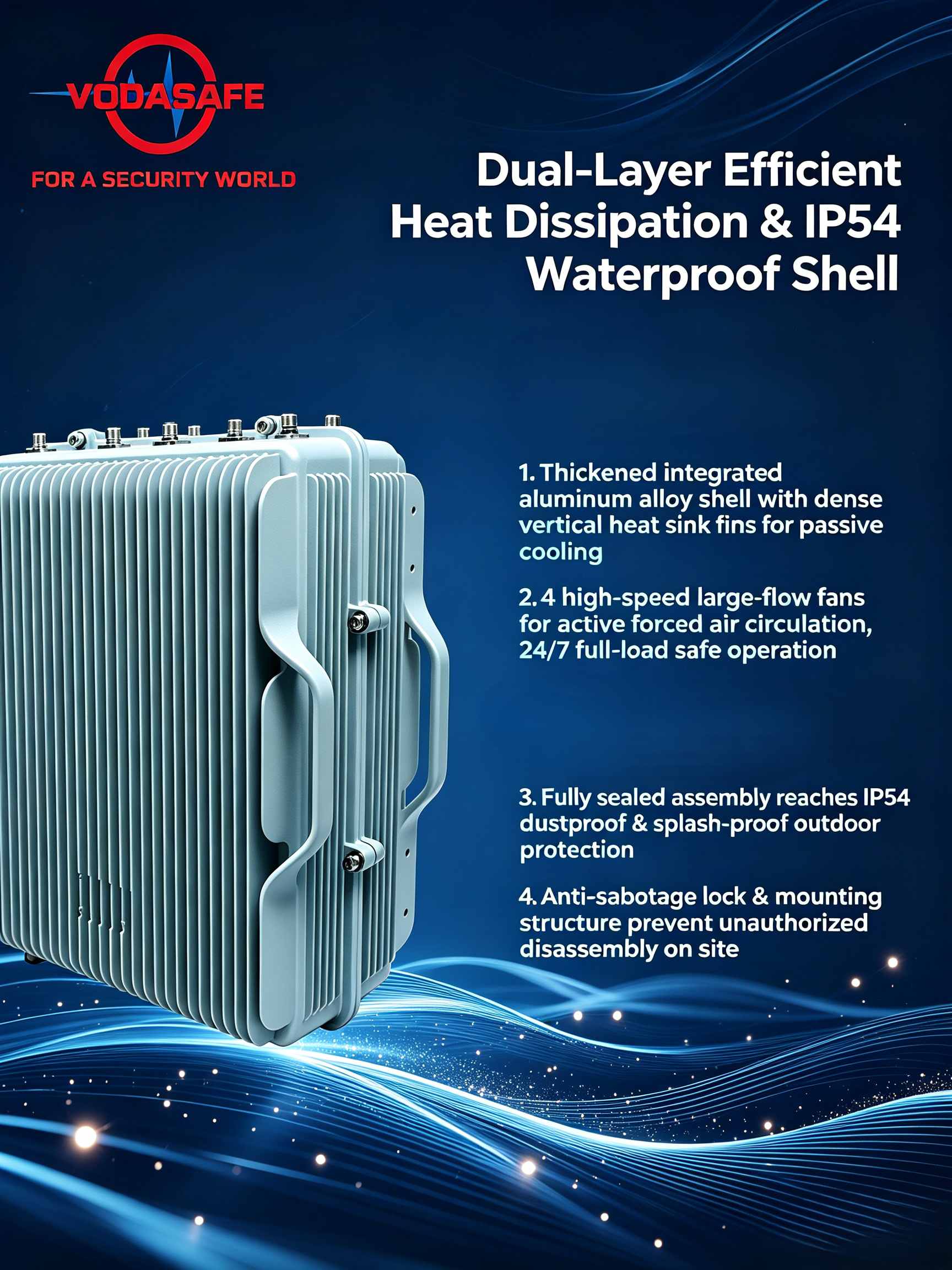

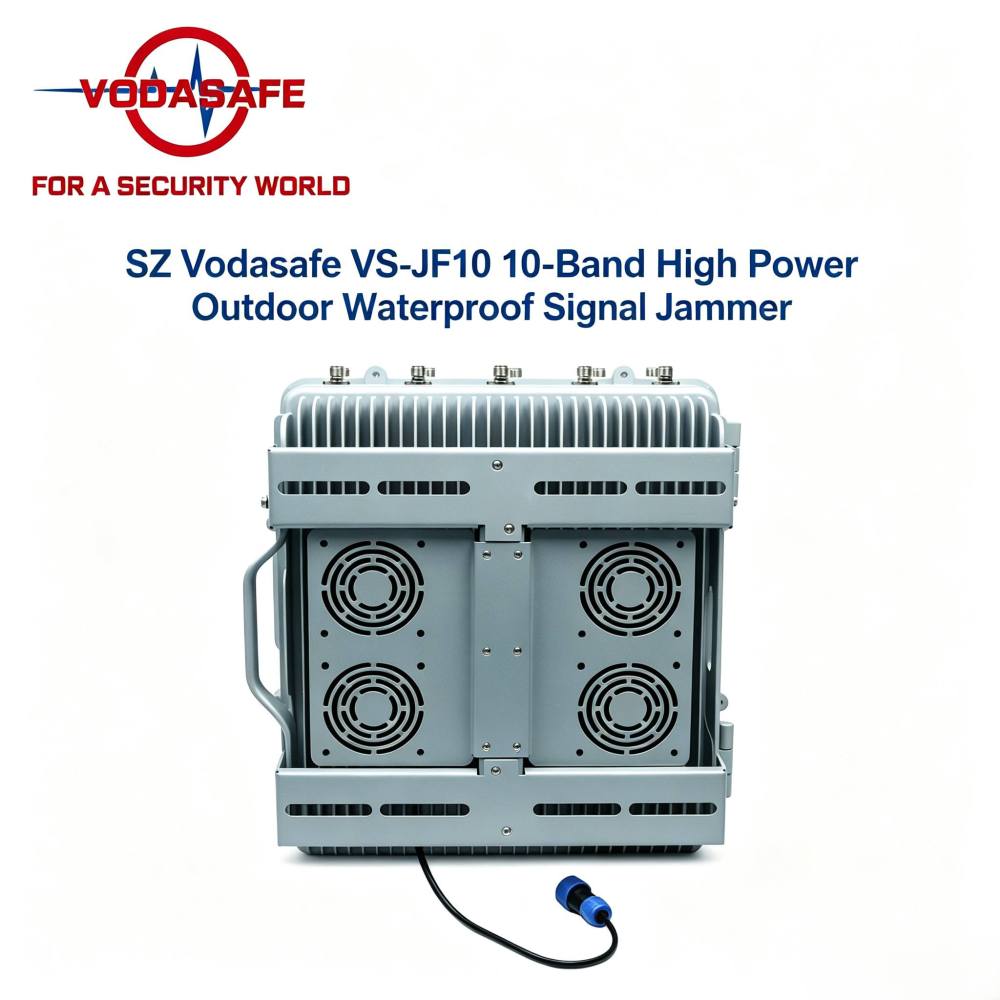

Continuous high-power operation generates massive heat, so VS-JF10 is built with a dual-layer heat dissipation structure. The whole machine shell is made of thickened integrated aluminum alloy with dense vertical heat sink fins for passive heat conduction, and four high-speed large-flow cooling fans are installed on the rear panel to realize forced air circulation active heat dissipation. The combination of passive and active cooling keeps the internal circuit temperature within a safe range even under long-hour full-load operation, supporting uninterrupted all-day work without downtime, greatly extending the service life of internal power amplifier modules.
3)IP54 Outdoor Waterproof Anti-Damage Industrial Shell

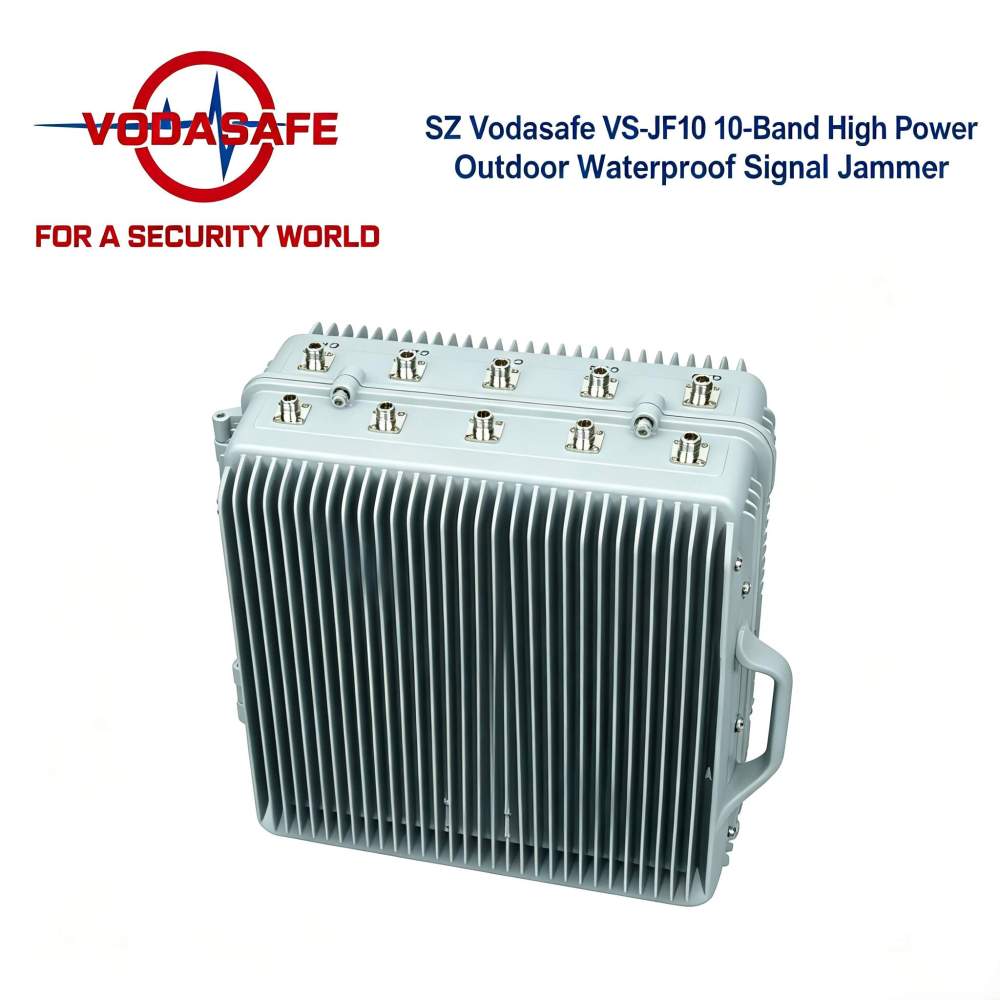

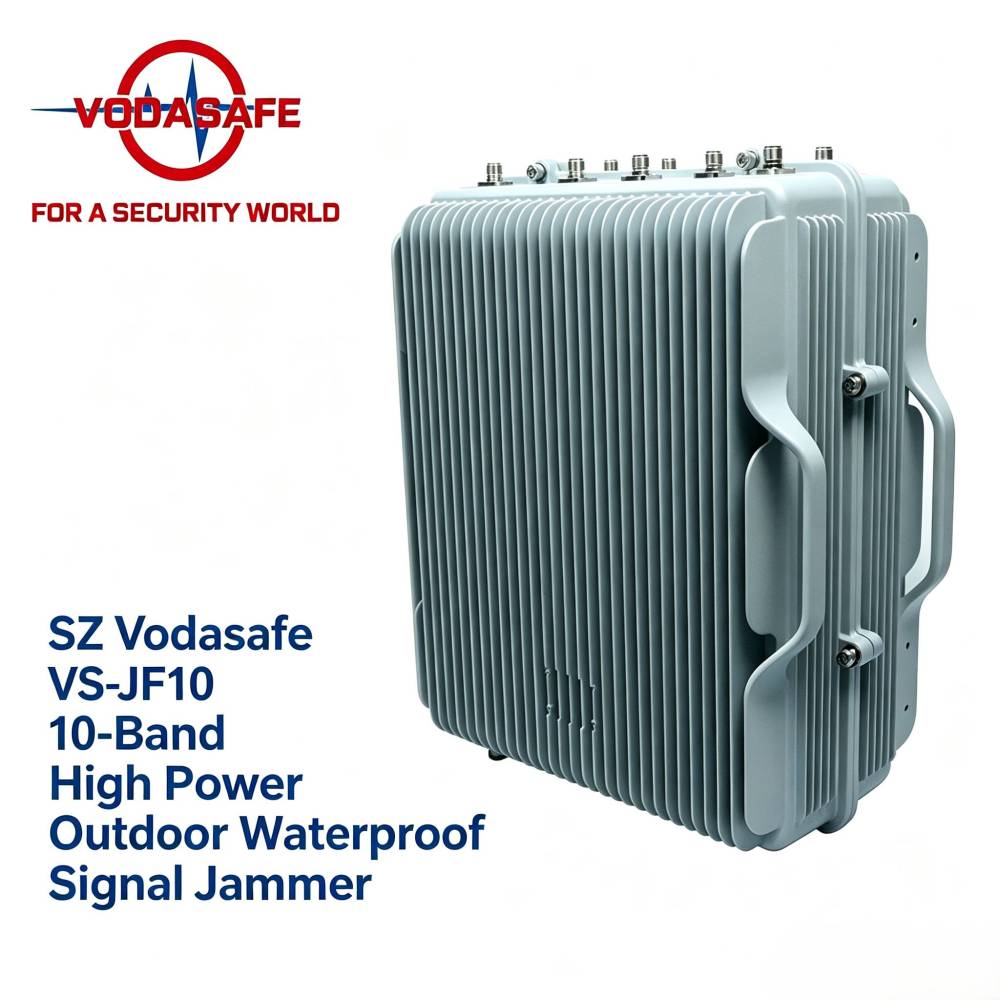

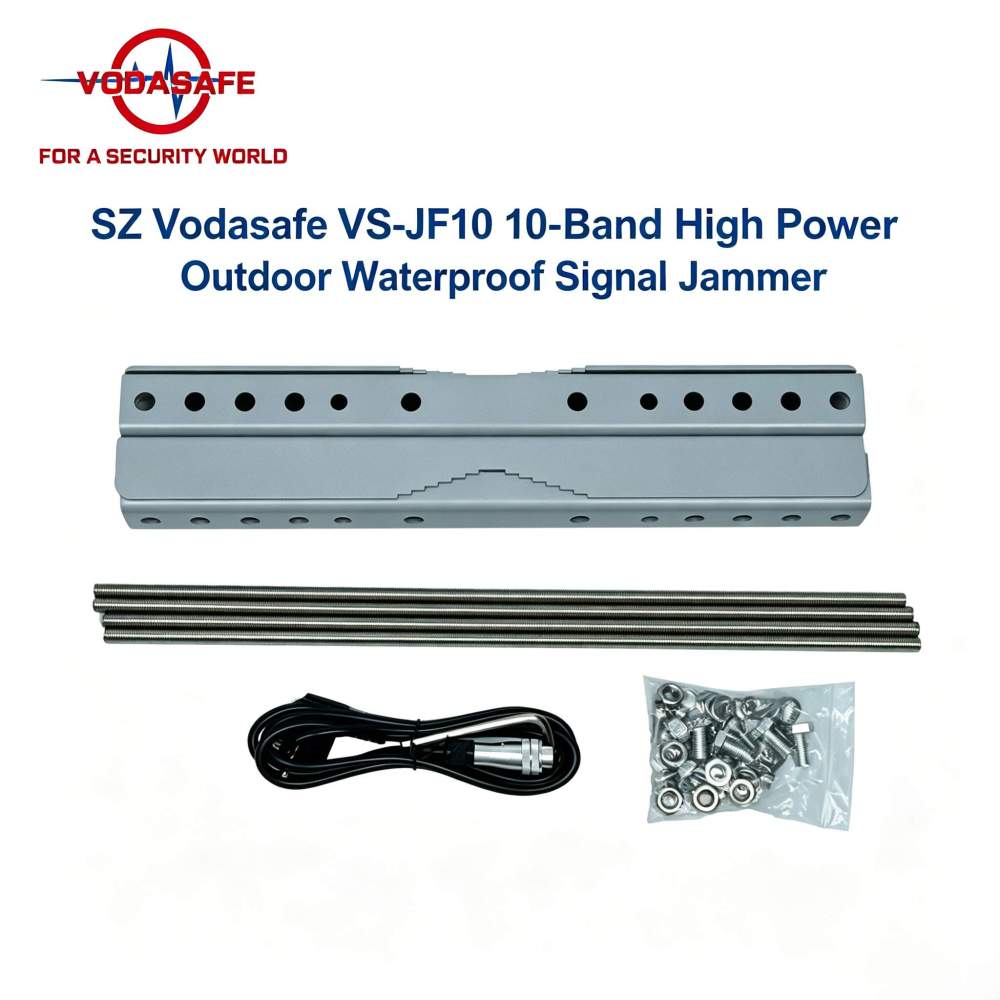

The heavy-duty grey aluminum alloy enclosure adopts fully sealed assembly technology to reach IP54 waterproof and dustproof standard, which can resist rain splashing, dust accumulation and outdoor temperature changes. Anti-sabotage locking and fixed mounting structures are reserved on the housing, preventing unauthorized disassembly and damage on site. A portable integrated handle is designed on the side of the equipment for convenient transportation and hoisting installation on walls, poles or rooftops. The overall equipment dimension (excluding external antennas) is 57×53×36cm, while the internal circuit base size is 490×400×185mm. The net weight of the main unit is about 40kg, and the gross weight with standard omnidirectional antenna accessories reaches approximately 45kg.
4)Wide-Voltage Global Power Supply Compatibility

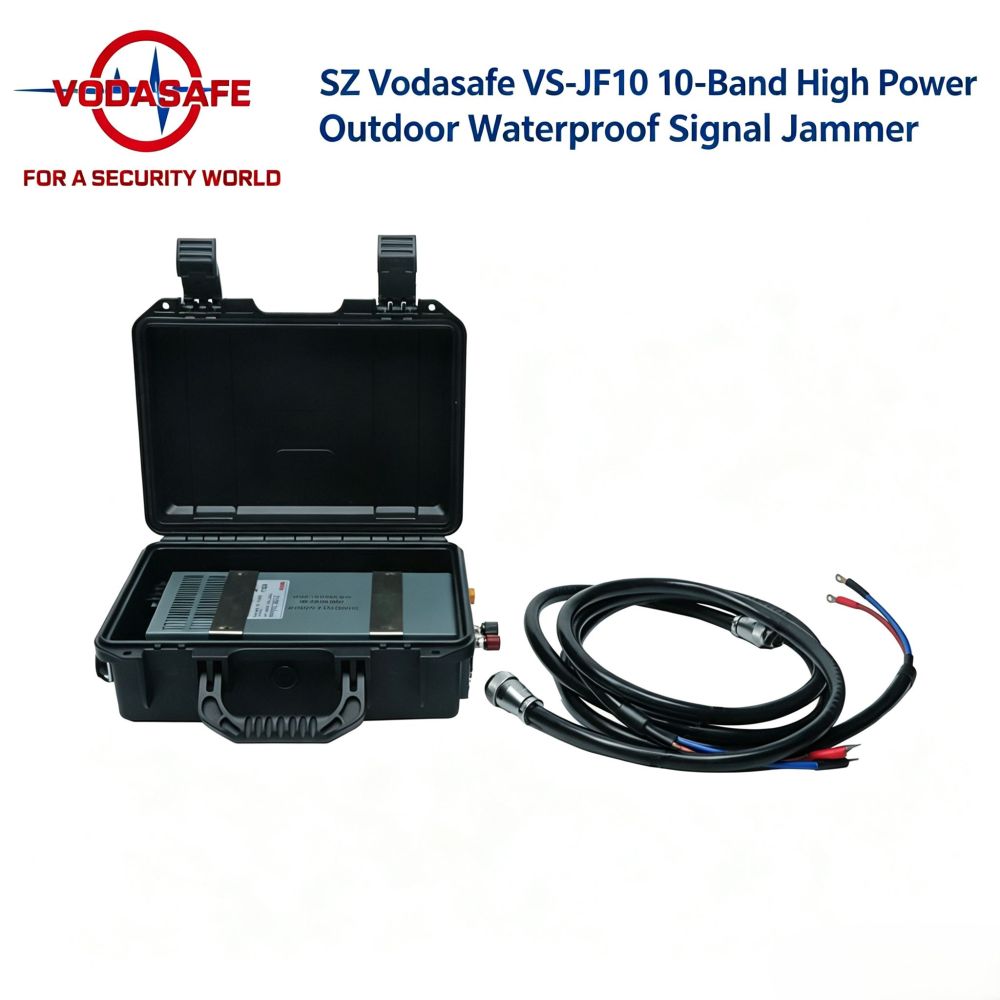

The matched power adapter supports AC input of 110V or 240V, with 50/60Hz universal mains frequency, and converts alternating current into stable DC27V power supply for the jammer host. Three dedicated power supply cables are equipped in the package to ensure stable power transmission for long-distance outdoor wiring, adapting to power grid standards of most countries and regions worldwide.

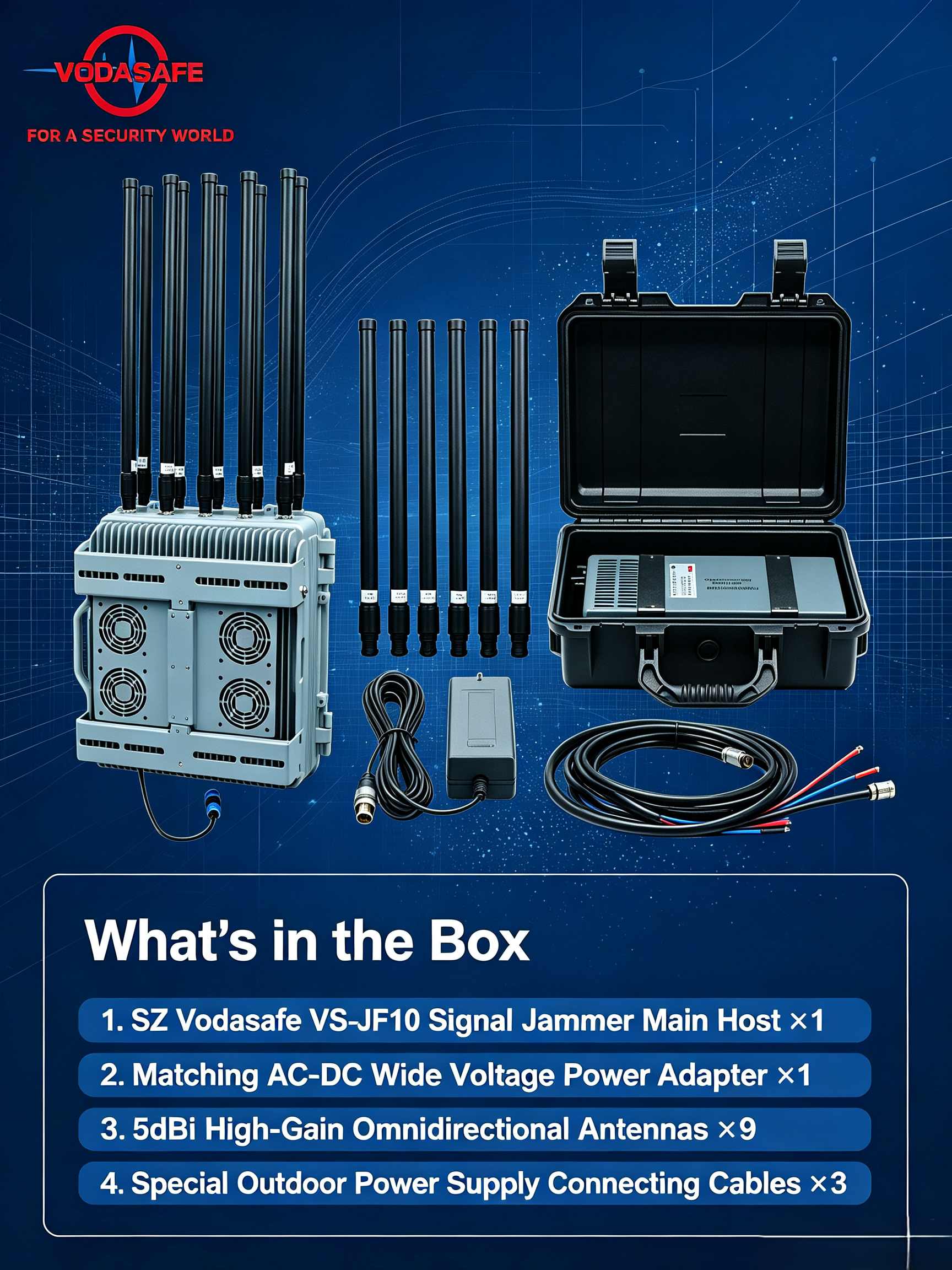

Standard Package Contents
One complete set of SZ Vodasafe VS-JF10 delivery package includes the following accessories without extra configuration:

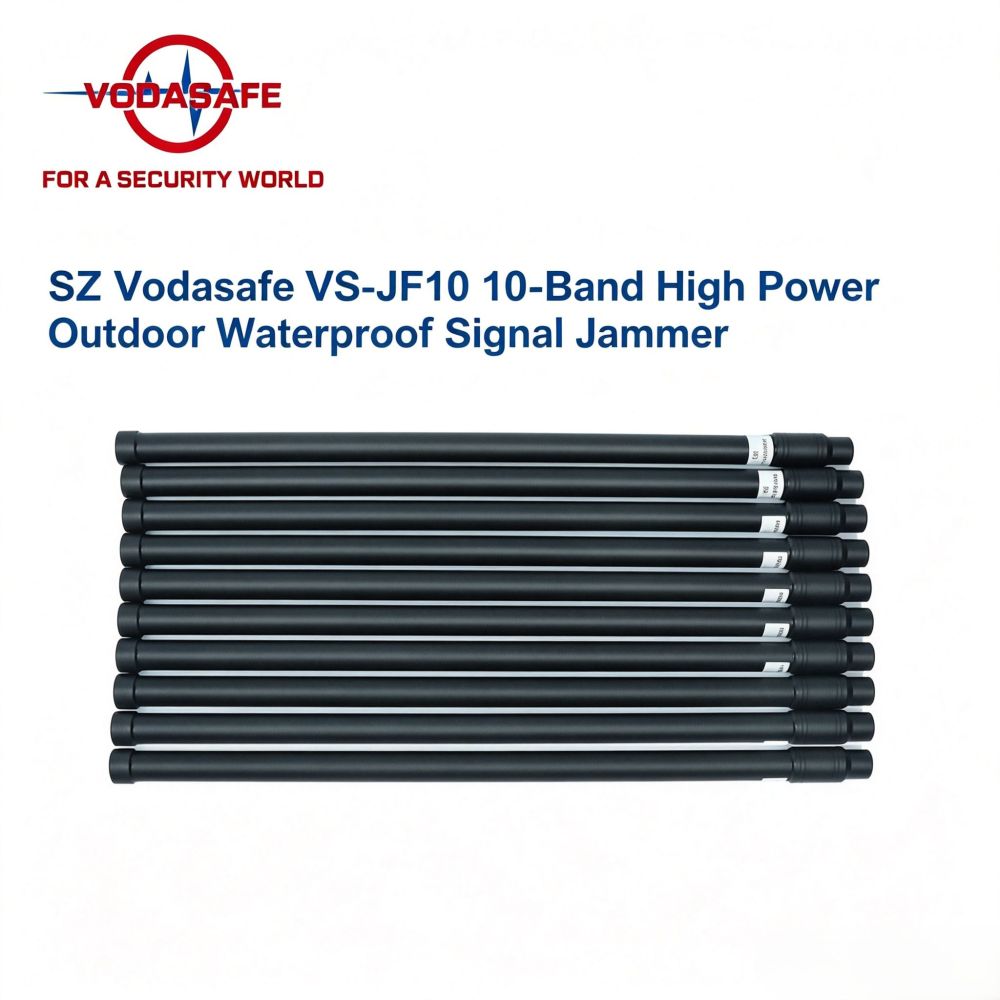

1.VS-JF10 signal jammer main host ×12.Matching AC-DC power adapter ×13.9 pieces of 5dBi high-gain omnidirectional antennas4.Dedicated power supply connecting cables ×3
The outer carton package size is 65×55×35cm, with net weight 40kg and gross weight 45kg (antenna weight included in gross weight).
OEM Customization Service
SZ Vodasafe provides flexible one-stop OEM customization for VS-JF10 according to project demands:
Frequency band customization: Add or remove UAV/FPV anti-drone bands, GPS, Galileo, GLONASS, LOJACK and other navigation & remote control jamming modules; adjust cellular 4G/5G frequency points to match local operator spectrum.
Hardware appearance customization: Custom shell color, silk-screen brand logo and model marking.
Power matching adjustment: Adjust single-channel output power on the premise of heat dissipation balance.
Accessory matching replacement: Supply directional high-gain antennas instead of standard omnidirectional antennas for directional long-distance shielding projects.

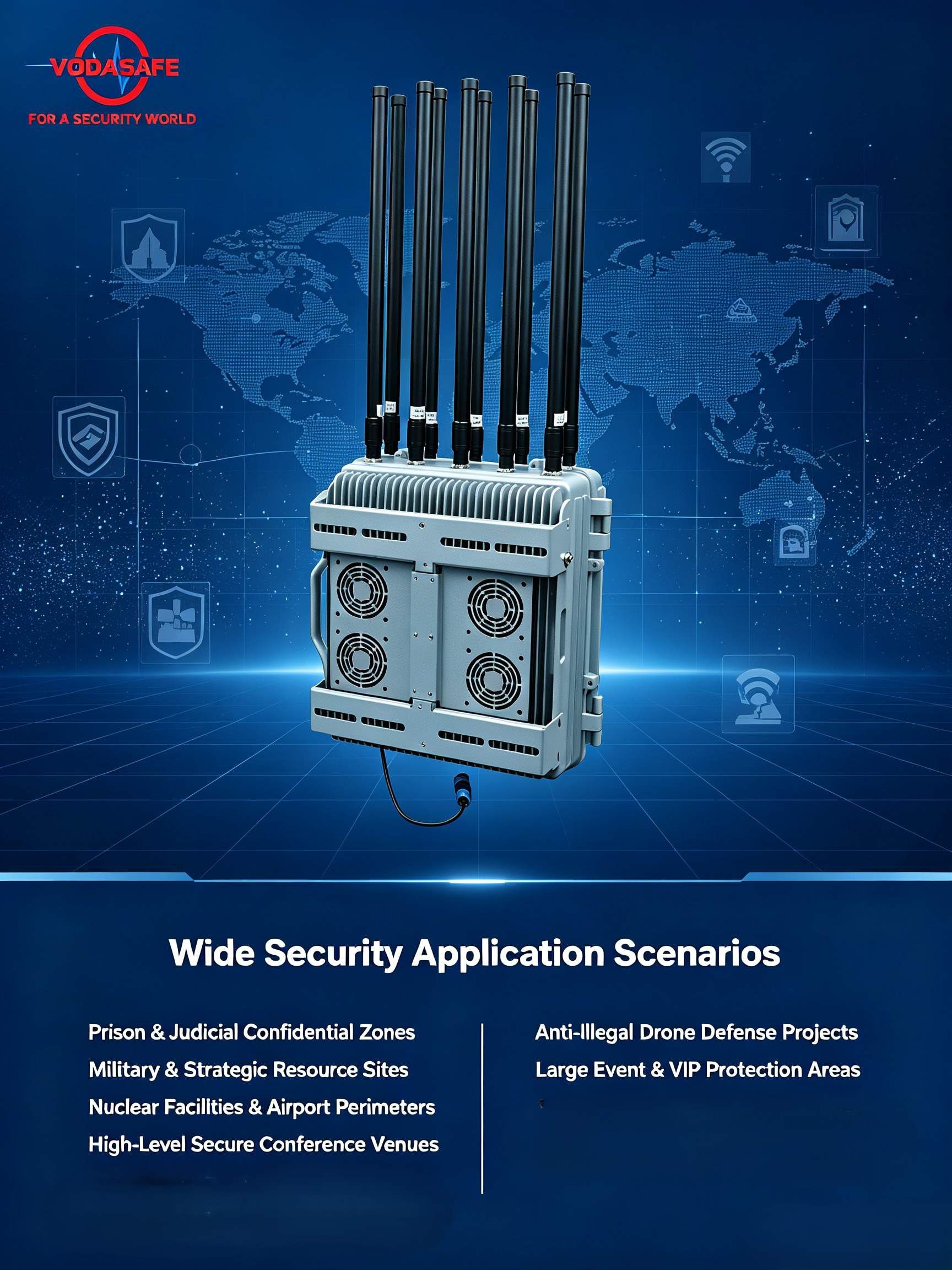

Main Application Scenarios
1) Restricted Protected Zones
Suitable for signal isolation in areas that prohibit wireless communication access, including prisons, military management zones, national strategic resource construction sites, nuclear industry facilities, airport security perimeters, political core areas and other confidential restricted regions. It blocks all external mobile communication signals to prevent illegal information transmission and communication escape risks.
2)On-Site Information Leakage Prevention Scenarios
Deployed for major criminal case investigation sites, urban law enforcement on-site control, high-level security conference venues, VIP protection activity areas, large-scale performance rehearsal venues, archaeological excavation sites and mass assembly events. It cuts off all wireless signal transmission channels to avoid confidential audio, video and text information leakage via mobile phones or Wi-Fi devices.
3)Anti-Illegal UAV Defense Scenarios
Equipped with customized drone jamming frequency bands, VS-JF10 can suppress UAV remote control and image transmission signals, effectively cracking down on illegal drone activities such as smuggling, drug transportation, confidential aerial shooting and unauthorized information delivery, forming a fixed ground anti-drone defense perimeter.
Warranty & After-Sales Support
SZ Vodasafe offers a standard 1-year global warranty for the VS-JF10 model, counting from the date of goods delivery. Within the warranty period, free maintenance and replacement of damaged non-human-damaged modules are provided. Our professional technical team supplies remote parameter guidance, on-site installation consultation and post-project operation troubleshooting services to support long-term stable operation of outdoor fixed shielding projects.
