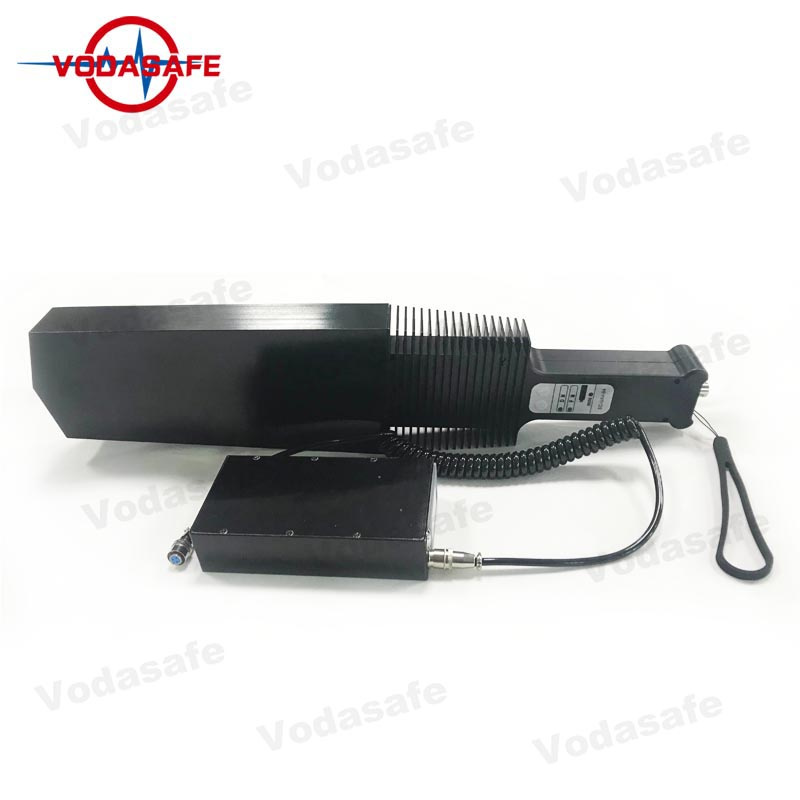

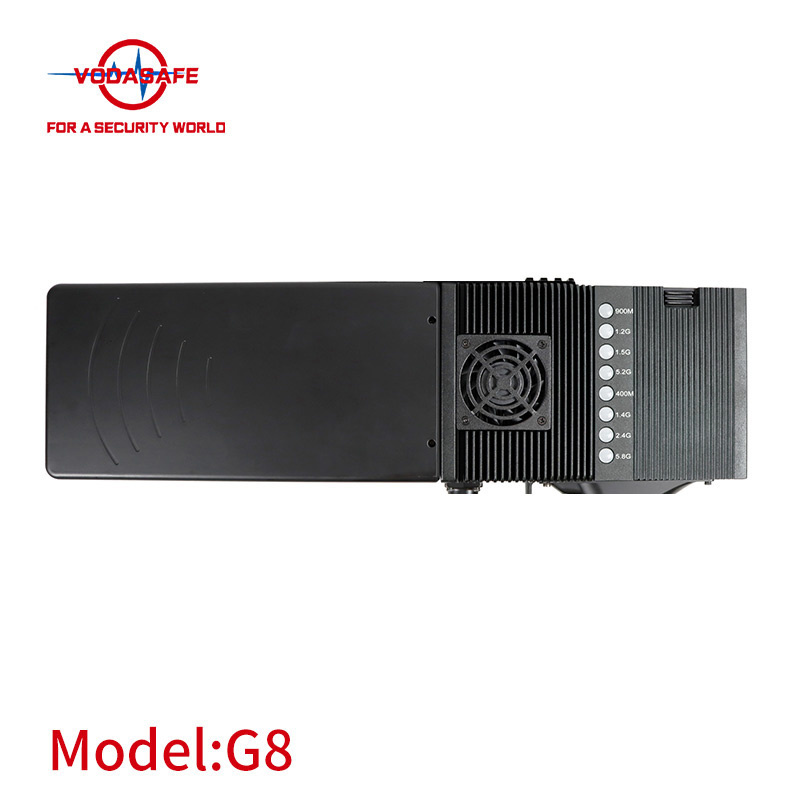

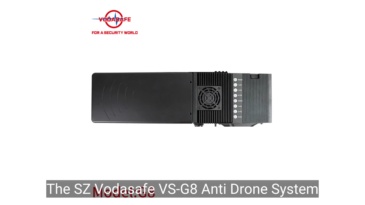

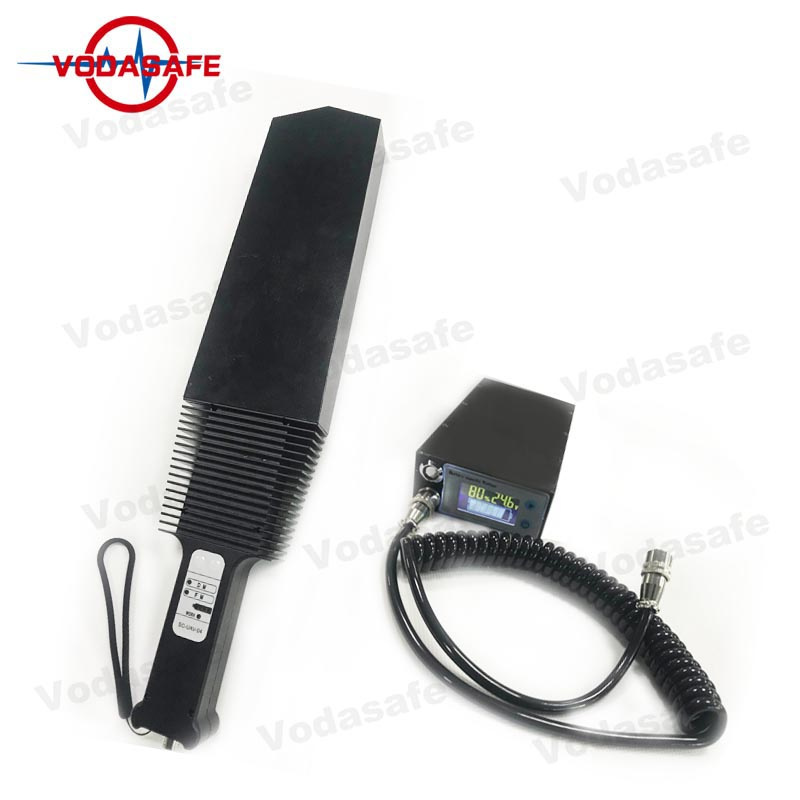

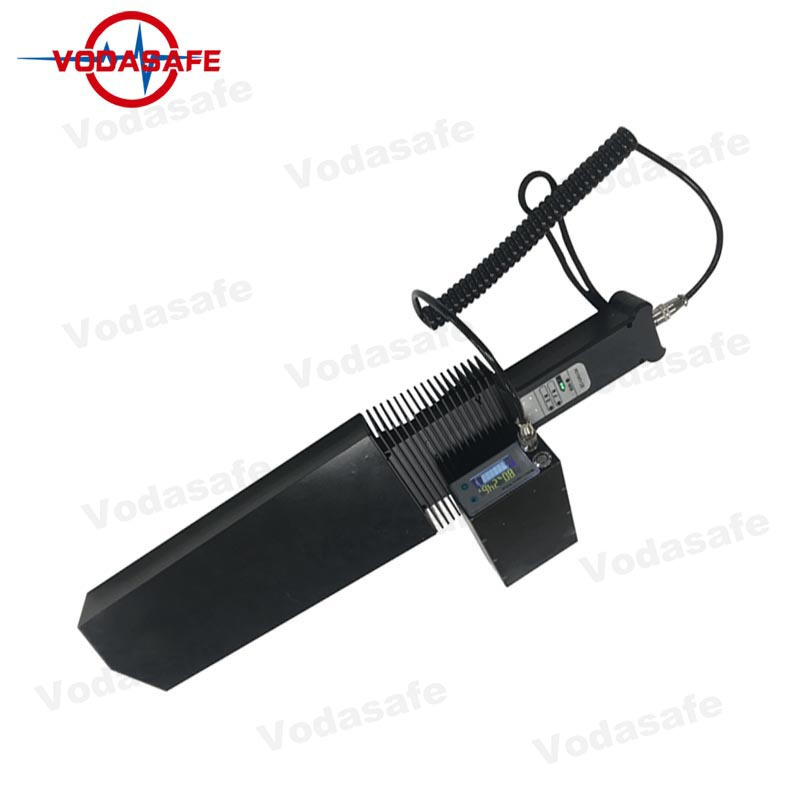

The SZ Vodasafe VS-G8 Anti Drone System is a cutting-edge, high-performance portable solution designed to address the growing challenges posed by unauthorized or intrusive unmanned aerial vehicles (UAVs/drones). Engineered with advanced signal jamming technology and user-centric design, this system offers reliable protection across a wide range of scenarios, effectively neutralizing potential risks associated with commercial drones while ensuring ease of use and portability.
Crafted with a sleek black exterior, the VS-G8 integrates powerful signal-blocking capabilities, a durable build, and intuitive operation-making it an ideal choice for safeguarding sensitive areas, preserving privacy, and preventing unauthorized drone activities without compromising on mobility or performance. It is compatible with all major commercial drone models, including DJI Mavic 2/3 Pro, Phantom Pro, Phantom 4, Phantom 3 (Professional/Advanced/Standard), Inspire Series, and DOTON drones, ensuring comprehensive coverage against the most commonly used UAVs in the market.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Specifications
Jammed Signal Types: Covers a full spectrum of drone communication and navigation signals, including RC 2.4GHz, RC 5.2GHz, RC 5.8GHz, GPS L1/L2/L5, Glonass L1, RC 433MHz (400MHz band), RC 868/915MHz (900MHz band), and RC 1.4GHz (1400MHz band). This multi-band coverage ensures effective neutralization of both consumer and industrial-grade drones, as well as home-made UAVs.
Output Power: Total output power ranges from 90W to 120W, with dedicated power allocation for each frequency band: 20W for RC 2.4GHz, RC 5.2GHz, RC 5.8GHz, and GPS L1/Glonass L1 bands; 10W for GPS L2/L5, RC 868/915MHz, RC 433MHz, and RC 1.4GHz bands. This targeted power distribution optimizes jamming efficiency for each signal type.
Jamming Radius: Effective shielding distance of 500 to 2000 meters (actual range may vary based on the drone's distance from its remote control, environmental conditions, and signal interference).
Interception Response Time: Less than 3 seconds, ensuring rapid neutralization of intrusive drones once detected.
Antenna & Coverage
Antenna Type: Built-in high-gain 12dBi directional antenna, designed to focus jamming power on specific targets for enhanced efficiency and reduced interference with non-targeted signals.
Coverage Angle: Horizontal coverage of 45° and vertical coverage of 30°, enabling precise targeting of drones within the designated field of view.
Power Supply & Battery
Power Input: AC 110-240V (50-60Hz) converted to DC 29.2V via the included battery charger, ensuring compatibility with global power standards.
Built-in Replaceable Battery: 25.2V 4800mAh lithium-ion battery, providing 30-60 minutes of continuous operation on a single charge. The battery is easily replaceable, allowing for extended use in the field with spare batteries (optional accessory).
Power Monitoring: LED screen displays real-time battery power percentage and working current, enabling users to track power status and plan usage accordingly.
Physical & Structural Details
Dimensions: 480mm (length) × 250mm (width, without sight) × 86mm (height); 480mm × 320mm (width, with sight) × 86mm (height).
Weight: Net weight (N.W.) of 3.8kg; gross weight (G.W.) of 4.5kg (product only); package gross weight of 10kg.

Material: High-quality aluminum alloy + ABS plastic, combining durability, heat resistance, and lightweight design for portability.
Cooling System: Equipped with a high-efficiency aluminum alloy radiator and two cooling fans, ensuring stable performance even during prolonged operation by effectively dissipating heat.
Ergonomic Design: Detachable handle and battery for convenient transportation and easy reinstallation, enhancing usability in field environments.
Package Contents

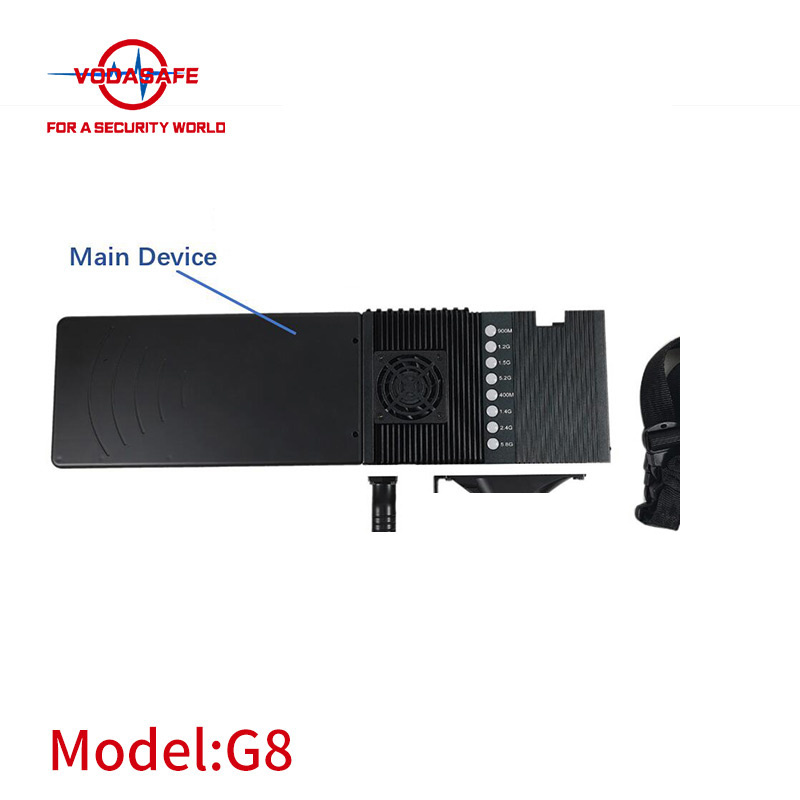

1 × VS-G8 Anti Drone System Host
1 × Battery Charger (AC 110-240V to DC 29.2V)
1 × Telescopic Sight (quadruple magnification) for long-distance drone detection and precise targeting
1 × Adjustable Strap for hands-free carrying

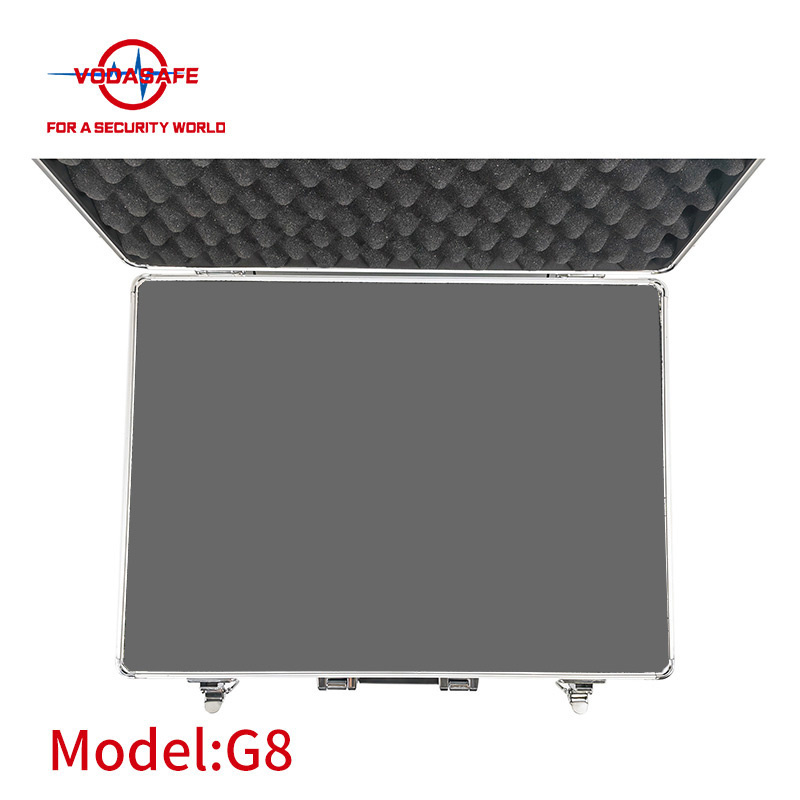

1 × Portable Protective Case for safe storage and transportation
1 × Optional Replaceable Battery (25.2V 4800mAh)

Features
Comprehensive Multi-Band Coverage: Customizable 6 or 8 frequency bands (switchable via individual power switches for each band) to target specific drone signals, with LED indicator lights for easy band activation status monitoring.
High Power & Targeted Jamming: 90-120W total output power and 12dBi directional antenna deliver strong, focused jamming capabilities, ensuring effective coverage over long distances while minimizing unintended signal disruption.
Safety & Reliability: 100% VSWR (Voltage Standing Wave Ratio) over-protection for each jamming module, preventing damage from signal reflections and ensuring stable, long-term operation.
Portability & Mobility: Lightweight design (3.8kg net weight) and included adjustable strap enable easy carrying, while the portable protective case facilitates safe transportation between locations.
User-Friendly Operation: Telescopic sight aids in detecting distant drones, and the intuitive LED screen and power switches simplify setup and operation-no specialized technical training required.
Durable & Heat-Resistant: Aluminum alloy + ABS plastic construction and dual cooling fans ensure the system can withstand harsh field conditions and prolonged use without performance degradation.
Flexible Power Options: AC power compatibility and replaceable battery allow for both stationary and mobile use, adapting to various application scenarios.
OEM Customization: Silkscreen OEM service is available, enabling personalized branding for business clients.
Drone Neutralization Modes
The VS-G8 Anti Drone System offers two primary modes of drone neutralization, tailored to different drone models:
DJI Series Drones: Forced landing (activate RC 1.5G, 2.4G, and 5.8G bands) or repulsion (activate RC 2.4G and 5.8G bands).
DOTON Series Drones: Forced landing (activate RC 1.5G, 2.4G, 5.2G, and 5.8G bands) or repulsion (activate RC 2.4G, 5.2G, and 5.8G bands).
Signal Band Notes
433MHz (RC 400 band): Commonly used in home-made drones, TV remotes, car keys, and children's toy aircraft.
868/915MHz (900MHz band): Typical remote control frequency for industrial-grade drones.
1.2G band: Associated with China's Beidou Navigation System, a future-oriented positioning solution for the drone industry, serving as a secondary positioning system alongside GPS (1.5G band).
1.4G band: Used in specialized UAVs with limited industrial applications, ensuring the VS-G8 covers even niche drone types.
Application Scenarios
The SZ Vodasafe VS-G8 Anti Drone System is designed to protect people, property, and privacy across a wide range of non-military, non-law-enforcement settings, including:
Sensitive Facility Protection: Safeguarding critical infrastructure such as nuclear industry facilities, airports, national strategic resource projects, and energy plants from unauthorized drone overflights.
Privacy & Information Security: Preventing unauthorized drone surveillance and information leakage at venues such as important security facilities, large-scale event venues, archaeological excavation sites, and performance rehearsals.
Public & Private Event Safety: Ensuring the safety of attendees at large group gatherings, concerts, sports events, and VIP protection scenarios (e.g., political figure escorts, high-profile meetings).
Commercial & Industrial Security: Protecting business premises, corporate campuses, and industrial sites from drone-related disruptions, theft, or unauthorized data collection.
Illegal Activity Prevention: Countering drone-enabled illegal activities such as smuggling, unauthorized goods transportation, and illegal information transmission in civilian and commercial contexts.
Warranty
The SZ Vodasafe VS-G8 Anti Drone System comes with a one-year warranty from the date of delivery, covering manufacturing defects and hardware malfunctions. For warranty claims or technical support, please contact SZ Vodasafe's customer service team.
Note
This product is intended for legal use only. Users must comply with local regulations and laws regarding drone jamming and signal interference. SZ Vodasafe is not liable for any misuse of the product that violates applicable laws or regulations.
