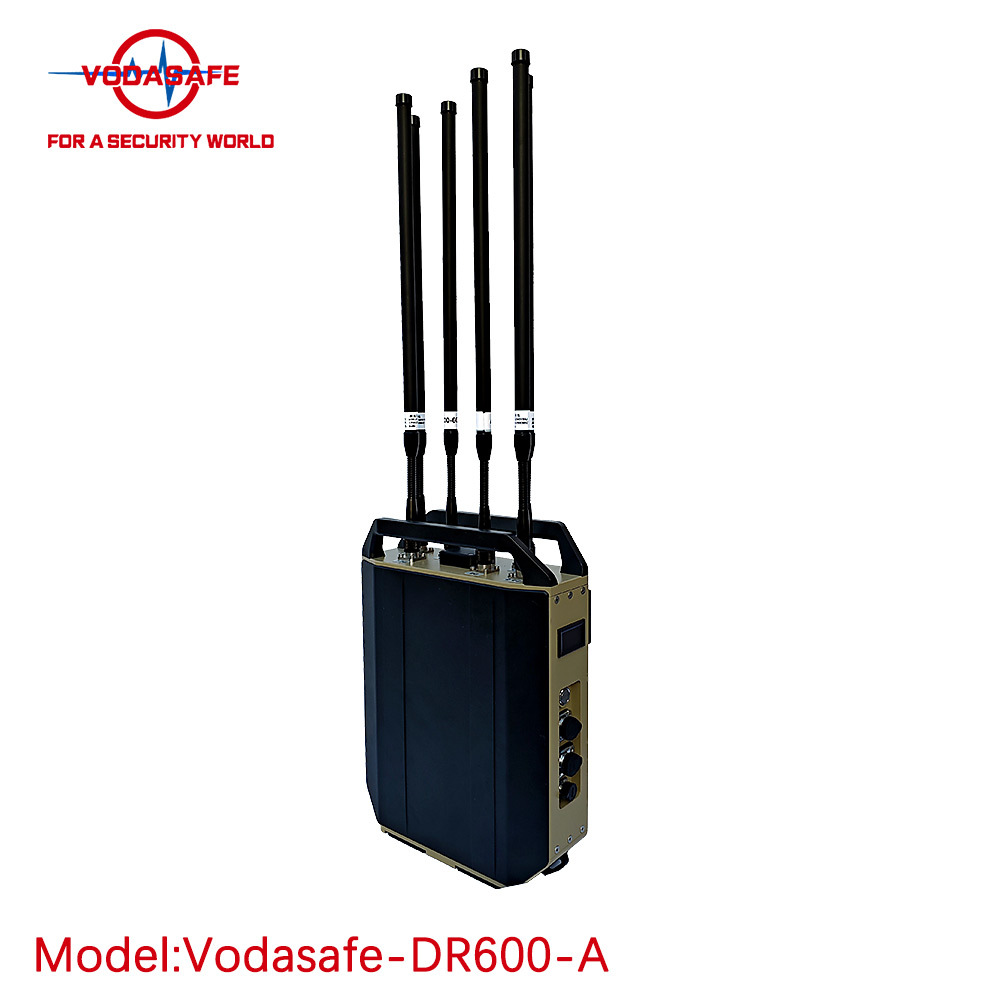

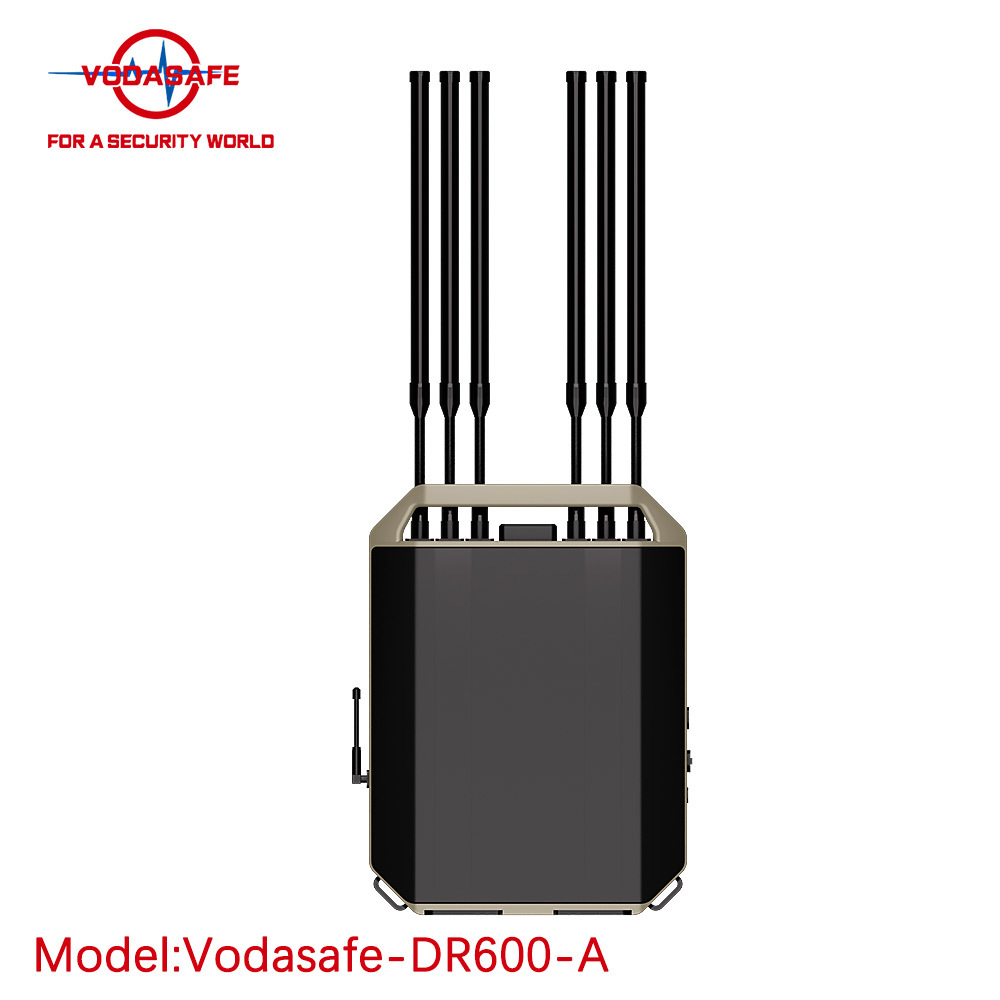

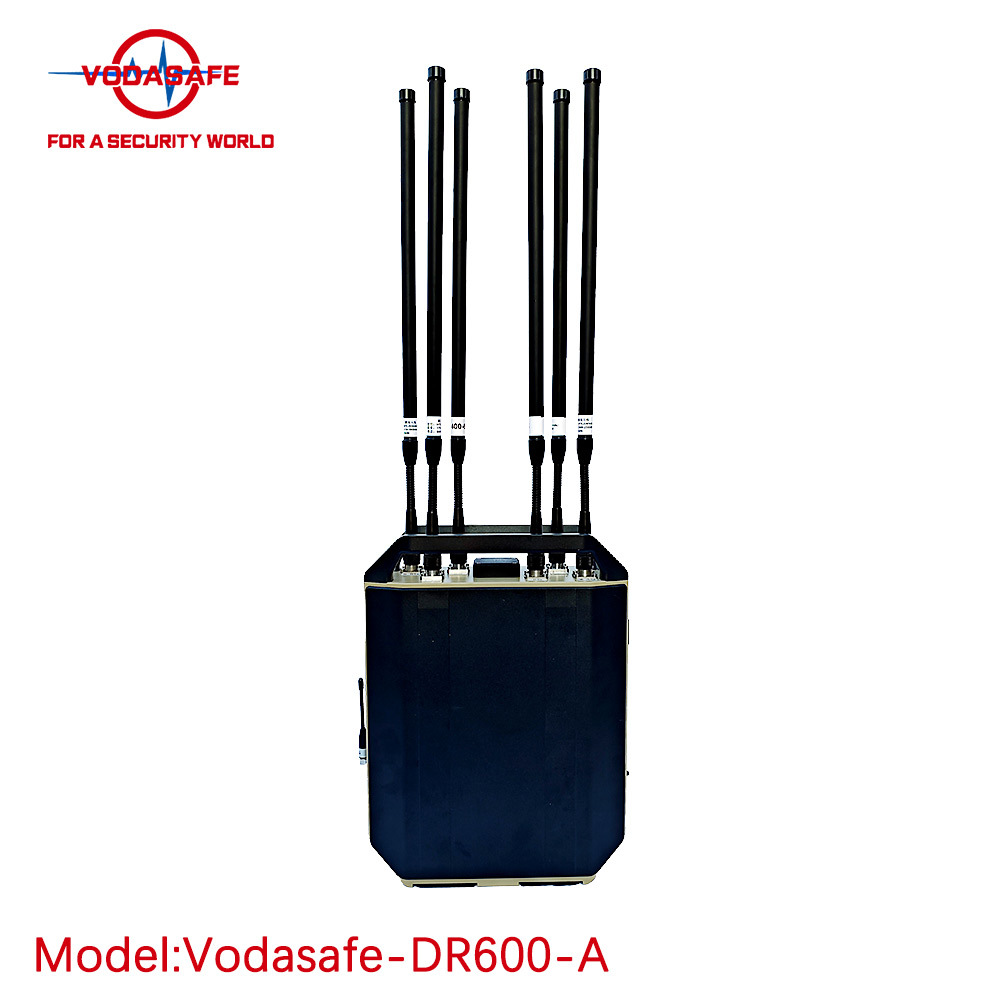

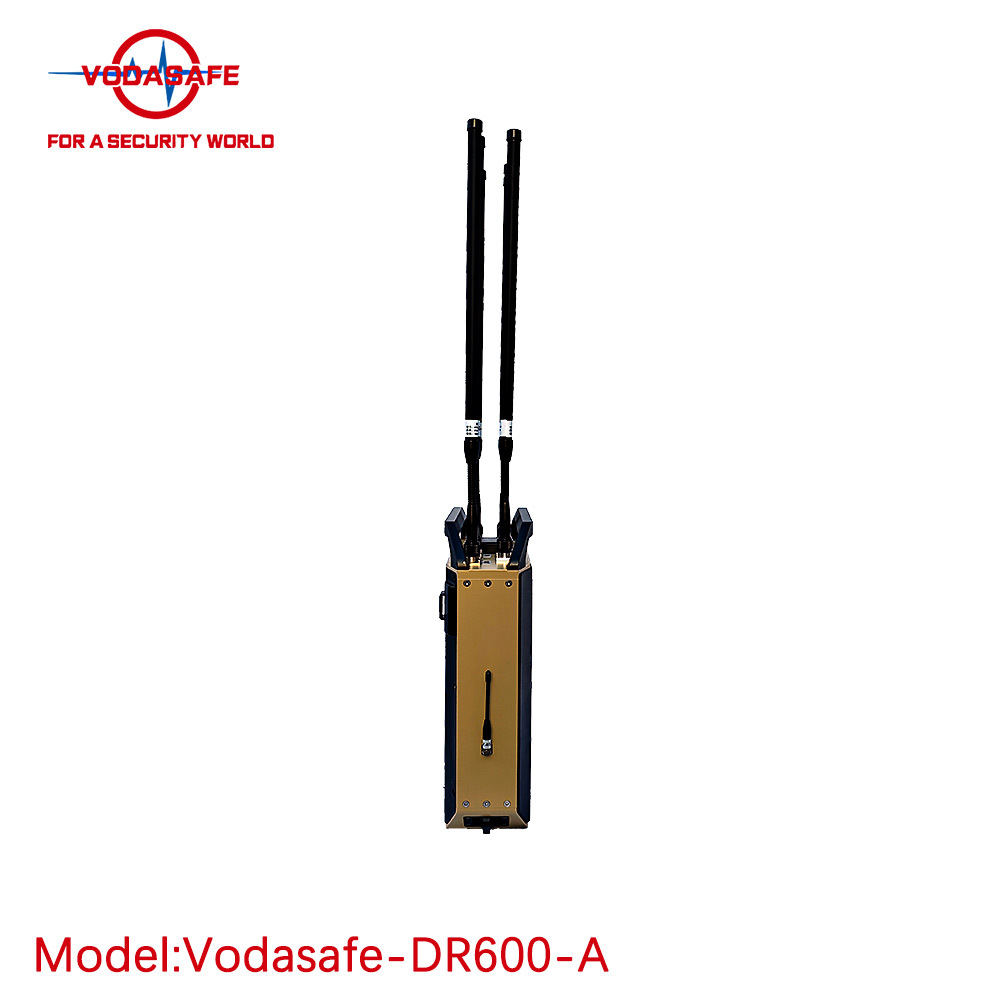

SZ Vodasafe VS-DR600A All-Scenario Drone Detection & Positioning Device

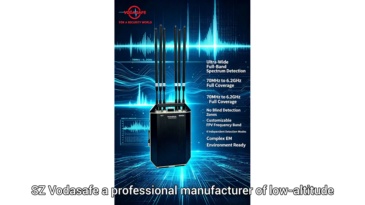

SZ Vodasafe, a professional manufacturer of low-altitude airspace security equipment, proudly presents the VS-DR600A all-scenario drone detection and positioning device, upgraded from the mature DR600-A technical platform. As an integrated passive radio frequency monitoring solution, this equipment addresses the growing security risks caused by illegal drone intrusion, malicious aerial reconnaissance, unauthorized aerial shooting and smuggling activities, which severely threaten public security, critical infrastructure, military restricted zones and personal privacy.
The VS-DR600A unifies four core capabilities into one lightweight portable host: full-spectrum RF scanning and analysis, drone & remote pilot precise geolocation, optional FPV analog video interception and real-time storage, and multi-terminal collaborative alarm push. Working stably under complex electromagnetic clutter environments, it can reliably identify multirotor consumer drones, fixed-wing UAVs, custom DIY drones and FPV racing models, and delivers triple warning signals including audible sound, on-screen visual prompts and vibration alerts to remind operators of incoming aerial threats. It serves as a core front-end monitoring tool for daily security patrols, key asset protection, joint tactical team operations and law enforcement investigation & evidence collection.
Core Advantages & Key Functions

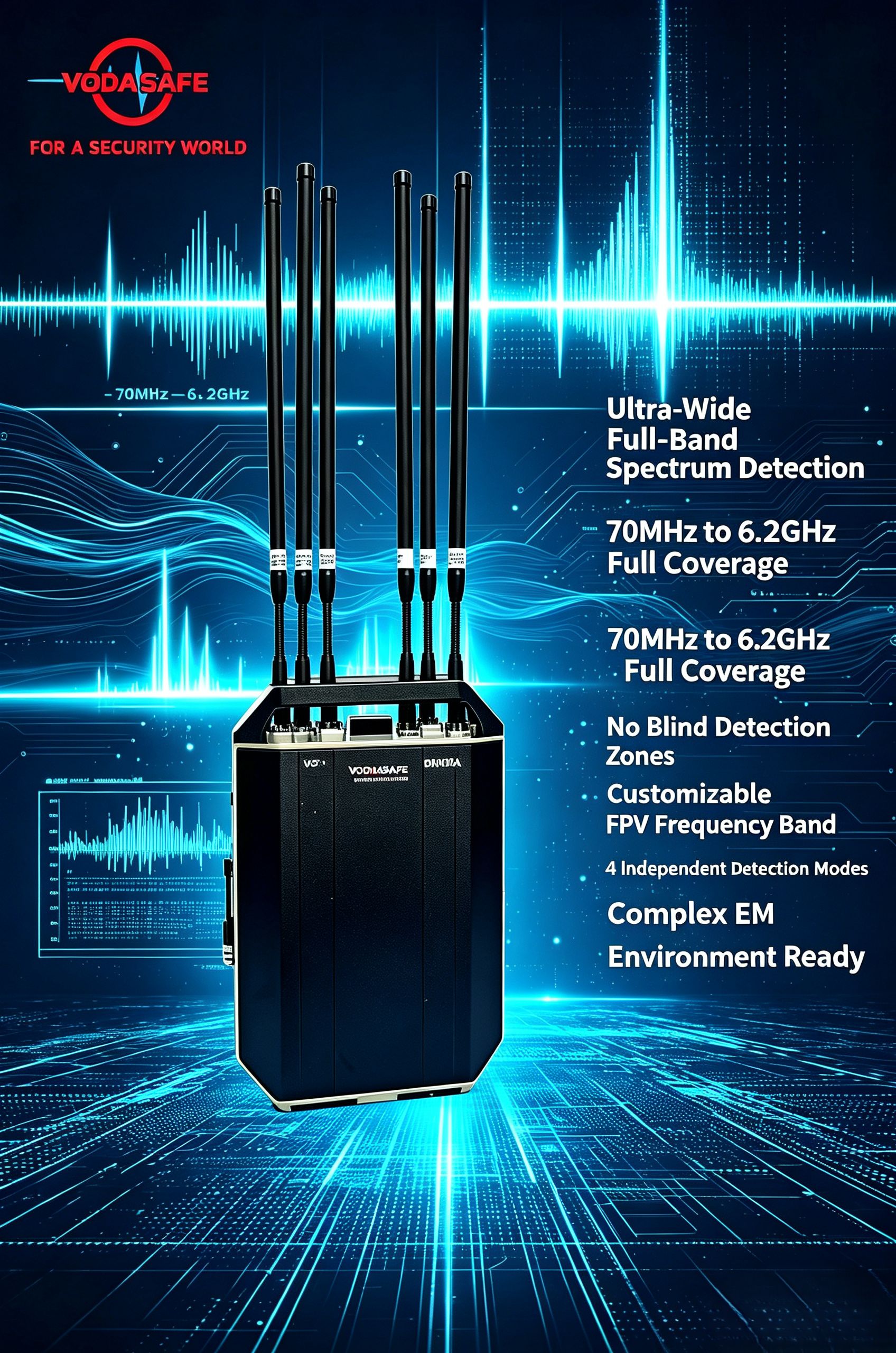

Ultra-Wide Full-Band Spectrum Detection
The VS-DR600A supports continuous full-band scanning across 70MHz to 6.2GHz, covering all mainstream control, image transmission and remote identification frequency bands used by global consumer and industrial drones. It carries built-in spectrum analysis logic to capture all RF signals emitted by UAVs and their controllers without blind detection zones. The equipment comes preset with four independent detection and analysis modes to adapt to different operational environments, and frequency bands for FPV analog video capture can be customized on demand within the 500MHz–6.2GHz range.
2)Accurate Target Identification & Dual-Layer Positioning
The device features built-in decoding modules for DID (Drone Identification) and RID (Remote ID) protocols, fully compatible with the complete DJI drone product line and a large selection of Autel UAV models. It can parse multi-dimensional target data in real time, including drone latitude and longitude coordinates, flight azimuth, moving speed and complete flight tracks, alongside the exact geographic position and direction of the pilot holding the remote controller.
Under standard line-of-sight conditions with clean electromagnetic background noise between -90dB and -95dB, the VS-DR600A achieves industry-leading positioning accuracy within 5 meters when tracking DJI-series drones flying at altitudes from 100 meters to 300 meters. For mainstream consumer drones from DJI and Autel, the effective detection distance reaches up to 5 kilometers, while FPV racing drones can be detected at a maximum distance of 2 kilometers under the same environmental benchmarks. The DID signal positioning coverage extends to 5 kilometers, and RID remote ID positioning can reach 2 kilometers, delivering stable long-distance early warning performance.
3)Optional FPV First-Person Video Capture & Storage
For sites facing severe FPV drone intrusion risks, users can activate the optional FPV video interception module. This module supports full-spectrum analog image transmission signal capture across 500MHz to 6.2GHz, enabling real-time decoding, display and local storage of the live first-person view footage transmitted by FPV drones. In unobstructed line-of-sight environments with FPV transmit power above 2.5 watts and drone altitude over 100 meters, the effective FPV detection and video interception radius hits no less than 1.5 kilometers, allowing security teams to directly observe the real-time perspective of intruding FPV aircraft for threat assessment and evidence retention.

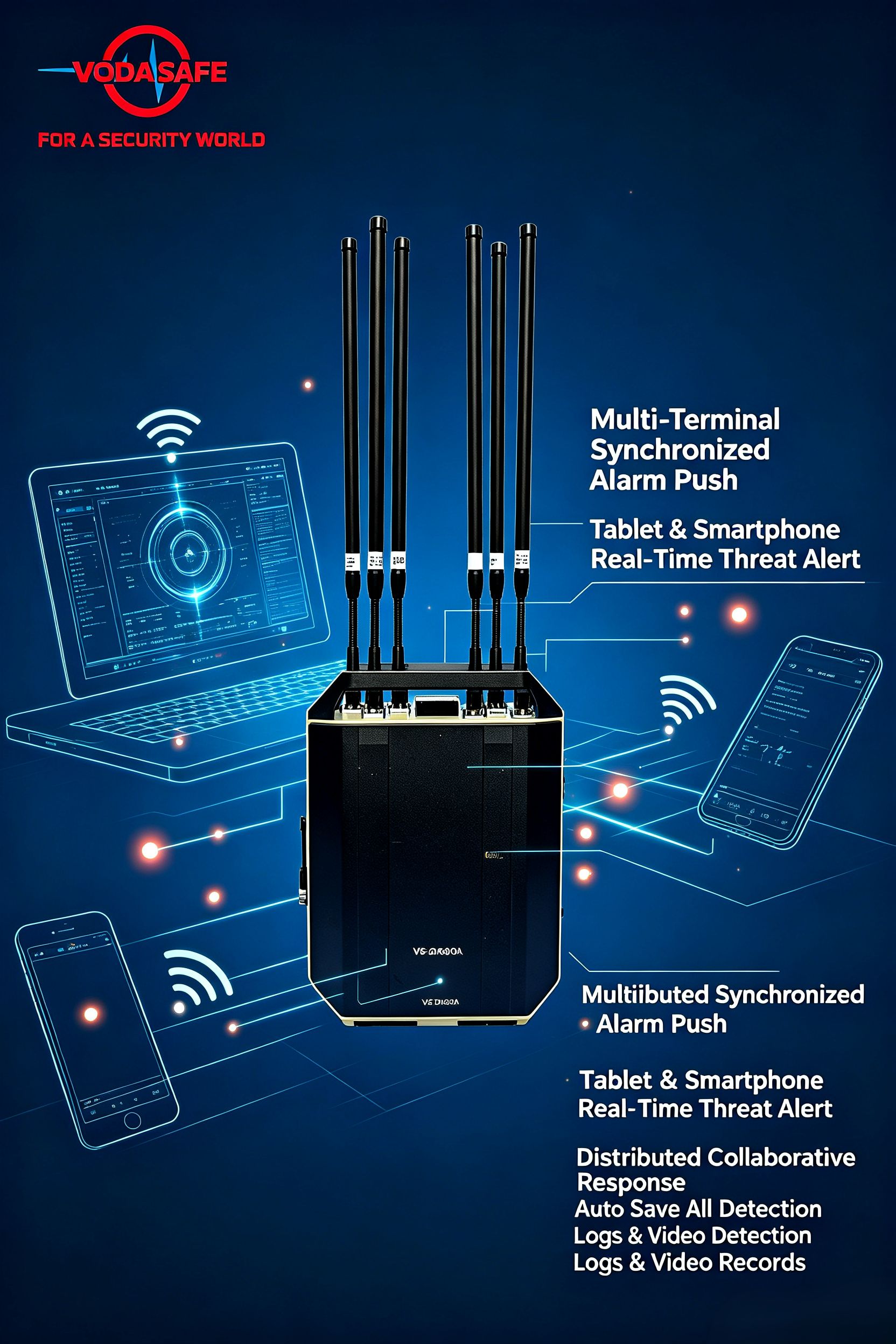

4)Multi-Terminal Synchronized Alarm & Collaborative Response
The VS-DR600A adopts a distributed alarm push architecture, which synchronizes all detected drone threat data to multiple mobile terminals including rugged industrial tablets and smartphones connected to the system. Field patrol staff and command center supervisors can receive real-time location alerts simultaneously, supporting cross-team joint disposal and rapid coordinated response without delay. All detection records, positioning logs and captured FPV video footage are automatically saved for subsequent law enforcement investigation and evidence submission.

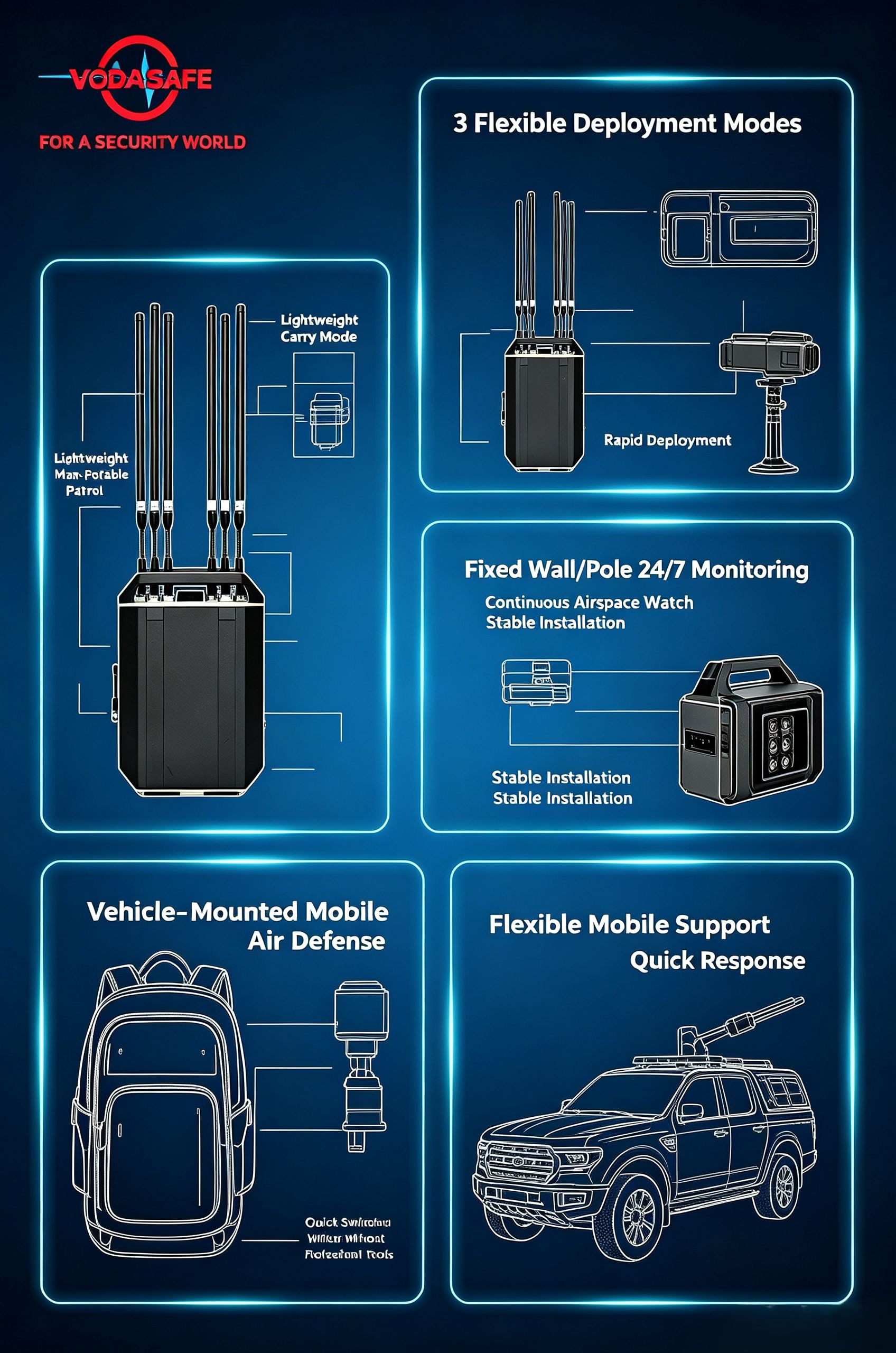

5)Multi-Mode Flexible Deployment for All Scenarios
Engineered for diverse working conditions, the VS-DR600A supports three mainstream deployment forms: backpack man-portable mobile patrol, fixed-site wall/pole mounting for 24/7 continuous monitoring, and vehicle-mounted installation for mobile airspace security patrols. The complete equipment set includes a customized breathable tactical backpack, a dedicated vehicle mounting bracket and a shock-resistant flight case for transportation, allowing users to switch deployment modes quickly within minutes without professional auxiliary tools.

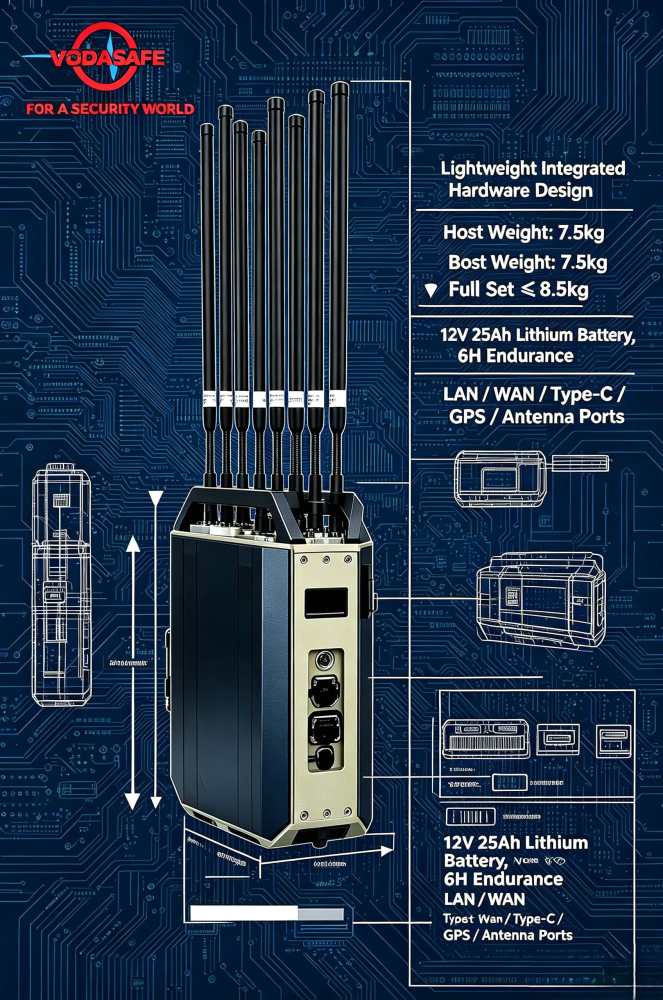

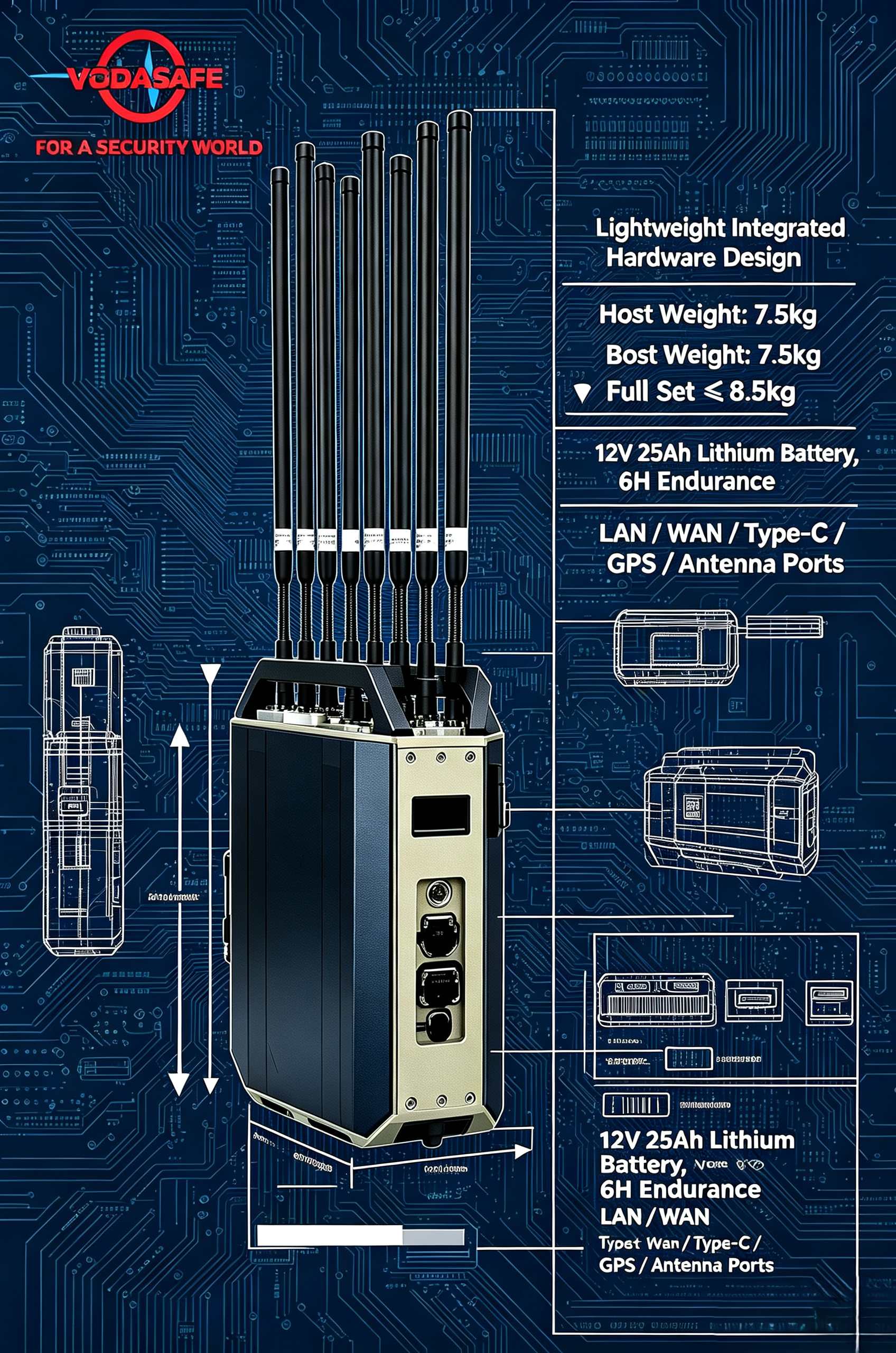

Hardware Design & Physical Specifications

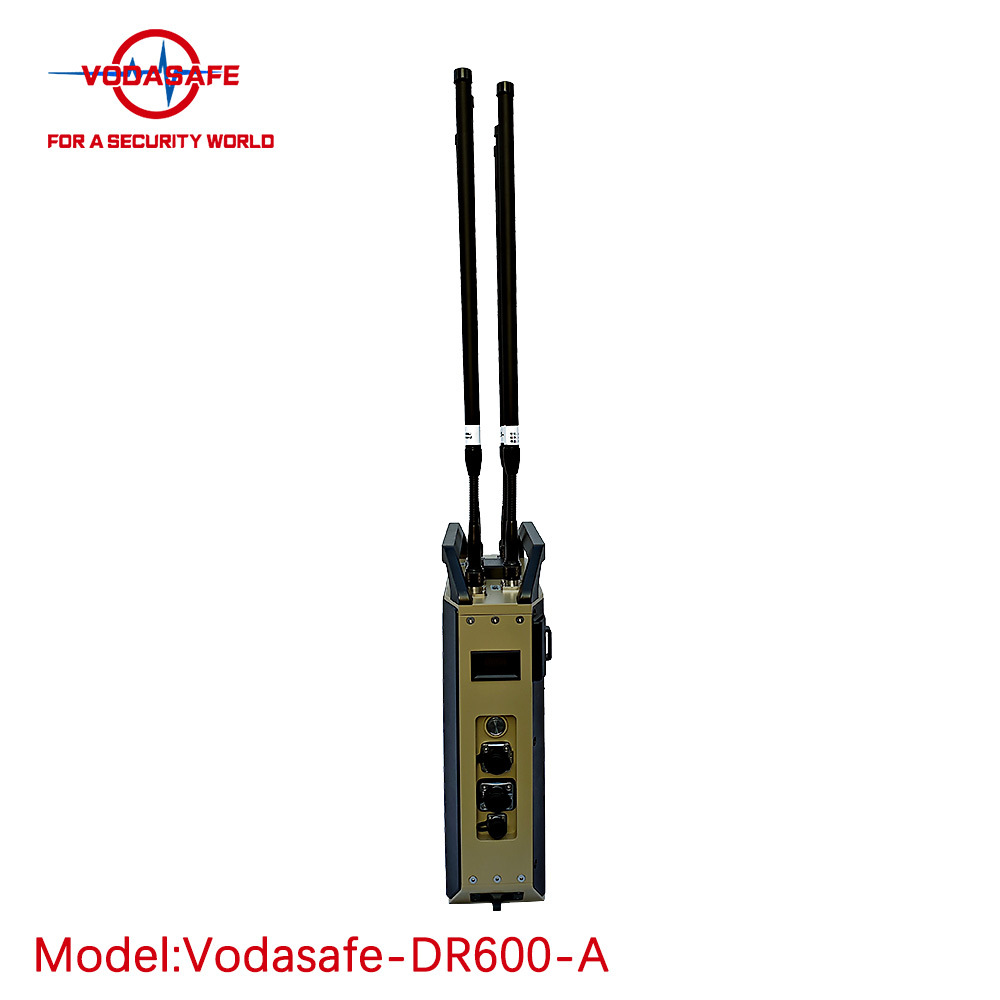

The main detection host of VS-DR600A adopts a compact integrated aluminum alloy shell, with external dimensions measured at 283 millimeters in length, 114 millimeters in width and 380 millimeters in height (antenna size excluded). The overall weight of the full configuration host is controlled under 8.5 kilograms, while the main unit body alone weighs only 7.5 kilograms, greatly reducing the physical burden for long-duration manual patrol operations.
The equipment is powered by a built-in 12V 25Ah large-capacity lithium battery, delivering a continuous working endurance of no less than 6 hours under full-function operation. For fixed-site long-term deployment, it also supports external 220V AC power adapters for uninterrupted power supply. The matching power charger weighs 0.25 kilograms, with stable charging efficiency to fully replenish the battery within a short window during task intervals.

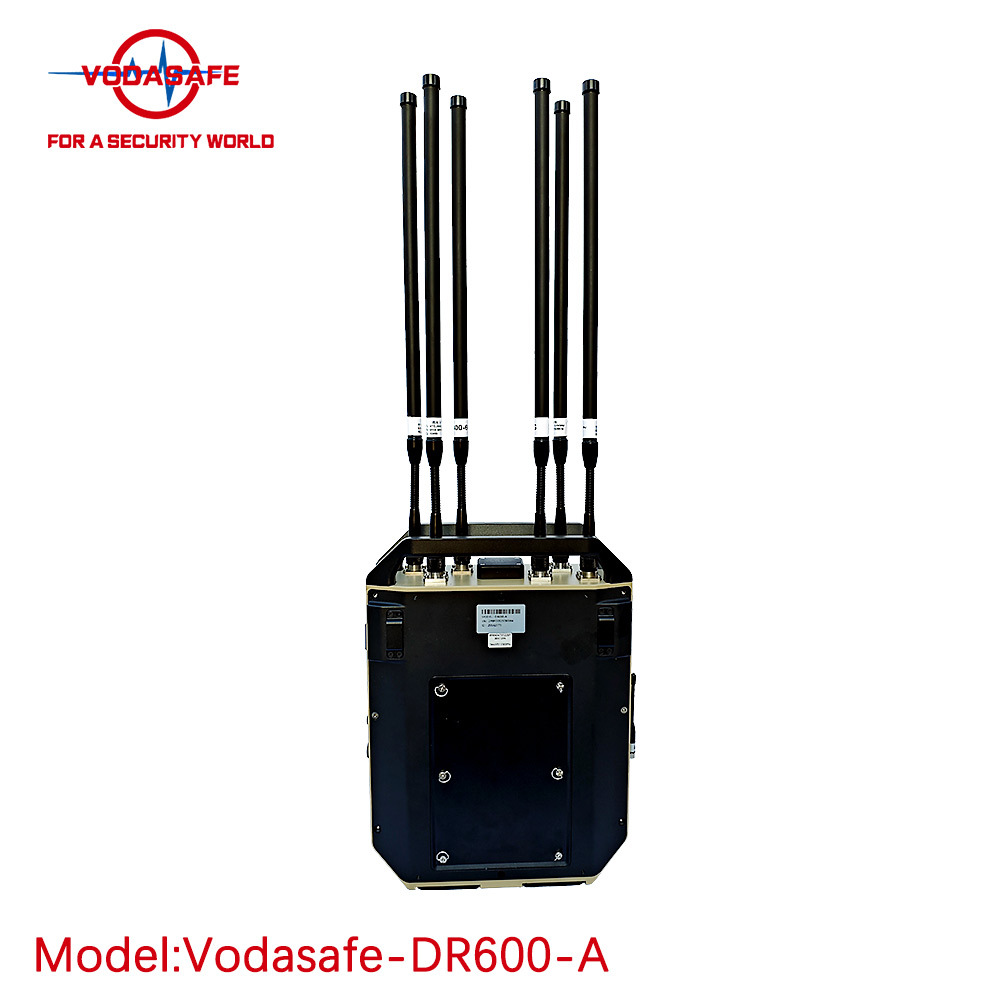

The standard antenna kit includes six omnidirectional detection antennas with a diameter of 16 millimeters and a length of 500 millimeters, each weighing only 0.15 kilograms, plus one independent 2.4GHz WIFI antenna for wireless terminal connection. The host side panel reserves complete standardized interfaces, including a power switch button, Type-C high-speed data debugging port, independent LAN and WAN RJ45 network ports, a 2-pin 12V charging power input port, and dedicated antenna interfaces marked for 6GHz, dual 5.8GHz, 4G, 2.4GHz and GPS signals; the two 5.8GHz detection antennas support interchangeable plug-in without directional distinction for easy assembly.
The complete delivery package covers all essential accessories: the main detection unit, six detection omnidirectional antennas, WIFI antenna, power adapter, 5-meter network cable, tactical carrying backpack, shockproof flight case and optional rugged industrial control tablet terminal. The transport flight case measures 550mm × 400mm × 240mm, built with drop-proof and moisture-proof structural design to protect the equipment during long-distance transportation and storage.
Supported Detected Drone Models
The VS-DR600A maintains full compatibility with nearly all mainstream commercial UAV products available on the market. It covers the entire DJI drone series, all mainstream Autel models, Hubsan consumer drones, as well as all types of FPV racing drones and self-assembled DIY custom UAVs. Its wide frequency scanning range effectively captures control signals, image transmission signals and remote identification signals from multirotor, fixed-wing and hybrid vertical takeoff aircraft, avoiding missed detection of non-standard custom drones often overlooked by narrow-band detectors.
Wide Application Scenarios
Designed to meet comprehensive low-altitude security demands, the VS-DR600A fits a full spectrum of public and private protection scenarios:
Public security daily patrol and urban airspace governance;
Military restricted zone, border defense and confidential facility protection;
Large-scale event security including sports competitions, summit conferences and exhibition activities;
Airport, power station, chemical plant, data center and other critical infrastructure airspace monitoring;
Enterprise industrial parks, government compounds, prison and hospital perimeter air defense;
Anti-smuggling, anti-surveillance law enforcement operations and drone violation evidence collection.
Whether deployed for temporary mobile patrol missions or permanent fixed-point all-day monitoring, the equipment delivers consistent, reliable detection and positioning performance to block illegal drone intrusion risks from the source.
System Operation & Terminal Connection

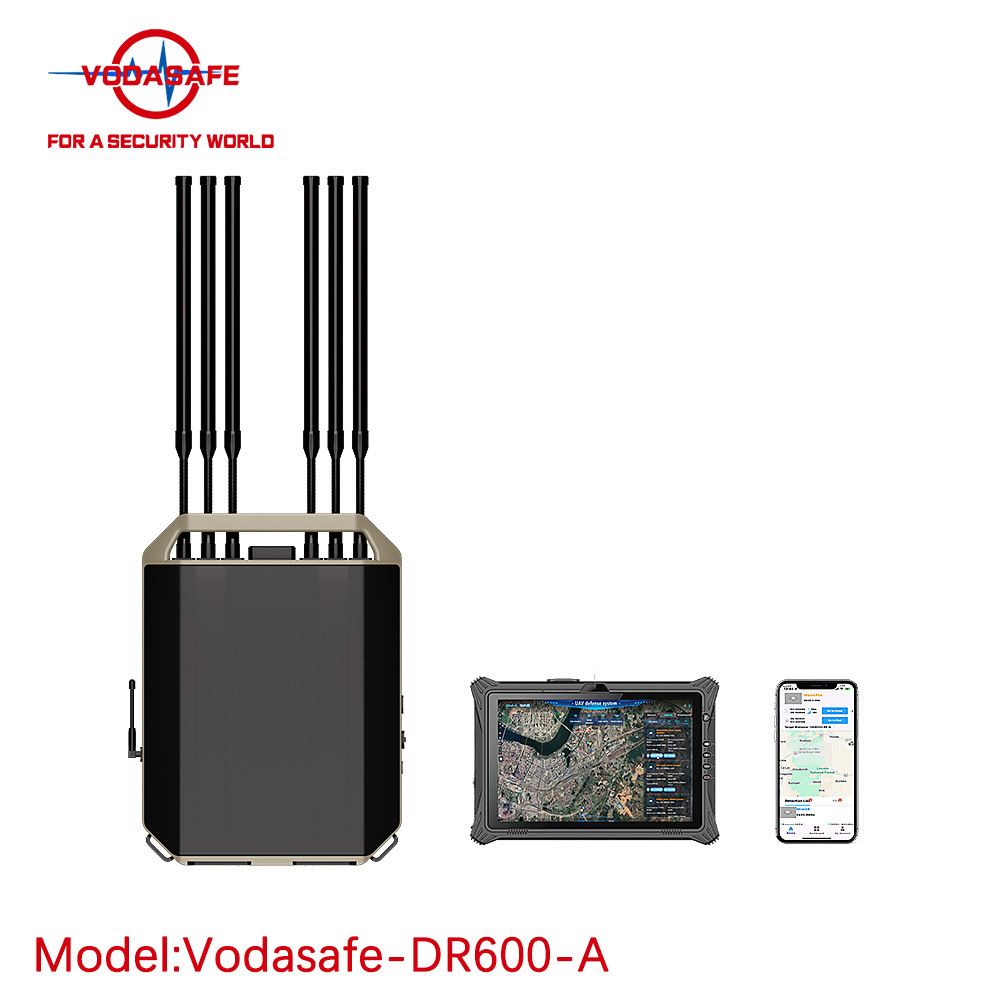

Operators can interact with the VS-DR600A system via two connection methods: wired and wireless. For wired connection, users link the host’s LAN port to the rugged industrial tablet through the matched network cable to access the GIS geographic information system operation interface, which displays real-time drone tracks, coordinate data and spectrum graphs on a high-definition touch screen. For wireless deployment, the built-in WIFI antenna of the host creates a local wireless network, allowing smartphones and tablets to log into the monitoring platform via web browsers without wired cabling, maximizing mobility during outdoor patrols.
The operation interface adopts an intuitive GIS map visualization design, with clear hierarchical display of signal spectrum, target drone parameters, pilot location and historical alarm records. New operators can master basic monitoring and query operations after simple training, and detailed software operation manuals are provided to cover advanced functions such as historical data playback and FPV video export.
Equipment Safety & Fault Maintenance
The VS-DR600A incorporates multi-layer safety protection mechanisms. The integrated lithium battery features overcharge, over-discharge and short-circuit protection circuits to eliminate power failure risks during field operations. The full set of equipment is packed inside a reinforced shockproof flight case for anti-drop and moisture resistance during transportation and long-term storage.
For routine troubleshooting, the most common abnormal conditions such as blank software data display can be quickly resolved through three simple inspection steps: confirming the intact connection of network cables between the host and control terminal, verifying the normal power supply state of the main detection unit, and checking whether the network switch has mismatched IP address restrictions blocking data transmission. Detailed fault diagnosis guidelines are attached to the user manual to support on-site staff in rapid self-maintenance without professional technical support.
Product Core Advantages Summary
1)All-band passive RF scanning from 70MHz to 6.2GHz, zero detection dead zone for all drone signal types;
2)Long-distance detection up to 5km for mainstream consumer drones, precise single-station positioning accuracy within 5 meters;
3)Optional FPV analog video real-time interception and storage function for intuitive threat visualization and evidence collection;
4)Lightweight overall design under 8.5kg, 6-hour continuous battery life to support full-day outdoor patrol tasks;
5)Three flexible deployment modes: backpack, fixed mounting and vehicle-mounted to adapt to all working environments;
6)Multi-terminal simultaneous alarm push, supporting team collaborative response for efficient threat disposal;
7)Complete accessory kit including carrying backpack and shockproof flight case for convenient transport and field use;
8)Wide compatibility with DJI, Autel, Hubsan, FPV and DIY custom drones, ultra-low false alarm rate in complex electromagnetic environments.
As a comprehensive portable anti-drone monitoring solution, the SZ Vodasafe VS-DR600A balances powerful detection performance, flexible deployment capability and easy operability, becoming an essential low-altitude airspace security equipment for security agencies, military units, event organizers and enterprise asset protection teams worldwide.
