SZ Vodasafe VS-D5-F6 High-Power Handheld Drone Signal Jammer

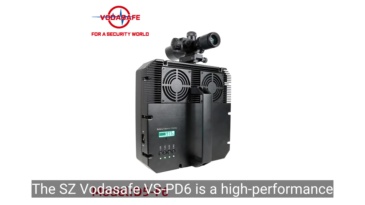

The SZ Vodasafe VS-D5-F6 is a high-performance, portable handheld drone (UAV) signal jammer engineered for reliable and efficient blocking of drone communication and positioning signals. Featuring a compact, user-friendly design with built-in directional antennas integrated into its outer shell, this device is tailored to meet the needs of professional users such as private security teams, facility management staff, and event safety personnel. It supports jamming of up to 6 frequency bands simultaneously, ensuring comprehensive coverage against most commercial drones. With a maximum shielding radius of up to 1500 meters, the SZ Vodasafe VS-D5-F6 provides robust protection for private restricted areas, public events, and sensitive commercial sites, effectively preventing unauthorized drone access and potential safety risks.
Specifications

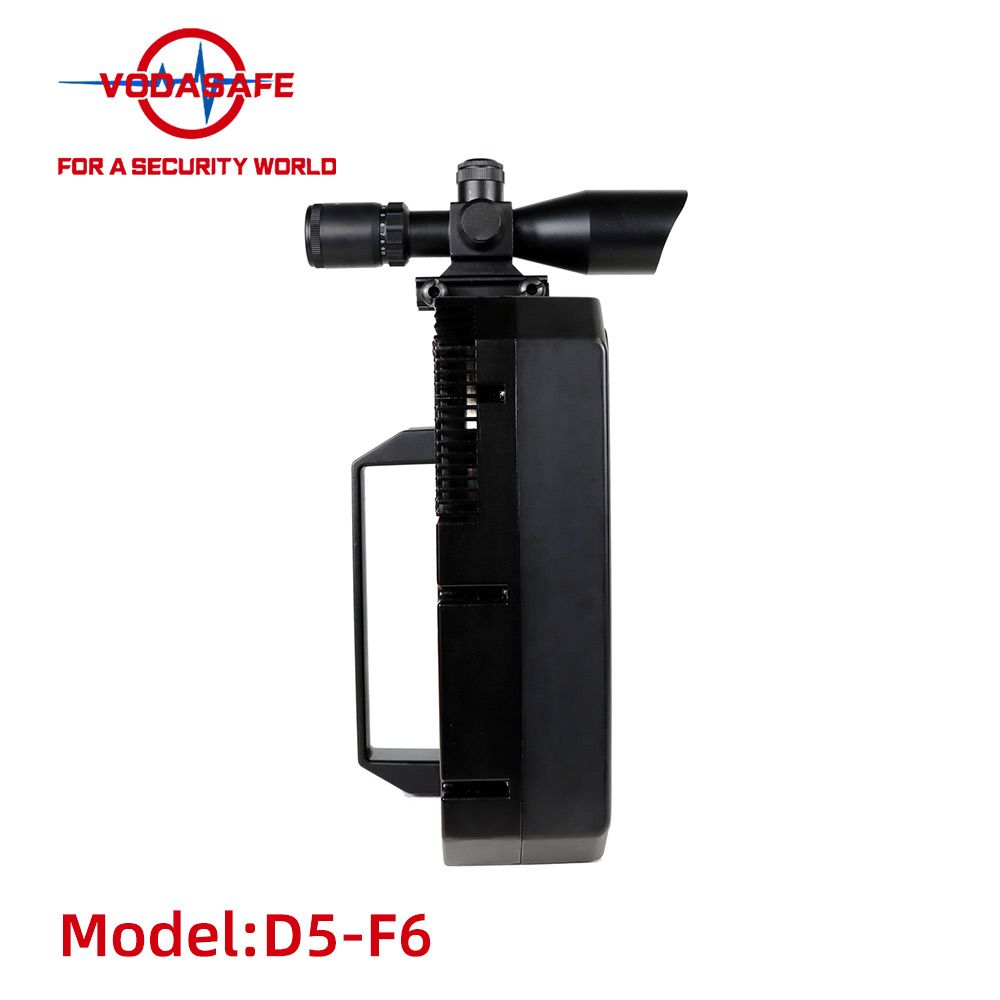

ed sight rail (No.7) on the top of the SZ Vodasafe VS-D5-F6 enables installation of a sight (optional accessory), helping users locate distant drones accurately and target jamming more precisely.
Compact & Portable: With a net weight of only 3.0kg and a compact size of 260×260×122mm, the SZ Vodasafe VS-D5-F6 is easy to carry. It also comes with a portable safe case for secure storage and transportation, protecting the device from damage during transit.
Operational Control & Display
Dual Power Switches:
A Main Power Switch (No.3) on the rear panel of the SZ Vodasafe VS-D5-F6 controls the overall power of the device-turning it on puts the jammer in standby mode.
Independent Band Power Switches (No.4) allow users to turn on/off individual frequency bands of the SZ Vodasafe VS-D5-F6 as needed, improving energy efficiency and avoiding unnecessary signal interference.

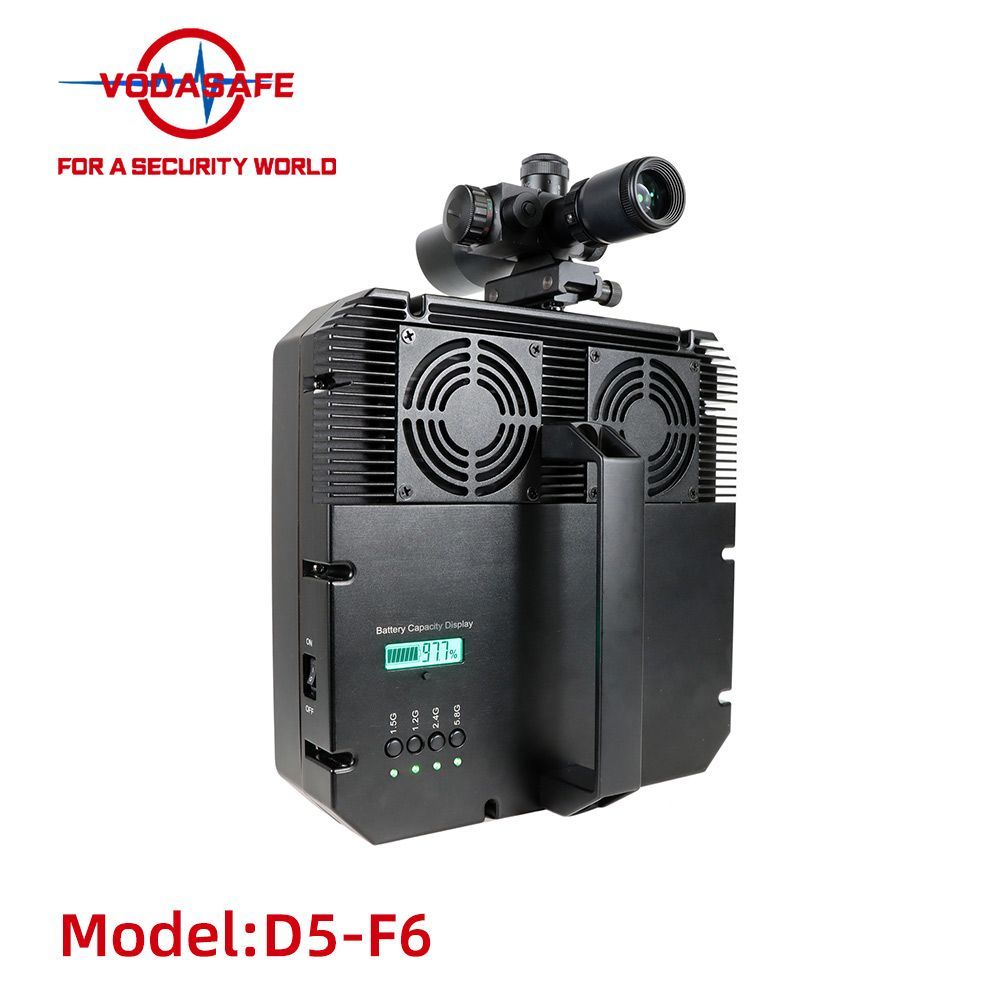

Battery Capacity LCD Display (No.1): The SZ Vodasafe VS-D5-F6 is equipped with a clear LCD screen that shows real-time battery status, including current, voltage, and battery percentage. During charging, the display shows a red "100%" when charging is in progress; once fully charged (99%+), the display turns green.
Power LED Indicators (No.5): Each frequency band of the SZ Vodasafe VS-D5-F6 is paired with a green LED light. When a band is activated, its corresponding LED turns green, providing intuitive visual feedback on the jammer's working status.
Safety & Reliability
Antenna Safety Protection: The SZ Vodasafe VS-D5-F6 is designed with a safety mechanism-do not turn on the power before connecting all antennas, and do not remove antennas while the jammer is in operation. This prevents damage to internal components caused by unloaded power.
Overheating Prevention: Two built-in cooling fans (No.9) and a high-efficiency aluminum alloy radiator work together to dissipate heat quickly from the SZ Vodasafe VS-D5-F6, ensuring stable operation even during prolonged use. For optimal cooling, the jammer must be installed in a well-ventilated area.
Waterproof Consideration: When using the SZ Vodasafe VS-D5-F6 outdoors, the device should be protected from water (e.g., with a waterproof cover) to avoid short circuits or component damage from moisture.
How to Use
Pre-Use Preparation: Charging the Battery

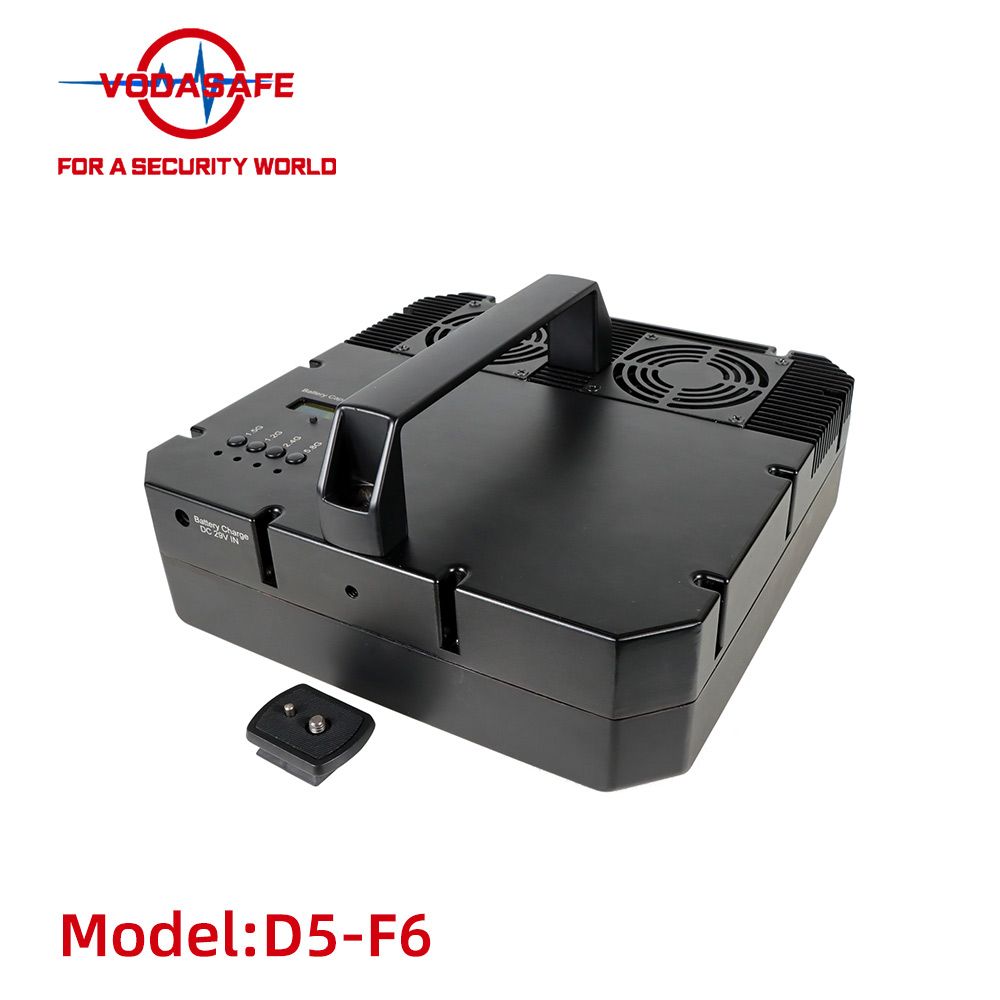

Before first use of the SZ Vodasafe VS-D5-F6, fully charge the built-in battery. Connect the AC adapter (AC110-240V) to the charger input port (No.2, DC24V 2A) of the jammer and plug it into a power outlet.
During charging: The charger light is red, and the LCD display of the SZ Vodasafe VS-D5-F6 shows a red "100%" (indicating charging in progress).
When fully charged: The charger light turns green, and the LCD display of the SZ Vodasafe VS-D5-F6 shows green with a battery percentage of 99% or higher. Do not turn on the DC power while charging-this may damage the battery or charger of the SZ Vodasafe VS-D5-F6.
Turning On the Jammer
Ensure all antennas of the SZ Vodasafe VS-D5-F6 are properly installed and kept vertical to the ground.
Locate the main power switch (No.3) on the rear panel of the SZ Vodasafe VS-D5-F6 and turn it on-the jammer enters standby mode. The battery LCD display turns green and shows the current battery percentage.
Use the band power switches (No.4) of the SZ Vodasafe VS-D5-F6 to activate the desired frequency bands. When a band is turned on, its corresponding power LED (No.5) turns green.
Turning Off the Jammer
First, turn off any frequency bands of the SZ Vodasafe VS-D5-F6 that are no longer needed by flipping their respective band power switches (No.4) to the "OFF" position.
Locate the main power switch (No.3) on the rear panel of the SZ Vodasafe VS-D5-F6 and turn it off to shut down the entire device.
Disconnect the power adapter (if connected) and store the SZ Vodasafe VS-D5-F6 in its portable safe case when not in use.
Application Scenarios
The SZ Vodasafe VS-D5-F6 is widely applicable in scenarios requiring drone control and safety protection, including but not limited to:
Protection of Private Restricted & Sensitive Areas:
Private industrial facilities, commercial warehouses, and key corporate infrastructure.
Concert venues, exhibition centers, and private property (to prevent drone intrusions that may disrupt operations or pose safety risks).
Prevention of On-Site Information Leakage:
Private event venues, corporate product launches, and confidential business sites.
Large-scale public gatherings, private parties, and high-profile celebrity protection events (to stop unauthorized drones from taking photos or recording videos).
Combating Unauthorized Drone Activities:
Intercepting drones used for trespassing, privacy violations, or unauthorized surveillance.
Preventing drones from entering restricted commercial or private areas and causing disruptions.
OEM Customization Service
We offer silkscreen OEM service for the SZ Vodasafe VS-D5-F6, allowing customers to add custom logos, model numbers, or other brand identifiers to the device's outer shell-ideal for businesses looking to align the product with their brand image.
Package Contents
1 × SZ Vodasafe VS-D5-F6 Jammer Host
1 × Battery Charger (AC110-240V to DC24-28V)
1 × AC Plug
1 × Sight Rail

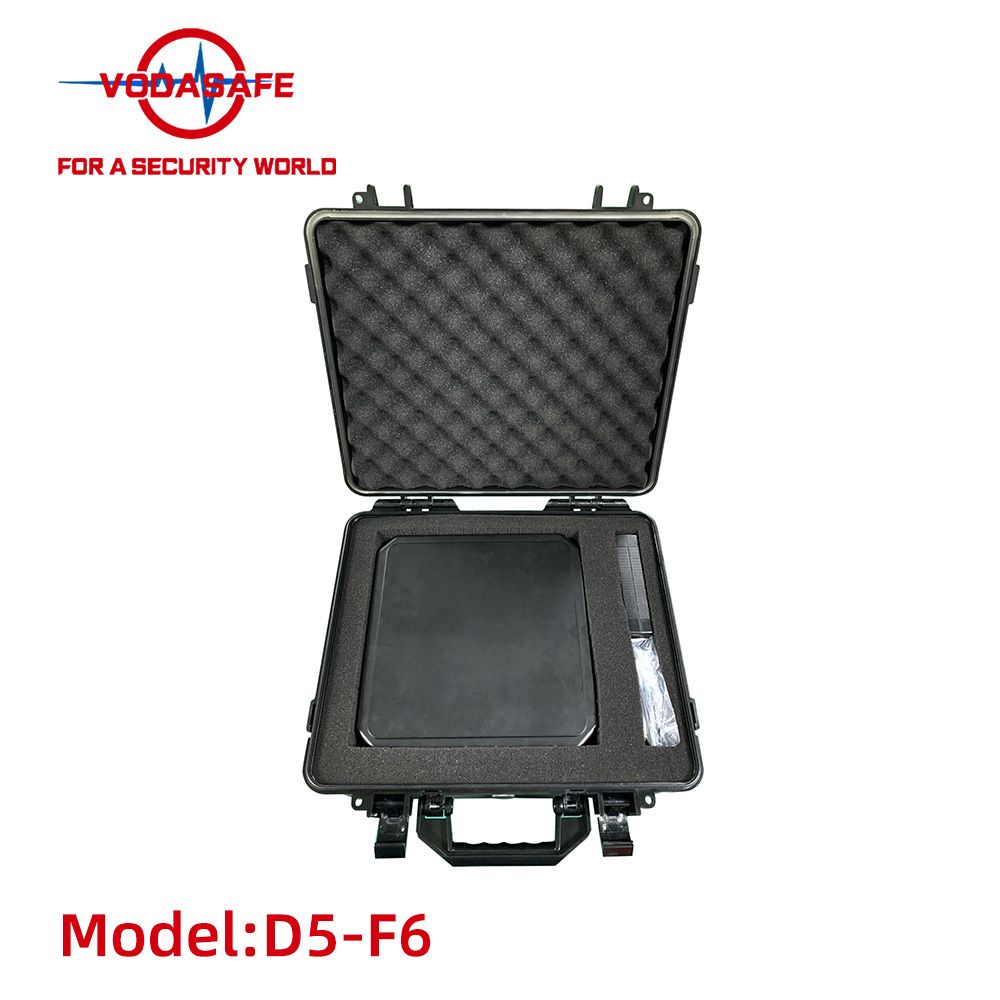

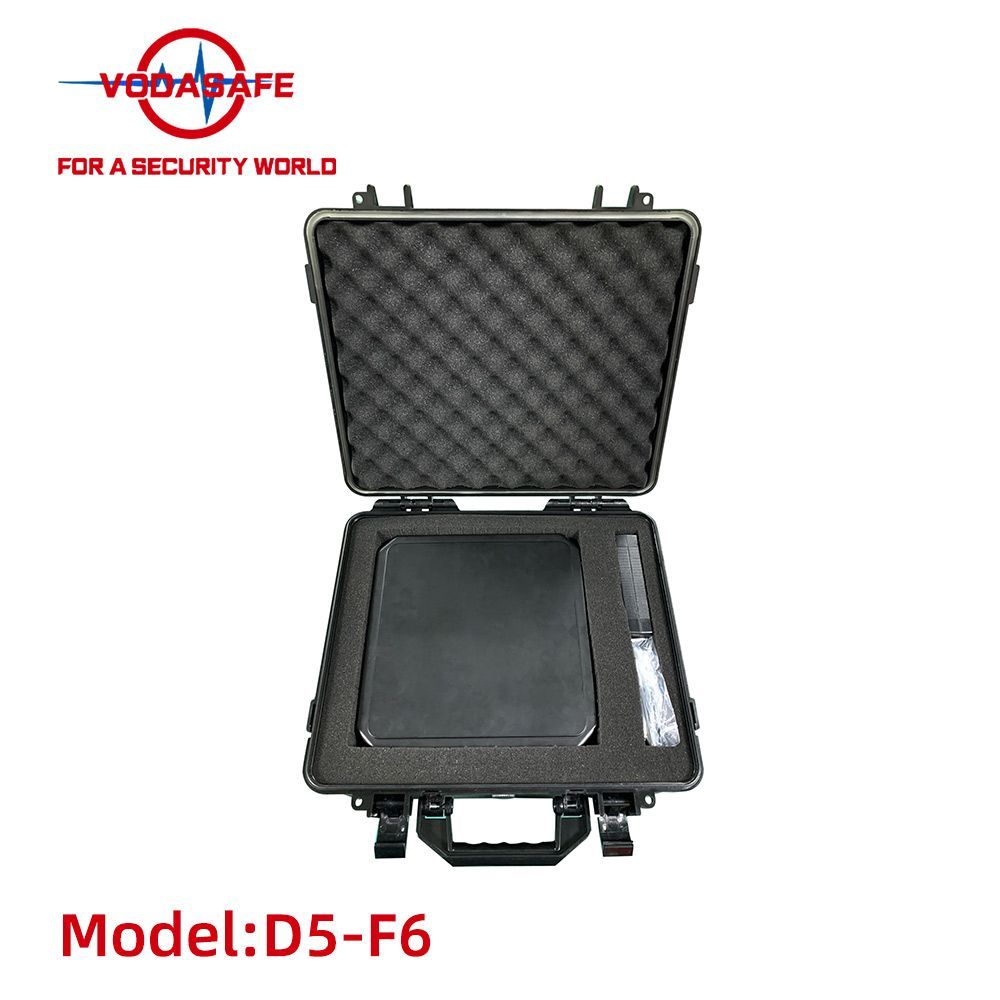

1 × Portable Safe Case
1 × Sight (optional accessory)

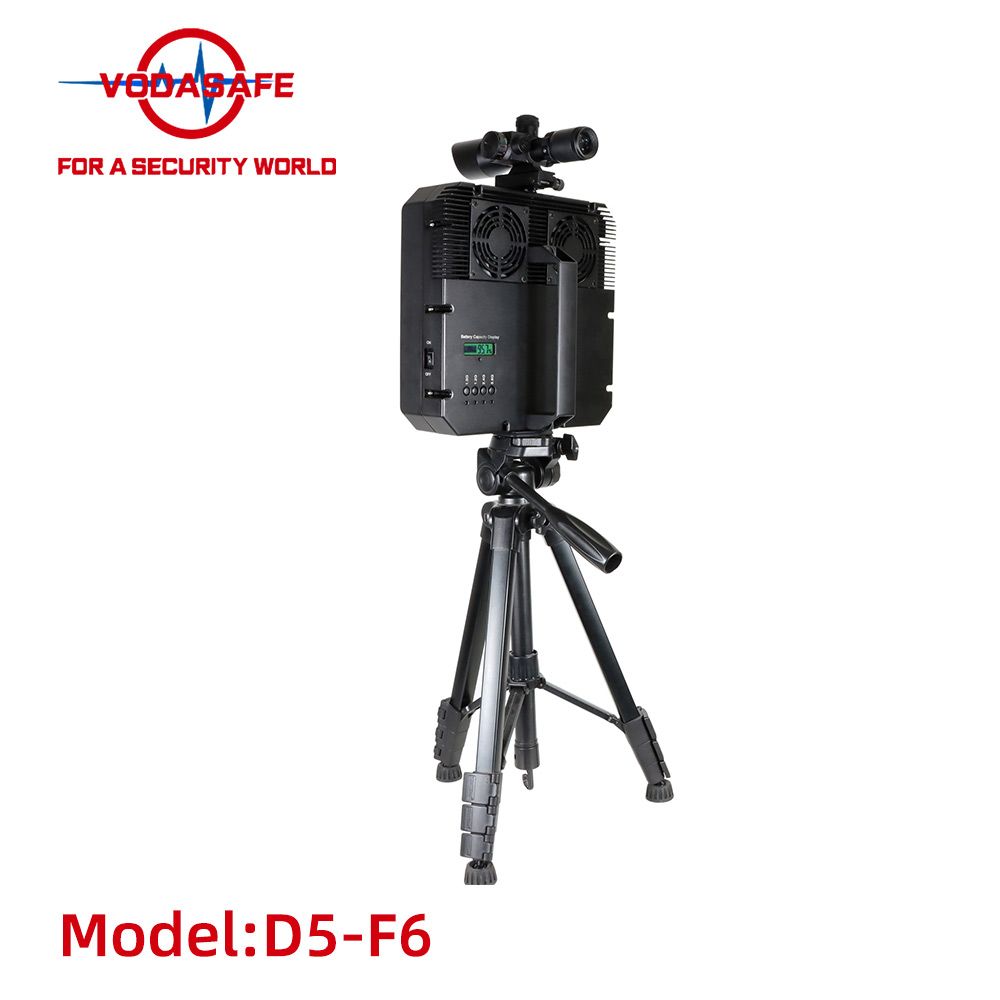

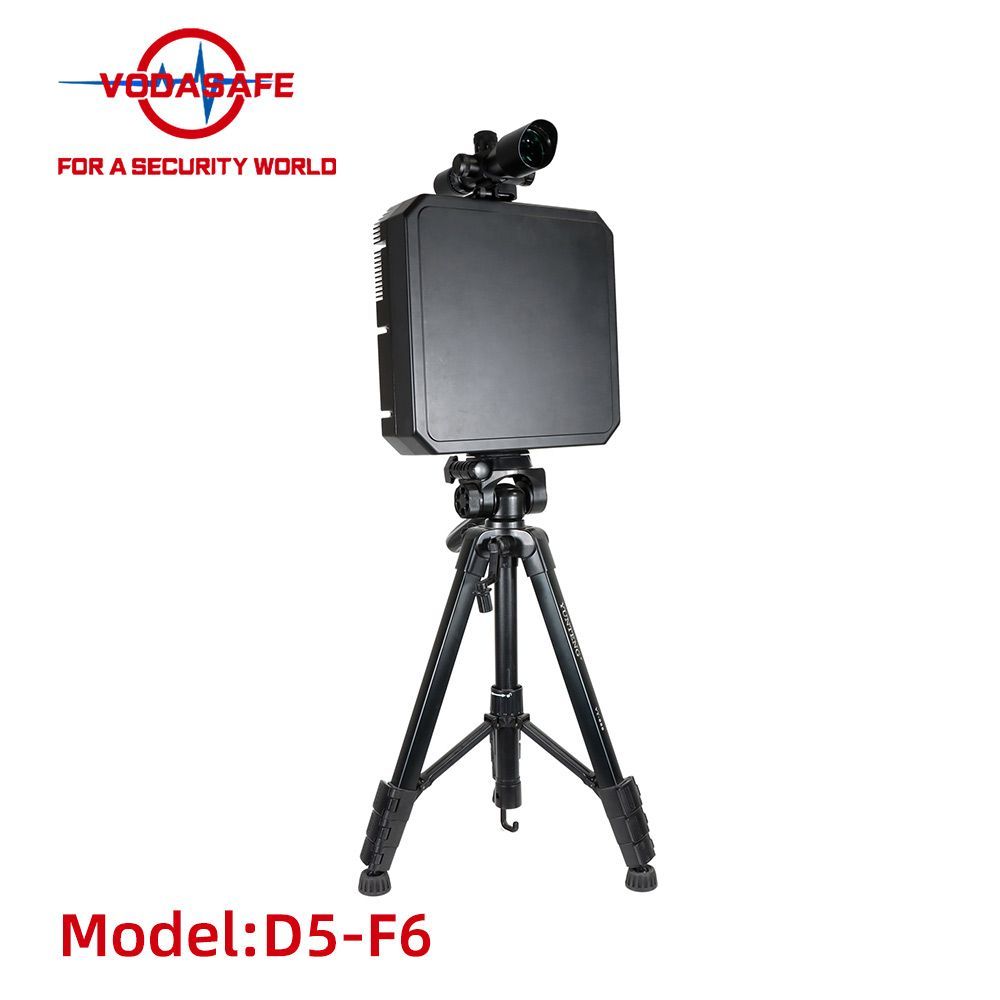

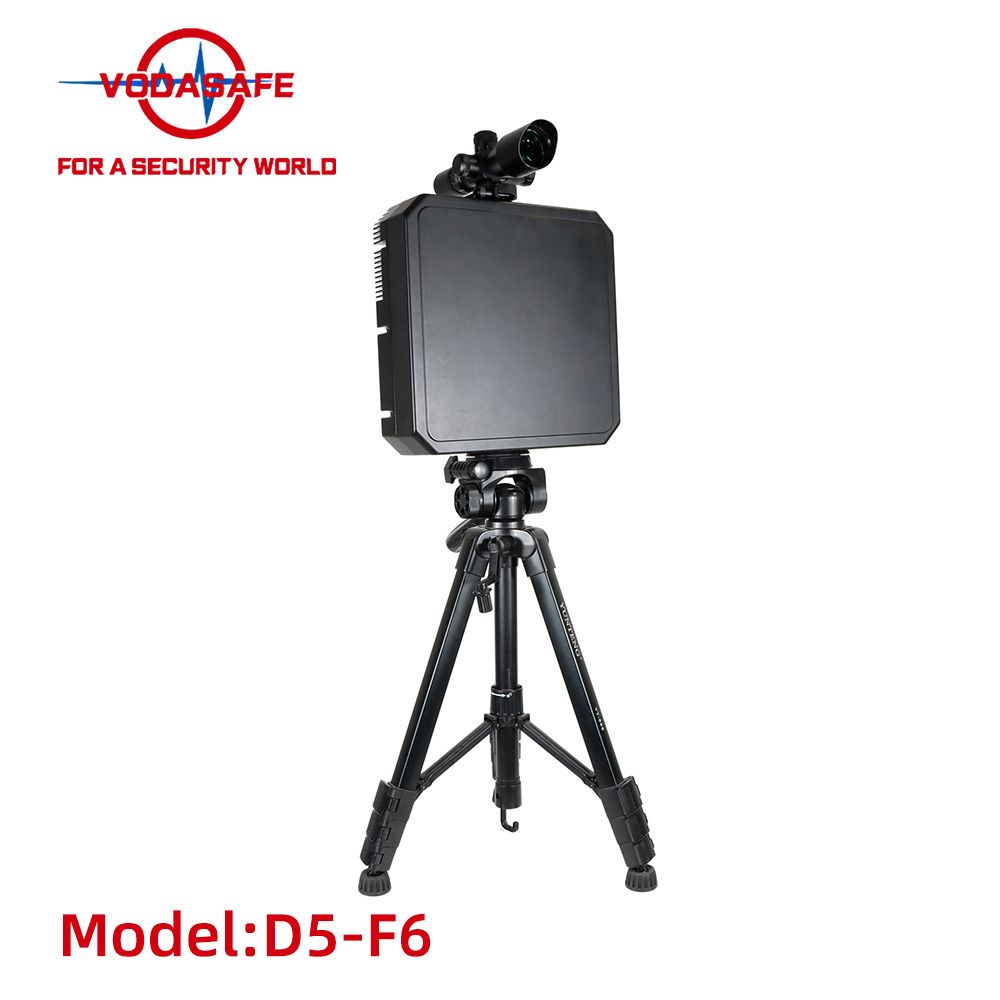

1 × Tripod (optional accessory)
