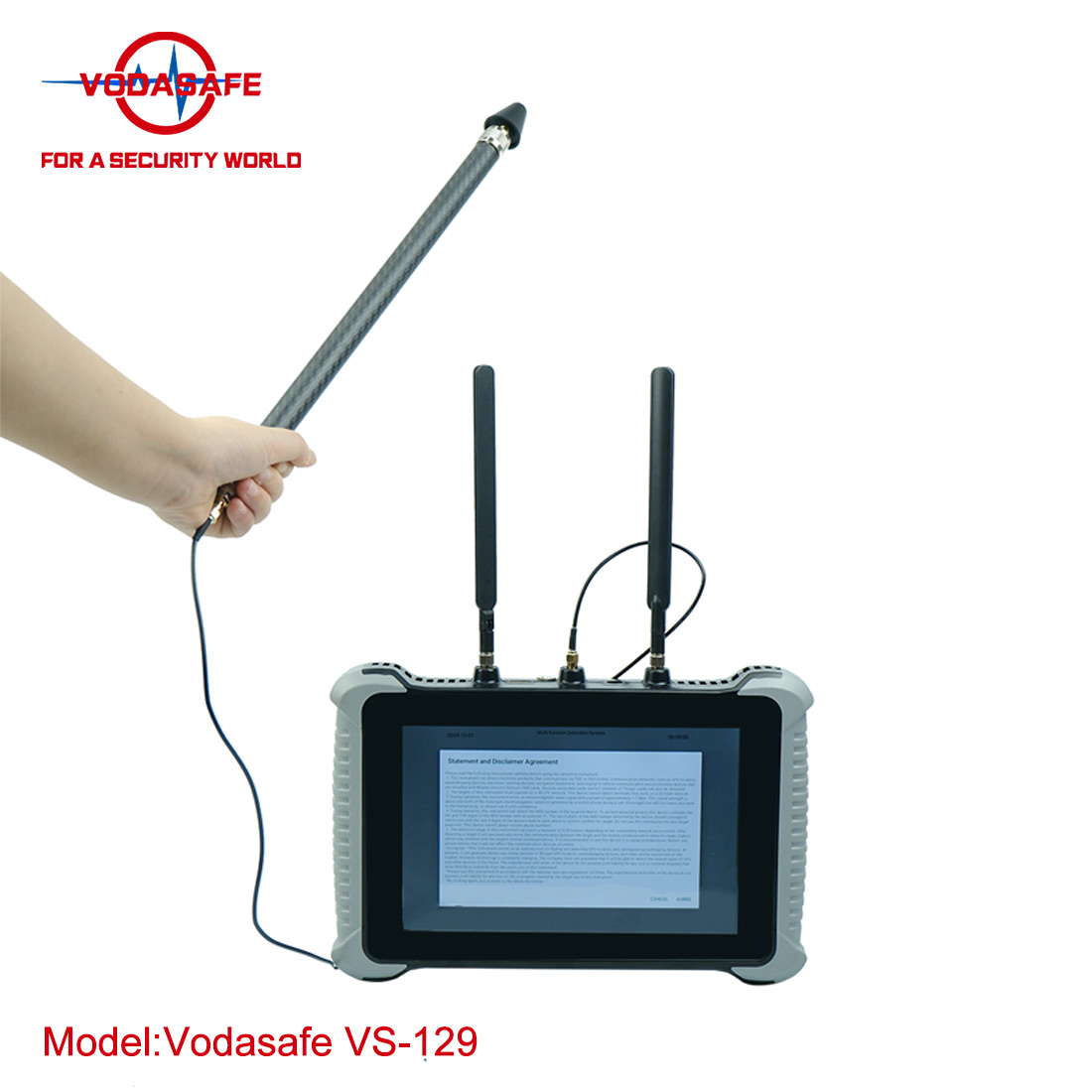

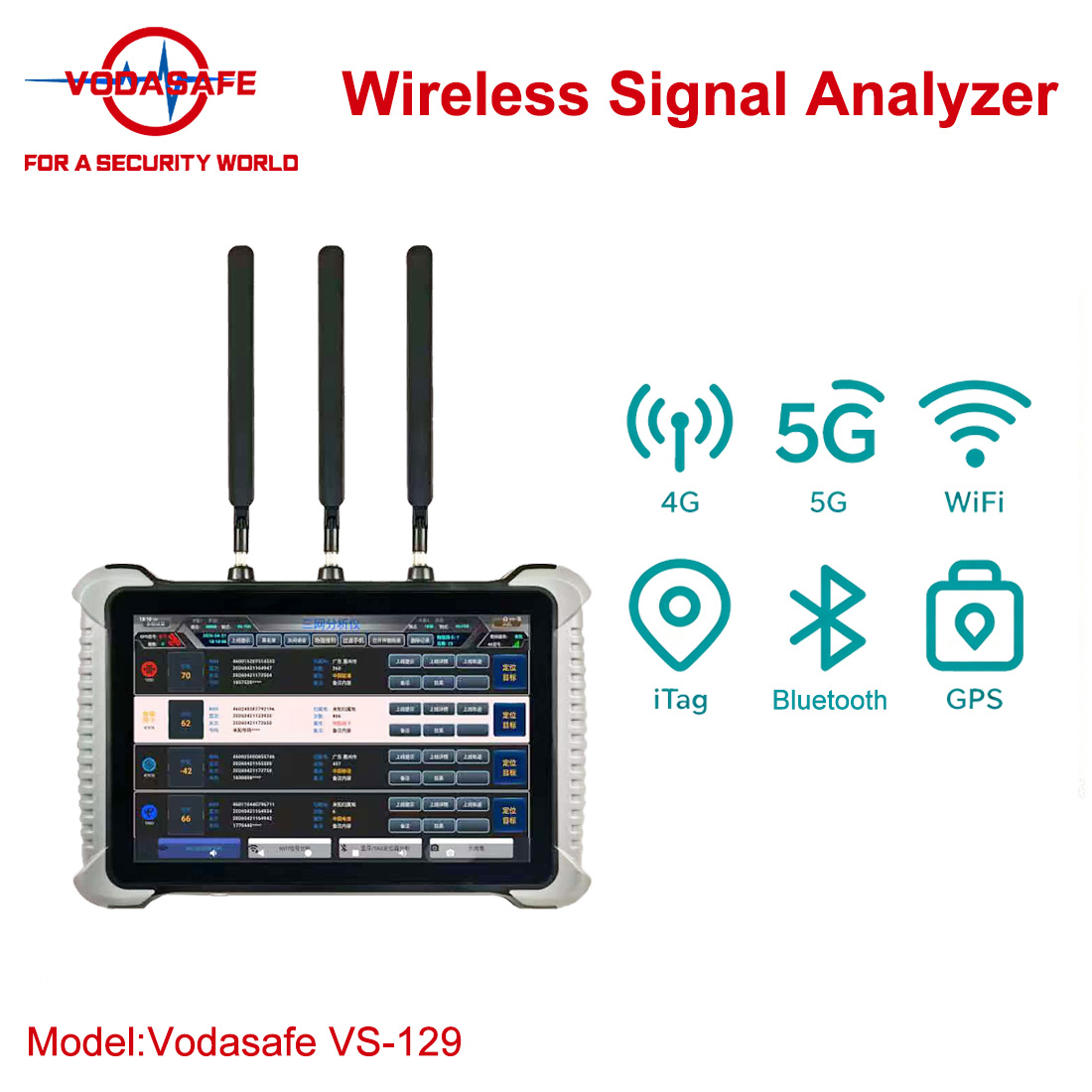

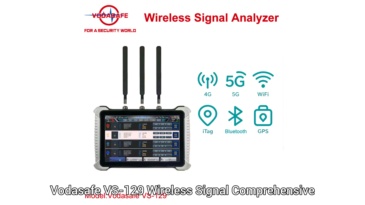

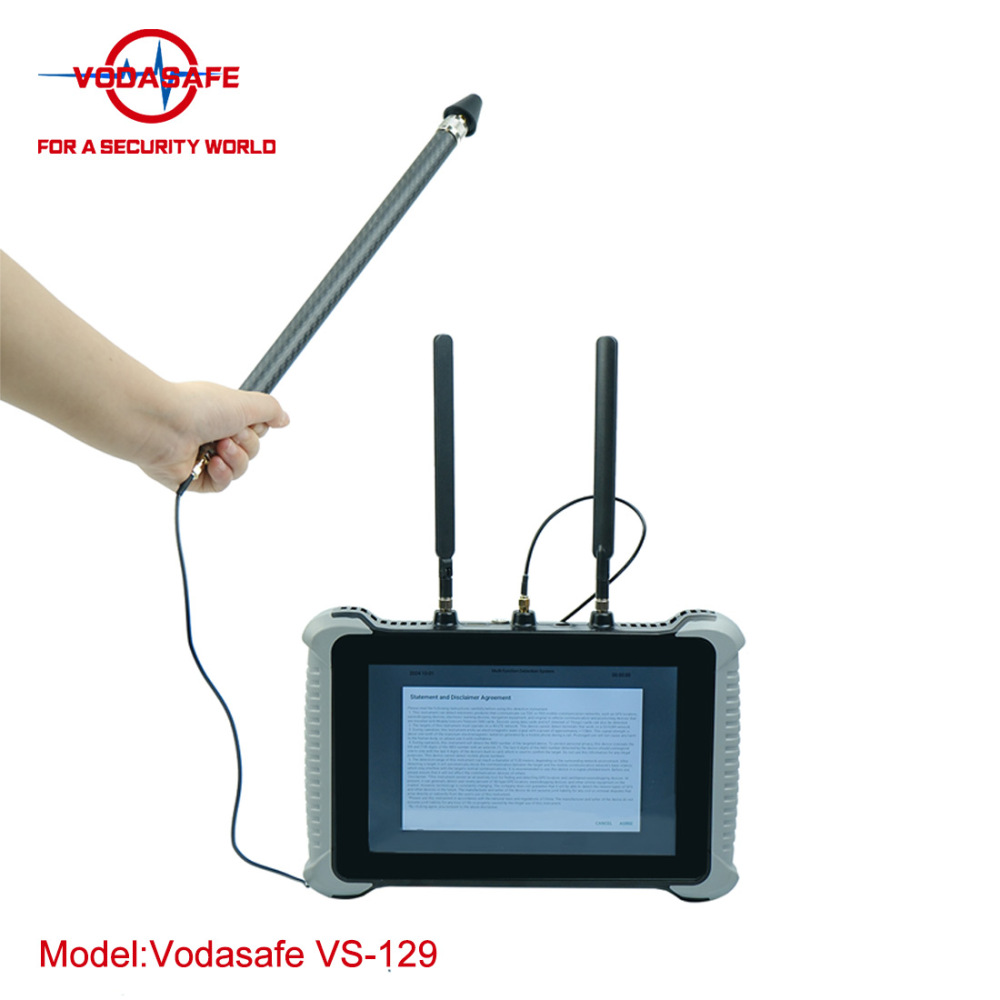

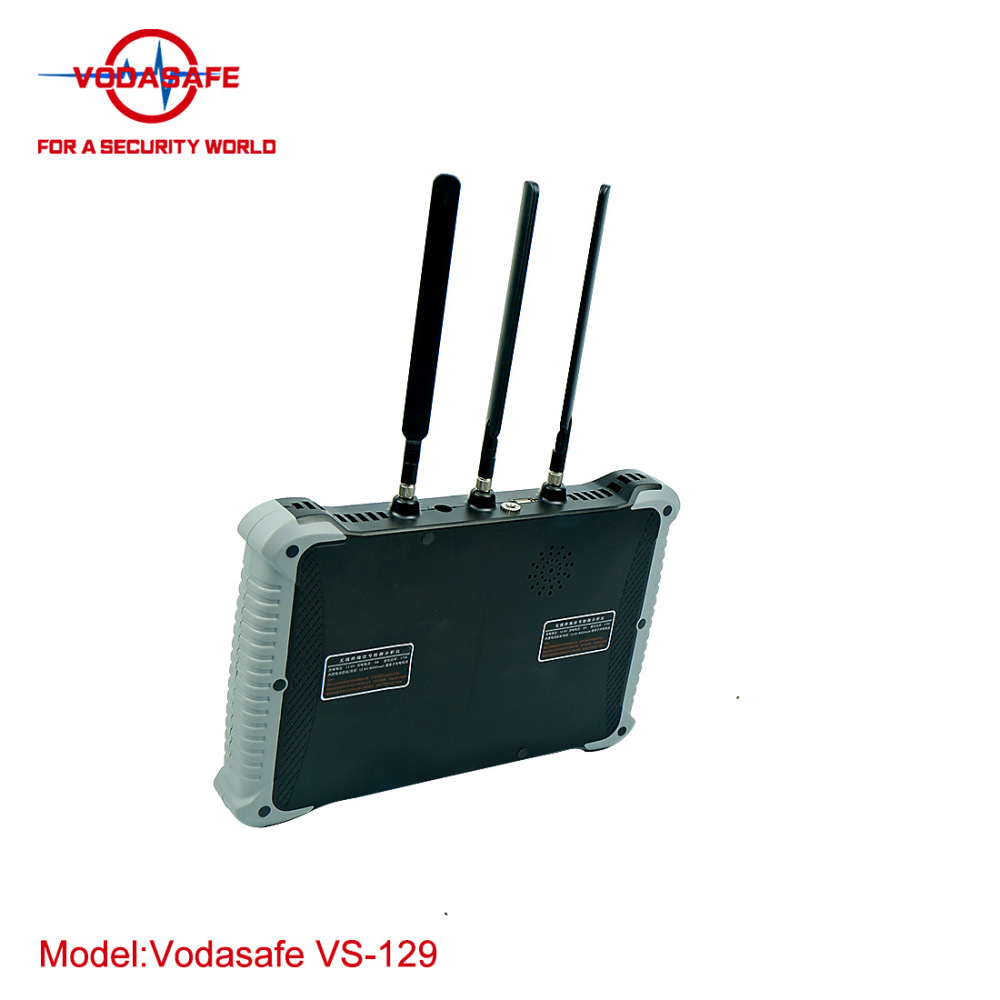

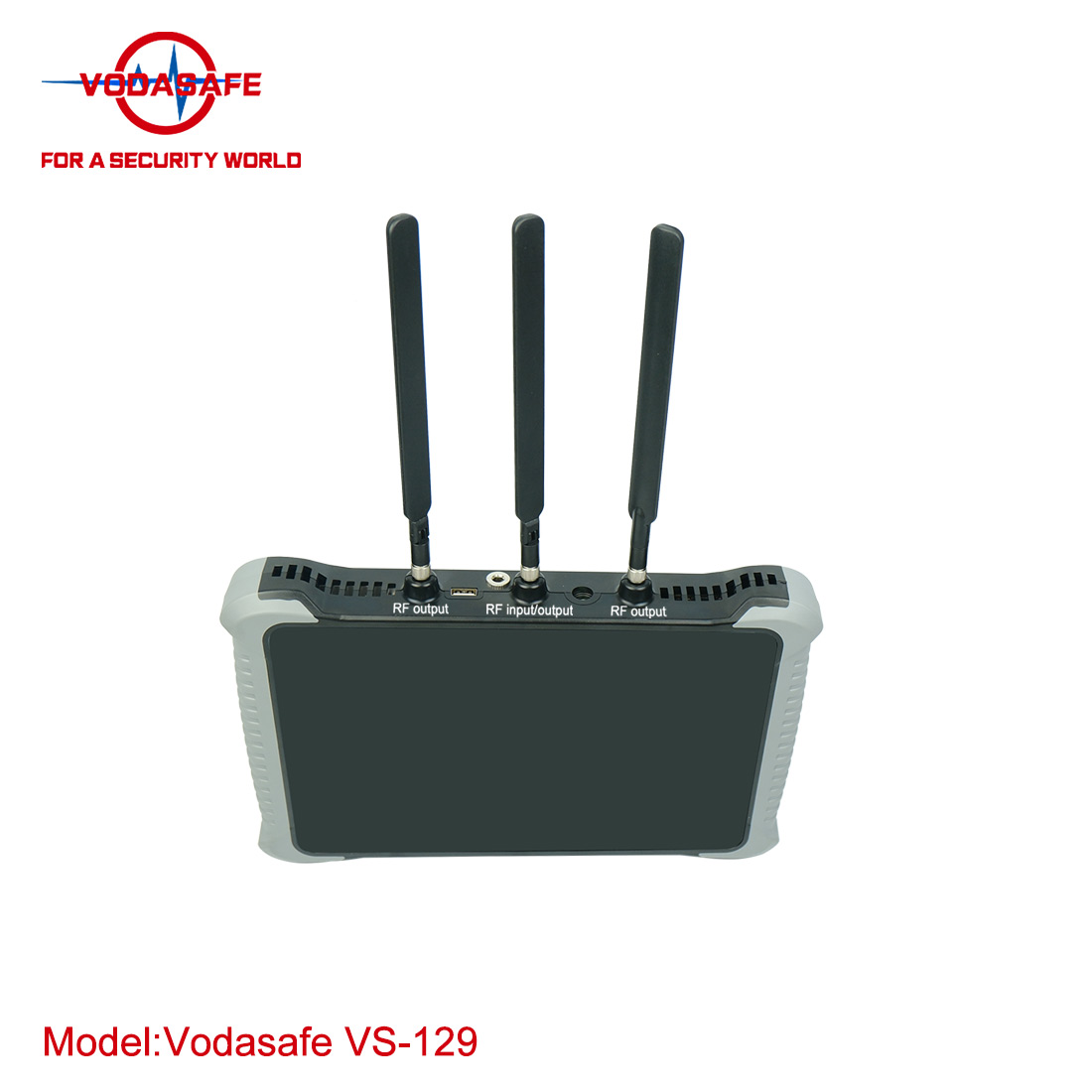

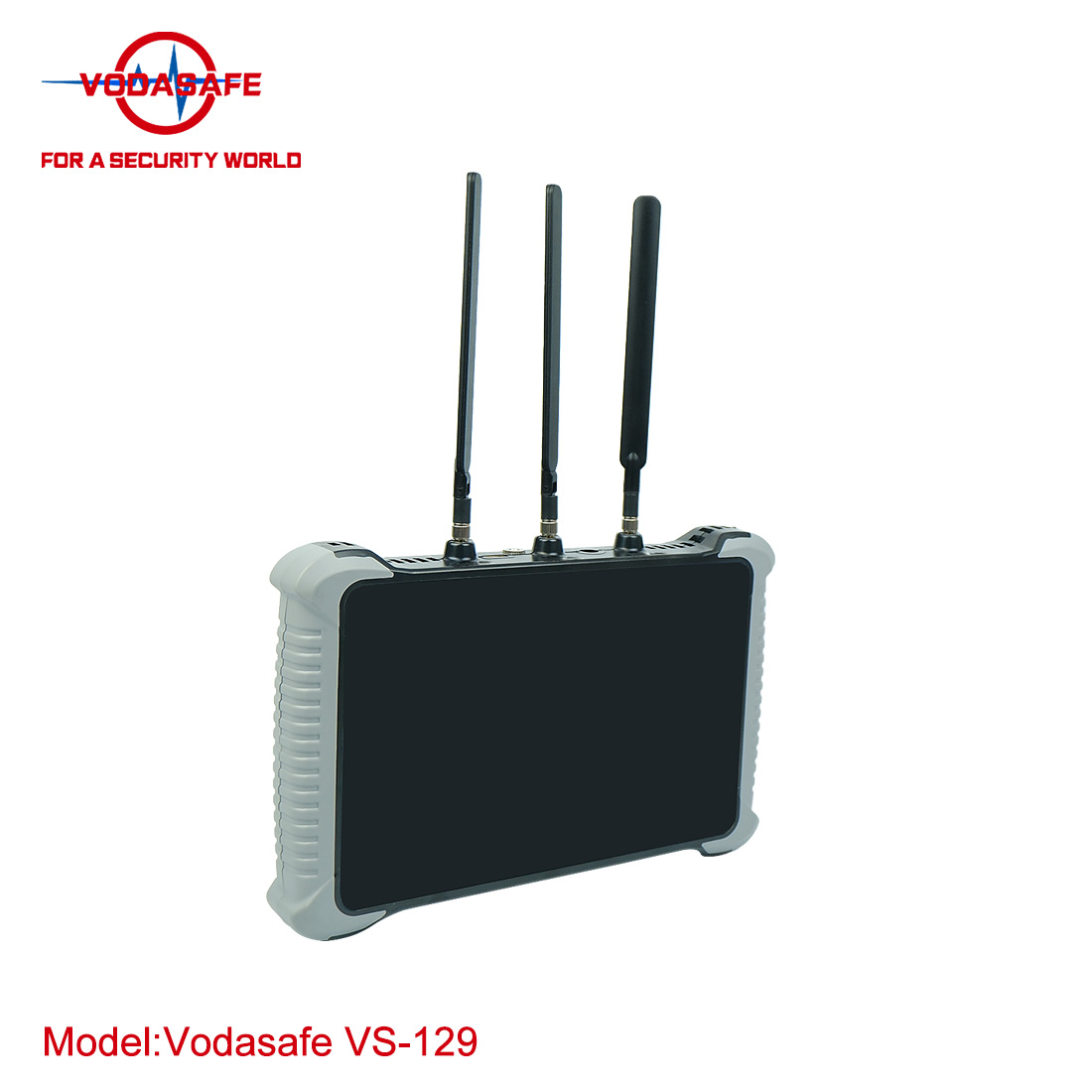

SZ Vodasafe VS-129 Comprehensive Wireless Signal Analyzer
SZ Vodasafe VS-129 is a professional all-in-one multifunctional RF spectrum detection and analysis system independently developed for technical surveillance countermeasures (TSCM), radio frequency environment monitoring, hidden eavesdropping device sweep, Bluetooth tracker positioning and wireless camera inspection. This portable integrated instrument unifies full-band spectrum scanning, RF signal demodulation listening, Bluetooth device deep analysis and Wi-Fi network traffic detection in one rugged handheld unit, delivering complete wireless signal identification, recording, comparison and localization capabilities for security investigators, corporate confidential protection staff, hotel privacy inspectors and vehicle anti-tracking screening scenarios.

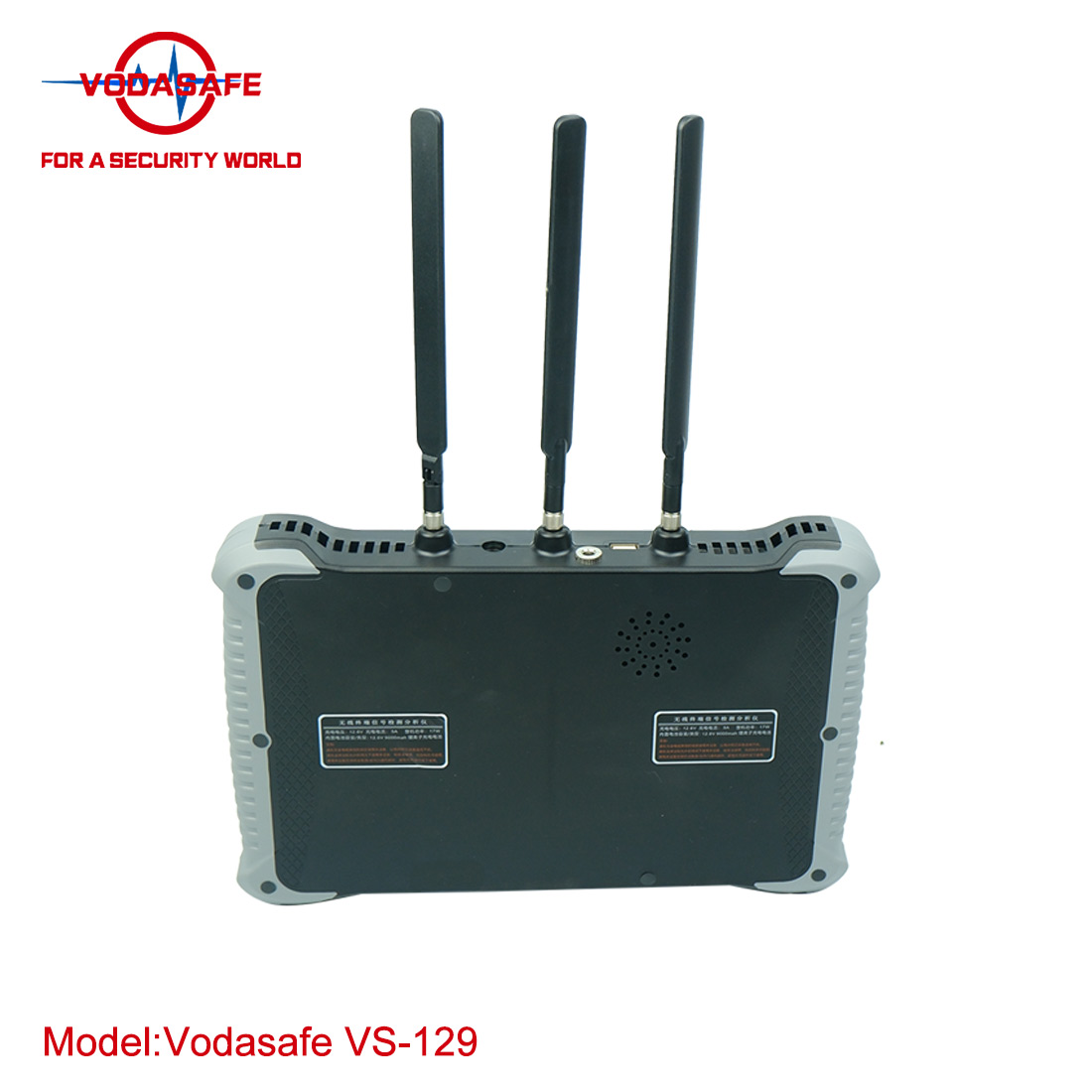

Built with industrial-grade aluminum alloy housing matched with soft silicone protective sleeves, the VS-129 balances portability and anti-drop durability. It weighs approximately 1830 grams, equipped with a built-in 5000mAh lithium rechargeable battery supporting continuous standby operation over 6 hours under standard working conditions, powered by a stable 12.6V power supply system to guarantee long-duration field sweep tasks without frequent charging interruptions. Its core spectrum detection range covers 10MHz to 6GHz with ultra-high receiving sensitivity of -102dBm, fully covering mainstream civilian wireless communication bands including FM audio transmission, 2.4GHz & 5.8GHz Wi-Fi, Bluetooth Low Energy and common covert RF bug operating frequencies, so nearly all wireless surveillance transmitters can be captured without blind frequency gaps.
Startup & Basic Login Operation

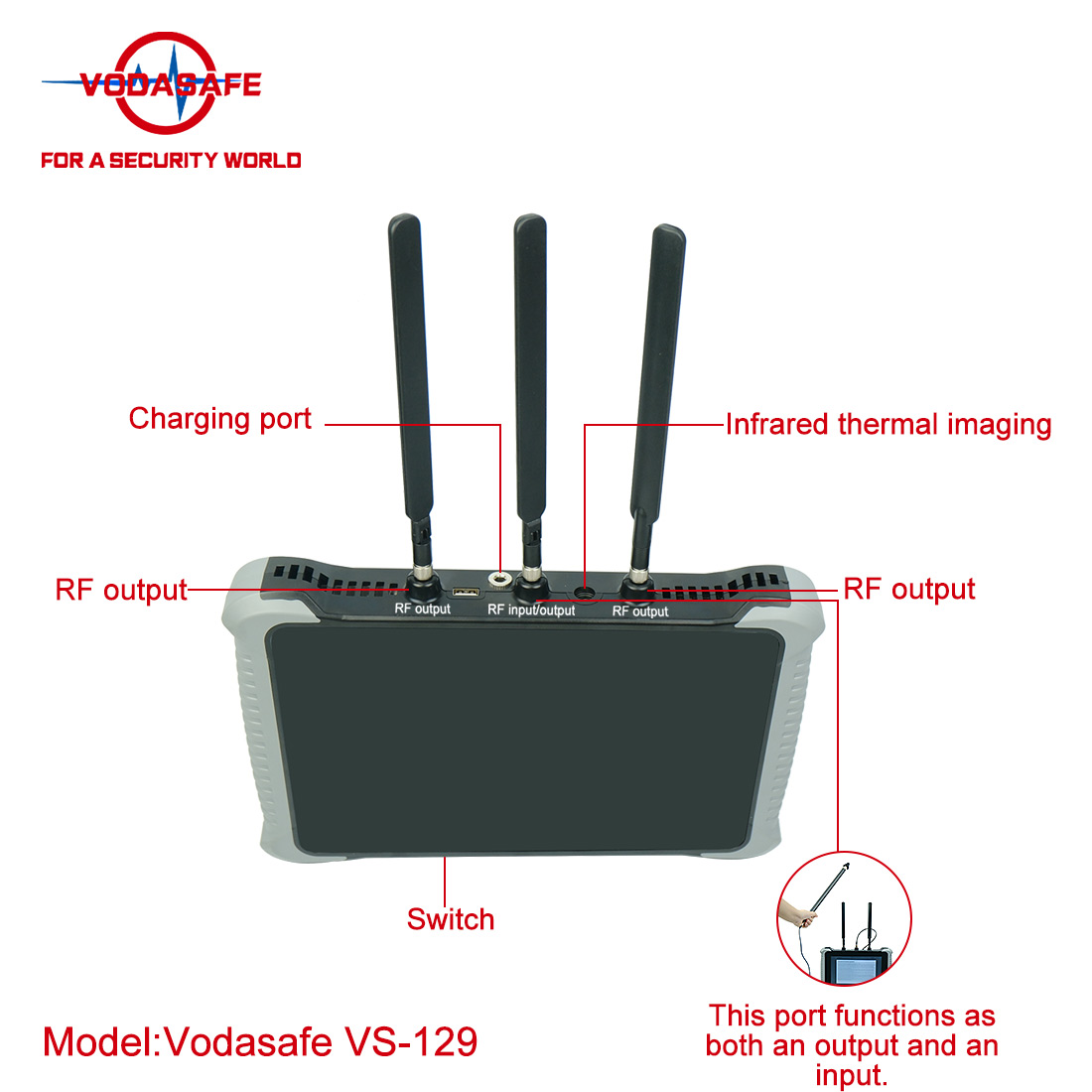

To power on the SZ Vodasafe VS-129, simply press the power switch located on the right side of the device body. After startup, the unit loads the system boot interface, which takes roughly 30 seconds to complete before jumping to the system login screen. The factory default login username and password are both set as DSKW; users are allowed to modify the login credentials after successful initial login to enhance equipment data security and avoid unauthorized access to detection records and stored spectrum evidence.
Core Functions
1.Full-Band Spectrum Analysis
The spectrum analysis module serves as the core scanning function of VS-129, with a three-area layered touchscreen layout: top functional operation buttons, central real-time spectrum waveform graph, and bottom long-term waterfall chart for time-domain signal tracking.
Users can manually input custom start frequency and stop frequency values to define the target scanning frequency band; after tapping the parameter confirmation button, the analyzer instantly launches continuous full-band spectrum scanning of the designated range. The touch screen supports two-finger zoom operation on the spectrum waveform area to narrow down the scanning bandwidth for microscopic observation of weak or narrowband radio signals, and the device will automatically synchronously adjust the start and stop frequency parameters according to the zoomed viewing window.
Real-time key signal metrics are displayed synchronously during scanning, including peak field strength representing the maximum signal amplitude within the current spectrum window, and peak frequency marking the exact frequency point where the strongest signal occurs. The adjustable input attenuation function addresses over-powerful incoming RF signals, enabling users to lower input signal amplitude to prevent waveform distortion and measurement inaccuracies caused by signal saturation. The reference information module automatically matches the peak frequency against standard radio spectrum planning databases to display the legal application category of the detected signal band for quick differentiation between normal communication signals and suspicious unauthorized transmitters.
A full suite of spectrum recording and comparison tools is embedded for evidence retention and environmental change analysis. The background recording function saves complete spectrum data of the current radio environment to local storage for post-inspection comparison and official evidence archiving. The peak hold function locks the maximum signal value of every frequency point throughout the scanning cycle, making transient burst electromagnetic pulses from miniature hidden bugs clearly visible without missing short-lived transmission signals. The background comparison feature loads previously stored background spectrum files and overlays them with real-time live waveforms, allowing inspectors to rapidly identify newly added wireless emission equipment in a venue by contrasting historical and current RF environments. Supplementary background peak and background average data generation tools quantify historical signal levels to provide objective numerical support for comparative analysis. The band preview function segments the full spectrum into standard civilian wireless frequency intervals, simplifying quick classification of captured signals by their corresponding communication standard bands.
2.Suspect RF Signal Demodulation & Audio Monitoring
When abnormal unknown waveforms are spotted via spectrum scanning, users can activate the built-in software-defined radio (SDR) module by tapping the “Start Monitoring” button to enter the signal demodulation and audio parsing interface, specially designed for detecting miniature FM eavesdropping transmitters.
The monitoring module supports a demodulation frequency range from 50MHz to 1800MHz. Users input the confirmed suspicious signal frequency into the center frequency input box and tap the SET button to lock the target frequency channel, then select AM amplitude modulation or FM frequency modulation as the demodulation mode matching the bug’s transmission standard. After confirming the mode and clicking start monitoring, the internal loudspeaker outputs demodulated real-time audio, enabling direct listening to covert audio transmissions from wireless eavesdropping devices. Additional adjustable parameters include noise reduction value, signal gain and bandwidth to optimize audio clarity under complex electromagnetic interference environments. Real-time signal strength decibel values and frequency axis markers are displayed on the interface to assist fine-tuning during localization of hidden transmitters.
3.Bluetooth Signal & Bluetooth TAG Tracker Analysis

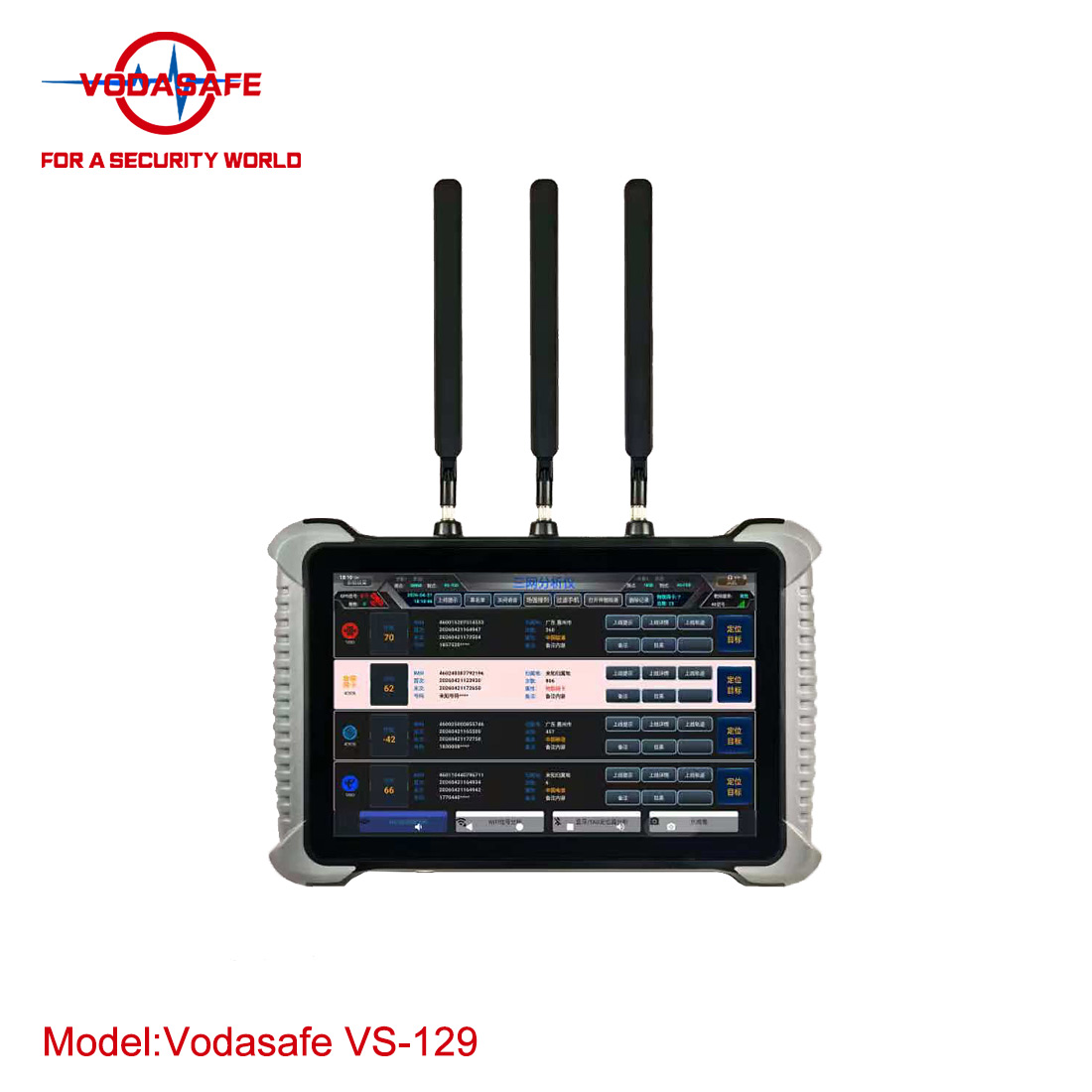

The dedicated Bluetooth analysis module identifies all surrounding Bluetooth broadcasting devices and automatically screens out Bluetooth TAG item trackers with intelligent marking logic. All detected Bluetooth targets are listed in a detailed table displaying serial number, real-time signal strength, capture count, first capture timestamp, last capture timestamp, MAC physical address and corresponding equipment manufacturer information. Confirmed Bluetooth TAG trackers are highlighted with red list entries for instant visual identification, and many suspicious counterfeit MAC addresses commonly used by anonymous tracking devices are flagged in the list view.
Users can tap the detail button next to each Bluetooth entry to view full signal fluctuation data for target positioning. The VS-129 supports handheld directional sweeping of indoor spaces, vehicles and furniture to trace the physical position of signal sources. The device uses data packet capture frequency as a core judgment basis for distinguishing TAG trackers from ordinary Bluetooth peripherals; targets generating one data packet every 1 to 2 seconds are automatically classified as potential Bluetooth tracking tags, effectively separating regular Bluetooth earphones, smart watches and malicious location trackers. The detection sensitivity parameter is configurable to filter weak distant Bluetooth signals and reduce redundant device entries that interfere with inspection efficiency, and a one-click clear list function resets all detection records for new site sweeps. All scanned Bluetooth data can be compiled into standardized inspection reports for filing.
4.Wi-Fi Signal Analysis & Hidden Wi-Fi Camera Detection
The Wi-Fi analysis module scans both 2.4GHz and 5.8GHz Wi-Fi bands simultaneously to audit all nearby wireless access points and connected terminal devices, with a built-in pre-stored MAC address database of mainstream commercial wireless hidden cameras. Once a MAC address matching the hidden camera library is captured, the corresponding list entry will be highlighted in red to alert inspectors of potential video surveillance equipment transmitting via Wi-Fi networks.
The Wi-Fi scanning list records comprehensive identification data including serial number, signal strength, source MAC address, target MAC address, wireless router SSID, signal capture times, operating frequency band, channel number, specific frequency value, equipment manufacturer and target device type. The AP topology map visualizes the network topology of each wireless router and all terminals connected under it, making it easy to spot unfamiliar unknown devices accessing the local Wi-Fi network. Multiple auxiliary operation functions optimize inspection workflow: adjustable detection sensitivity filters ultra-weak distant Wi-Fi signals to avoid excessive clutter in the device list; the reorder button rearranges all scanned targets in descending order of signal strength so the closest suspicious devices appear at the top of the list.
The one-click report generation function exports all captured Wi-Fi detection data as a PDF document saved locally on the VS-129, which can be stored as official inspection evidence for subsequent review or third-party verification. Tapping the detail button for any Wi-Fi AP or terminal pulls up an extended information page showing full capture history, continuous signal strength variation, operating frequency and channel details, alongside the full list of all client MAC addresses connected to that wireless access point to fully expose unauthorized hidden camera terminals.
Technical Specifications
Operating Power Supply: 12.6V
Built-in Power Unit: 5000mAh rechargeable lithium battery
Battery Standby Duration: Minimum 6 hours under regular working load

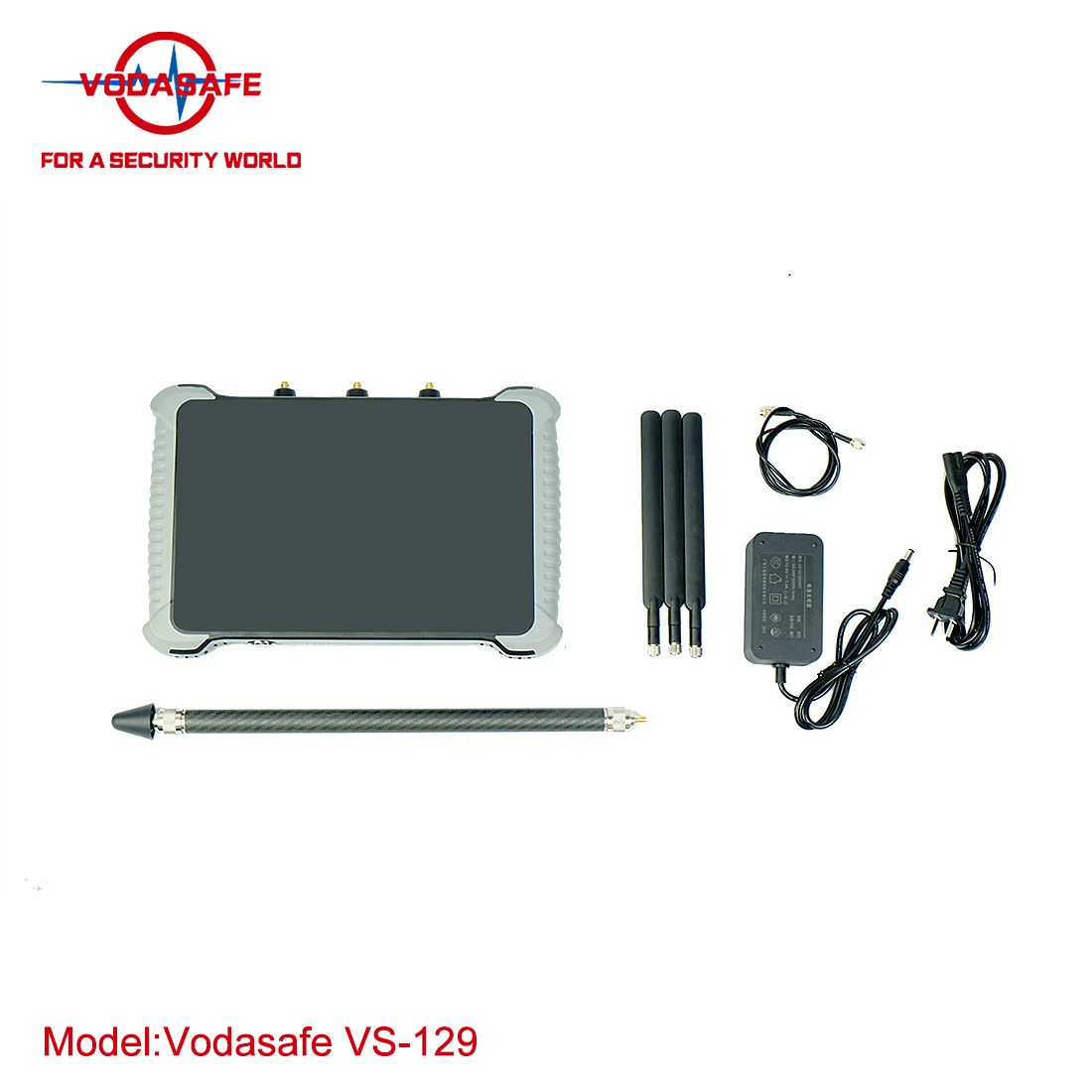

Outer Casing Construction: Aluminum alloy main body with detachable silicone shock-absorbing protective sleeve
Net Weight of Main Unit: Approximately 1830 grams
Full Spectrum Detection Frequency Band: 10MHz to 6GHz
Spectrum Receiving Sensitivity: -102dBm
Supported Wi-Fi Scanning Bands: 2.4GHz ISM band & 5.8GHz high-frequency Wi-Fi band
RF Audio Demodulation Monitoring Range: 50MHz – 1800MHz, supporting AM / FM dual demodulation modes
Main Application Scenarios
SZ Vodasafe VS-129 serves as a one-stop professional TSCM inspection tool for diversified privacy and information security demands. It can be deployed for confidential office regular anti-eavesdropping sweeps, hotel, resort and short-term rental room hidden camera detection, vehicle interior GPS Bluetooth tracker screening, corporate meeting room wireless signal environment monitoring, confidential negotiation venue pre-event security inspection, and radio frequency interference troubleshooting in industrial and commercial sites. Equipped with spectrum recording, data comparison and PDF report export functions, it also meets formal evidence collection requirements for security service agencies, corporate compliance departments and private investigation professionals, delivering integrated full-spectrum scanning, audio demodulation, Bluetooth tracker localization and Wi-Fi hidden camera identification capabilities in a single portable handheld instrument.
