Handheld Lora Remote Jammer 20W High Power Blocking 2.4G 315/433/868/912/915MHz and Lora 900MHz LCD Display Car Remote Jammer

Name: Handheld Lora Remote Jammer 20W High Power Blocking 2.4G 315/433/868/912/915MHz and Lora 900MHz LCD Display Car Remote Jammer
Brand: Vodasafe official store
SKU: RC-P4
Price: 399 USD
Availability: InStock

0.0 (0)

0 Sold

$399.00 ~~$399.00~~

SZ Vodasae is proud to launch the RCP4 30W High Power 4 Bands Handheld LORA Remote Control Signal Jammer-a cutting-edge, portable solution designed to block unwanted remote control and LORA signals with exceptional power and precision. Crafted with professional-grade materials and advanced technology, this jammer offers reliable performance for both safety-critical and daily protection scenarios, with a maximum jamming radius of up to 100 meters. Its sleek black design, lightweight build, and long-lasting built-in battery make it ideal for on-the-go use, while customizable frequency combinations cater to diverse user needs.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Handheld Lora Remote Jammer 20W High Power Blocking 2.4G 315/433/868/912/915MHz and Lora 900MHz LCD Display Car Remote Jammer
Product Overview
SZ Vodasae is proud to launch the RCP4 30W High Power 4 Bands Handheld LORA Remote Control Signal Jammer-a cutting-edge, portable solution designed to block unwanted remote control and LORA signals with exceptional power and precision. Crafted with professional-grade materials and advanced technology, this jammer offers reliable performance for both safety-critical and daily protection scenarios, with a maximum jamming radius of up to 100 meters. Its sleek black design, lightweight build, and long-lasting built-in battery make it ideal for on-the-go use, while customizable frequency combinations cater to diverse user needs.

Item	Details
Product Name	SZ Vodasae 30W High Power 4 Bands Handheld LORA Remote Control Signal Jammer
Model Number	RCP4
Color	Classic Black
Net Weight	Approximately 1.2kg (host only)
Gross Weight	2.0kg (including packaging and accessories)
Product Size	186×130×46mm (without omni antenna); 210×130×46mm (standard size, no antenna)
Packing Size	330×250×80mm
Warranty Period	1 year from the date of delivery

Parameter	Specifications
Jammed Signal Types	Remote control signals (2.4G, 315MHz, 433/434MHz, 868MHz, 915MHz) + LORA 900MHz
Total Output Power	25-30W (varies by sub-model)
Jamming Radius	20-100 meters (actual range depends on local signal strength)
Power Supply	- AC Adapter: 110-240V AC (50-60Hz) converted to 24V DC - Built-in Battery: 24V/3000mAh
Working Time	Up to 120 minutes (continuous use with fully charged battery)
Charging Time	2 hours (full charge from empty)
Cooling System	High-efficiency aluminum alloy radiator + 3 built-in cooling fans
Display Function	LCD screen for real-time battery capacity (percentage) and working voltage/current
Control Feature	DIP switch (independent on/off for each frequency band, no cross-interference)
Shell Material	Durable ABS plastic (shock-resistant and heat-insulating)

Technical Details (RCP4-A & RCP4-B)
The RCP4 series offers two specialized sub-models to meet targeted jamming needs. Below is a detailed breakdown of their frequency bands and output power:
RCP4-A (Total Power: 30W)

Channel	Output Port	Frequency Range	Average Output Power (±1dBm)
Band 1	Remote Control 315	310-320MHz	37dBm / 5W
Band 2	Remote Control 433/434	430-440MHz	37dBm / 5W
Band 3	Remote Control 868	870-880MHz	40dBm / 10W
Band 4	Remote Control 915/LORA	900-930MHz	40dBm / 10W

RCP4-B (Total Power: 25W)

Channel	Output Port	Frequency Range	Average Output Power (±1dBm)
Band 1	Remote Control 315	310-320MHz	37dBm / 5W
Band 2	Remote Control 433/434	430-440MHz	37dBm / 5W
Band 3	Remote Control 868/915/LORA	870-930MHz	40dBm / 10W
Band 4	Remote Control 2.4G	2400-2500MHz	37dBm / 5W

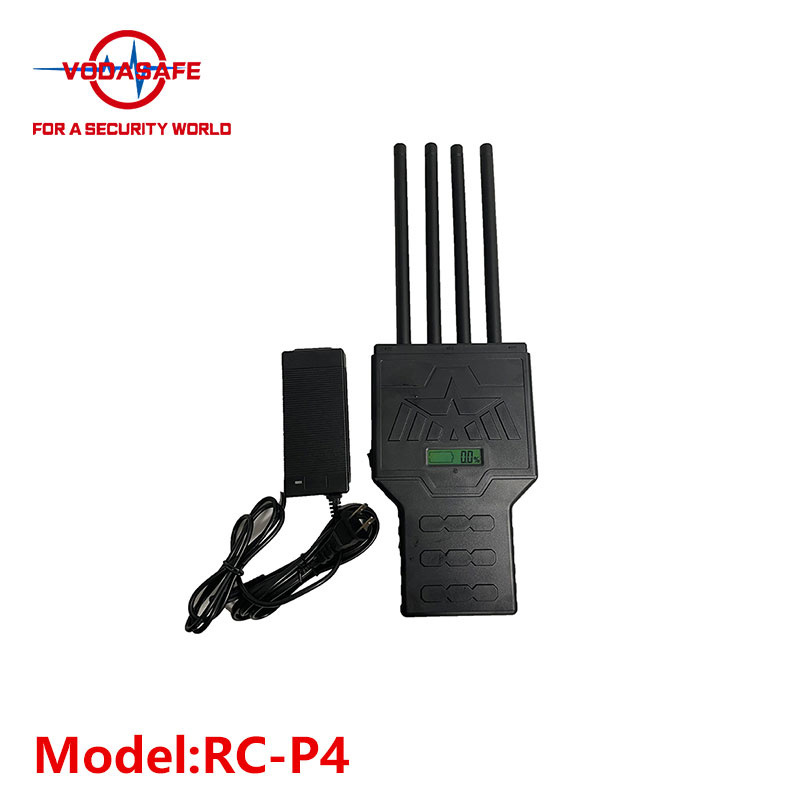

Package Contents
Each SZ Vodasae RCP4 jammer package includes all essential components for immediate use:
1 × RCP4 Jammer Host
1 × AC Charger (110-240V AC/24V DC)
4 × Omni Antennas (optimized for signal jamming efficiency)

Advantages
High Power & Wide Coverage: With 25-30W total output power, the RCP4 delivers a jamming radius of up to 100 meters, ensuring comprehensive signal blocking even in areas with moderate background signal strength.
4-Band Independent Control: Equipped with a DIP switch, users can turn individual frequency bands on or off without affecting others-offering flexibility to target specific signals (e.g., only block LORA 900MHz while leaving 2.4G unaltered).
Real-Time LCD Monitoring: The integrated LCD screen displays battery capacity (in percentage), working voltage, and current-allowing users to track power status and avoid unexpected shutdowns.

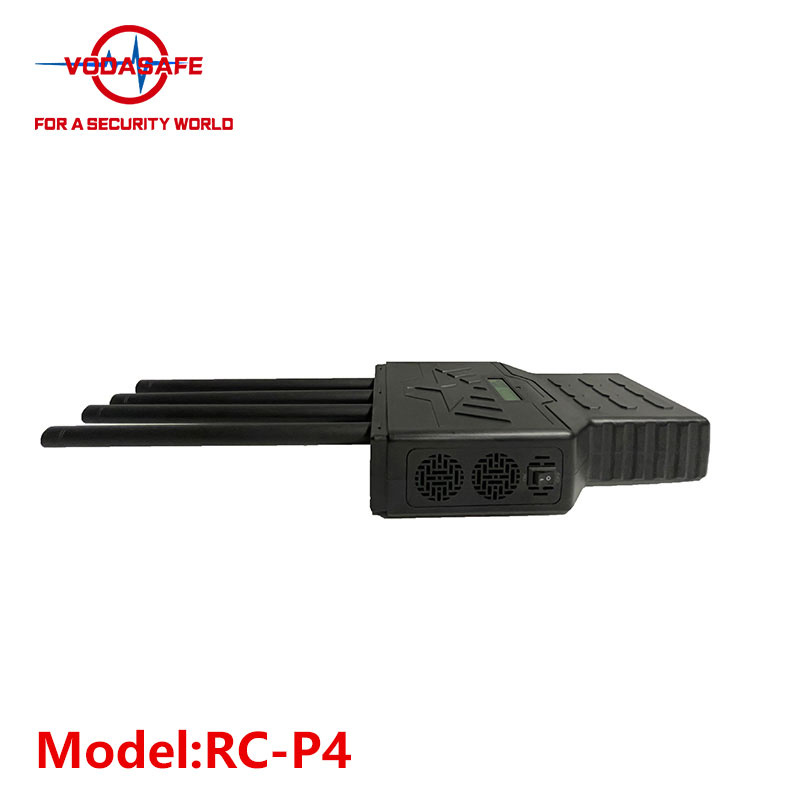

Efficient Cooling System: The combination of a high-efficiency aluminum alloy radiator and 3 built-in cooling fans prevents overheating, ensuring stable performance during extended use (up to 2 hours continuous operation).
Portable & Durable: Weighing just 1.2kg (net) and measuring 186×130×46mm (without antenna), the RCP4 is easy to carry. Its ABS shell resists impact and wear, making it suitable for harsh outdoor or industrial environments.
Long-Lasting Battery: The 24V/3000mAh built-in battery provides 2 hours of continuous use, and the fast 2-hour charging time ensures minimal downtime.
Customization Service (OEM)
SZ Vodasae offers silkscreen OEM service for the RCP4 series. Customers can customize the jammer host with their brand logo, model number, or other specific markings-ideal for bulk orders, corporate branding, or specialized project requirements. For customization inquiries, please contact our sales team for detailed options and quotes.

Application Scenarios
The RCP4 is engineered for versatility, serving critical safety and privacy needs across multiple sectors:
Restricted Area Protection
Private industrial parks, key enterprise production areas, and important resource facilities (e.g., oil depots, power supply stations)
Chemical industry plants, transportation hubs (e.g., railway stations), and commercial core zones (to prevent unauthorized remote control access)
On-Site Information Leakage Prevention
Private property security inspection sites, commercial dispute mediation scenes
High-privacy venues (e.g., corporate confidential meetings), VIP protection events
Large-scale commercial performance rehearsals, cultural relics exhibition sites, and public gathering venues (to block unauthorized remote recording/transmission)
Anti-UAV Disruptive Activities
Blocking remote control signals for drones used in unauthorized photography, illegal delivery, or disruptive information transmission
Protecting sensitive areas (e.g., shopping malls, exhibition centers) from unauthorized drone intrusions
Notes for Use
The actual jamming radius may vary based on local signal strength (e.g., closer to a cell tower may reduce effective range).
Use the jammer only in compliance with local laws and regulations-unauthorized use may violate privacy or communication laws in certain regions.
Avoid exposing the jammer to extreme temperatures (-10°C to 50°C recommended) or heavy rain to prevent damage.
For optimal performance, ensure all antennas are properly connected before turning on the device.
For more information about the SZ Vodasae RCP4 jammer, including technical support or bulk ordering, please visit our official website or contact our customer service team.
