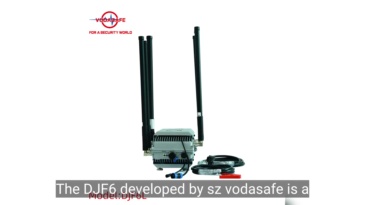

The DJF6, developed by sz vodasafe, is a professional high-power anti-drone system engineered for outdoor security scenarios. With its robust design, multi-band jamming capability, and long-range shielding performance, it provides 100% defense against a wide range of drones (UAVs), including popular models like the Phantom 4, Phantom 3 Professional/Advanced/Standard, and Inspire series. Compliant with the IP54 waterproof standard, it operates reliably in various outdoor environments, making it an ideal solution for safeguarding restricted civilian areas, preventing information leakage, and combating drone-related illegal activities.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Item	Details
Product Name	6-Band High-Power Drone UAV Signal Jammer for Outdoor Use (IP54 Waterproof, 385W Total Output, Up to 1500m Jamming Radius)
Model	DJF6
Brand	sz vodasafe
Color	Grey
Net Weight (with Omni Antennas)	Approximately 45kg
Gross Weight (Package, Excluding Antennas)	32kg
Net Weight (Package, Excluding Antennas)	29kg
Product Dimension (L×W×H, Excluding Antenna)	510×450×240mm
Package Size	65×45×24cm
Cooling System	Built-in 4 high-speed cooling fans + high-efficiency aluminum alloy radiator
Working Time	24/7 non-stop operation
Waterproof Rating	IP54 (suitable for outdoor installation, resistant to dust and splashing water)
Warranty Period	1 year from the date of delivery

Specifications
Frequency Band & Jamming Performance
The DJF6 covers 6 key frequency bands used by drones for remote control and positioning, with independent power adjustment for each band (from maximum to 0/off). This ensures precise and flexible shielding based on on-site needs.

Channel	Output Port	Frequency Range	Average Output Power	Jamming Radius	Target Signal
CH1	RC2.4G	2400-2500MHz	100W	Up to 800m	Drone 2.4GHz remote control signal
CH2	RC433	430-435MHz	50W	Up to 800m	Drone 433MHz remote control signal
CH3	RC5.8G	5725-5850MHz	35W	Up to 1500m	Drone 5.8GHz remote control signal
CH4	GPS L1 + Glonass L1	1560-1620MHz	50W	Up to 1500m	Drone GPS L1 and Glonass L1 positioning signals
CH5	GPS L2 + L5	1170-1280MHz	50W	Up to 1500m	Drone GPS L2 and L5 high-precision positioning signals
CH6	RC868-915	868-915MHz	50W	Up to 800m	Drone 868-915MHz remote control signal

Power & Energy Parameters
Total Output Power: 385W (sum of all bands)
Power Supply: AC 110-220V (50-60Hz) converted to DC 27V via dedicated adapter
Energy Consumption: Approximately 1000W during operation
Power Protection:100% safe VSWR (Voltage Standing Wave Ratio) protection with built-in isolators for each module, preventing damage from signal reflections

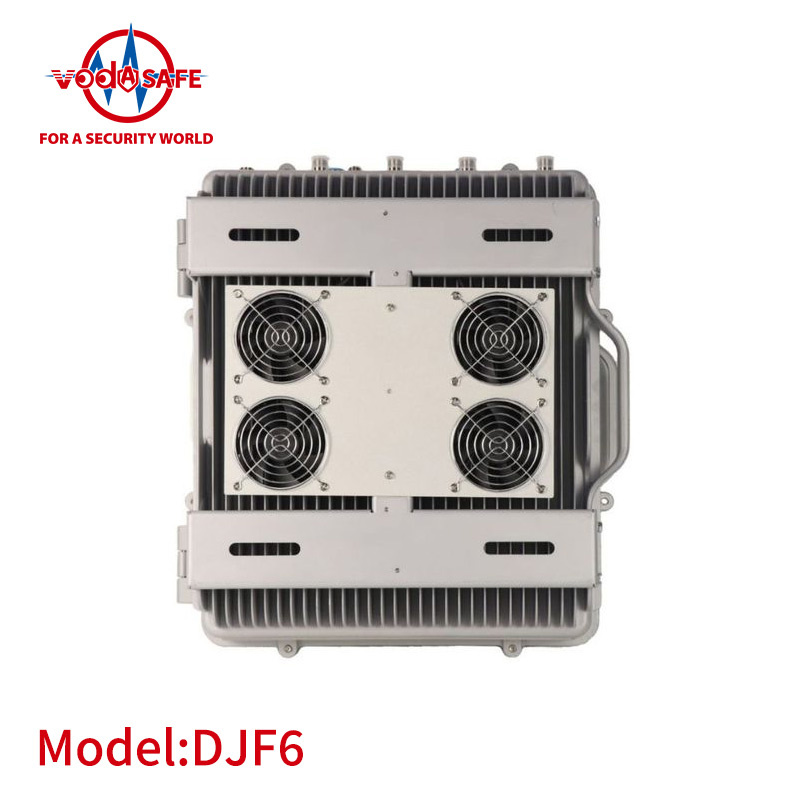

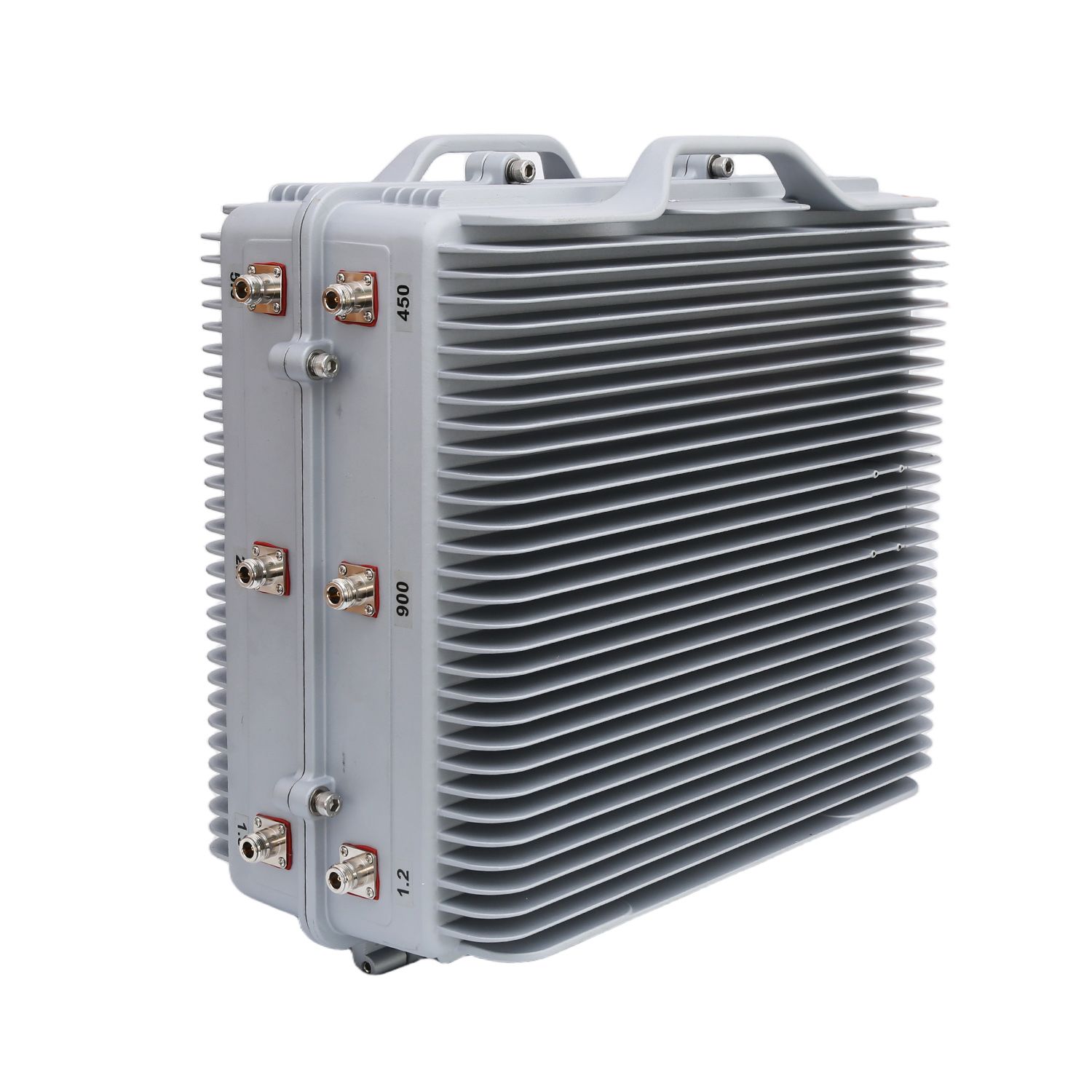

Main Components & Functions
The DJF6's main unit is designed for ease of installation, operation, and maintenance, with clear labeling for all key components.
DJF6 DRONE JAMMER

Component No.	Component Name	Function & Remarks
1	Output Power Port	Connects to external antennas (6 ports total, one for each frequency band)
2	Installation Holder	Used for wall-mounted installation; compatible with M10-M15 screws
3	Handle	Built-in handheld grip for easy transportation and positioning of the main unit
4	Cooling System	4 built-in high-speed cooling fans + aluminum alloy radiator, ensuring continuous heat dissipation for 24/7 non-stop operation
5	LED Indicator Light	Working status indicator: turns green when the system is powered on and operating normally
6	Power Switch	Main power control: toggles to "ON" to start the system, "OFF" to shut it down
7	Power Supply Port	Connects to the AC 110-220V power adapter (must be connected after antenna installation)
8	Lock Screw	Safety lock for management purposes; prevents unauthorized disassembly or damage to the unit
-	Omni-Directional Antennas (Included)	High-gain (5-10dBi) omni antennas for 360° signal coverage; essential for full-area shielding

Installation & Operation Guide
Unboxing & Preparation
Carefully open the product package and inspect all contents for damage. Retain the original packaging for future transportation or storage.
Verify that the package includes:
1 x DJF6 Jammer Main Unit
1 x AC 110-220V to DC 27V Power Adapter
6 x External Antennas (matching the 6 frequency bands)
6 x 2-Meter Antenna Cables
Check if all components (antennas, cables, adapter) are intact. If any damage is found, contact sz vodasafe or your local distributor immediately.

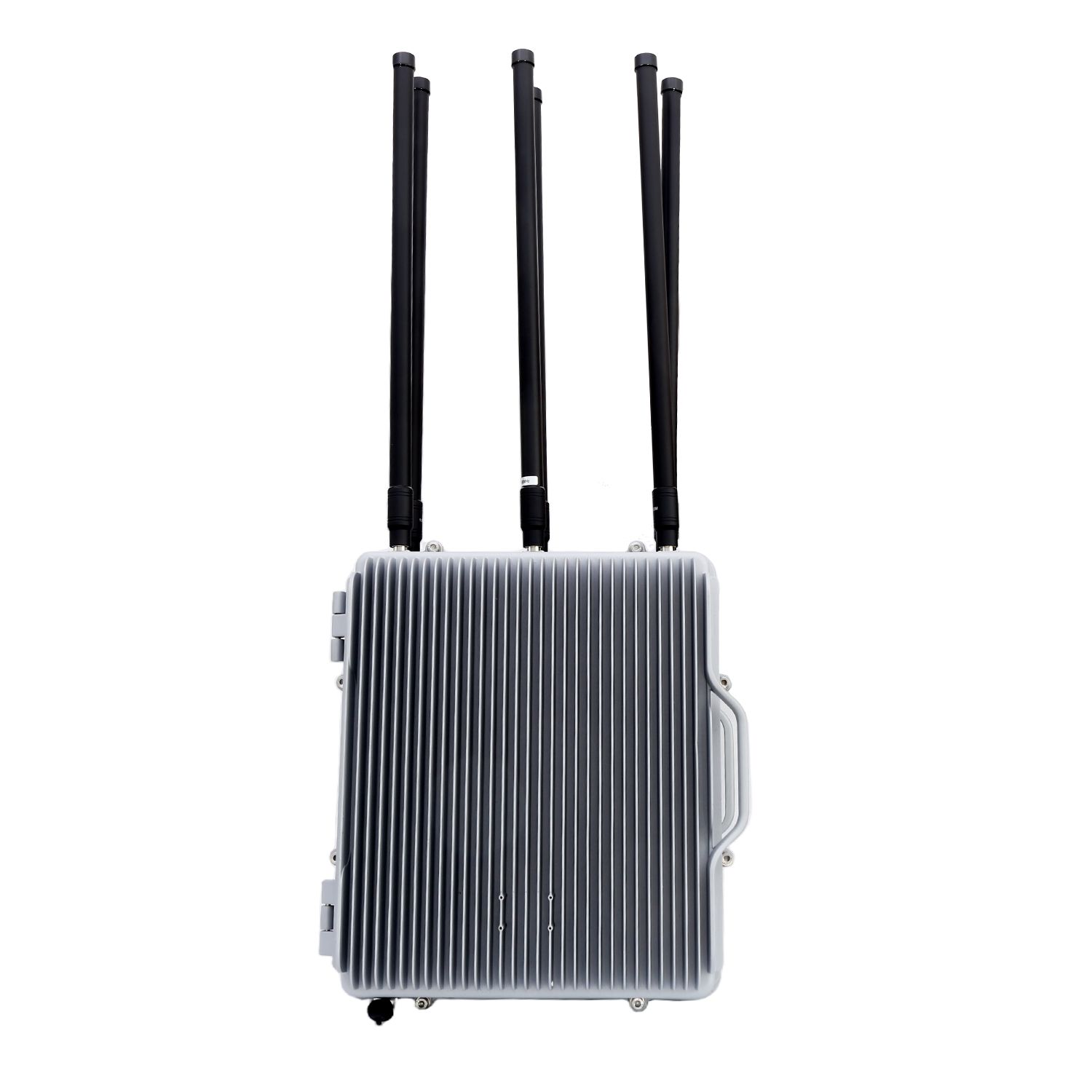

Antenna Installation
Omni-Directional Antennas: Install the antennas vertically to the ground (for maximum signal coverage efficiency) and connect each to the corresponding output power port (CH1-CH6) on the main unit.
Directional Antennas (Optional): If directional shielding is required, mount the antennas at the edges of the target shielding area (instead of the center) to focus jamming power on specific directions.
DJF6 DRONE JAMMER

Power-On Procedure
Critical Precaution: Ensure all antennas are fully connected to the main unit before powering on. Do not power on the system without antennas connected, as this may damage the internal modules.
Connect the power adapter to the "Power Supply Port" (Component 7) on the main unit, then plug the adapter into an AC 110-220V power outlet.
Toggle the "Power Switch" (Component 6) to "ON". The LED indicator light (Component 5) will turn green, indicating the system is running. At startup, the jammer operates at maximum output power by default.
Power-Off Procedure
Toggle the "Power Switch" (Component 6) to "OFF" to stop the system.
Unplug the power adapter from the AC outlet, then disconnect it from the main unit.
(Optional) Disconnect the antennas only if the system needs to be moved or stored.

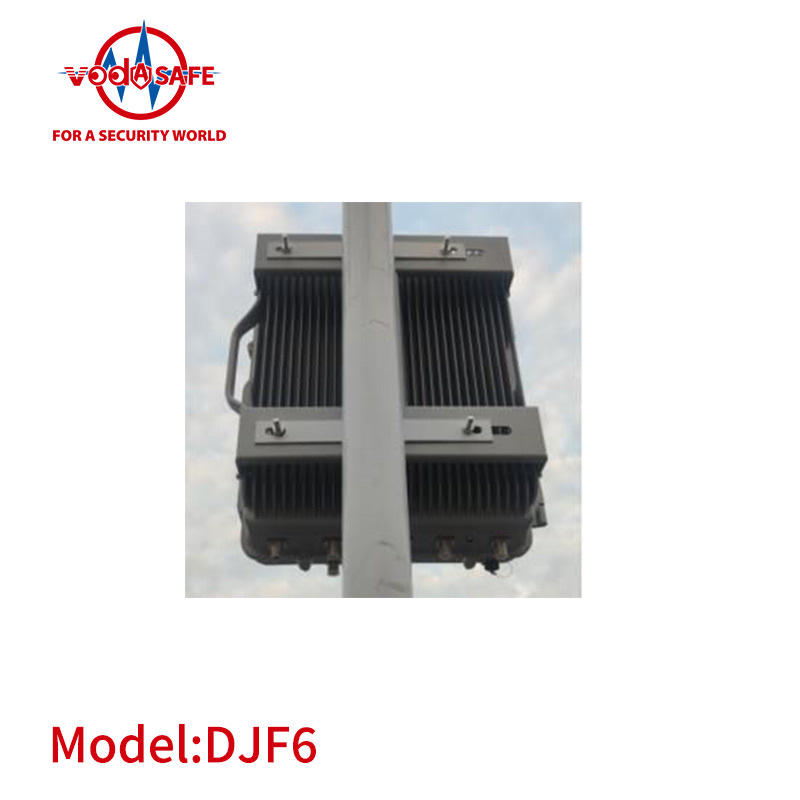

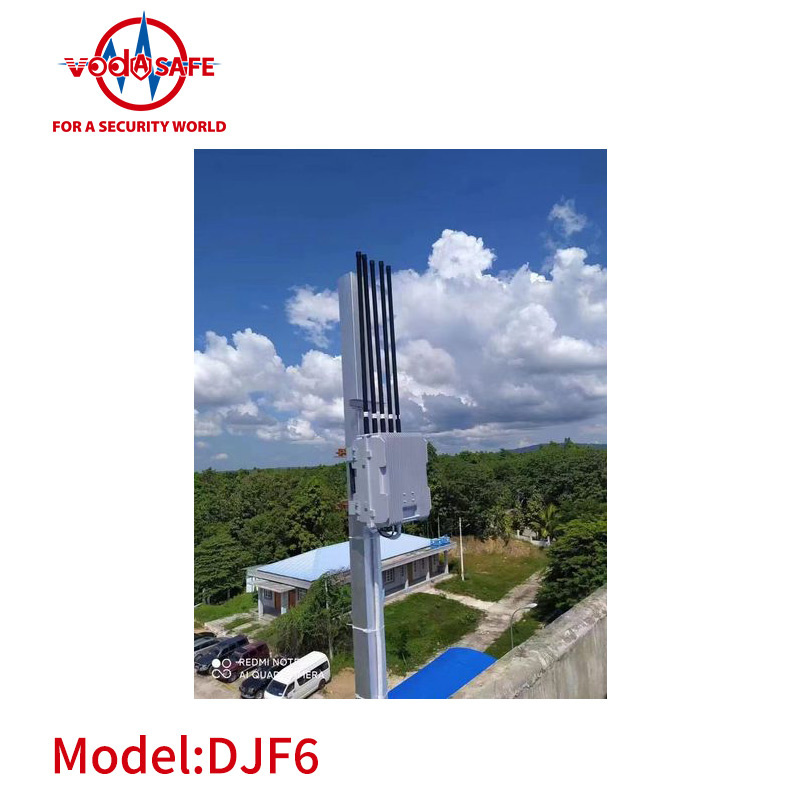

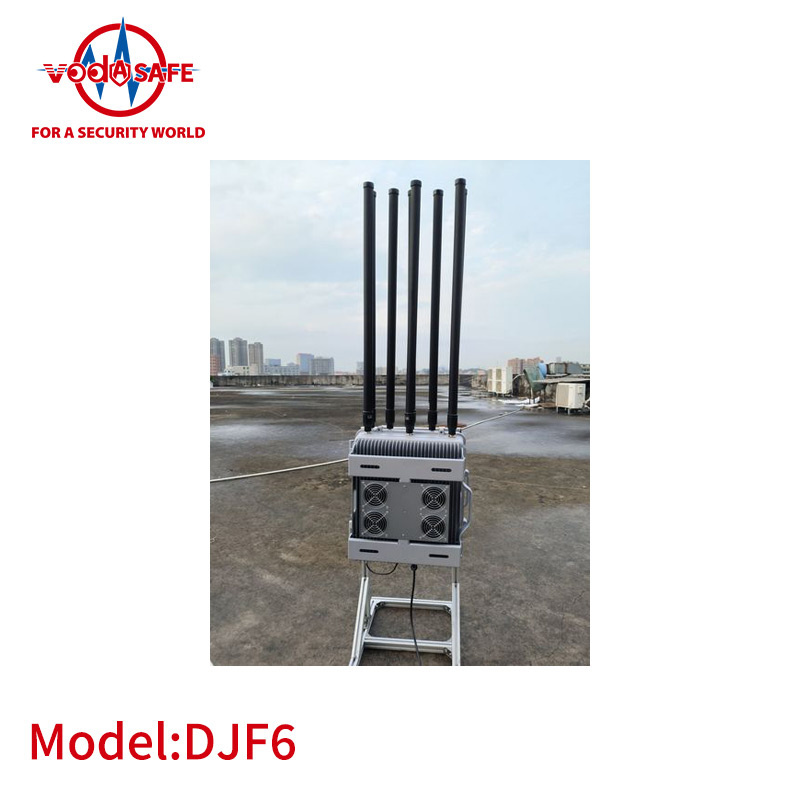

Installation Position Selection
Omni-Directional Antennas: Place the main unit in the center of the area to be shielded. This ensures 360° coverage and uniform jamming radius (800-1500m) across the entire area.
Directional Antennas: Place the main unit at the edge of the target area, with the antennas facing the direction where drone threats are most likely to come from. This focuses jamming power on specific zones for enhanced performance.
Product Advantages
Powerful & Comprehensive Shielding: With 385W total output power and 6 dedicated frequency bands, it blocks all common drone remote control (2.4G/433MHz/5.8G/868-915MHz) and positioning (GPS L1/L2/L5, Glonass L1) signals, achieving 100% drone defense.
Flexible Power Adjustment: Each frequency band has independent power control (from max to off), allowing users to customize shielding based on on-site signal strength and avoid unnecessary interference.
Durable Outdoor Design: IP54 waterproof rating and heavy-duty aluminum alloy shell protect the system from dust, splashing water, and physical impact. Suitable for long-term outdoor use in various climates.
Non-Stop Operation: High-efficiency cooling system (4 fans + aluminum radiator) ensures the system runs 24/7 without overheating, meeting the needs of continuous security monitoring.
Safety & Reliability: Built-in VSWR protection isolators for each module prevent damage from signal reflections. The safety lock screw (Component 8) prevents unauthorized tampering.
Optional Remote Control: Supports RJ45/RS485 wireless control systems (customizable), enabling remote operation and monitoring for large-scale civilian security projects.
Customization Services (OEM)
sz vodasafe offers flexible OEM customization to meet specific customer needs:
Frequency Range Customization: Extend or adjust the jamming bands to include additional signals (e.g., mobile phone GSM 2G/3G/4G LTE) for multi-scenario use.
Silkscreen Customization: Add customer logos, model numbers, or other marks to the main unit shell for brand personalization.
Application Scenarios
The DJF6 is widely used in scenarios requiring strict drone control and civilian security:
Restricted Civilian Area Protection: Private industrial parks, key infrastructure (e.g., oil fields, power stations), nuclear industry civilian facilities, airports, and commercial core areas.
Information Leakage Prevention: Major public event sites, urban management service venues, important public security venues (e.g., conference centers), VIP activity protection, large-scale performance rehearsals, and archaeological excavation sites.
Anti-Illegal Drone Activities: Combating drone-based illegal acts such as unauthorized surveillance, illegal goods/information transmission, and other violations that use drones as carriers.
Safety Notices
Antenna Connection Requirement: Always connect antennas before powering on. Do not remove antennas while the system is running.
Environmental Limitations: Do not use the system in extremely harsh environments (e.g., deep water, open flames, high-voltage/magnetic fields, extreme temperatures above 60°C or below -10°C), as this may affect performance or cause damage.
Maintenance & Repair: If the system malfunctions (e.g., no power, LED not lighting up, no jamming effect), contact sz vodasafe or your local distributor immediately. Do not disassemble or repair the unit yourself, as this will void the warranty.
Warranty Exclusion: Damage caused by incorrect operation (e.g., power-on without antennas), unauthorized disassembly, or natural disasters (e.g., floods, earthquakes) is not covered by the 1-year warranty.
For more information about the DJF6 anti-drone system, please contact sz vodasafe's customer service team. We are committed to providing professional civilian security solutions and technical support for your needs.
DJF6 DRONE JAMMER
