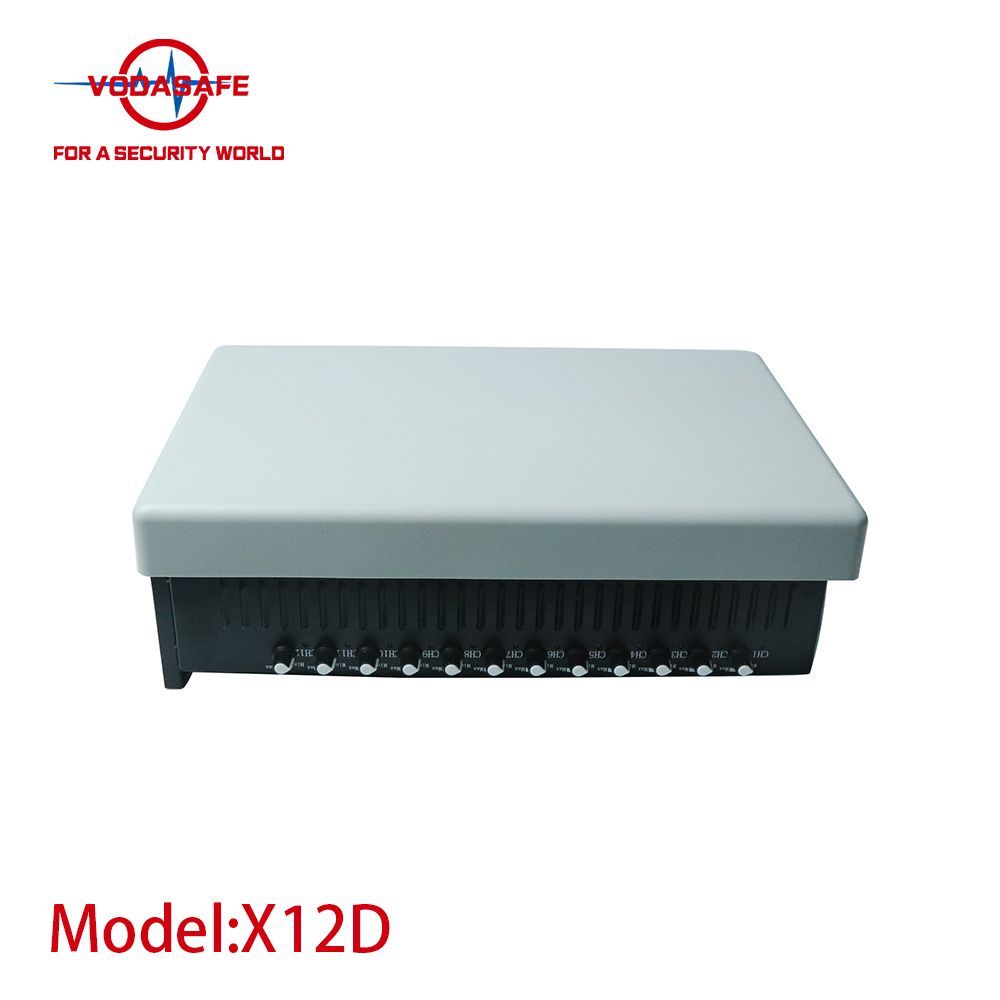

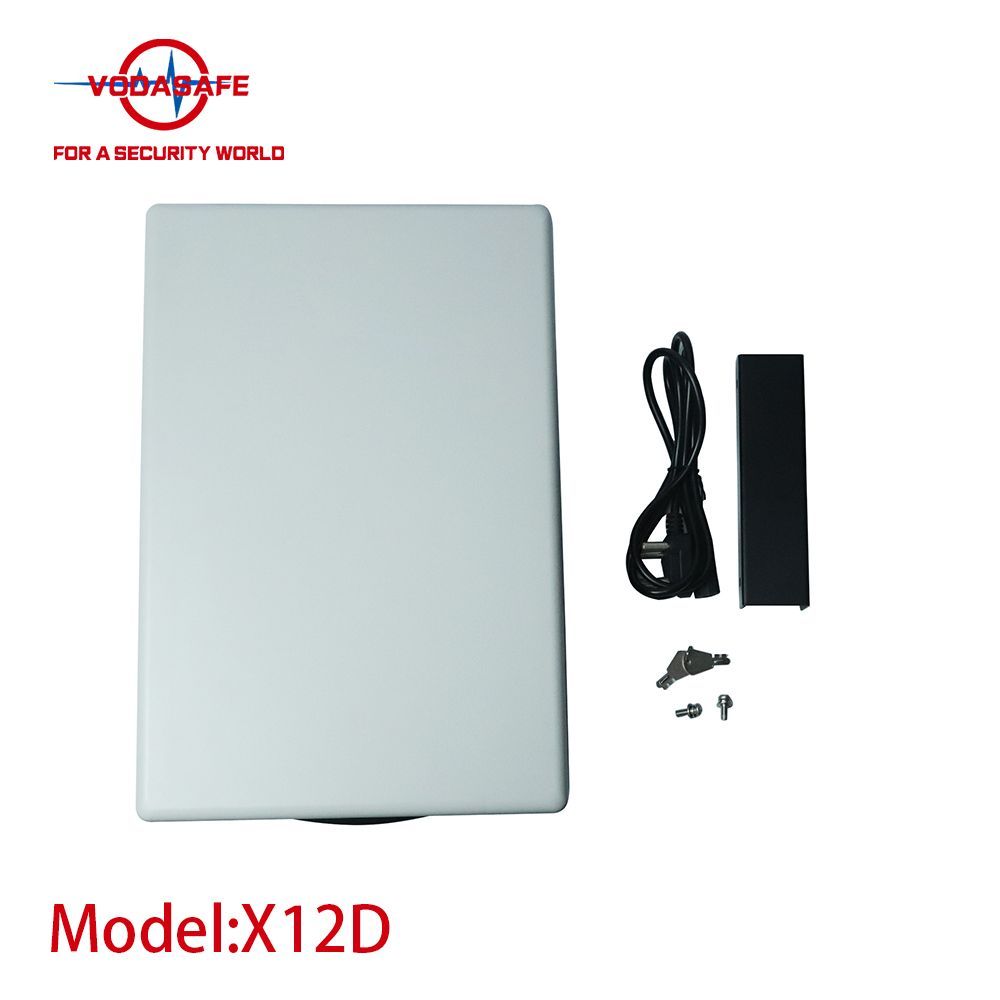

Built-in Directional Power Adjustable High-Power 5G Mobile Phone Signal Jammer
X12D Suitable for signal-blocking environments such as college entrance exams, CET-4/6 exams, bar exams, and government conference rooms.
Full-band mobile coverage
X12D is the nemesis of wireless cheating devices such as mobile phones, Wi-Fi, Bluetooth, and electronic watches. It serves as the security guardian and purification expert for confidential venues and standardized examination halls.
This jammer is a directional, full-band communication signal blocker, representing the seventh generation of eco-friendly signal jammers. It exclusively blocks the reception of mobile devices at the site, causing no impact whatsoever on surrounding base stations.
High-power
All models in this series employ channelized output, with individual transmitter power not exceeding 120W and each channel output ranging from 5W to 10W.

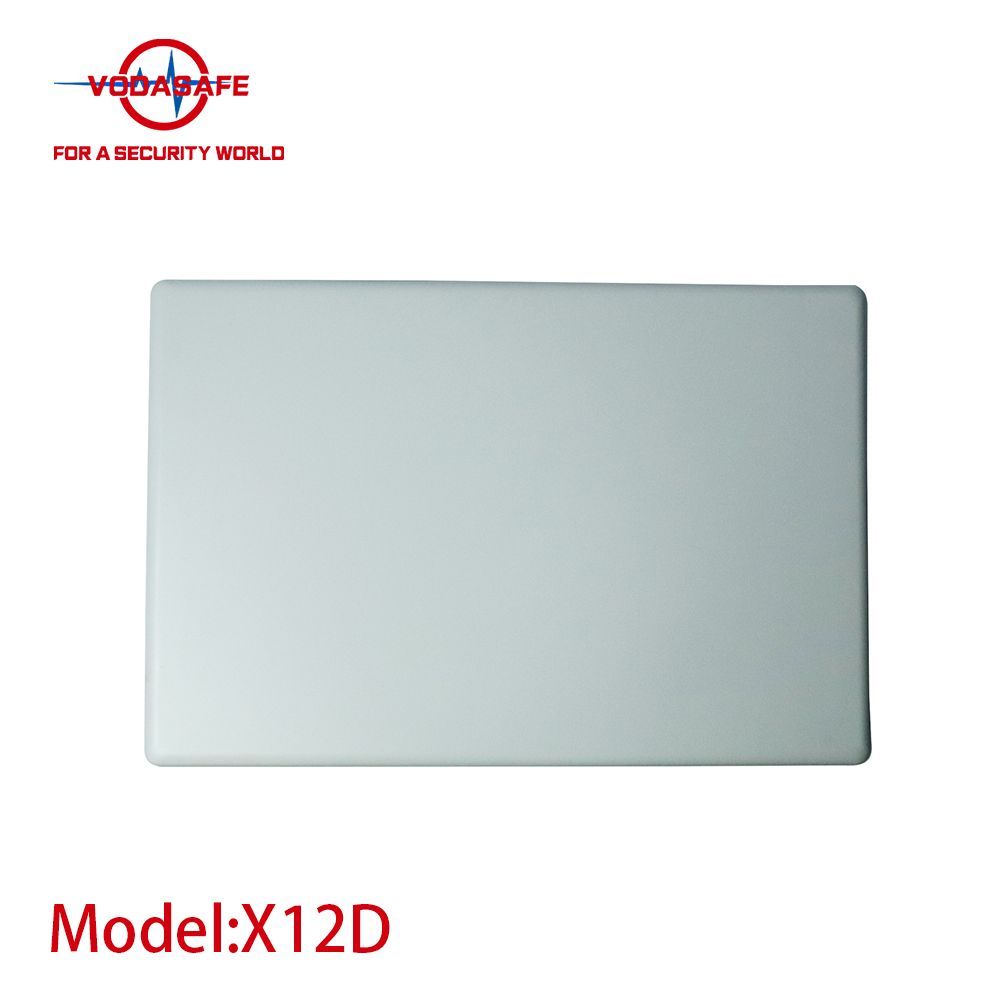

The X12D device utilizes a directional antenna array, significantly extending its effective jamming range. It blocks all mobile phone signals within 8 to 50 meters (depending on base station signal strength), completely severing communication between all mobile devices within the jamming zone and the outside world.
X12D Features

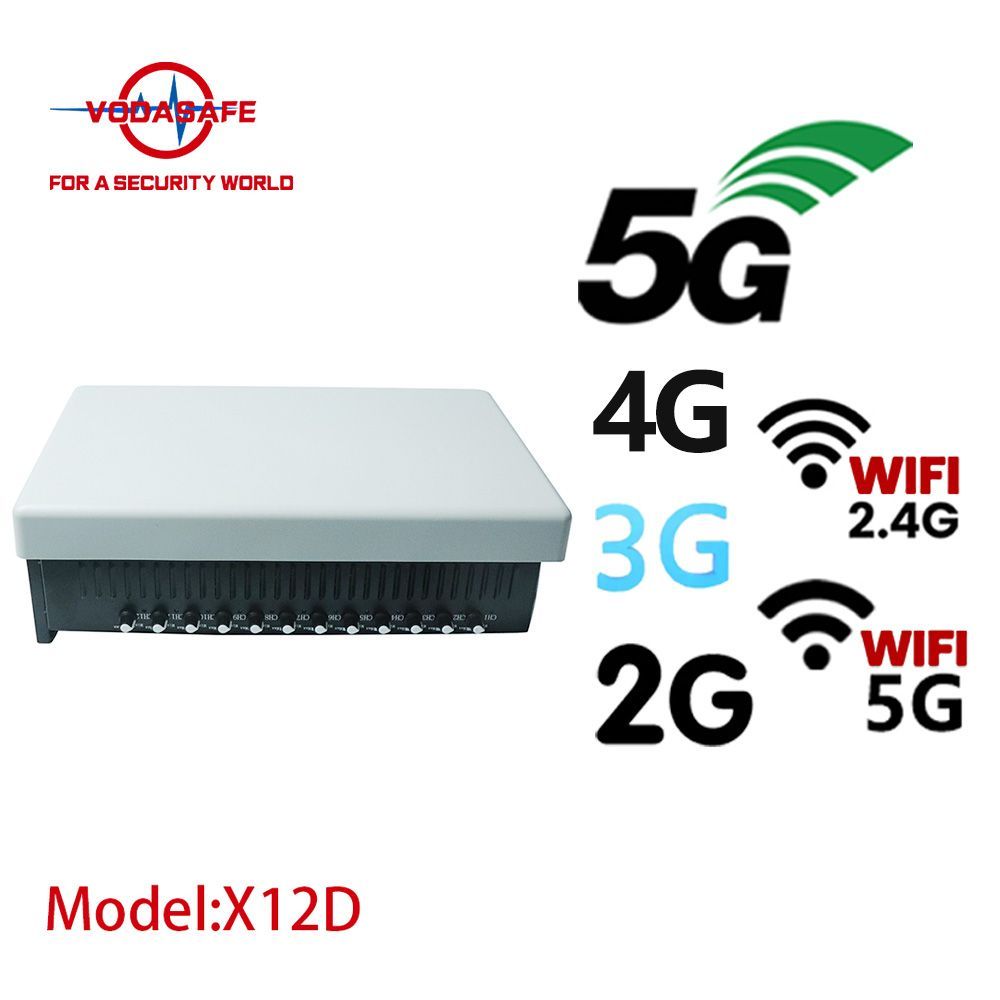

1. Effectively shields GSM/CDMA/DCS/WCDMA/LTE/Wi-Fi (tri-band)/5G (broadcast 5G) and other frequency bands;
2. Built-in dual switching power supply and high-performance aluminum alloy heat sink ensure excellent short-term operational stability;

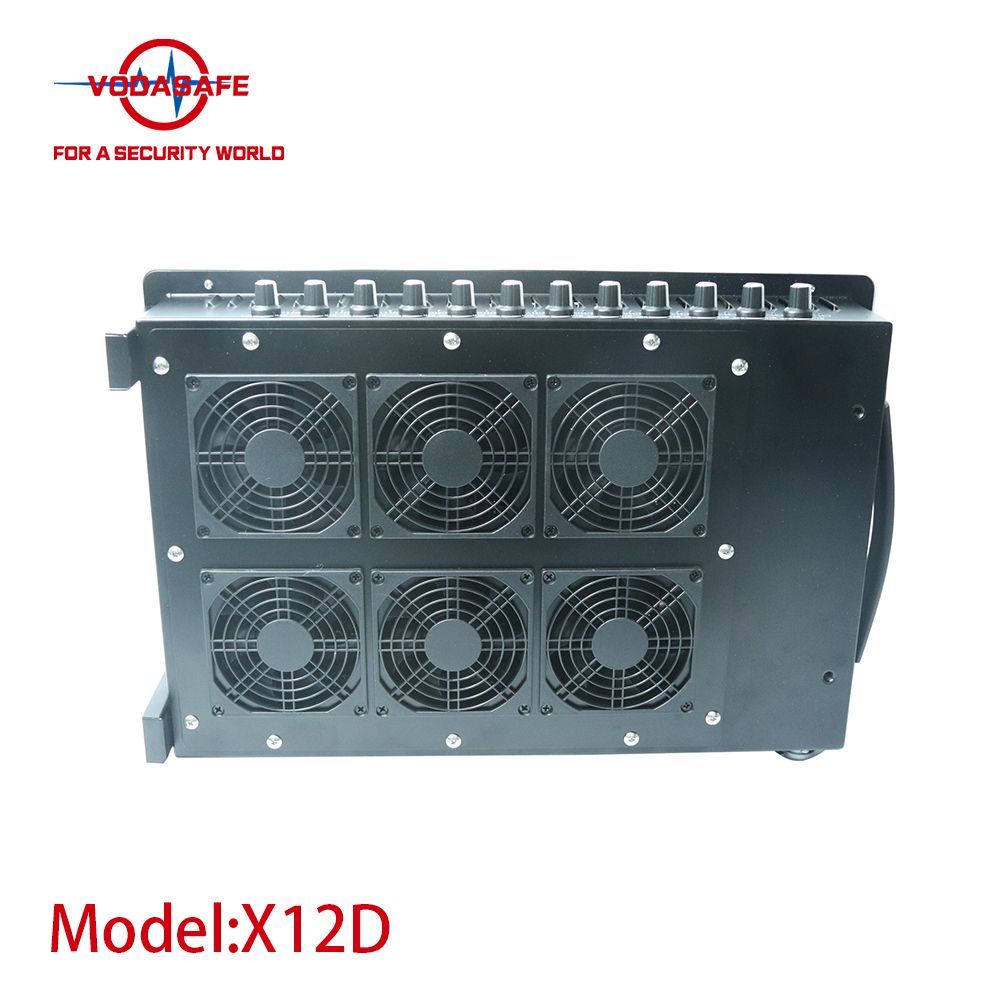

3. Features six silent cooling fans.
4. Utilizes advanced foreign chips and technology with soft-start circuit design for high integration;
5. Employs ultra-high-frequency interference technology; waterproof design enables indoor/outdoor use.

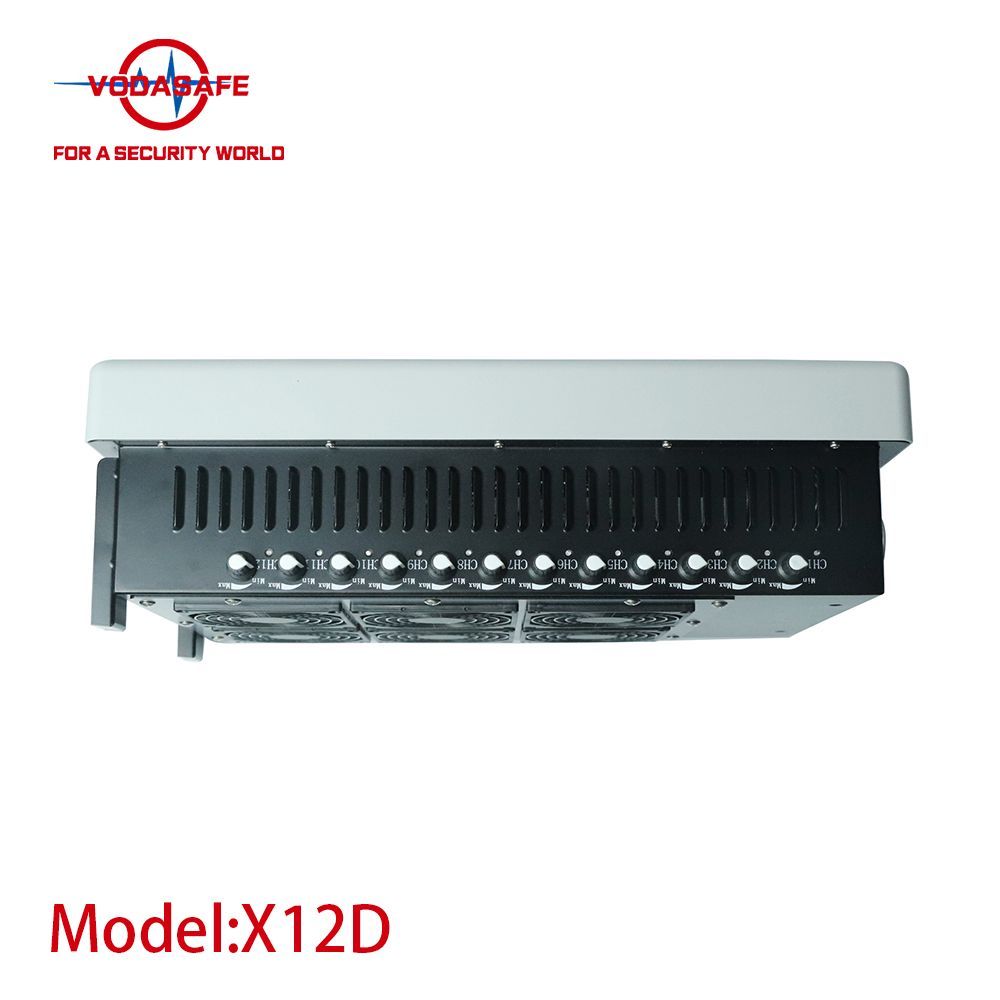

6. Features multi-channel segmented independent shielding technology for enhanced effectiveness;
7. Manual switch controls operation with effective shielding range of 8m-100m (depending on carrier network signal strength);
8. Capable of extended uninterrupted operation;
9. Interference frequency bands expandable per user requirements;
10. Primary application scenarios:
11. Confidential meeting venues in government agencies, enterprises, etc.;
12. Courts, detention centers, and prisons of all sizes;
Any location prohibiting mobile phone
X12D Specifications
|
Dimensions
|
435 x 293 x 130 (L x W x H).
|
|
Weight
|
7.2 kg (main unit).
|
|
Channel
|
Block signals
|
Operating frequency
|
Band Output Power
|
Channel output power
|
|
CH1
|
China Broadcasting Network 5G/China Mobile 5G
|
758-803MHz
|
40dBm
|
5dBm/30KHz(min)
|
|
CH2
|
CDMA/Telecom 2G/4G
|
869-880MHz
|
40dBm
|
5dBm/30KHz(min)
|
|
CH3
|
GSM/Mobile 2G China Unicom 4G
|
925-960MHz
|
40dBm
|
5dBm/30KHz(min)
|
|
CH4
|
DCS Mobile 2G/4G China Unicom 4G China Telecom 4G
|
1805-1918MHz
|
40dBm
|
2dBm/30KHz(min)
|
|
CH5
|
PHS Mobile 2G/4G China Unicom 4G China Telecom 4G
|
1805-1920MHz
|
40dBm
|
2dBm/30KHz(min)
|
|
CH6
|
3G Mobile China Unicom China Telecom 3G 4G
|
2010-2170MHZ
|
40dBm
|
2dBm/30KHz(min)
|
|
CH7
|
3G China Unicom China Telecom 3G 4G
|
2110-2170MHZ
|
40dBm
|
2dBm/30KHz(min)
|
|
CH8
|
4G1 Mobile 4G (Indoor Coverage)
|
2300-2390MHZ
|
40dBm
|
2dBm/30KHz(min)
|
|
CH9
|
WIFI2.4G 5.8G
|
2400-2483MHZ/5725-5850mhz
|
37dBm
|
2dBm/30KHz(min)
|
|
CH10
|
Mobile 4G 5G
|
2515-2600MHZ
|
39.5dBm
|
2dBm/30KHz(min)
|
|
Mobile 4G 5G
|
2600-2675MHZ
|
39.5dBm
|
2dBm/30KHz(min)
|
|
CH11
|
5G1 Telecom 5G
|
3400-3500MHz
|
39dBm
|
2dBm/30KHz(min)
|
|
5G2 China Unicom 5G
|
3500-3600MHz
|
39dBm
|
2dBm/30KHz(min)
|
|
CH12
|
5G2 Mobile 5G (Indoor Distribution) Wi-Fi 5.2G
|
4800-4900MHz/5150-5350MHZ
|
37dBm
|
2dBm/30KHz(min)
|
|
Shielding Range
|
8–50 meters (depending on the strength of the mobile carrier's network signal)
|
|
Power Supply and Power Consumption
|

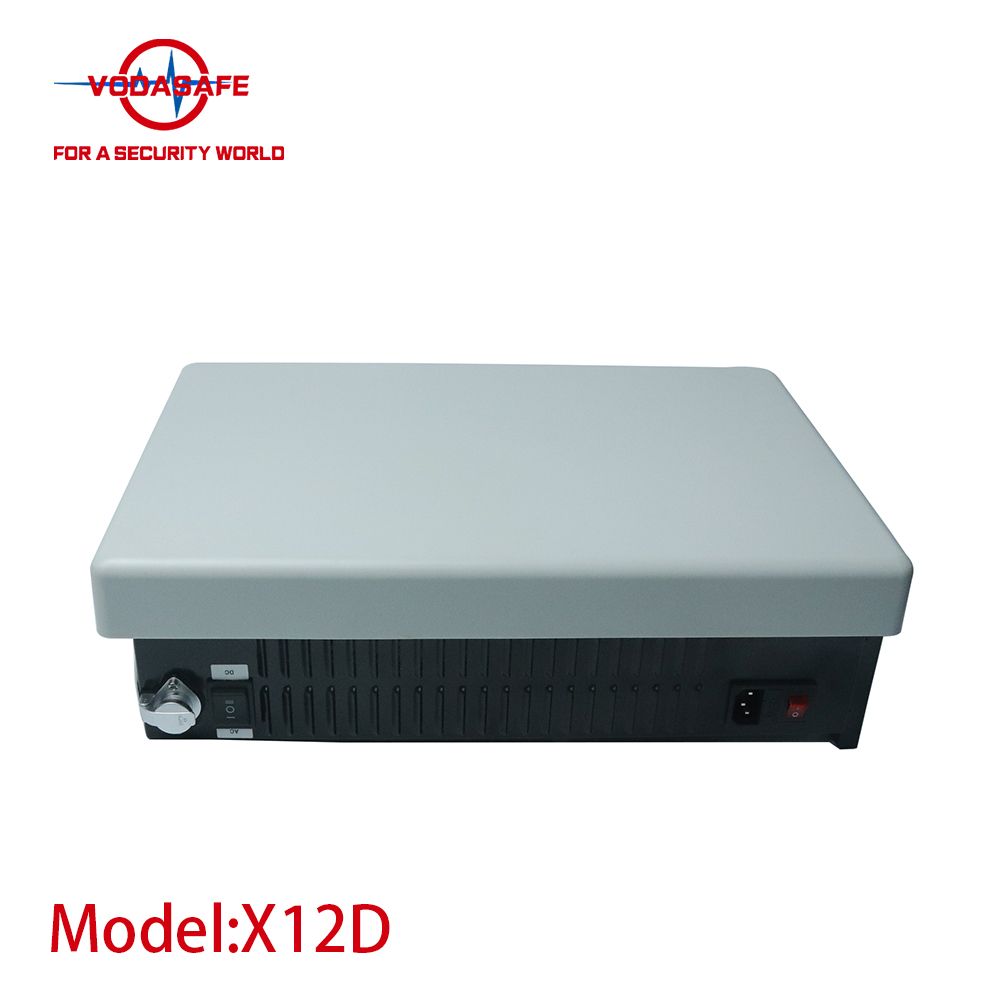

AC 110-220V/DC 24V/20A, Power Consumption: 480W. Built-in dual switching power supply.
|
|
Operating/Storage Temperature
|
Operating temperature: -10°C to +55°C; Storage temperature: -20°C to +60°C.
|
