Name: 2G 3G 4G UHF VHF Gps Lojack Mobile Phone Signal Jammer Jamming 8 Signals Prison Signal Jammers PJ6100 (6bands/100W each)
Brand: Vodasafe official store
SKU: PJ6100
Price: 9999 USD
Availability: InStock

0.0 (0)

0 Sold

$9,999.00 ~~$9,999.00~~

The SZ Vodasafe VS-PJ6100 is a cutting-edge high-power RF signal jammer engineered to deliver reliable, long-range signal shielding for diverse civilian applications. Leveraging advanced UHF interference technology, this device combines robust performance, flexible customization, and user-centric design, making it the ideal solution for controlled signal management in both indoor and outdoor environments.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

2G 3G 4G UHF VHF Gps Lojack Mobile Phone Signal Jammer Jamming 8 Signals Prison Signal Jammers PJ6100 (6bands/100W each)

SZ Vodasafe VS-PJ6100 High-Power Multi-Band RF Signal Jammer
The SZ Vodasafe VS-PJ6100 is a cutting-edge high-power RF signal jammer engineered to deliver reliable, long-range signal shielding for diverse civilian applications. Leveraging advanced UHF interference technology, this device combines robust performance, flexible customization, and user-centric design, making it the ideal solution for controlled signal management in both indoor and outdoor environments.
Crafted with imported premium components and a slow-start circuit design, the VS-PJ6100 ensures exceptional stability even during 24/7 continuous operation. Its rugged structure, efficient cooling system, waterproof features, and comprehensive safety protections enhance durability and practicality across varying conditions. What sets it apart is its highly customizable frequency band configuration-supporting 8 to 10 bands (selected from a wide range of applicable RF frequencies) to tailor shielding capabilities to specific user needs.

Specifications
Frequency Bands & Output Power
Customizable Configuration: 8-10 selectable RF frequency bands (from standard and extended options)
Standard Frequency Ranges (Base 6 Bands, Expandable):
CH1: 925-960MHz (GSM 900)
CH2: 1805-1880MHz (GSM 1800/DCS)
CH3: 2110-2170MHz (3G)
CH4: 758-821MHz (4G LTE)
CH5: 2570-2690MHz (4G Wimax)
CH6: 2400-2500MHz (WIFI 2.4G)
Extended Custom Bands (Available for 8-10 Band Upgrade): 800MHz CDMA, 1900MHz PCS, 3300-3800MHz 5G, 5150-5850MHz WIFI 5G, etc.
Average Output Power per Band: 50±1dBm (100W±20W)
Jamming Radius: Up to 500m (actual range varies by local signal strength and terrain)

Electrical Parameters
Power Supply: AC 110-240V / DC 27V (with dedicated AC adapter)
Energy Consumption: Approximately 1000W
Power Supply Operating Frequency: 50-60Hz
Physical & Antenna Details
Device Dimensions (L×W×H): 520×230×200mm
Net Weight: ~50kgs (excluding antennas and accessories)
Directional Antenna Specifications:
Input Impedance: 50Ω
VSWR: <1.5
Gain: 15dBi
Polarization: Vertical
Maximum Power Capacity: 500W
Wind Resistance: 200km/h
Weight: 2.8kgs
Mounting Pole Diameter: 50-110mm

Features
Advanced UHF Interference Technology: Ensures precise shielding for 3G/4G/WIFI and custom-selected RF signals, with long-distance coverage.
8-10 Customizable Frequency Bands: Flexibly upgrade from 6 base bands to 8-10 bands to target specific signals as needed.
High Stable Power Output: 100W±20W per band guarantees strong interference capability and consistent performance.
24/7 Continuous Operation: Designed for non-stop use with premium components and reliable circuit protection.

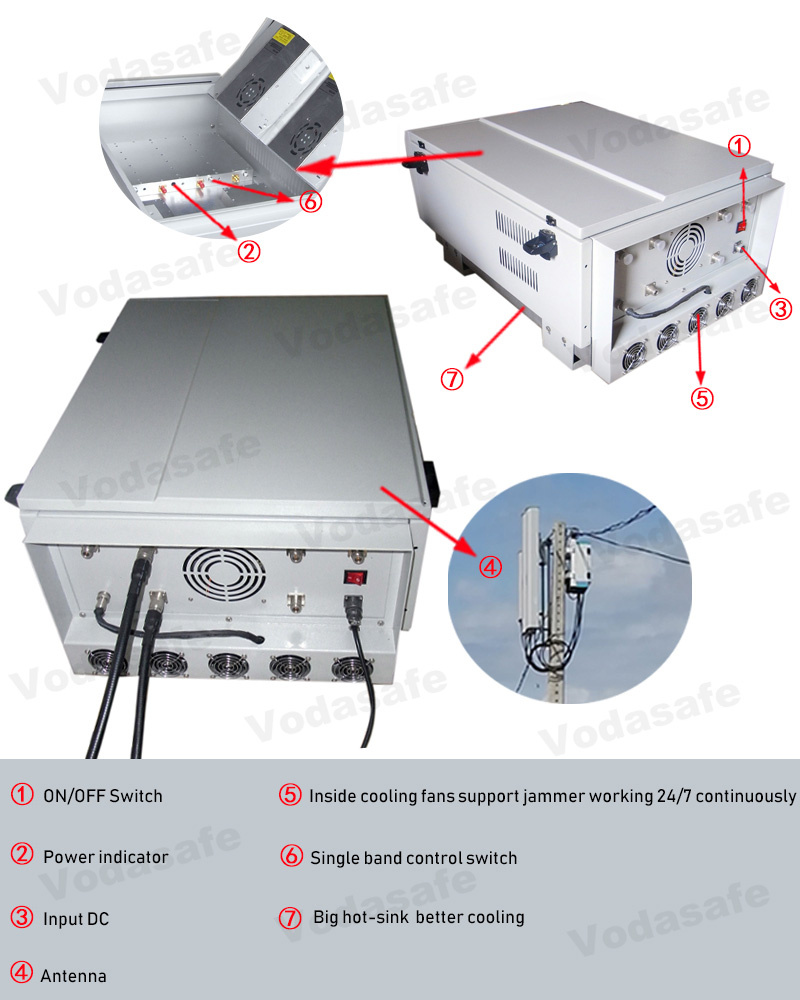

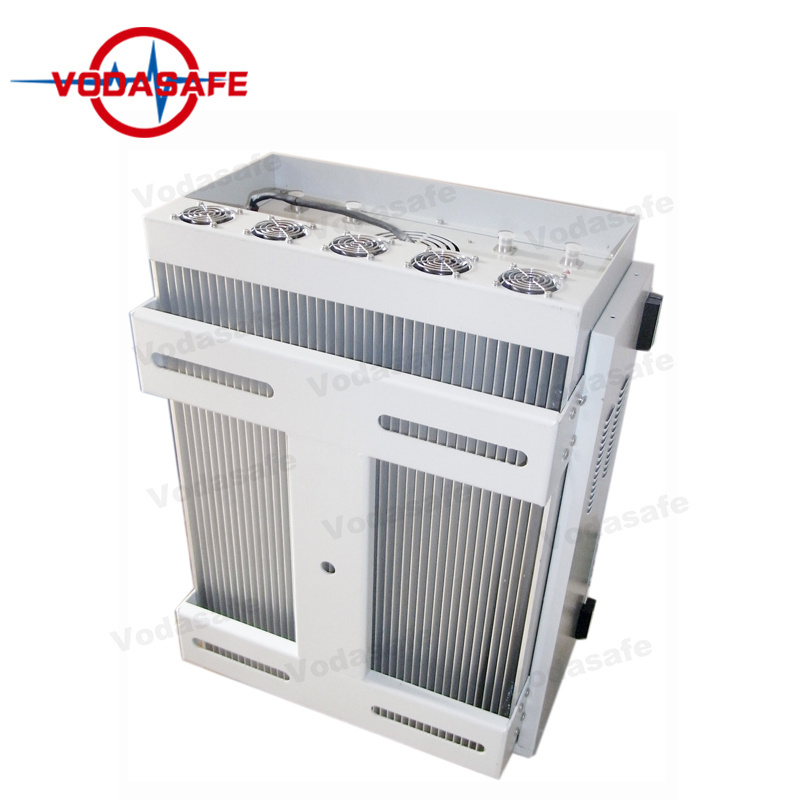

Efficient Cooling System: 6 built-in high-speed fans with dedicated DC ports prevent overheating during prolonged operation.
Flexible Band Control: Adjust or shut down individual bands without affecting other operations.
Rugged & Waterproof Design: Waterproof outlets, corrosion-resistant materials, and safety locks ensure durability in outdoor and harsh environments.
Easy Installation: Wall-mountable (compatible with M15-M20 screws) and compatible with directional antennas for optimized coverage.

Application Areas
Ideal for civilian scenarios requiring controlled signal management:
Meeting rooms, conference halls, and training centers
Museums, galleries, and exhibition halls (prevent unauthorized photography/video)
Theatres, concert halls, and cinemas
Churches, temples, and places of worship
Restaurants, cafes, and leisure venues
Factories, workshops, and production facilities
Banks, financial institutions, and commercial offices
Public transportation (trains, buses)
Note: For hospitals, gas stations, or locations with critical equipment, conduct on-site testing first to avoid interference with essential systems.
Customization & Support
ODM/OEM Services: Custom frequency band selection (8-10 bands), additional functions, and personalized packaging.
Warranty: 1-year warranty covering material and workmanship defects under normal use.
Maintenance: Professional troubleshooting and repair support via local distributors.
